ACE_Abstract_Timer_Queue< TYPE > Class Template Referenceabstract

Base class for all timer queues of a single type. More...

#include <Abstract_Timer_Queue.h>

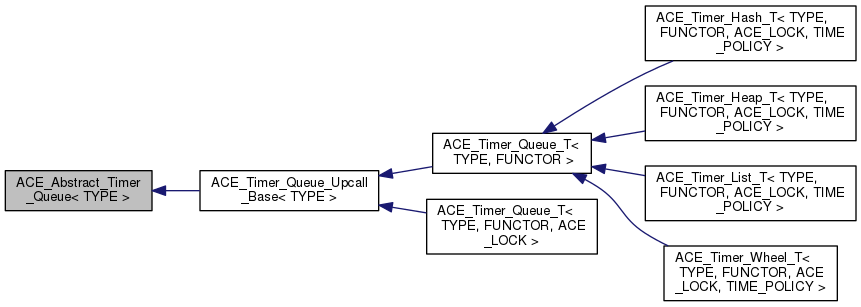

Inheritance diagram for ACE_Abstract_Timer_Queue< TYPE >:
Inheritance graph
[legend]

Public Types

typedef ACE_Timer_Queue_Iterator_T< TYPE > ITERATOR
 Type of Iterator. More...


Public Member Functions

virtual ~ACE_Abstract_Timer_Queue (void)=0
 Destructor. More...

virtual bool is_empty (void) const =0
 True if queue is empty, else false. More...

virtual const ACE_Time_Valueearliest_time (void) const =0

virtual long schedule (const TYPE &type, const void *act, const ACE_Time_Value &future_time, const ACE_Time_Value &interval=ACE_Time_Value::zero)=0

virtual int expire (const ACE_Time_Value &current_time)=0

virtual int expire (void)=0

virtual int expire_single (ACE_Command_Base &pre_dispatch_command)=0

virtual int reset_interval (long timer_id, const ACE_Time_Value &interval)=0

virtual int cancel (const TYPE &type, int dont_call_handle_close=1)=0

virtual int cancel (long timer_id, const void **act=0, int dont_call_handle_close=1)=0

virtual int close (void)=0

virtual ACE_Time_Value gettimeofday (void)=0

virtual void gettimeofday (ACE_Time_Value(*gettimeofday)(void))=0

virtual ACE_Time_Valuecalculate_timeout (ACE_Time_Value *max)=0

virtual ACE_Time_Valuecalculate_timeout (ACE_Time_Value *max, ACE_Time_Value *the_timeout)=0

virtual ACE_Time_Value current_time ()=0

virtual ITERATORiter (void)=0
 Returns a pointer to this ACE_Timer_Queue's iterator. More...

virtual ACE_Timer_Node_T< TYPE > * remove_first (void)=0
 Removes the earliest node from the queue and returns it. More...

virtual ACE_Timer_Node_T< TYPE > * get_first (void)=0
 Reads the earliest node from the queue and returns it. More...

virtual void dump (void) const =0
 Dump the state of a object. More...


Detailed Description

template<typename TYPE>
class ACE_Abstract_Timer_Queue< TYPE >

Base class for all timer queues of a single type.

This is a base class for all the timer queues, regardless of locking strategy, upcall mechanism, internal implementation, etc. The class was motivated by bug 3706: http://bugzilla.dre.vanderbilt.edu/show_bug.cgi?id=3706 In short, the Reactor (and potentially other classes) want to refer to timer queues regardless of the implementation internals.

Member Typedef Documentation

template<typename TYPE >
typedef ACE_Timer_Queue_Iterator_T<TYPE> ACE_Abstract_Timer_Queue< TYPE >::ITERATOR

Type of Iterator.

Constructor & Destructor Documentation

template<typename TYPE >
ACE_Abstract_Timer_Queue< TYPE >::~ACE_Abstract_Timer_Queue ( void  )
pure virtual

Destructor.

Member Function Documentation

template<typename TYPE >
virtual ACE_Time_Value* ACE_Abstract_Timer_Queue< TYPE >::calculate_timeout ( ACE_Time_Value max)
pure virtual

Determine the next event to timeout. Returns max if there are no pending timers or if all pending timers are longer than max. This method acquires a lock internally since it modifies internal state.

Implemented in ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >, and ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >.

template<typename TYPE >
virtual ACE_Time_Value* ACE_Abstract_Timer_Queue< TYPE >::calculate_timeout ( ACE_Time_Value max,
ACE_Time_Value the_timeout
)
pure virtual

Determine the next event to timeout. Returns max if there are no pending timers or if all pending timers are longer than max. the_timeout should be a pointer to storage for the timeout value, and this value is also returned. This method does not acquire a lock internally since it doesn't modify internal state. If you need to call this method when the queue is being modified concurrently, however, you should make sure to acquire the <mutex()> externally before making the call.

Implemented in ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >, and ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >.

template<typename TYPE >
virtual int ACE_Abstract_Timer_Queue< TYPE >::cancel ( const TYPE &  type,
int  dont_call_handle_close = 1
)
pure virtual

Cancel all timer associated with type. If dont_call_handle_close is 0 then the <functor> will be invoked, which typically invokes the <handle_close> hook. Returns number of timers cancelled.

Implemented in ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET, TIME_POLICY >, ACE_Timer_Heap_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >, ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >, and ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >.

template<typename TYPE >
virtual int ACE_Abstract_Timer_Queue< TYPE >::cancel ( long  timer_id,
const void **  act = 0,
int  dont_call_handle_close = 1
)
pure virtual

Cancel the single timer that matches the timer_id value (which was returned from the <schedule> method). If act is non-NULL then it will be set to point to the ``magic cookie'' argument passed in when the timer was registered. This makes it possible to free up the memory and avoid memory leaks. If dont_call_handle_close is 0 then the <functor> will be invoked, which typically calls the <handle_close> hook. Returns 1 if cancellation succeeded and 0 if the timer_id wasn't found.

Implemented in ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET, TIME_POLICY >, ACE_Timer_Heap_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >, ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >, and ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >.

template<typename TYPE >
virtual int ACE_Abstract_Timer_Queue< TYPE >::close ( void  )
pure virtual
template<typename TYPE >
virtual ACE_Time_Value ACE_Abstract_Timer_Queue< TYPE >::current_time ( )
pure virtual

Return the current time, using the right time policy and any timer skew defined in derived classes.

Implemented in ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >, and ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >.

template<typename TYPE >
virtual void ACE_Abstract_Timer_Queue< TYPE >::dump ( void  ) const
pure virtual
template<typename TYPE >
virtual const ACE_Time_Value& ACE_Abstract_Timer_Queue< TYPE >::earliest_time ( void  ) const
pure virtual
template<typename TYPE >
virtual int ACE_Abstract_Timer_Queue< TYPE >::expire ( const ACE_Time_Value current_time)
pure virtual

Run the <functor> for all timers whose values are <= current_time. This does not account for <timer_skew>. Returns the number of timers canceled.

Implemented in ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET, TIME_POLICY >, ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >, ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >, and ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >.

template<typename TYPE >
virtual int ACE_Abstract_Timer_Queue< TYPE >::expire ( void  )
pure virtual

Run the <functor> for all timers whose values are <= <ACE_OS::gettimeofday>. Also accounts for <timer_skew>.

Depending on the resolution of the underlying OS the system calls like select()/poll() might return at time different than that is specified in the timeout. Suppose the OS guarantees a resolution of t ms. The timeline will look like

        A                   B
        |                   |
        V                   V

|----------—|----------—|----------—|----------—| t t t t t

If you specify a timeout value of A, then the timeout will not occur at A but at the next interval of the timer, which is later than that is expected. Similarly, if your timeout value is equal to B, then the timeout will occur at interval after B. Now depending upon the resolution of your timeouts and the accuracy of the timeouts needed for your application, you should set the value of <timer_skew>. In the above case, if you want the timeout A to fire no later than A, then you should specify your <timer_skew> to be A % t.

The timeout value should be specified via the macro ACE_TIMER_SKEW in your config.h file. The default value is zero.

Things get interesting if the t before the timeout value B is zero i.e your timeout is less than the interval. In that case, you are almost sure of not getting the desired timeout behaviour. Maybe you should look for a better OS :-)

Returns the number of timers canceled.

Implemented in ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET, TIME_POLICY >, ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >, ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >, and ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >.

template<typename TYPE >
virtual int ACE_Abstract_Timer_Queue< TYPE >::expire_single ( ACE_Command_Base pre_dispatch_command)
pure virtual

A couple of classes using Timer_Queues need to dispatch a single event at a time. But before they dispatch the event they need to release a lock, signal other threads, etc.

This member function should be used in that case. The additional operations to be called just before dispatching the event, and only if an event will be dispatched, are encapsulated in the ACE_Command_Base object.

Implemented in ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >, and ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >.

template<typename TYPE >
virtual ACE_Timer_Node_T<TYPE>* ACE_Abstract_Timer_Queue< TYPE >::get_first ( void  )
pure virtual
template<typename TYPE >
virtual ACE_Time_Value ACE_Abstract_Timer_Queue< TYPE >::gettimeofday ( void  )
pure virtual

Returns the current time of day. This method allows different implementations of the timer queue to use special high resolution timers.

Implemented in ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >, and ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >.

template<typename TYPE >
virtual void ACE_Abstract_Timer_Queue< TYPE >::gettimeofday ( ACE_Time_Value(*)(void)  gettimeofday)
pure virtual

Allows applications to control how the timer queue gets the time of day.

Deprecated:
Use TIME_POLICY support instead. See Timer_Queue_T.h

Implemented in ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >, and ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >.

template<typename TYPE >
virtual bool ACE_Abstract_Timer_Queue< TYPE >::is_empty ( void  ) const
pure virtual
template<typename TYPE >
virtual ITERATOR& ACE_Abstract_Timer_Queue< TYPE >::iter ( void  )
pure virtual
template<typename TYPE >
virtual ACE_Timer_Node_T<TYPE>* ACE_Abstract_Timer_Queue< TYPE >::remove_first ( void  )
pure virtual
template<typename TYPE >
virtual int ACE_Abstract_Timer_Queue< TYPE >::reset_interval ( long  timer_id,
const ACE_Time_Value interval
)
pure virtual

Resets the interval of the timer represented by timer_id to interval, which is specified in relative time to the current <gettimeofday>. If interval is equal to ACE_Time_Value::zero, the timer will become a non-rescheduling timer. Returns 0 if successful, -1 if not.

Implemented in ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET, TIME_POLICY >, ACE_Timer_Heap_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >, ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >, and ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >.

template<typename TYPE >
virtual long ACE_Abstract_Timer_Queue< TYPE >::schedule ( const TYPE &  type,
const void *  act,
const ACE_Time_Value future_time,
const ACE_Time_Value interval = ACE_Time_Value::zero
)
pure virtual

Schedule type that will expire at future_time, which is specified in absolute time. If it expires then act is passed in as the value to the <functor>. If interval is != to ACE_Time_Value::zero then it is used to reschedule the type automatically, using relative time to the current <gettimeofday>. This method returns a <timer_id> that uniquely identifies the the type entry in an internal list. This <timer_id> can be used to cancel the timer before it expires. The cancellation ensures that <timer_ids> are unique up to values of greater than 2 billion timers. As long as timers don't stay around longer than this there should be no problems with accidentally deleting the wrong timer. Returns -1 on failure (which is guaranteed never to be a valid <timer_id>).

Implemented in ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >, and ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >.


The documentation for this class was generated from the following files:
