TAO_CosNotification  2.3.4
Public Member Functions | Private Attributes | List of all members
TAO_Notify::XML_Topology_Factory Class Reference

Create XML topology savers and loaders. More...

#include <XML_Topology_Factory.h>

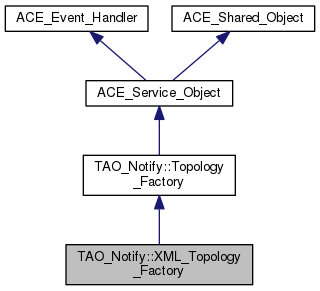

Inheritance diagram for TAO_Notify::XML_Topology_Factory:
Inheritance graph
[legend]
Collaboration diagram for TAO_Notify::XML_Topology_Factory:
Collaboration graph
[legend]

Public Member Functions

 XML_Topology_Factory ()
 The constructor. More...

virtual ~XML_Topology_Factory ()

virtual Topology_Savercreate_saver ()

virtual Topology_Loadercreate_loader ()

virtual int init (int argc, ACE_TCHAR *argv[])

virtual int fini ()

- Public Member Functions inherited from TAO_Notify::Topology_Factory
virtual ~Topology_Factory ()

- Public Member Functions inherited from ACE_Service_Object
 ACE_Service_Object (ACE_Reactor *=0)

virtual ~ACE_Service_Object (void)

virtual int suspend (void)

virtual int resume (void)

- Public Member Functions inherited from ACE_Event_Handler
virtual ~ACE_Event_Handler (void)

virtual ACE_HANDLE get_handle (void) const

virtual void set_handle (ACE_HANDLE)

virtual int priority (void) const

virtual void priority (int priority)

virtual int handle_input (ACE_HANDLE fd=ACE_INVALID_HANDLE)

virtual int handle_output (ACE_HANDLE fd=ACE_INVALID_HANDLE)

virtual int handle_exception (ACE_HANDLE fd=ACE_INVALID_HANDLE)

virtual int handle_timeout (const ACE_Time_Value &current_time, const void *act=0)

virtual int handle_exit (ACE_Process *)

virtual int handle_close (ACE_HANDLE handle, ACE_Reactor_Mask close_mask)

virtual int handle_signal (int signum, siginfo_t *=0, ucontext_t *=0)

virtual int resume_handler (void)

virtual int handle_qos (ACE_HANDLE=ACE_INVALID_HANDLE)

virtual int handle_group_qos (ACE_HANDLE=ACE_INVALID_HANDLE)

virtual void reactor (ACE_Reactor *reactor)

virtual ACE_Reactorreactor (void) const

virtual ACE_Reactor_Timer_Interfacereactor_timer_interface (void) const

virtual Reference_Count add_reference (void)

virtual Reference_Count remove_reference (void)

Reference_Counting_Policyreference_counting_policy (void)

- Public Member Functions inherited from ACE_Shared_Object
 ACE_Shared_Object (void)

virtual ~ACE_Shared_Object (void)

virtual int info (ACE_TCHAR **info_string, size_t length=0) const


Private Attributes

ACE_TString save_base_path_

ACE_TString load_base_path_

size_t backup_count_

bool timestamp_


Additional Inherited Members

- Public Types inherited from ACE_Event_Handler
typedef long Reference_Count

- Static Public Member Functions inherited from ACE_Event_Handler
static ACE_THR_FUNC_RETURN read_adapter (void *event_handler)

static int register_stdin_handler (ACE_Event_Handler *eh, ACE_Reactor *reactor, ACE_Thread_Manager *thr_mgr, int flags=THR_DETACHED)

static int remove_stdin_handler (ACE_Reactor *reactor, ACE_Thread_Manager *thr_mgr)

- Public Attributes inherited from ACE_Service_Object
 ACE_ALLOC_HOOK_DECLARE

- Public Attributes inherited from ACE_Event_Handler
 LO_PRIORITY

 HI_PRIORITY

 NULL_MASK

 READ_MASK

 WRITE_MASK

 EXCEPT_MASK

 ACCEPT_MASK

 CONNECT_MASK

 TIMER_MASK

 QOS_MASK

 GROUP_QOS_MASK

 SIGNAL_MASK

 ALL_EVENTS_MASK

 RWE_MASK

 DONT_CALL

 ACE_EVENT_HANDLER_NOT_RESUMED

 ACE_REACTOR_RESUMES_HANDLER

 ACE_APPLICATION_RESUMES_HANDLER

- Protected Types inherited from ACE_Event_Handler
typedef ACE_Atomic_Op< ACE_SYNCH_MUTEX, Reference_CountAtomic_Reference_Count

- Protected Member Functions inherited from ACE_Event_Handler
 ACE_Event_Handler (ACE_Reactor *=0, int priority=ACE_Event_Handler::LO_PRIORITY)

- Protected Attributes inherited from ACE_Event_Handler
Atomic_Reference_Count reference_count_


Detailed Description

Create XML topology savers and loaders.

Loaded by a svc.conf line like: dynamic Topology_Factory Service_Object* TAO_CosNotificationd:_make_XML_Topology_Factory() "[arguments]" where arguments are: -base_path Base path (directory and filename) for both saving and loading. .xml will be appended to the base path Default is ./Notification_Service_Topology -save_base_path Base path for saving. -load_base_path Base path for loading. -file_count How many backup copies to keep. Default is 1 -no_timestamp Disable timestamping (makes files diffable) Note: you can set both saving and storing to the same file using -base_path Or you can set them independently using -save_base_path and -load_base_path

Constructor & Destructor Documentation

TAO_Notify::XML_Topology_Factory::XML_Topology_Factory ( )

The constructor.

TAO_Notify::XML_Topology_Factory::~XML_Topology_Factory ( )
virtual

Member Function Documentation

Topology_Loader * TAO_Notify::XML_Topology_Factory::create_loader ( )
virtual

Create a Loader

Returns
a pointer to a Topology_Loader which must be deleted by the caller.

Implements TAO_Notify::Topology_Factory.

Topology_Saver * TAO_Notify::XML_Topology_Factory::create_saver ( )
virtual

Create a Saver.

Returns
a pointer to a Topology_Saver which must be deleted by the caller.

Implements TAO_Notify::Topology_Factory.

int TAO_Notify::XML_Topology_Factory::fini ( void  )
virtual

Reimplemented from ACE_Shared_Object.

int TAO_Notify::XML_Topology_Factory::init ( int  argc,
ACE_TCHAR argv[]
)
virtual

Reimplemented from ACE_Shared_Object.

Member Data Documentation

size_t TAO_Notify::XML_Topology_Factory::backup_count_
private
ACE_TString TAO_Notify::XML_Topology_Factory::load_base_path_
private
ACE_TString TAO_Notify::XML_Topology_Factory::save_base_path_
private
bool TAO_Notify::XML_Topology_Factory::timestamp_
private

The documentation for this class was generated from the following files:
