TAO  2.3.3
Public Member Functions | Protected Attributes | Private Attributes | List of all members
TAO_Synch_Reply_Dispatcher Class Reference

Reply dispatcher for Synchronous Method Invocation (SMI)s. More...

#include <Synch_Reply_Dispatcher.h>

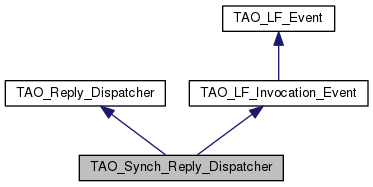

Inheritance diagram for TAO_Synch_Reply_Dispatcher:
Inheritance graph
[legend]

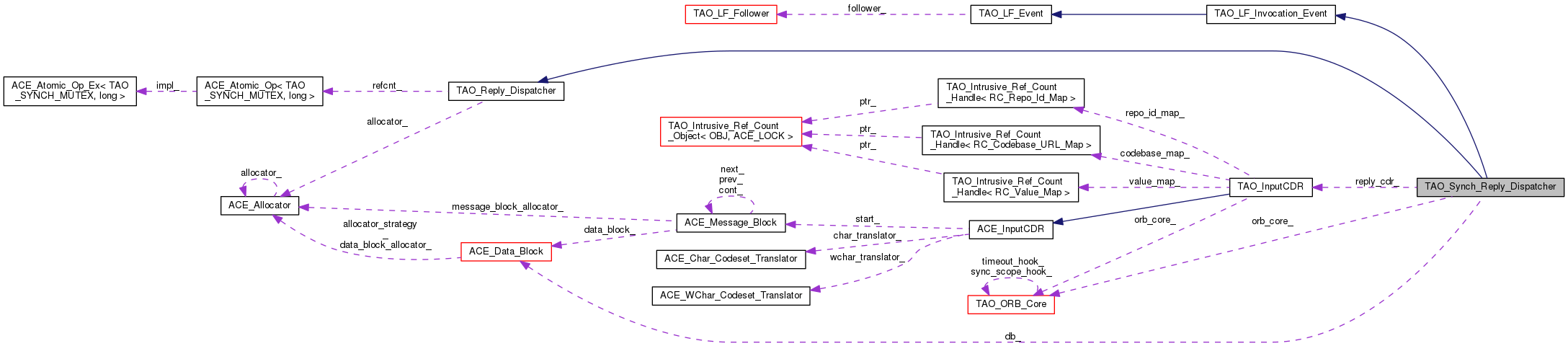

Collaboration diagram for TAO_Synch_Reply_Dispatcher:
Collaboration graph
[legend]

Public Member Functions

 TAO_Synch_Reply_Dispatcher (TAO_ORB_Core *orb_core, IOP::ServiceContextList &sc)
 Constructor. More...

virtual ~TAO_Synch_Reply_Dispatcher (void)
 Destructor. More...

TAO_InputCDRreply_cdr (void)
 Return the reply CDR. More...

virtual int dispatch_reply (TAO_Pluggable_Reply_Params &params)

virtual void connection_closed (void)

virtual void reply_timed_out (void)
 Inform that the reply timed out. More...

- Public Member Functions inherited from TAO_Reply_Dispatcher
 TAO_Reply_Dispatcher (ACE_Allocator *allocator=0)
 Constructor. More...

virtual ~TAO_Reply_Dispatcher (void)
 Destructor. More...

GIOP::LocateStatusType locate_reply_status (void) const
 Get the locate reply status. More...

GIOP::ReplyStatusType reply_status (void) const

- Public Member Functions inherited from TAO_LF_Invocation_Event
 TAO_LF_Invocation_Event (void)
 Constructor. More...

virtual ~TAO_LF_Invocation_Event (void)
 Destructor. More...

int successful (void) const

int error_detected (void) const

- Public Member Functions inherited from TAO_LF_Event
 TAO_LF_Event (void)
 Constructor. More...

virtual ~TAO_LF_Event (void)
 Destructor. More...

virtual int bind (TAO_LF_Follower *follower)
 Bind a follower. More...

virtual int unbind (TAO_LF_Follower *follower)
 Unbind the follower. More...

void reset_state (int new_state)
 Reset the state, irrespective of the previous states. More...

void state_changed (int new_state, TAO_Leader_Follower &lf)

int keep_waiting (void)
 Check if we should keep waiting. More...


Protected Attributes

IOP::ServiceContextListreply_service_info_
 The service context list. More...

- Protected Attributes inherited from TAO_Reply_Dispatcher
GIOP::LocateStatusType locate_reply_status_
 LocateReply status. More...

GIOP::ReplyStatusType reply_status_

- Protected Attributes inherited from TAO_LF_Event
int state_
 The current state. More...

TAO_LF_Followerfollower_
 The bounded follower. More...


Private Attributes

TAO_ORB_Coreorb_core_
 Cache the ORB Core pointer. More...

char buf_ [ACE_CDR::DEFAULT_BUFSIZE]
 The buffer that is used to initialise the data block. More...

ACE_Data_Block db_

TAO_InputCDR reply_cdr_


Additional Inherited Members

- Public Types inherited from TAO_LF_Event
enum  {
  LFS_IDLE = 0, LFS_ACTIVE, LFS_CONNECTION_WAIT, LFS_SUCCESS,
  LFS_FAILURE, LFS_TIMEOUT, LFS_CONNECTION_CLOSED
}

- Static Public Member Functions inherited from TAO_Reply_Dispatcher
static void intrusive_add_ref (TAO_Reply_Dispatcher *)

static void intrusive_remove_ref (TAO_Reply_Dispatcher *)

- Static Public Member Functions inherited from TAO_LF_Event
static const char * state_name (int st)

- Protected Member Functions inherited from TAO_LF_Invocation_Event
virtual void state_changed_i (int new_state)
 Validate and perform the state change. More...


Detailed Description

Reply dispatcher for Synchronous Method Invocation (SMI)s.

Constructor & Destructor Documentation

TAO_Synch_Reply_Dispatcher::TAO_Synch_Reply_Dispatcher ( TAO_ORB_Core orb_core,
IOP::ServiceContextList sc
)

Constructor.

TAO_Synch_Reply_Dispatcher::~TAO_Synch_Reply_Dispatcher ( void  )
virtual

Destructor.

Member Function Documentation

void TAO_Synch_Reply_Dispatcher::connection_closed ( void  )
virtual

The used for the pending reply has been closed. No reply is expected.

Todo:
If the connection was closed due to a CloseConnection message then we could re-issue the request instead of raising the exception, it would a matter of simply adding a boolean argument to this function.

Implements TAO_Reply_Dispatcher.

int TAO_Synch_Reply_Dispatcher::dispatch_reply ( TAO_Pluggable_Reply_Params params)
virtual

Dispatch the reply. Return 1 on sucess, -1 on error.

Todo:
Pluggable Messaging: this method has too many arguments, the "Right Thing"[tm] is for the Transport Object to create a "ClientReply" that encapsulates all we need to process a reply. Naturally it is possible that different messaging protocols implement different variants of such ClientReply class.

Implements TAO_Reply_Dispatcher.

TAO_InputCDR & TAO_Synch_Reply_Dispatcher::reply_cdr ( void  )

Return the reply CDR.

void TAO_Synch_Reply_Dispatcher::reply_timed_out ( void  )
virtual

Inform that the reply timed out.

Implements TAO_Reply_Dispatcher.

Member Data Documentation

char TAO_Synch_Reply_Dispatcher::buf_[ACE_CDR::DEFAULT_BUFSIZE]
private

The buffer that is used to initialise the data block.

ACE_Data_Block TAO_Synch_Reply_Dispatcher::db_
private

Datablock that is created on the stack to initialise the CDR stream underneath.

TAO_ORB_Core* TAO_Synch_Reply_Dispatcher::orb_core_
private

Cache the ORB Core pointer.

TAO_InputCDR TAO_Synch_Reply_Dispatcher::reply_cdr_
private

CDR stream which has the reply information that needs to be demarshalled by the stubs

IOP::ServiceContextList& TAO_Synch_Reply_Dispatcher::reply_service_info_
protected

The service context list.


The documentation for this class was generated from the following files:
