This class implements the basic interface for supporting multiple profiles. More...

#include <MProfile.h>

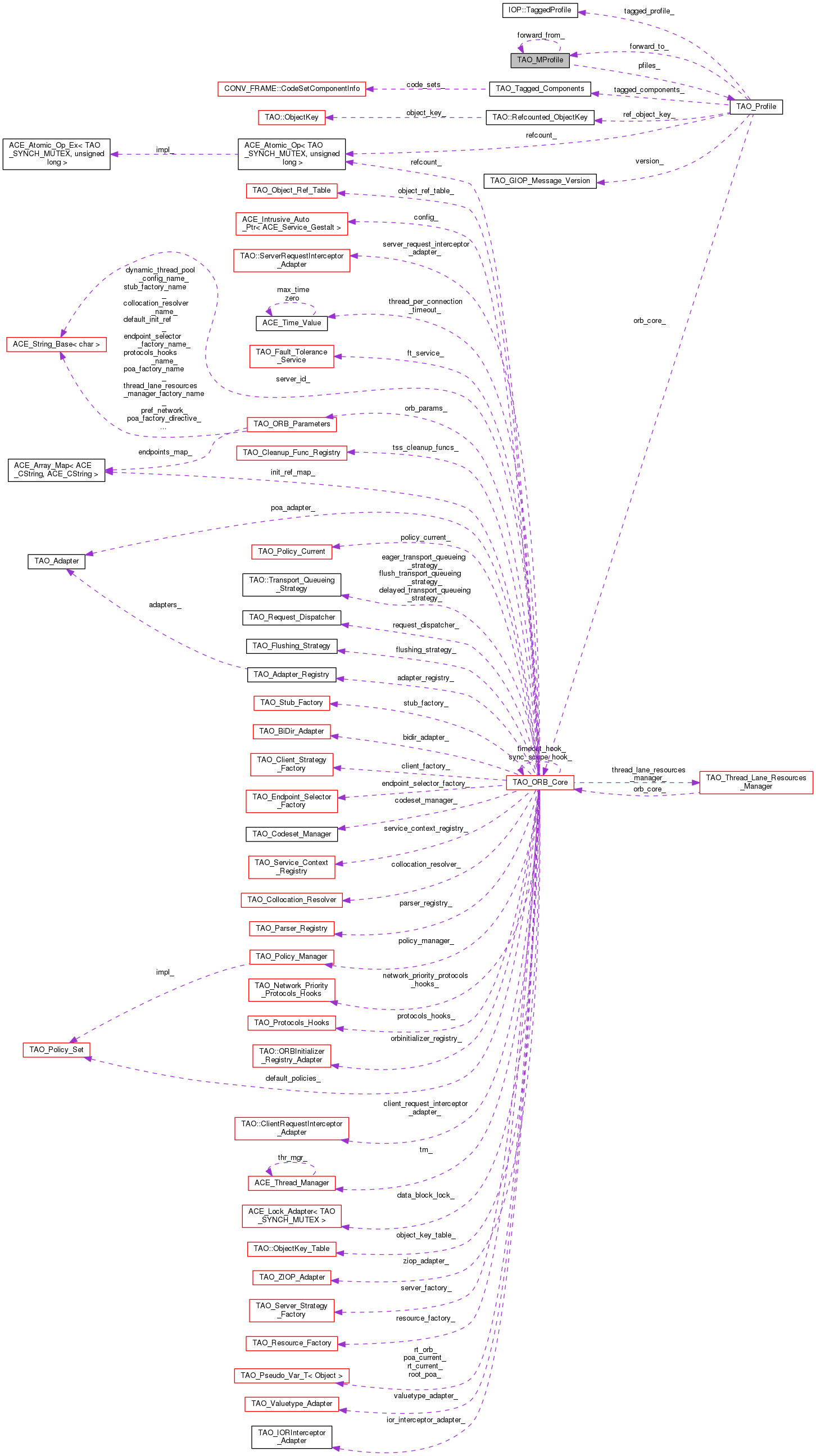

Collaboration diagram for TAO_MProfile:

Public Member Functions
	TAO_MProfile (CORBA::ULong sz=0)

	TAO_MProfile (const TAO_MProfile &mprofiles)

TAO_MProfile &	operator= (const TAO_MProfile &mprofiles)
	Assigment operator. More...

	~TAO_MProfile (void)

int	set (CORBA::ULong sz)

int	set (const TAO_MProfile &mprofile)

int	grow (CORBA::ULong sz)

TAO_Profile *	get_cnext (void)
	Treat as a circular list. More...

TAO_Profile *	get_next (void)
	Get next profile in list, return 0 at end of list. More...

TAO_Profile *	get_cprev (void)
	Assume a circular list of profiles. More...

TAO_Profile *	get_prev (void)
	Get previous profile, stop at beginning of list and return 0. More...

TAO_Profile *	get_current_profile (void)

TAO_Profile *	get_profile (TAO_PHandle handle)
	Return a pointer to the profile referenced by handle void. More...

TAO_PHandle	get_current_handle (void)
	Returns the index for the current profile. More...

TAO_PHandle	get_current_handle (void) const
	Returns the index for the current profile. More...

CORBA::ULong	profile_count (void) const
	Returns the number of profiles stored in the list (last_+1). More...

CORBA::ULong	size (void) const

const TAO_Profile *	get_profile (CORBA::ULong slot) const

void	rewind (void)
	Sets the current slot back to 0. More...

int	add_profile (TAO_Profile *pfile)

int	give_profile (TAO_Profile *pfile, int share=0)

int	add_profiles (TAO_MProfile *pfiles)

int	remove_profile (const TAO_Profile *pfile)
	remove from this MProfile any profiles which also appear in pfiles. More...

int	remove_profiles (const TAO_MProfile *pfiles)
	remove from this MProfile any profiles which also appear in pfiles. More...

void	forward_from (TAO_MProfile *mprofiles)

TAO_MProfile *	forward_from (void)
	Returns a pointer to the profile which was forwarded. More...

CORBA::Boolean	is_equivalent (const TAO_MProfile *rhs)

CORBA::ULong	hash (CORBA::ULong max)

void	policy_list (CORBA::PolicyList *policy_list)

CORBA::PolicyList *	policy_list (void)

Protected Member Functions
void	create_policy_list (void)

void	init_policy_list (void)
	Initialize the policy list, demarsharling the policy. More...

TAO_Profile **	pfiles (void) const

Protected Attributes
CORBA::PolicyList *	policy_list_

CORBA::Boolean	is_policy_list_initialized_

TAO_SYNCH_RECURSIVE_MUTEX	mutex_

Private Member Functions
void	cleanup (void)
	Helper method to implement the destructor. More...

int	give_shared_profile (TAO_Profile *pfile)

Private Attributes
TAO_MProfile *	forward_from_

TAO_Profile **	pfiles_
	Actual list of profiles. More...

TAO_PHandle	current_
	Points to the next profile to be used. 0 ... size_. More...

TAO_PHandle	size_
	Max size of array. More...

TAO_PHandle	last_
	Index plus 1 of last valid entry! May be < size_. More...

Friends
class	TAO_Profile
	Stores the policy list for the profile of this MProfile. More...

Detailed Description

This class implements the basic interface for supporting multiple profiles.

Multiple profiles can be treated either as a circular queue or a linear array of profiles. It is assumed that locking will only be required when a profile list is associated with a TAO_Stub. Thus when the TAO_Stub accepts ownership of an MProfile it also assumes responsibility for controling access (i.e. locking).

Constructor & Destructor Documentation

TAO_MProfile::TAO_MProfile ( CORBA::ULong sz = 0 )

TAO_MProfile::TAO_MProfile ( const TAO_MProfile & mprofiles )

**NOTE: IF mprofiles->last_ > 0, THEN this->size_ will be set to mprofiles->last_. Otherwise this->size_ - mprofiles->size_. Furthermore, current_ is set back to 0! i.e. rewound. The reference count on any profiles in mprofiles is increment when their references (i.e. pointers) are copied.

TAO_MProfile::~TAO_MProfile ( void )

Destructor: decrements reference count on all references profiles!

Member Function Documentation

int TAO_MProfile::add_profile ( TAO_Profile * pfile )

Return the index of this entry or -1 if it can not be added. reference count on profile in incremented!

int TAO_MProfile::add_profiles ( TAO_MProfile * pfiles )

append the profiles in pfiles to this object. The count will be incremented on the individual profile objects.

void TAO_MProfile::cleanup ( void )

private

Helper method to implement the destructor.

void TAO_MProfile::create_policy_list ( void )

protected

This method handle the dynamic allocation of the data member <policy_list_>.

void TAO_MProfile::forward_from ( TAO_MProfile * mprofiles )

Set a pointer to the MProfile whose 'current' TAO_Profile was forwarded This object is the set of forwarding profiles.

TAO_MProfile * TAO_MProfile::forward_from ( void )

Returns a pointer to the profile which was forwarded.

TAO_Profile * TAO_MProfile::get_cnext ( void )

Treat as a circular list.

Cyclic get next. It will simply cycle through the complete list.

TAO_Profile * TAO_MProfile::get_cprev ( void )

Assume a circular list of profiles.

TAO_PHandle TAO_MProfile::get_current_handle ( void )

Returns the index for the current profile.

TAO_PHandle TAO_MProfile::get_current_handle ( void ) const

Returns the index for the current profile.

TAO_Profile * TAO_MProfile::get_current_profile ( void )

Return a pointer to the current profile, will not increment reference pointer.

TAO_Profile * TAO_MProfile::get_next ( void )

Get next profile in list, return 0 at end of list.

This will return the next element until either null is found or the end of list. It then continues to return NULL until rewind.

TAO_Profile * TAO_MProfile::get_prev ( void )

Get previous profile, stop at beginning of list and return 0.

TAO_Profile * TAO_MProfile::get_profile ( TAO_PHandle handle )

Return a pointer to the profile referenced by handle void.

const TAO_Profile * TAO_MProfile::get_profile ( CORBA::ULong slot ) const

Return the profile at position <slot>. If <slot> is out of range it returns 0.

int TAO_MProfile::give_profile	(	TAO_Profile *	pfile,
		int	share = `0`
	)

Return the index of this entry or -1 if it can not be added. this object assumes ownership of this profile!!

int TAO_MProfile::give_shared_profile ( TAO_Profile * pfile )

private

A helper to give_profile to be used when share is true. This method is used primarily to help the corbaloc parser create a single profile with multiple endpoints rather than constructing multiple profiles with 1 endpoint per.

int TAO_MProfile::grow ( CORBA::ULong sz )

increase the number of profiles this object can hold. NOT THREAD SAFE

CORBA::ULong TAO_MProfile::hash ( CORBA::ULong max )

use all registered profiles. The hash() method is called on each profile and the results are averaged together. NON-THREAD SAFE.

void TAO_MProfile::init_policy_list ( void )

protected

Initialize the policy list, demarsharling the policy.

CORBA::Boolean TAO_MProfile::is_equivalent ( const TAO_MProfile * rhs )

Returns true of there is at least one profile in first which is_equivalent with at least one profile in second. NON-THREAD SAFE, relies on some other entity to guarentee the profiles will not change during the call.

TAO_MProfile & TAO_MProfile::operator= ( const TAO_MProfile & mprofiles )

Assigment operator.

TAO_Profile ** TAO_MProfile::pfiles ( void ) const

protected

Return the complete list of profiles, this object retains ownership!

void TAO_MProfile::policy_list ( CORBA::PolicyList * policy_list )

Sets the policies list associated with the profiles owned by the TAO_MProfile.

CORBA::PolicyList * TAO_MProfile::policy_list ( void )

Gets the policies list associated with the profiles owned by the TAO_MProfile.

CORBA::ULong TAO_MProfile::profile_count ( void ) const

Returns the number of profiles stored in the list (last_+1).

int TAO_MProfile::remove_profile ( const TAO_Profile * pfile )

remove from this MProfile any profiles which also appear in pfiles.

int TAO_MProfile::remove_profiles ( const TAO_MProfile * pfiles )

remove from this MProfile any profiles which also appear in pfiles.

void TAO_MProfile::rewind ( void )

Sets the current slot back to 0.

int TAO_MProfile::set ( CORBA::ULong sz )

Inits MProfile to hold sz TAO_Profiles. NOT THREAD SAFE

int TAO_MProfile::set ( const TAO_MProfile & mprofile )

Inits this to the values of mprofile. NOTE: We use mprofile->last_ instead of mprofile->size_ to set this->size_. This is so we can use set () to trim a profile list!! NOT THREAD SAFE

CORBA::ULong TAO_MProfile::size ( void ) const

return the maximum number of profiles that can be stored in this container, (size_+1)

Friends And Related Function Documentation

friend class TAO_Profile

friend

Stores the policy list for the profile of this MProfile.

Member Data Documentation

TAO_PHandle TAO_MProfile::current_

private

Points to the next profile to be used. 0 ... size_.

TAO_MProfile* TAO_MProfile::forward_from_

private

Used for chaning references when the current profile is forwarded. Note, this will only be valid for an MProfile which contains a list of forward_profiles for some initial or base profile. This is a backward reference to the profile list which received the relocate message. The actual profile what was forwarded will be forward_from_->get_current_profile ()

CORBA::Boolean TAO_MProfile::is_policy_list_initialized_

protected

TAO_PHandle TAO_MProfile::last_

private

Index plus 1 of last valid entry! May be < size_.

TAO_SYNCH_RECURSIVE_MUTEX TAO_MProfile::mutex_

protected

Mutex used to make sure that only one policy list is created.

TAO_Profile** TAO_MProfile::pfiles_

private

Actual list of profiles.

CORBA::PolicyList* TAO_MProfile::policy_list_

protected

TAO_PHandle TAO_MProfile::size_

private

Max size of array.

The documentation for this class was generated from the following files:
