TAO_GIOP_Message_Base Class Reference

Definitions of the GIOP specific stuff. More...

#include <GIOP_Message_Base.h>

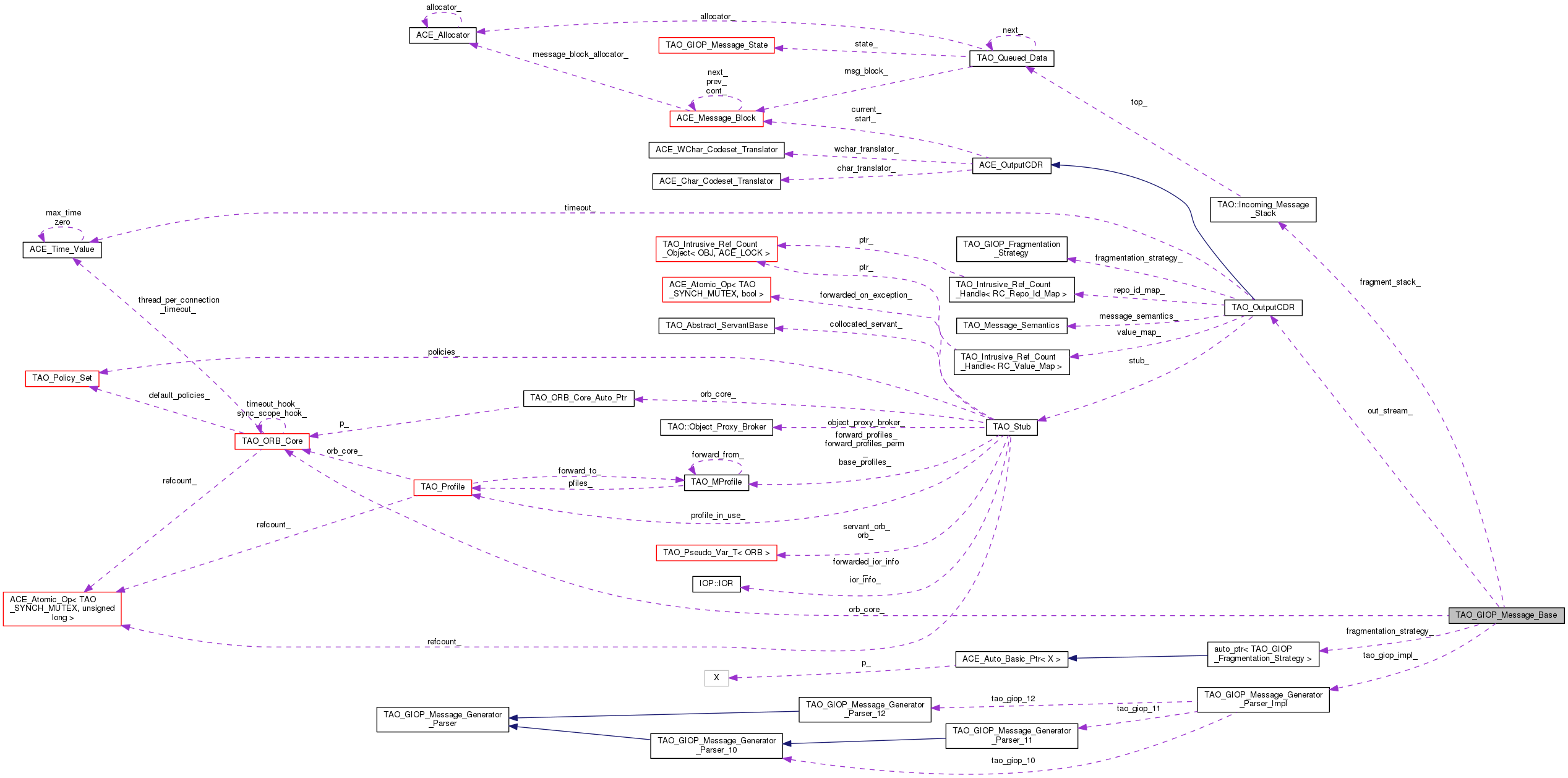

Collaboration diagram for TAO_GIOP_Message_Base:
Collaboration graph

Public Member Functions

 TAO_GIOP_Message_Base (TAO_ORB_Core *orb_core, TAO_Transport *transport, size_t input_cdr_size=ACE_CDR::DEFAULT_BUFSIZE)
 Constructor. More...
 ~TAO_GIOP_Message_Base (void)
 Destructor. More...
void init (CORBA::Octet major, CORBA::Octet minor)
int generate_request_header (TAO_Operation_Details &op, TAO_Target_Specification &spec, TAO_OutputCDR &cdr)
int generate_locate_request_header (TAO_Operation_Details &op, TAO_Target_Specification &spec, TAO_OutputCDR &cdr)
 Write the RequestHeader in to the cdr stream. More...
int generate_reply_header (TAO_OutputCDR &cdr, TAO_Pluggable_Reply_Params_Base &params)
 Write the reply header. More...
int generate_fragment_header (TAO_OutputCDR &cdr, CORBA::ULong request_id)
int format_message (TAO_OutputCDR &cdr, TAO_Stub *stub, TAO_ServerRequest *req)
int parse_next_message (TAO_Queued_Data &qd, size_t &mesg_length)
int extract_next_message (ACE_Message_Block &incoming, TAO_Queued_Data *&qd)
int consolidate_node (TAO_Queued_Data *qd, ACE_Message_Block &incoming)
 Check whether the node qd needs consolidation from incoming. More...
int process_request_message (TAO_Transport *transport, TAO_Queued_Data *qd)
int process_reply_message (TAO_Pluggable_Reply_Params &reply_info, TAO_Queued_Data *qd)
int generate_exception_reply (TAO_OutputCDR &cdr, TAO_Pluggable_Reply_Params_Base &params, const CORBA::Exception &x)
 Generate a reply message with the exception ex. More...
size_t header_length (void) const
 Header length. More...
size_t fragment_header_length (const TAO_GIOP_Message_Version &giop_version) const
 The header length of a fragment. More...
TAO_OutputCDRout_stream (void)
int consolidate_fragmented_message (TAO_Queued_Data *qd, TAO_Queued_Data *&msg)
int discard_fragmented_message (const TAO_Queued_Data *cancel_request)
TAO_GIOP_Fragmentation_Strategyfragmentation_strategy (void)
 Outgoing GIOP message fragmentation strategy. More...
bool is_ready_for_bidirectional (TAO_OutputCDR &msg) const

Protected Attributes

Outgoing GIOP Fragment Related Attributes

These attributes are only used when fragmenting outgoing GIOP requests and replies.

auto_ptr< TAO_GIOP_Fragmentation_Strategyfragmentation_strategy_
TAO_OutputCDR out_stream_
 Buffer where the request is placed. More...

Private Member Functions

bool decompress (ACE_Data_Block **db, TAO_Queued_Data &qd, size_t &rd_pos, size_t &wr_pos)
int process_request (TAO_Transport *transport, TAO_InputCDR &input, TAO_OutputCDR &output, TAO_GIOP_Message_Generator_Parser *)
 Processes the GIOP_REQUEST messages. More...
int process_locate_request (TAO_Transport *transport, TAO_InputCDR &input, TAO_OutputCDR &output, TAO_GIOP_Message_Generator_Parser *)
 Processes the GIOP_LOCATE_REQUEST messages. More...
TAO_GIOP_Message_Generator_Parserget_parser (const TAO_GIOP_Message_Version &version) const
 Get the parser. More...
int dump_consolidated_msg (TAO_OutputCDR &stream)
 Print out consolidate messages. More...
void dump_msg (const char *label, const u_char *ptr, size_t len)
 Print out a debug messages.. More...
int write_protocol_header (GIOP::MsgType t, const TAO_GIOP_Message_Version &version, TAO_OutputCDR &msg)
int make_send_locate_reply (TAO_Transport *transport, TAO_GIOP_Locate_Request_Header &request, TAO_GIOP_Locate_Status_Msg &status, TAO_OutputCDR &output, TAO_GIOP_Message_Generator_Parser *)
int send_error (TAO_Transport *transport)
 Send error messages. More...
void send_close_connection (const TAO_GIOP_Message_Version &version, TAO_Transport *transport)
 Close a connection, first sending GIOP::CloseConnection. More...
int send_reply_exception (TAO_Transport *transport, TAO_OutputCDR &cdr, CORBA::ULong request_id, IOP::ServiceContextList *svc_info, CORBA::Exception *x)
int generate_locate_reply_header (TAO_OutputCDR &cdr, TAO_Pluggable_Reply_Params_Base &params)
 Write the locate reply header. More...
TAO_Queued_Datamake_queued_data (size_t sz)
int parse_request_id (const TAO_Queued_Data *qd, CORBA::ULong &request_id) const
int parse_request_id (const TAO_InputCDR &cdr, CORBA::ULong &request_id) const
void set_giop_flags (TAO_OutputCDR &msg) const

Private Attributes

 Cached ORB_Core pointer... More...
TAO_GIOP_Message_Generator_Parser_Impl tao_giop_impl_
 All the implementations of GIOP message generator and parsers. More...
TAO::Incoming_Message_Stack fragment_stack_

Detailed Description

Definitions of the GIOP specific stuff.

This class will hold the specific details common to all the GIOP versions. Some of them which are here may be shifted if things start changing between versions.

Constructor & Destructor Documentation

TAO_GIOP_Message_Base::TAO_GIOP_Message_Base ( TAO_ORB_Core orb_core,
TAO_Transport transport,
size_t  input_cdr_size = ACE_CDR::DEFAULT_BUFSIZE


TAO_GIOP_Message_Base::~TAO_GIOP_Message_Base ( void  )


Member Function Documentation

int TAO_GIOP_Message_Base::consolidate_fragmented_message ( TAO_Queued_Data qd,
TAO_Queued_Data *&  msg

Consolidate fragmented message with associated fragments, being stored within this class. If reliable transport is used (like TCP) fragments are partially ordered on stack, last fragment on top. Otherwise If un-reliable transport is used (like UDP) fragments may be dis-ordered, and must be ordered before consolidation.

0 on success and msg points to consolidated message, 1 if there are still fragments outstanding, in case of error -1 is being returned. In any case qd must be released by method implementation.
int TAO_GIOP_Message_Base::consolidate_node ( TAO_Queued_Data qd,
ACE_Message_Block incoming

Check whether the node qd needs consolidation from incoming.

bool TAO_GIOP_Message_Base::decompress ( ACE_Data_Block **  db,
TAO_Queued_Data qd,
size_t &  rd_pos,
size_t &  wr_pos

Decompresses a ZIOP message and turns it into a GIOP message When decompressed, db contains a complete new ACE_Data_Block and therefore qd its data block is also replaced.

int TAO_GIOP_Message_Base::discard_fragmented_message ( const TAO_Queued_Data cancel_request)

Discard all fragments associated to request-id encoded in cancel_request. This operation will never be called concurrently by multiple threads nor concurrently to consolidate_fragmented_message

-1 on failure, 0 on success, 1 no fragment on stack relating to CancelRequest.
int TAO_GIOP_Message_Base::dump_consolidated_msg ( TAO_OutputCDR stream)

Print out consolidate messages.

void TAO_GIOP_Message_Base::dump_msg ( const char *  label,
const u_char *  ptr,
size_t  len

Print out a debug messages..

int TAO_GIOP_Message_Base::extract_next_message ( ACE_Message_Block incoming,
TAO_Queued_Data *&  qd

Extract the details of the next message from the incoming through qd. Returns 0 if the message header could not be parsed completely, returns a 1 if the message header could be parsed completely and returns -1 on error.

int TAO_GIOP_Message_Base::format_message ( TAO_OutputCDR cdr,
TAO_Stub stub,
TAO_ServerRequest req

Format the message. As we have not written the message length in the header, we make use of this opportunity to insert and format the message. (Called by client, for requests, provides stub pointer but not the req pointer; called by server, for replies, provides req pointer, not stub pointer.)

size_t TAO_GIOP_Message_Base::fragment_header_length ( const TAO_GIOP_Message_Version giop_version) const

The header length of a fragment.

TAO_GIOP_Fragmentation_Strategy * TAO_GIOP_Message_Base::fragmentation_strategy ( void  )

Outgoing GIOP message fragmentation strategy.

int TAO_GIOP_Message_Base::generate_exception_reply ( TAO_OutputCDR cdr,
TAO_Pluggable_Reply_Params_Base params,
const CORBA::Exception x

Generate a reply message with the exception ex.

int TAO_GIOP_Message_Base::generate_fragment_header ( TAO_OutputCDR cdr,
CORBA::ULong  request_id
int TAO_GIOP_Message_Base::generate_locate_reply_header ( TAO_OutputCDR cdr,
TAO_Pluggable_Reply_Params_Base params

Write the locate reply header.

int TAO_GIOP_Message_Base::generate_locate_request_header ( TAO_Operation_Details op,
TAO_Target_Specification spec,
TAO_OutputCDR cdr

Write the RequestHeader in to the cdr stream.

int TAO_GIOP_Message_Base::generate_reply_header ( TAO_OutputCDR cdr,
TAO_Pluggable_Reply_Params_Base params

Write the reply header.

int TAO_GIOP_Message_Base::generate_request_header ( TAO_Operation_Details op,
TAO_Target_Specification spec,
TAO_OutputCDR cdr

Write the RequestHeader in to the cdr stream. The underlying implementation of the messaging should do the right thing.

TAO_GIOP_Message_Generator_Parser * TAO_GIOP_Message_Base::get_parser ( const TAO_GIOP_Message_Version version) const

Get the parser.

size_t TAO_GIOP_Message_Base::header_length ( void  ) const

Header length.

void TAO_GIOP_Message_Base::init ( CORBA::Octet  major,
CORBA::Octet  minor

Initialize the underlying state object based on the major and minor revision numbers

bool TAO_GIOP_Message_Base::is_ready_for_bidirectional ( TAO_OutputCDR msg) const

Is the messaging object ready for processing BiDirectional request/response?

TAO_Queued_Data * TAO_GIOP_Message_Base::make_queued_data ( size_t  sz)

Creates a new node for the queue with a message block in the node of size sz.

int TAO_GIOP_Message_Base::make_send_locate_reply ( TAO_Transport transport,
TAO_GIOP_Locate_Request_Header request,
TAO_GIOP_Locate_Status_Msg status,
TAO_OutputCDR output,
TAO_GIOP_Message_Generator_Parser parser

Make a GIOP_LOCATEREPLY and hand that over to the transport so that it can be sent over the connection.

As on date 1.1 & 1.2 seem to have similar headers. Till an unmanageable difference comes let them be implemented here.
TAO_OutputCDR & TAO_GIOP_Message_Base::out_stream ( void  )
int TAO_GIOP_Message_Base::parse_next_message ( TAO_Queued_Data qd,
size_t &  mesg_length

Parse the details of the next message from the incoming and initializes attributes of qd.

Return values
0If the message header could not be parsed completely,
1If the message header could be parsed completely
-1On error.
int TAO_GIOP_Message_Base::parse_request_id ( const TAO_Queued_Data qd,
CORBA::ULong request_id
) const

Parse GIOP request-id of TAO_Queued_Data qd

0 on success, otherwise -1
int TAO_GIOP_Message_Base::parse_request_id ( const TAO_InputCDR cdr,
CORBA::ULong request_id
) const

Parse GIOP request-id of TAO_InputCDR cdr.

0 on success, otherwise -1
int TAO_GIOP_Message_Base::process_locate_request ( TAO_Transport transport,
TAO_InputCDR input,
TAO_OutputCDR output,
TAO_GIOP_Message_Generator_Parser parser

Processes the GIOP_LOCATE_REQUEST messages.

int TAO_GIOP_Message_Base::process_reply_message ( TAO_Pluggable_Reply_Params reply_info,
TAO_Queued_Data qd

Parse the reply message that we received and return the reply information through reply_info

int TAO_GIOP_Message_Base::process_request ( TAO_Transport transport,
TAO_InputCDR input,
TAO_OutputCDR output,
TAO_GIOP_Message_Generator_Parser parser

Processes the GIOP_REQUEST messages.

int TAO_GIOP_Message_Base::process_request_message ( TAO_Transport transport,
TAO_Queued_Data qd

Process the request message that we have received on the connection

void TAO_GIOP_Message_Base::send_close_connection ( const TAO_GIOP_Message_Version version,
TAO_Transport transport

Close a connection, first sending GIOP::CloseConnection.

int TAO_GIOP_Message_Base::send_error ( TAO_Transport transport)

Send error messages.

int TAO_GIOP_Message_Base::send_reply_exception ( TAO_Transport transport,
TAO_OutputCDR cdr,
CORBA::ULong  request_id,
IOP::ServiceContextList svc_info,
CORBA::Exception x

We must send a LocateReply through transport, this request resulted in some kind of exception.

void TAO_GIOP_Message_Base::set_giop_flags ( TAO_OutputCDR msg) const

Set GIOP message flags in message that has been marshaled into the output CDR stream msg.

It is assumed that the GIOP message header is the first thing marshaled into the output CDR stream msg.
int TAO_GIOP_Message_Base::write_protocol_header ( GIOP::MsgType  t,
const TAO_GIOP_Message_Version version,
TAO_OutputCDR msg

Writes the GIOP header in to msg

If the GIOP header happens to change in the future, we can push this method in to the generator_parser classes.

Member Data Documentation

TAO::Incoming_Message_Stack TAO_GIOP_Message_Base::fragment_stack_

All Fragments being received are stored on stack in reverse order, last top

auto_ptr<TAO_GIOP_Fragmentation_Strategy> TAO_GIOP_Message_Base::fragmentation_strategy_

Strategy that sends data currently marshaled into this TAO_OutputCDR stream if necessary.

TAO_ORB_Core* TAO_GIOP_Message_Base::orb_core_

Cached ORB_Core pointer...

TAO_OutputCDR TAO_GIOP_Message_Base::out_stream_

Buffer where the request is placed.

TAO_GIOP_Message_Generator_Parser_Impl TAO_GIOP_Message_Base::tao_giop_impl_

All the implementations of GIOP message generator and parsers.

The documentation for this class was generated from the following files:
