This Handler is registered with the Reactor for QoS events. More...

#include <QoS_Decorator.h>

Inheritance diagram for ACE_QoS_Event_Handler:

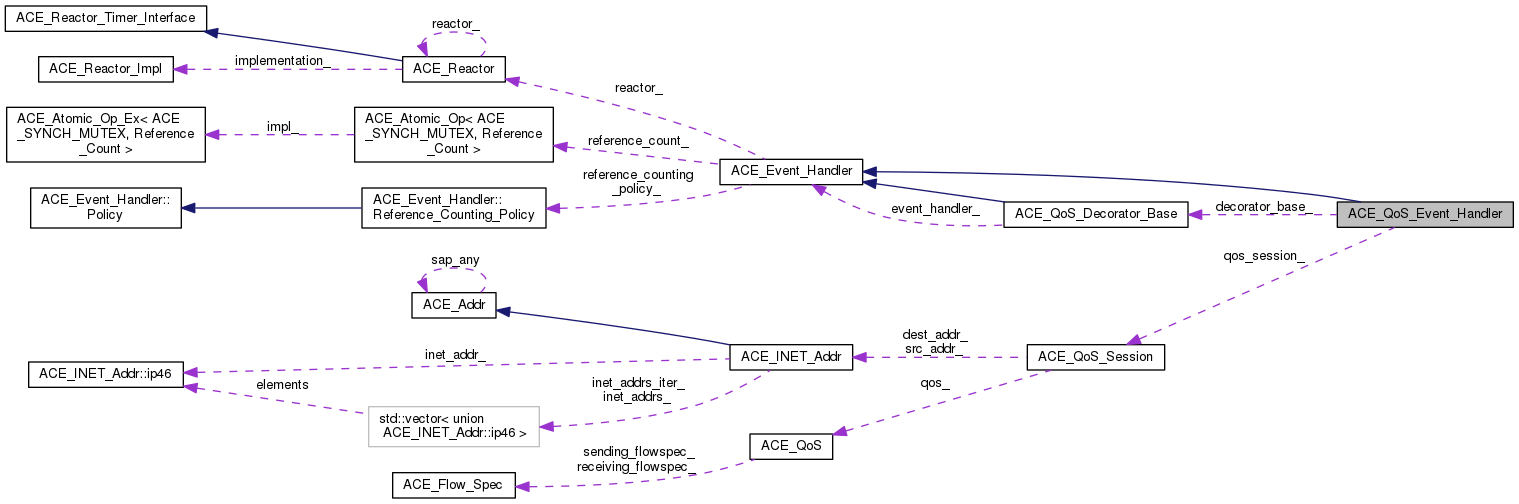

Collaboration diagram for ACE_QoS_Event_Handler:

Private Member Functions
	~ACE_QoS_Event_Handler (void)
	Destructor. More...

virtual ACE_HANDLE	get_handle (void) const
	Returns the RAPI file descriptor for receiving QoS events. More...

virtual int	handle_input (ACE_HANDLE fd)
	Calls the base class handle_input (). More...

void	qos_session (ACE_QoS_Session *qos_session)
	Sets the QoS session. More...

	ACE_QoS_Event_Handler (void)

	ACE_QoS_Event_Handler (ACE_QoS_Decorator_Base *decorator_base)
	The QoS Decorator passes in its base for this handler to use. More...

Private Attributes
ACE_QoS_Session *	qos_session_
	Used to get to the RAPI file descriptor for QoS Events. More...

ACE_QoS_Decorator_Base *	decorator_base_
	Requests on the class are forwarded to this base class;. More...

Friends
class	ACE_QoS_Decorator

Additional Inherited Members
Public Types inherited from ACE_Event_Handler
typedef long	Reference_Count

Public Member Functions inherited from ACE_Event_Handler
virtual	~ACE_Event_Handler (void)

virtual void	set_handle (ACE_HANDLE)

virtual int	priority (void) const

virtual void	priority (int priority)

virtual int	handle_output (ACE_HANDLE fd=ACE_INVALID_HANDLE)

virtual int	handle_exception (ACE_HANDLE fd=ACE_INVALID_HANDLE)

virtual int	handle_timeout (const ACE_Time_Value &current_time, const void *act=0)

virtual int	handle_exit (ACE_Process *)

virtual int	handle_close (ACE_HANDLE handle, ACE_Reactor_Mask close_mask)

virtual int	handle_signal (int signum, siginfo_t =0, ucontext_t =0)

virtual int	resume_handler (void)

virtual int	handle_qos (ACE_HANDLE=ACE_INVALID_HANDLE)

virtual int	handle_group_qos (ACE_HANDLE=ACE_INVALID_HANDLE)

virtual void	reactor (ACE_Reactor *reactor)

virtual ACE_Reactor *	reactor (void) const

virtual ACE_Reactor_Timer_Interface *	reactor_timer_interface (void) const

virtual Reference_Count	add_reference (void)

virtual Reference_Count	remove_reference (void)

Reference_Counting_Policy &	reference_counting_policy (void)

Static Public Member Functions inherited from ACE_Event_Handler
static ACE_THR_FUNC_RETURN	read_adapter (void *event_handler)

static int	register_stdin_handler (ACE_Event_Handler eh, ACE_Reactor reactor, ACE_Thread_Manager *thr_mgr, int flags=THR_DETACHED)

static int	remove_stdin_handler (ACE_Reactor reactor, ACE_Thread_Manager thr_mgr)

Public Attributes inherited from ACE_Event_Handler
	LO_PRIORITY

	HI_PRIORITY

	NULL_MASK

	READ_MASK

	WRITE_MASK

	EXCEPT_MASK

	ACCEPT_MASK

	CONNECT_MASK

	TIMER_MASK

	QOS_MASK

	GROUP_QOS_MASK

	SIGNAL_MASK

	ALL_EVENTS_MASK

	RWE_MASK

	DONT_CALL

	ACE_EVENT_HANDLER_NOT_RESUMED

	ACE_REACTOR_RESUMES_HANDLER

	ACE_APPLICATION_RESUMES_HANDLER

Protected Types inherited from ACE_Event_Handler
typedef ACE_Atomic_Op< ACE_SYNCH_MUTEX, Reference_Count >	Atomic_Reference_Count

Protected Member Functions inherited from ACE_Event_Handler
	ACE_Event_Handler (ACE_Reactor *=0, int priority=ACE_Event_Handler::LO_PRIORITY)

Protected Attributes inherited from ACE_Event_Handler
Atomic_Reference_Count	reference_count_

Detailed Description

This Handler is registered with the Reactor for QoS events.

Concrete QoS decorator uses this class to receive QoS events for RAPI. It hides the application from knowing that it is receiving QoS events on a different socket so the application doesnt have to be designed differently for RAPI and GQoS.

Constructor & Destructor Documentation

ACE_QoS_Event_Handler::~ACE_QoS_Event_Handler ( void )

private

Destructor.

ACE_QoS_Event_Handler::ACE_QoS_Event_Handler ( void )

private

Constructor is private because only ACE_QoS_Decorator should create this object.

ACE_QoS_Event_Handler::ACE_QoS_Event_Handler ( ACE_QoS_Decorator_Base * decorator_base )

private

The QoS Decorator passes in its base for this handler to use.

Member Function Documentation

ACE_HANDLE ACE_QoS_Event_Handler::get_handle ( void ) const

privatevirtual

Returns the RAPI file descriptor for receiving QoS events.

Reimplemented from ACE_Event_Handler.

int ACE_QoS_Event_Handler::handle_input ( ACE_HANDLE fd )

privatevirtual

Calls the base class handle_input ().

Reimplemented from ACE_Event_Handler.

void ACE_QoS_Event_Handler::qos_session ( ACE_QoS_Session * qos_session )

private

Sets the QoS session.

Friends And Related Function Documentation

friend class ACE_QoS_Decorator

friend

Member Data Documentation

ACE_QoS_Decorator_Base* ACE_QoS_Event_Handler::decorator_base_

private

Requests on the class are forwarded to this base class;.

ACE_QoS_Session* ACE_QoS_Event_Handler::qos_session_

private

Used to get to the RAPI file descriptor for QoS Events.

The documentation for this class was generated from the following files:
