TAO::IIOP_SSL_Acceptor Class Reference

An SSL aware IIOP acceptor. More...

#include <IIOP_SSL_Acceptor.h>

Inheritance diagram for TAO::IIOP_SSL_Acceptor:

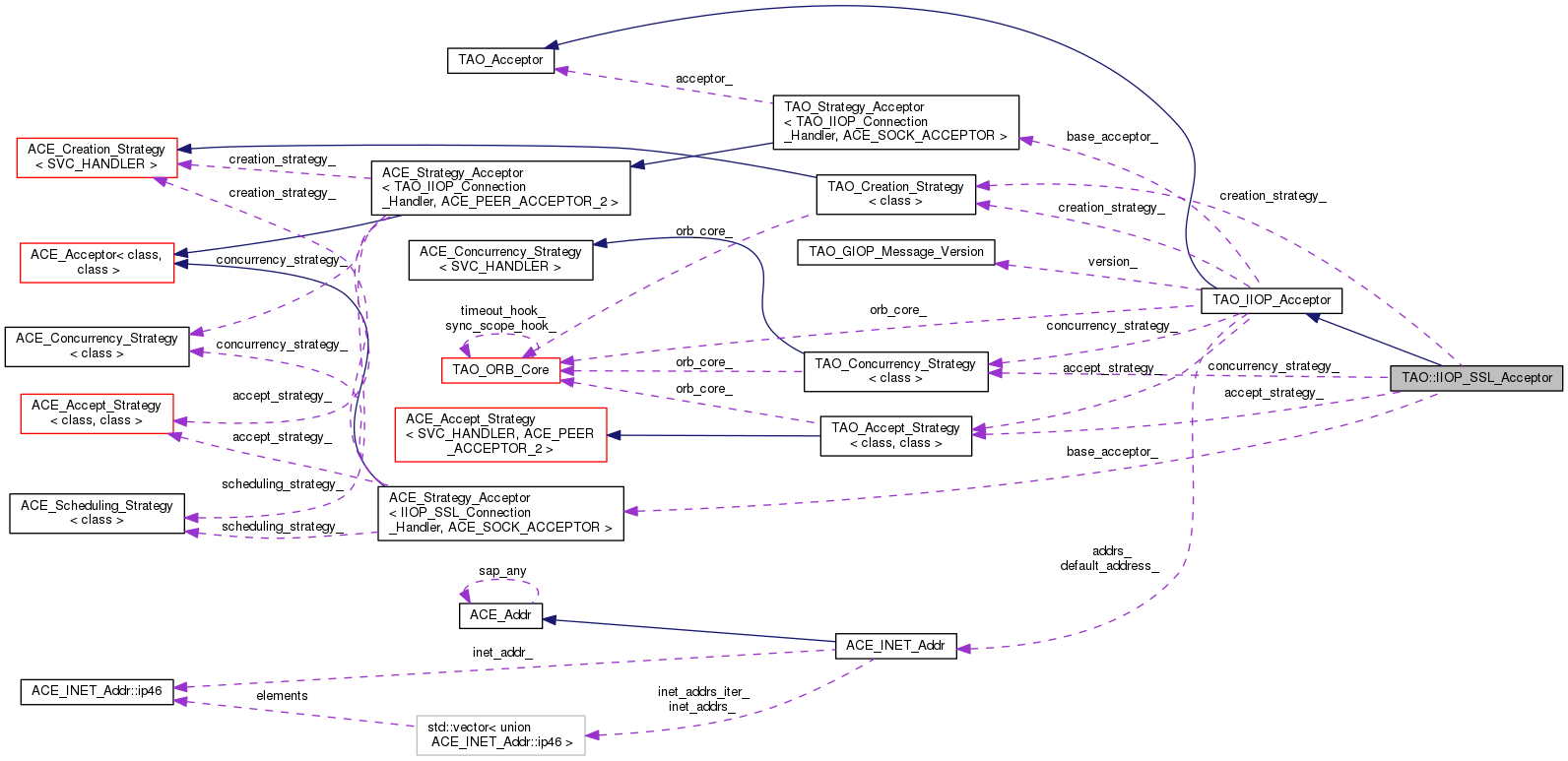

Collaboration diagram for TAO::IIOP_SSL_Acceptor:

Public Types
typedef ACE_Strategy_Acceptor< IIOP_SSL_Connection_Handler, ACE_SOCK_ACCEPTOR >	TAO_IIOP_SSL_BASE_ACCEPTOR
typedef TAO_Creation_Strategy< IIOP_SSL_Connection_Handler >	TAO_IIOP_SSL_CREATION_STRATEGY
typedef TAO_Concurrency_Strategy< IIOP_SSL_Connection_Handler >	TAO_IIOP_SSL_CONCURRENCY_STRATEGY
typedef TAO_Accept_Strategy< IIOP_SSL_Connection_Handler, ACE_SOCK_ACCEPTOR >	TAO_IIOP_SSL_ACCEPT_STRATEGY
Public Types inherited from TAO_IIOP_Acceptor
typedef TAO_Strategy_Acceptor< TAO_IIOP_Connection_Handler, ACE_SOCK_ACCEPTOR >	BASE_ACCEPTOR
typedef TAO_Creation_Strategy< TAO_IIOP_Connection_Handler >	CREATION_STRATEGY
typedef TAO_Concurrency_Strategy< TAO_IIOP_Connection_Handler >	CONCURRENCY_STRATEGY
typedef TAO_Accept_Strategy< TAO_IIOP_Connection_Handler, ACE_SOCK_ACCEPTOR >	ACCEPT_STRATEGY

Public Member Functions
	IIOP_SSL_Acceptor (void)
	Constructor. More...
	~IIOP_SSL_Acceptor (void)
	Destructor. More...
virtual int	close (void)
Public Member Functions inherited from TAO_IIOP_Acceptor
	TAO_IIOP_Acceptor (void)
	~TAO_IIOP_Acceptor (void)
const ACE_INET_Addr &	address (void) const
const ACE_INET_Addr *	endpoints (void)
const ACE_INET_Addr &	default_address (void) const
void	set_default_address (const ACE_INET_Addr &addr)
virtual int	open (TAO_ORB_Core *orb_core, ACE_Reactor *reactor, int version_major, int version_minor, const char *address, const char *options=0)
virtual int	open_default (TAO_ORB_Core *orb_core, ACE_Reactor *reactor, int version_major, int version_minor, const char *options=0)
virtual int	create_profile (const TAO::ObjectKey &object_key, TAO_MProfile &mprofile, CORBA::Short priority)
virtual int	is_collocated (const TAO_Endpoint *endpoint)
virtual CORBA::ULong	endpoint_count (void)
virtual int	object_key (IOP::TaggedProfile &profile, TAO::ObjectKey &key)
virtual int	hostname (TAO_ORB_Core *orb_core, const ACE_INET_Addr &addr, char *&host, const char *specified_hostname=0)
Public Member Functions inherited from TAO_Acceptor
	TAO_Acceptor (CORBA::ULong tag)
virtual	~TAO_Acceptor (void)
CORBA::ULong	tag (void) const
void	set_error_retry_delay (time_t delay)
int	handle_accept_error (ACE_Event_Handler *base_acceptor)
int	handle_expiration (ACE_Event_Handler *base_acceptor)

Private Attributes
TAO_IIOP_SSL_BASE_ACCEPTOR	base_acceptor_
	The concrete acceptor, as a pointer to it's base class. More...
Acceptor Strategies
Server side creation, concurrency and accept strategies.
TAO_IIOP_SSL_CREATION_STRATEGY *	creation_strategy_
TAO_IIOP_SSL_CONCURRENCY_STRATEGY *	concurrency_strategy_
TAO_IIOP_SSL_ACCEPT_STRATEGY *	accept_strategy_

Additional Inherited Members
Protected Member Functions inherited from TAO_IIOP_Acceptor
int	parse_address (const char *address, ACE_INET_Addr &addr, ACE_CString &specified_hostname, int *def_type=0)
int	dotted_decimal_address (const ACE_INET_Addr &addr, char *&host)
virtual int	open_i (const ACE_INET_Addr &addr, ACE_Reactor *reactor)
int	probe_interfaces (TAO_ORB_Core *orb_core, int def_type=AF_UNSPEC)
int	parse_options (const char *options)
virtual int	parse_options_i (int &argc, ACE_CString **argv)
int	create_new_profile (const TAO::ObjectKey &object_key, TAO_MProfile &mprofile, CORBA::Short priority)
int	create_shared_profile (const TAO::ObjectKey &object_key, TAO_MProfile &mprofile, CORBA::Short priority)
Protected Attributes inherited from TAO_IIOP_Acceptor
ACE_INET_Addr *	addrs_
unsigned short	port_span_
char **	hosts_
char *	hostname_in_ior_
CORBA::ULong	endpoint_count_
TAO_GIOP_Message_Version	version_
TAO_ORB_Core *	orb_core_
int	reuse_addr_
ACE_INET_Addr	default_address_

Detailed Description

An SSL aware IIOP acceptor.

The class differs from the non-SSL aware TAO_IIOP_Acceptor class since it uses a different a set of Acceptor strategies. In particular, it overrides the open_i() method to use the Acceptor strategies tailored to use the SSL aware server connection handler. See the TAO_IIOP_SSL_Connection_Handler notes for details.

Member Typedef Documentation

typedef TAO_Accept_Strategy<IIOP_SSL_Connection_Handler, ACE_SOCK_ACCEPTOR> TAO::IIOP_SSL_Acceptor::TAO_IIOP_SSL_ACCEPT_STRATEGY

typedef ACE_Strategy_Acceptor<IIOP_SSL_Connection_Handler, ACE_SOCK_ACCEPTOR> TAO::IIOP_SSL_Acceptor::TAO_IIOP_SSL_BASE_ACCEPTOR

typedef TAO_Concurrency_Strategy<IIOP_SSL_Connection_Handler> TAO::IIOP_SSL_Acceptor::TAO_IIOP_SSL_CONCURRENCY_STRATEGY

typedef TAO_Creation_Strategy<IIOP_SSL_Connection_Handler> TAO::IIOP_SSL_Acceptor::TAO_IIOP_SSL_CREATION_STRATEGY

Constructor & Destructor Documentation

TAO::IIOP_SSL_Acceptor::IIOP_SSL_Acceptor

(

void

)

Constructor.

TAO::IIOP_SSL_Acceptor::~IIOP_SSL_Acceptor

(

void

)

Destructor.

Member Function Documentation

int TAO::IIOP_SSL_Acceptor::close ( void  )

virtual

Reimplemented from TAO_IIOP_Acceptor.

Reimplemented in TAO::SSLIOP::Acceptor.

Member Data Documentation

TAO_IIOP_SSL_ACCEPT_STRATEGY* TAO::IIOP_SSL_Acceptor::accept_strategy_

private

TAO_IIOP_SSL_BASE_ACCEPTOR TAO::IIOP_SSL_Acceptor::base_acceptor_

private

The concrete acceptor, as a pointer to it's base class.

TAO_IIOP_SSL_CONCURRENCY_STRATEGY* TAO::IIOP_SSL_Acceptor::concurrency_strategy_

private

TAO_IIOP_SSL_CREATION_STRATEGY* TAO::IIOP_SSL_Acceptor::creation_strategy_

private

---

The documentation for this class was generated from the following files:

• IIOP_SSL_Acceptor.h
• IIOP_SSL_Acceptor.cpp
