Save Notification Service Topology to an XML file. More...

#include <XML_Saver.h>

Inheritance diagram for TAO_Notify::XML_Saver:

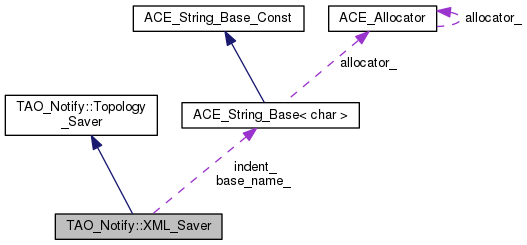

Collaboration diagram for TAO_Notify::XML_Saver:

Public Member Functions
	XML_Saver (bool timestamp=true)

virtual	~XML_Saver ()

bool	open (const ACE_TString &file_name, size_t backup_count)

virtual bool	begin_object (CORBA::Long id, const ACE_CString &type, const NVPList &attrs, bool changed)
	Begin the storage of an object. More...

virtual void	end_object (CORBA::Long id, const ACE_CString &type)
	End the storage of an object. More...

virtual void	close (void)
	Close the saver. More...

Public Member Functions inherited from TAO_Notify::Topology_Saver
virtual	~Topology_Saver ()
	The destructor. More...

virtual void	delete_child (CORBA::Long id, const ACE_CString &type)
	Report deleted children to the saver. More...

Private Member Functions
void	backup_file_name (ACE_TCHAR *file_path, size_t nfile)

Private Attributes
FILE *	output_
	A stream representing our current output. More...

bool	close_out_

ACE_TString	base_name_
	the name of the output file More...

size_t	backup_count_

bool	timestamp_
	true to enable timestamping More...

ACE_CString	indent_
	A string consisting of spaces that is our current indentation level. More...

Detailed Description

Save Notification Service Topology to an XML file.

Constructor & Destructor Documentation

TAO_Notify::XML_Saver::XML_Saver ( bool timestamp = true )

Construct an XML_Saver. Initialization is deferred to "open()"

TAO_Notify::XML_Saver::~XML_Saver ( )

virtual

Member Function Documentation

void TAO_Notify::XML_Saver::backup_file_name	(	ACE_TCHAR *	file_path,
		size_t	nfile
	)

private

bool TAO_Notify::XML_Saver::begin_object	(	CORBA::Long	id,
		const ACE_CString &	type,
		const NVPList &	attrs,
		bool	changed
	)

virtual

Begin the storage of an object.

Call this function with the type and ID of an object to be stored. This object may have children, and this will necessitate nested calls to begin_object. Design principle: Names should be descriptive enough to allow the objects' parent to create an instance of the desired class. This instance will be registered with the poa using the id. The instance itself should will load its own attributes. Example <proxy type="push_supplier" events="any" id="20"...> is not a good design because the name "proxy" is not descriptive enough. "<structured_proxy_push_supplier id="20"...> is better because this allows the parent to create the correct type of object without decoding attributes.

Parameters

id	numeric id for this object
type	string containing the unique type name for this class of objects
attrs	a collection of name/value attributes
changed	true if this object's attributes have changed.

Returns: bool want_all_children. If true even changed children should be saved.

Implements TAO_Notify::Topology_Saver.

void TAO_Notify::XML_Saver::close ( void )

virtual

Close the saver.

This is not pure virtual. The default implementation does nothing.

There should be a corresponding open, but the signature may vary based on the type of saver, so we can't include it in the interface.

Reimplemented from TAO_Notify::Topology_Saver.

void TAO_Notify::XML_Saver::end_object	(	CORBA::Long	id,
		const ACE_CString &	type
	)

virtual

End the storage of an object.

This function should be called to end the scope of the current object and commit it to the persistent store.

Implements TAO_Notify::Topology_Saver.

bool TAO_Notify::XML_Saver::open	(	const ACE_TString &	file_name,
		size_t	backup_count
	)

Open the output file.

Parameters

file_name the fully qualified file name

Returns: true if successful

Member Data Documentation

size_t TAO_Notify::XML_Saver::backup_count_

private

ACE_TString TAO_Notify::XML_Saver::base_name_

private

the name of the output file

bool TAO_Notify::XML_Saver::close_out_

private

ACE_CString TAO_Notify::XML_Saver::indent_

private

A string consisting of spaces that is our current indentation level.

FILE* TAO_Notify::XML_Saver::output_

private

A stream representing our current output.

bool TAO_Notify::XML_Saver::timestamp_

private

true to enable timestamping

The documentation for this class was generated from the following files:
