Base Strategy to enqueue and dequeue items from a Message Queue. More...

#include <Buffering_Strategy.h>

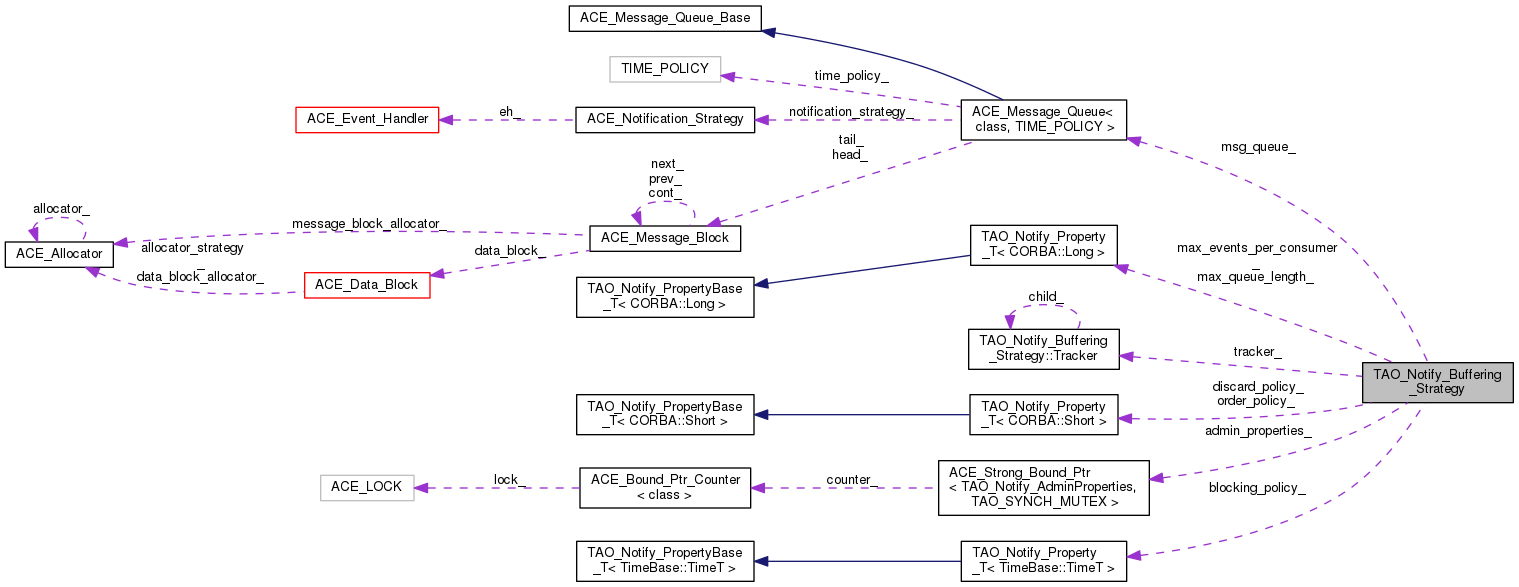

Collaboration diagram for TAO_Notify_Buffering_Strategy:

Classes
class	Tracker
	This interface allows tracking of the queue size. More...

Public Member Functions
	TAO_Notify_Buffering_Strategy (TAO_Notify_Message_Queue &msg_queue, const TAO_Notify_AdminProperties::Ptr &admin_properties)

	~TAO_Notify_Buffering_Strategy ()

void	update_qos_properties (const TAO_Notify_QoSProperties &qos_properties)

int	enqueue (TAO_Notify_Method_Request_Queueable *method_request)

int	dequeue (TAO_Notify_Method_Request_Queueable &method_request, const ACE_Time_Value abstime)

void	shutdown (void)
	Shutdown. More...

ACE_Time_Value	oldest_event (void)
	Provide the time value of the oldest event in the queue. More...

void	set_tracker (Tracker *tracker)
	Set the tracker object. This strategy does not own the tracker. More...

Private Member Functions
int	queue (TAO_Notify_Method_Request_Queueable *method_request)
	Apply the Order Policy and queue. return -1 on error. More...

bool	discard (TAO_Notify_Method_Request_Queueable *method_request)
	Discard as per the Discard Policy. More...

Private Attributes
TAO_Notify_Message_Queue &	msg_queue_
	= Data Members More...

TAO_Notify_AdminProperties::Ptr	admin_properties_
	Reference to the properties per event channel. More...

TAO_SYNCH_MUTEX &	global_queue_lock_
	The shared global lock used by all the queues. More...

CORBA::Long &	global_queue_length_
	The global queue length - queue length accross all the queues. More...

const TAO_Notify_Property_Long &	max_queue_length_
	The maximum events that can be queued overall. More...

TAO_Notify_Property_Short	order_policy_
	Order of events in internal buffers. More...

TAO_Notify_Property_Short	discard_policy_
	Policy to discard when buffers are full. More...

TAO_Notify_Property_Long	max_events_per_consumer_

TAO_Notify_Property_Time	blocking_policy_

TAO_SYNCH_CONDITION &	global_not_full_

TAO_SYNCH_CONDITION	local_not_full_

TAO_SYNCH_CONDITION	local_not_empty_
	Condition that batch size reached. More...

bool	shutdown_
	Flag to shutdown. More...

Tracker *	tracker_
	Optional queue tracker. More...

Detailed Description

Base Strategy to enqueue and dequeue items from a Message Queue.

Constructor & Destructor Documentation

TAO_Notify_Buffering_Strategy::TAO_Notify_Buffering_Strategy	(	TAO_Notify_Message_Queue &	msg_queue,
		const TAO_Notify_AdminProperties::Ptr &	admin_properties
	)

TAO_Notify_Buffering_Strategy::~TAO_Notify_Buffering_Strategy ( )

Member Function Documentation

int TAO_Notify_Buffering_Strategy::dequeue	(	TAO_Notify_Method_Request_Queueable *&	method_request,
		const ACE_Time_Value *	abstime
	)

Dequeue batch. This method will block for abstime if non-zero or else blocks till an item is available. Return -1 on error or if nothing is available, else the number of items actually dequeued (1).

bool TAO_Notify_Buffering_Strategy::discard ( TAO_Notify_Method_Request_Queueable * method_request )

private

Discard as per the Discard Policy.

int TAO_Notify_Buffering_Strategy::enqueue ( TAO_Notify_Method_Request_Queueable * method_request )

Enqueue according the enqueing strategy. Return -1 on error else the number of items in the queue.

ACE_Time_Value TAO_Notify_Buffering_Strategy::oldest_event ( void )

Provide the time value of the oldest event in the queue.

int TAO_Notify_Buffering_Strategy::queue ( TAO_Notify_Method_Request_Queueable * method_request )

private

Apply the Order Policy and queue. return -1 on error.

void TAO_Notify_Buffering_Strategy::set_tracker ( TAO_Notify_Buffering_Strategy::Tracker * tracker )

Set the tracker object. This strategy does not own the tracker.

void TAO_Notify_Buffering_Strategy::shutdown ( void )

Shutdown.

void TAO_Notify_Buffering_Strategy::update_qos_properties ( const TAO_Notify_QoSProperties & qos_properties )

Update state with the following QoS Properties: Order Policy Discard Policy MaxEventsPerConsumer

Member Data Documentation

TAO_Notify_AdminProperties::Ptr TAO_Notify_Buffering_Strategy::admin_properties_

private

Reference to the properties per event channel.

TAO_Notify_Property_Time TAO_Notify_Buffering_Strategy::blocking_policy_

private

TAO_Notify_Property_Short TAO_Notify_Buffering_Strategy::discard_policy_

private

Policy to discard when buffers are full.

TAO_SYNCH_CONDITION& TAO_Notify_Buffering_Strategy::global_not_full_

private

CORBA::Long& TAO_Notify_Buffering_Strategy::global_queue_length_

private

The global queue length - queue length accross all the queues.

TAO_SYNCH_MUTEX& TAO_Notify_Buffering_Strategy::global_queue_lock_

private

The shared global lock used by all the queues.

TAO_SYNCH_CONDITION TAO_Notify_Buffering_Strategy::local_not_empty_

private

Condition that batch size reached.

TAO_SYNCH_CONDITION TAO_Notify_Buffering_Strategy::local_not_full_

private

TAO_Notify_Property_Long TAO_Notify_Buffering_Strategy::max_events_per_consumer_

private

const TAO_Notify_Property_Long& TAO_Notify_Buffering_Strategy::max_queue_length_

private

The maximum events that can be queued overall.

TAO_Notify_Message_Queue& TAO_Notify_Buffering_Strategy::msg_queue_

private

= Data Members

The local Message Queue

TAO_Notify_Property_Short TAO_Notify_Buffering_Strategy::order_policy_

private

Order of events in internal buffers.

bool TAO_Notify_Buffering_Strategy::shutdown_

private

Flag to shutdown.

Tracker* TAO_Notify_Buffering_Strategy::tracker_

private

Optional queue tracker.

The documentation for this class was generated from the following files:
