TAO_CEC_ProxyPushSupplier Class Reference

ProxyPushSupplier. More...

#include <CEC_ProxyPushSupplier.h>

Inheritance diagram for TAO_CEC_ProxyPushSupplier:
Inheritance graph

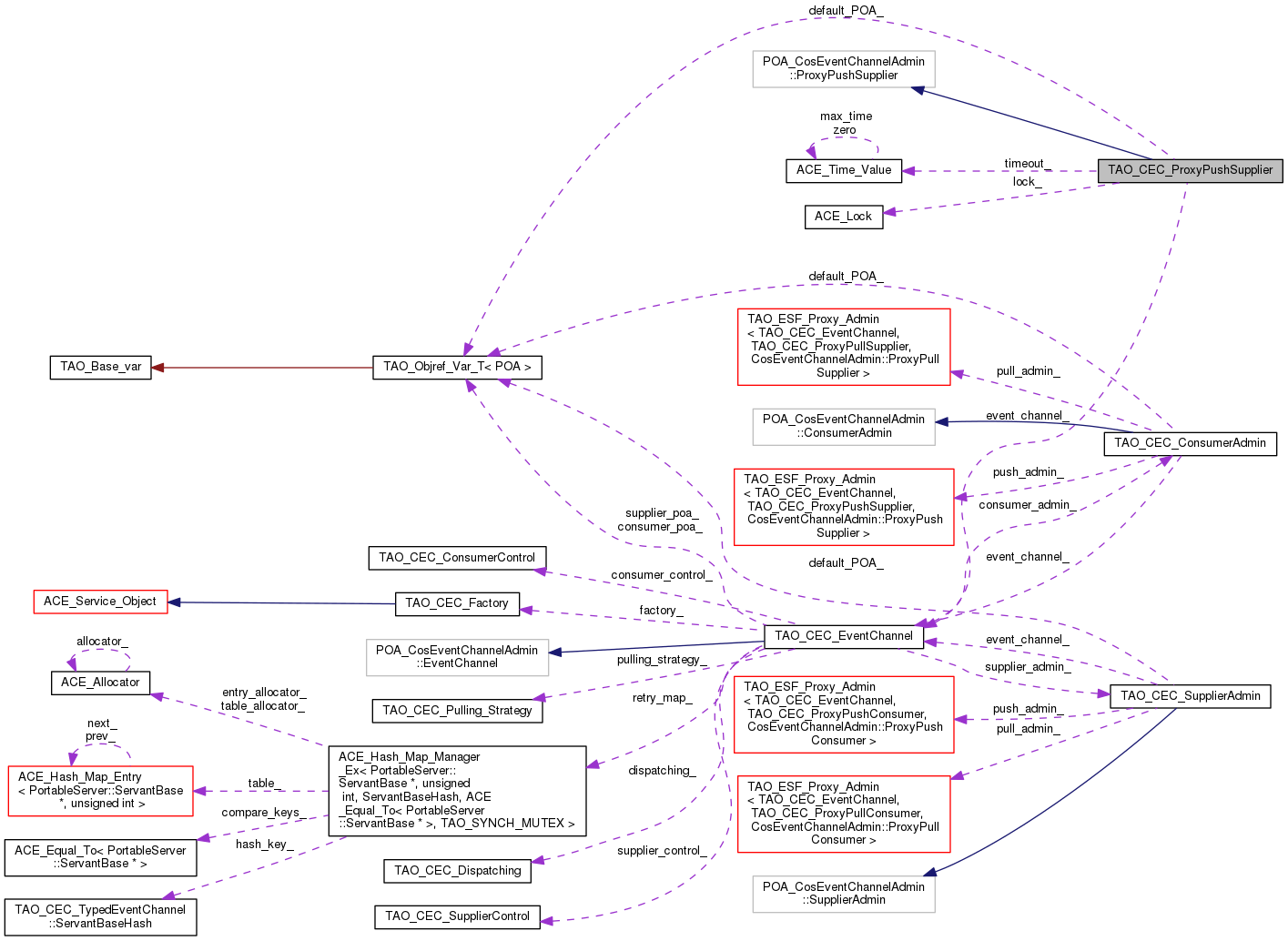

Collaboration diagram for TAO_CEC_ProxyPushSupplier:
Collaboration graph

Public Types

typedef CosEventChannelAdmin::ProxyPushSupplier_ptr _ptr_type
typedef CosEventChannelAdmin::ProxyPushSupplier_var _var_type

Public Member Functions

 TAO_CEC_ProxyPushSupplier (TAO_CEC_EventChannel *event_channel, const ACE_Time_Value &timeout)
 constructor... More...
virtual ~TAO_CEC_ProxyPushSupplier (void)
 typed ec constructor More...
virtual void activate (CosEventChannelAdmin::ProxyPushSupplier_ptr &)
 Activate in the POA. More...
virtual void deactivate (void)
 Deactivate from the POA. More...
CORBA::Boolean is_connected (void) const
 Return 0 if no consumer is connected... More...
CosEventComm::PushConsumer_ptr consumer (void) const
virtual void shutdown (void)
 The event channel is shutting down. More...
virtual void push (const CORBA::Any &event)
 Internal methods to push an event to each consumer. More...
virtual void push_nocopy (CORBA::Any &event)
void push_to_consumer (const CORBA::Any &event)
 Internal methods to invoke a typed event to each consumer. More...
void reactive_push_to_consumer (const CORBA::Any &event)
CORBA::Boolean consumer_non_existent (CORBA::Boolean_out disconnected)
virtual void connect_push_consumer (CosEventComm::PushConsumer_ptr push_consumer)
virtual void disconnect_push_supplier (void)
CORBA::ULong _incr_refcnt (void)
 Increment and decrement the reference count. More...
CORBA::ULong _decr_refcnt (void)
virtual PortableServer::POA_ptr _default_POA (void)
virtual void _add_ref (void)
virtual void _remove_ref (void)

Protected Member Functions

void consumer (CosEventComm::PushConsumer_ptr consumer)
void consumer_i (CosEventComm::PushConsumer_ptr consumer)
CORBA::Boolean is_connected_i (void) const
 The private version (without locking) of is_connected(). More...
void cleanup_i (void)
 Release the child and the consumer. More...
CosEventComm::PushConsumer_ptr apply_policy (CosEventComm::PushConsumer_ptr c)
CORBA::Object_ptr apply_policy_obj (CORBA::Object_ptr c)

Private Attributes

 The Event Channel that owns this object. More...
ACE_Time_Value timeout_
 The Typed Event Channel that owns this object. More...
CORBA::ULong refcount_
 The reference count. More...
CosEventComm::PushConsumer_var consumer_
CosEventComm::PushConsumer_var nopolicy_consumer_
 The consumer without any policies applied. More...
PortableServer::POA_var default_POA_
 Store the default POA. More...

Detailed Description


Implement the CosEventChannelAdmin::ProxyPushSupplier interface, remember that this class is used to communicate with a PushConsumer, so, in effect, this is the ambassador for a consumer inside the event channel. = MEMORY MANAGMENT It does not assume ownership of the TAO_CEC_Dispatching object. It makes a copy of the ConsumerQOS and the consumer object reference. = LOCKING Locking is strategized, the event channel acts as a factory for the locking strategies.

Member Typedef Documentation

typedef CosEventChannelAdmin::ProxyPushSupplier_ptr TAO_CEC_ProxyPushSupplier::_ptr_type
typedef CosEventChannelAdmin::ProxyPushSupplier_var TAO_CEC_ProxyPushSupplier::_var_type

Constructor & Destructor Documentation

TAO_CEC_ProxyPushSupplier::TAO_CEC_ProxyPushSupplier ( TAO_CEC_EventChannel event_channel,
const ACE_Time_Value timeout


TAO_CEC_ProxyPushSupplier::~TAO_CEC_ProxyPushSupplier ( void  )

typed ec constructor


Member Function Documentation

void TAO_CEC_ProxyPushSupplier::_add_ref ( void  )
CORBA::ULong TAO_CEC_ProxyPushSupplier::_decr_refcnt ( void  )
PortableServer::POA_ptr TAO_CEC_ProxyPushSupplier::_default_POA ( void  )
CORBA::ULong TAO_CEC_ProxyPushSupplier::_incr_refcnt ( void  )

Increment and decrement the reference count.

void TAO_CEC_ProxyPushSupplier::_remove_ref ( void  )
void TAO_CEC_ProxyPushSupplier::activate ( CosEventChannelAdmin::ProxyPushSupplier_ptr &  activated_proxy)

Activate in the POA.

CosEventComm::PushConsumer_ptr TAO_CEC_ProxyPushSupplier::apply_policy ( CosEventComm::PushConsumer_ptr  c)

Assigns the parameter to both consumer_ and nopolicy_consumer_, and applies policies (when appropriate) to consumer_.

CORBA::Object_ptr TAO_CEC_ProxyPushSupplier::apply_policy_obj ( CORBA::Object_ptr  c)
void TAO_CEC_ProxyPushSupplier::cleanup_i ( void  )

Release the child and the consumer.

void TAO_CEC_ProxyPushSupplier::connect_push_consumer ( CosEventComm::PushConsumer_ptr  push_consumer)
CosEventComm::PushConsumer_ptr TAO_CEC_ProxyPushSupplier::consumer ( void  ) const

Return the consumer object reference. It returns nil() if it has not connected yet. NOTE: This method does not return a new reference!!! Doing so will increase the locking overhead on the critical path.

void TAO_CEC_ProxyPushSupplier::consumer ( CosEventComm::PushConsumer_ptr  consumer)

Set the consumer, used by some implementations to change the policies used when invoking operations on the consumer.

void TAO_CEC_ProxyPushSupplier::consumer_i ( CosEventComm::PushConsumer_ptr  consumer)
CORBA::Boolean TAO_CEC_ProxyPushSupplier::consumer_non_existent ( CORBA::Boolean_out  disconnected)

Invoke the _non_existent() pseudo-operation on the consumer. If it is disconnected then it returns true and sets the <disconnected> flag.

void TAO_CEC_ProxyPushSupplier::deactivate ( void  )

Deactivate from the POA.

void TAO_CEC_ProxyPushSupplier::disconnect_push_supplier ( void  )
CORBA::Boolean TAO_CEC_ProxyPushSupplier::is_connected ( void  ) const

Return 0 if no consumer is connected...

CORBA::Boolean TAO_CEC_ProxyPushSupplier::is_connected_i ( void  ) const

The private version (without locking) of is_connected().

void TAO_CEC_ProxyPushSupplier::push ( const CORBA::Any &  event)

Internal methods to push an event to each consumer.

void TAO_CEC_ProxyPushSupplier::push_nocopy ( CORBA::Any &  event)
void TAO_CEC_ProxyPushSupplier::push_to_consumer ( const CORBA::Any &  event)

Internal methods to invoke a typed event to each consumer.

Pushes to the consumer, verifies that it is connected.

void TAO_CEC_ProxyPushSupplier::reactive_push_to_consumer ( const CORBA::Any &  event)
void TAO_CEC_ProxyPushSupplier::shutdown ( void  )

The event channel is shutting down.

Member Data Documentation

CosEventComm::PushConsumer_var TAO_CEC_ProxyPushSupplier::consumer_

The consumer – use apply_policy() instead of assigning directly to consumer_. This will keep consumer_ and nopolicy_consumer_ in sync.

PortableServer::POA_var TAO_CEC_ProxyPushSupplier::default_POA_

Store the default POA.

TAO_CEC_EventChannel* TAO_CEC_ProxyPushSupplier::event_channel_

The Event Channel that owns this object.

ACE_Lock* TAO_CEC_ProxyPushSupplier::lock_

The Typed Event Channel that owns this object.

The locking strategy.

CosEventComm::PushConsumer_var TAO_CEC_ProxyPushSupplier::nopolicy_consumer_

The consumer without any policies applied.

CORBA::ULong TAO_CEC_ProxyPushSupplier::refcount_

The reference count.

ACE_Time_Value TAO_CEC_ProxyPushSupplier::timeout_

The documentation for this class was generated from the following files:
