TAO_Profile Class Referenceabstract

Defines the Profile interface. More...

#include <Profile.h>

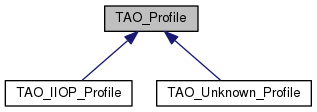

Inheritance diagram for TAO_Profile:
Inheritance graph
[legend]

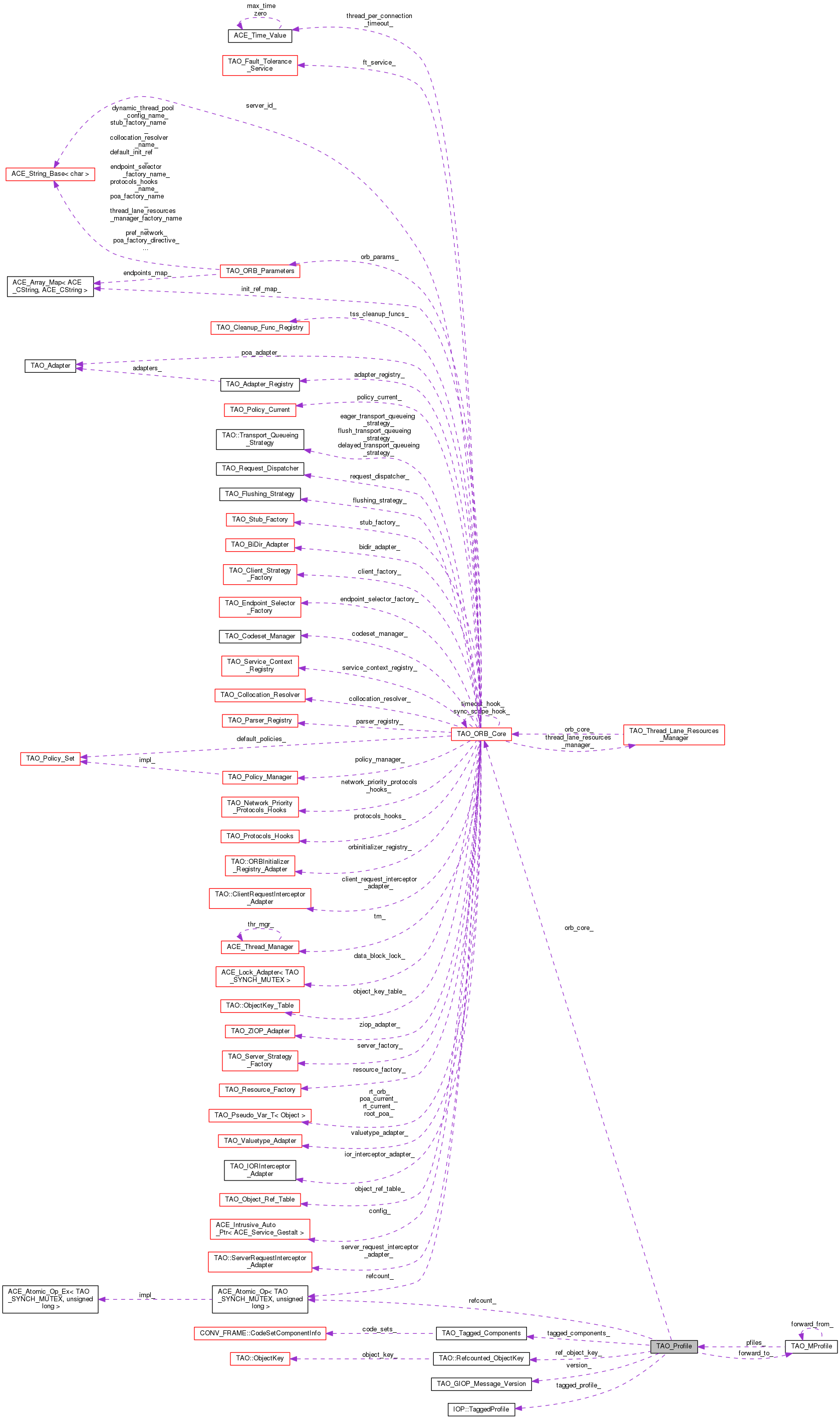

Collaboration diagram for TAO_Profile:
Collaboration graph
[legend]

Public Member Functions

 TAO_Profile (CORBA::ULong tag, TAO_ORB_Core *orb_core, const TAO_GIOP_Message_Version &version)
 Constructor. More...

Non virtual methods for the profile classes.
CORBA::ULong tag (void) const
 The tag, each concrete class will have a specific tag value. More...

const TAO_GIOP_Message_Versionversion (void) const

TAO_ORB_Coreorb_core (void) const
 Get a pointer to the TAO_ORB_Core. More...

unsigned long _incr_refcnt (void)
 Increase the reference count by one on this object. More...

unsigned long _decr_refcnt (void)

void forward_to (TAO_MProfile *mprofiles)
 Keep a pointer to the forwarded profile. More...

TAO_MProfileforward_to (void)
 MProfile accessor. More...

const TAO_Tagged_Componentstagged_components (void) const

TAO_Tagged_Componentstagged_components (void)
 The tag, each concrete class will have a specific tag value. More...

void add_tagged_component (const IOP::TaggedComponent &component)
 Add the given tagged component to the profile. More...

CORBA::Short addressing_mode (void) const

const TAO::ObjectKeyobject_key (void) const

TAO::ObjectKey_key (void) const

Template methods that needs to be implemented by the

concrete classes. Some of the methods may be overridden only under specila circumstances.

virtual int encode (TAO_OutputCDR &stream) const
 Encode this profile in a stream, i.e. marshal it. More...

virtual int decode (TAO_InputCDR &cdr)
 Initialize this object using the given CDR octet string. More...

IOP::TaggedProfilecreate_tagged_profile (void)

virtual void policies (CORBA::PolicyList *policy_list)

virtual void get_policies (CORBA::PolicyList &policy_list)
 Accessor for the client exposed policies of this profile. More...

virtual int supports_multicast (void) const
 Returns true if this profile can specify multicast endpoints. More...

virtual bool supports_non_blocking_oneways (void) const
 Returns true if this profile supports non blocking oneways. More...

virtual void addressing_mode (CORBA::Short addr_mode)

virtual char object_key_delimiter (void) const =0
 The object key delimiter. More...

virtual void parse_string (const char *string)

virtual char * to_string (void) const =0

virtual int encode_endpoints (void)=0

virtual int encode_alternate_endpoints (void)

virtual TAO_Endpointendpoint (void)=0

virtual TAO_Endpointbase_endpoint (void)

virtual CORBA::ULong endpoint_count (void) const =0
 Return how many endpoints this profile contains. More...

TAO_Endpointfirst_filtered_endpoint (void)

TAO_Endpointnext_filtered_endpoint (TAO_Endpoint *source)

virtual void remove_generic_endpoint (TAO_Endpoint *ep)

virtual void add_generic_endpoint (TAO_Endpoint *ep)
 Add a protocol-agnostic endpoint. More...

CORBA::Boolean is_equivalent (const TAO_Profile *other_profile)
 Verify profile equivalance. More...

CORBA::Boolean compare_key (const TAO_Profile *other) const

virtual CORBA::ULong hash (CORBA::ULong max)=0
 Return a hash value for this object. More...


Protected Member Functions

virtual ~TAO_Profile (void)
 If you have a virtual method you need a virtual dtor. More...

 TAO_Profile (CORBA::ULong tag, TAO_ORB_Core *orb_core, const TAO::ObjectKey &key, const TAO_GIOP_Message_Version &version)
 To be used by inherited classes. More...

void set_tagged_components (TAO_OutputCDR &cdr)

virtual CORBA::Boolean do_is_equivalent (const TAO_Profile *other)=0
 Profile equivalence template method invoked on subclasses. More...

virtual TAO_Service_Callbacks::Profile_Equivalence is_equivalent_hook (const TAO_Profile *other)
 Allow services to apply their own definition of "equivalence.". More...

CORBA::ULong hash_service_i (CORBA::ULong m)

Protected template methods.
virtual int decode_profile (TAO_InputCDR &cdr)=0
 Decode the protocol specific profile details. More...

virtual void create_profile_body (TAO_OutputCDR &cdr) const =0
 Creates an encapsulation of the ProfileBody struct in the cdr. More...

virtual int decode_endpoints (void)=0

virtual void parse_string_i (const char *string)=0
 Protocol specific implementation of parse_string () More...


Protected Attributes

TAO_GIOP_Message_Version version_
 IIOP version number. More...

TAO_Tagged_Components tagged_components_
 The tagged components. More...

CORBA::Boolean are_policies_parsed_

CORBA::Short addressing_mode_

IOP::TaggedProfiletagged_profile_
 Our tagged profile. More...

TAO::Refcounted_ObjectKeyref_object_key_
 Object_key associated with this profile. More...


Private Member Functions

TAO_MProfileforward_to_i (void)
 This object keeps ownership of this object. More...

void verify_orb_configuration (void)

void verify_profile_version (void)

 TAO_Profile (const TAO_Profile &)

void operator= (const TAO_Profile &)


Private Attributes

CORBA::ULong const tag_
 IOP protocol tag. More...

TAO_ORB_Core *const orb_core_
 Pointer to the ORB core. More...

TAO_MProfileforward_to_

ACE_Atomic_Op< TAO_SYNCH_MUTEX, unsigned long > refcount_
 Number of outstanding references to this object. More...

TAO_SYNCH_MUTEX tagged_profile_lock_
 A lock that protects creation of the tagged profile. More...

bool tagged_profile_created_


Detailed Description

Defines the Profile interface.

An abstract base class for representing object location information. This is based on the CORBA IOR definitions.

Constructor & Destructor Documentation

TAO_Profile::TAO_Profile ( CORBA::ULong  tag,
TAO_ORB_Core orb_core,
const TAO_GIOP_Message_Version version
)

Constructor.

TAO_Profile::~TAO_Profile ( void  )
protectedvirtual

If you have a virtual method you need a virtual dtor.

TAO_Profile::TAO_Profile ( CORBA::ULong  tag,
TAO_ORB_Core orb_core,
const TAO::ObjectKey key,
const TAO_GIOP_Message_Version version
)
protected

To be used by inherited classes.

TAO_Profile::TAO_Profile ( const TAO_Profile )
private

Member Function Documentation

unsigned long TAO_Profile::_decr_refcnt ( void  )

Decrement the object's reference count. When this count goes to 0 this object will be deleted.

unsigned long TAO_Profile::_incr_refcnt ( void  )

Increase the reference count by one on this object.

TAO::ObjectKey * TAO_Profile::_key ( void  ) const

Obtain the object key, return 0 if the profile cannot be parsed. The memory is owned by the caller!

void TAO_Profile::add_generic_endpoint ( TAO_Endpoint ep)
virtual

Add a protocol-agnostic endpoint.

Reimplemented in TAO_IIOP_Profile.

void TAO_Profile::add_tagged_component ( const IOP::TaggedComponent component)

Add the given tagged component to the profile.

CORBA::Short TAO_Profile::addressing_mode ( void  ) const

Return the current addressing mode for this profile. In almost all cases, this is TAO_Target_Specification::Key_Addr.

void TAO_Profile::addressing_mode ( CORBA::Short  addr_mode)
virtual

Set the addressing mode if a remote servant replies with an addressing mode exception. If this profile doesn't support a particular addressing mode, this method needs to be overridden signal the appropriate error.

** RACE CONDITION NOTE **

Currently, getting and setting the addressing mode is not protected by a mutex. Theoretically, this could cause a race condition if one thread sends a request, then gets an exception from the remote servant to change the addressing mode, and then another thread sends a different request to the same servant using the wrong addressing mode. The result of this is that we'll get another address change exception. (Annoying, but not that bad.)

In practice at the current time, the above theoretical case never happens since the target specification always uses the object key except for MIOP requests. Remote ORBs can't respond to MIOP requests even to send exceptions, so even in this case, the race condition can't happen.

Therefore, for the time being, there is no lock to protect the addressing mode. Given that the addressing mode is checked in the critical path, this decision seems like a good thing.

TAO_Endpoint * TAO_Profile::base_endpoint ( void  )
virtual

Return a pointer to this profile's endpoint. If the most derived profile type uses an endpoint that is a type that does not derive from the endpoint type of the base profile, then this method returns the base type's endpoint. For example, SSLIOP_Profile derives from IIOP_Profile, but SSLIOP_Endpoint does not derive from IIOP_Endpoint. Because SSLIOP is tagged the same as IIOP, this method is required to facilitate the Endpoint Policy's filtering function. The default implementation of base_endpoint simply returns endpoint.

Reimplemented in TAO_IIOP_Profile.

CORBA::Boolean TAO_Profile::compare_key ( const TAO_Profile other) const

Compare the object key for this profile with that of another. This is weaker than is_equivalent

virtual void TAO_Profile::create_profile_body ( TAO_OutputCDR cdr) const
protectedpure virtual

Creates an encapsulation of the ProfileBody struct in the cdr.

Implemented in TAO_Unknown_Profile, and TAO_IIOP_Profile.

IOP::TaggedProfile * TAO_Profile::create_tagged_profile ( void  )

This method is used to get the IOP::TaggedProfile. The profile information that is received from the server side would have already been decoded. So this method will just make a IOP::TaggedProfile struct from the existing information and return the reference to that. This method is necessary for GIOP 1.2.

int TAO_Profile::decode ( TAO_InputCDR cdr)
virtual

Initialize this object using the given CDR octet string.

Reimplemented in TAO_Unknown_Profile.

virtual int TAO_Profile::decode_endpoints ( void  )
protectedpure virtual

Helper for decode(). Decodes endpoints from a tagged component. Decode only if RTCORBA is enabled. Furthermore, we may not find TAO_TAG_ENDPOINTS component, e.g., if we are talking to nonRT version of TAO or some other ORB. This is not an error, and we must proceed. Return 0 on success and -1 on failure.

Implemented in TAO_Unknown_Profile, and TAO_IIOP_Profile.

virtual int TAO_Profile::decode_profile ( TAO_InputCDR cdr)
protectedpure virtual

Decode the protocol specific profile details.

Implemented in TAO_Unknown_Profile, and TAO_IIOP_Profile.

virtual CORBA::Boolean TAO_Profile::do_is_equivalent ( const TAO_Profile other)
protectedpure virtual

Profile equivalence template method invoked on subclasses.

TAO_Profile subclasses must implement this template method so that they can apply their own definition of profile equivalence.

Implemented in TAO_Unknown_Profile, and TAO_IIOP_Profile.

int TAO_Profile::encode ( TAO_OutputCDR stream) const
virtual

Encode this profile in a stream, i.e. marshal it.

Reimplemented in TAO_Unknown_Profile.

int TAO_Profile::encode_alternate_endpoints ( void  )
virtual

Encodes this profile's endpoints into protocol specific tagged components. This is used for non-RTCORBA applications that share endpoints on profiles. The only known implementation is IIOP, using TAG_ALTERNATE_IIOP_ADDRESS components.

Reimplemented in TAO_IIOP_Profile.

virtual int TAO_Profile::encode_endpoints ( void  )
pure virtual

Encodes this profile's endpoints into a tagged component. This is done only if RTCORBA is enabled, since currently this is the only case when we have more than one endpoint per profile.

Implemented in TAO_Unknown_Profile, and TAO_IIOP_Profile.

virtual TAO_Endpoint* TAO_Profile::endpoint ( void  )
pure virtual

Return a pointer to this profile's endpoint. If the profile contains more than one endpoint, i.e., a list, the method returns the head of the list.

Implemented in TAO_Unknown_Profile, and TAO_IIOP_Profile.

virtual CORBA::ULong TAO_Profile::endpoint_count ( void  ) const
pure virtual

Return how many endpoints this profile contains.

Implemented in TAO_Unknown_Profile, and TAO_IIOP_Profile.

TAO_Endpoint * TAO_Profile::first_filtered_endpoint ( void  )

Return the first endpoint in the list that matches some filtering constraint, such as IPv6 compatibility for IIOP endpoints. This method is implemented in terms of TAO_Endpoint::next_filtered().

void TAO_Profile::forward_to ( TAO_MProfile mprofiles)

Keep a pointer to the forwarded profile.

TAO_MProfile * TAO_Profile::forward_to ( void  )

MProfile accessor.

TAO_MProfile * TAO_Profile::forward_to_i ( void  )
private

This object keeps ownership of this object.

void TAO_Profile::get_policies ( CORBA::PolicyList policy_list)
virtual

Accessor for the client exposed policies of this profile.

virtual CORBA::ULong TAO_Profile::hash ( CORBA::ULong  max)
pure virtual

Return a hash value for this object.

Implemented in TAO_Unknown_Profile, and TAO_IIOP_Profile.

CORBA::ULong TAO_Profile::hash_service_i ( CORBA::ULong  m)
protected
CORBA::Boolean TAO_Profile::is_equivalent ( const TAO_Profile other_profile)

Verify profile equivalance.

Two profiles are equivalent if their tag, object_key, version and all endpoints are the same.

See also
do_is_equivalent_i()
is_equivalent_hook()
Returns
true if this profile is equivalent to other_profile.
TAO_Service_Callbacks::Profile_Equivalence TAO_Profile::is_equivalent_hook ( const TAO_Profile other)
protectedvirtual

Allow services to apply their own definition of "equivalence.".

This method differs from the do_is_equivalent() template method in that it has a default implementation that may or not be applicable to all TAO_Profile subclasses.

Reimplemented in TAO_Unknown_Profile.

TAO_Endpoint * TAO_Profile::next_filtered_endpoint ( TAO_Endpoint source)

Return the next filtered endpoint in the list after the one passed in. This method is implemented in terms of TAO_Endpoint;:next_filtered(). If the supplied source endpoint is null, this returns the first filtered endpoint.

const TAO::ObjectKey & TAO_Profile::object_key ( void  ) const
Deprecated:
Return a reference to the Object Key.
virtual char TAO_Profile::object_key_delimiter ( void  ) const
pure virtual

The object key delimiter.

Implemented in TAO_Unknown_Profile, and TAO_IIOP_Profile.

void TAO_Profile::operator= ( const TAO_Profile )
private
TAO_ORB_Core * TAO_Profile::orb_core ( void  ) const

Get a pointer to the TAO_ORB_Core.

void TAO_Profile::parse_string ( const char *  string)
virtual

Initialize this object using the given input string. Supports URL style of object references

Reimplemented in TAO_Unknown_Profile.

virtual void TAO_Profile::parse_string_i ( const char *  string)
protectedpure virtual

Protocol specific implementation of parse_string ()

Implemented in TAO_Unknown_Profile, and TAO_IIOP_Profile.

void TAO_Profile::policies ( CORBA::PolicyList policy_list)
virtual

This method sets the client exposed policies, i.e., the ones propagated in the IOR, for this profile.

void TAO_Profile::remove_generic_endpoint ( TAO_Endpoint ep)
virtual

Remove the provided endpoint from the profile. Some subclasses of TAO_Profile already have a protocol-specific version of remove_endpoint, but this generic interface is required. The default implementation is a no-op. Protocol maintainers wishing to add support for the EndpointPolicy must implement remove_generic_endpoint to call their protocol-specific version of remove_endpoint

Reimplemented in TAO_IIOP_Profile.

void TAO_Profile::set_tagged_components ( TAO_OutputCDR cdr)
protected

Helper method that encodes the endpoints for RTCORBA as tagged_components.

int TAO_Profile::supports_multicast ( void  ) const
virtual

Returns true if this profile can specify multicast endpoints.

bool TAO_Profile::supports_non_blocking_oneways ( void  ) const
virtual

Returns true if this profile supports non blocking oneways.

CORBA::ULong TAO_Profile::tag ( void  ) const

The tag, each concrete class will have a specific tag value.

const TAO_Tagged_Components & TAO_Profile::tagged_components ( void  ) const

Access the tagged components, notice that they they could be empty (or ignored) for non-GIOP protocols (and even for GIOP-1.0)

TAO_Tagged_Components & TAO_Profile::tagged_components ( void  )

The tag, each concrete class will have a specific tag value.

virtual char* TAO_Profile::to_string ( void  ) const
pure virtual

Return a string representation for this profile. Client must deallocate memory. Only one endpoint is included into the string.

Implemented in TAO_Unknown_Profile, and TAO_IIOP_Profile.

void TAO_Profile::verify_orb_configuration ( void  )
private

Verify that the current ORB's configuration supports tagged components in IORs.

void TAO_Profile::verify_profile_version ( void  )
private

Verify that the given profile supports tagged components, i.e. is not a GIOP 1.0 profile.

const TAO_GIOP_Message_Version & TAO_Profile::version ( void  ) const

Return a pointer to this profile's version. This object maintains ownership.

Member Data Documentation

CORBA::Short TAO_Profile::addressing_mode_
protected

The current addressing mode. This may be changed if a remote server sends back an address mode exception.

CORBA::Boolean TAO_Profile::are_policies_parsed_
protected

Flag indicating whether the lazy decoding of the client exposed policies has taken place.

TAO_MProfile* TAO_Profile::forward_to_
private

The TAO_MProfile which contains the profiles for the forwarded object.

TAO_ORB_Core* const TAO_Profile::orb_core_
private

Pointer to the ORB core.

TAO::Refcounted_ObjectKey* TAO_Profile::ref_object_key_
protected

Object_key associated with this profile.

ACE_Atomic_Op<TAO_SYNCH_MUTEX, unsigned long> TAO_Profile::refcount_
private

Number of outstanding references to this object.

CORBA::ULong const TAO_Profile::tag_
private

IOP protocol tag.

TAO_Tagged_Components TAO_Profile::tagged_components_
protected

The tagged components.

IOP::TaggedProfile* TAO_Profile::tagged_profile_
protected

Our tagged profile.

bool TAO_Profile::tagged_profile_created_
private

Having (tagged_profile_ != 0) doesn't mean yet that tagged_profile_ building is finished.

TAO_SYNCH_MUTEX TAO_Profile::tagged_profile_lock_
private

A lock that protects creation of the tagged profile.

TAO_GIOP_Message_Version TAO_Profile::version_
protected

IIOP version number.


The documentation for this class was generated from the following files:
