ACE_Service_Object Class Reference

Provide the abstract base class common to all service implementations. More...

#include <Service_Object.h>

Inheritance diagram for ACE_Service_Object:
Inheritance graph

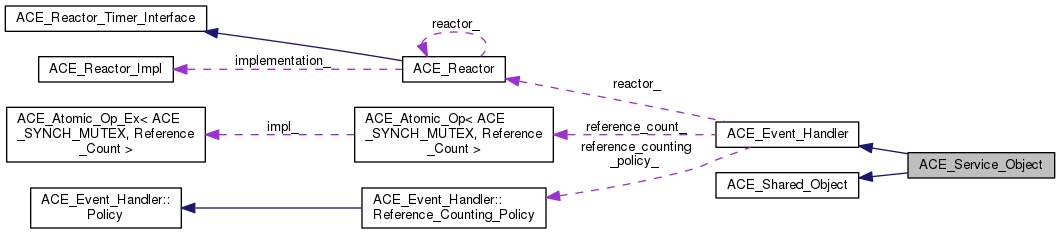

Collaboration diagram for ACE_Service_Object:
Collaboration graph

Public Member Functions

 ACE_Service_Object (ACE_Reactor *=0)
 Constructor. More...
virtual ~ACE_Service_Object (void)
 Destructor. More...
virtual int suspend (void)
 Temporarily disable a service without removing it completely. More...
virtual int resume (void)
 Re-enable a previously suspended service. More...
- Public Member Functions inherited from ACE_Event_Handler
virtual ~ACE_Event_Handler (void)
 Destructor is virtual to enable proper cleanup. More...
virtual ACE_HANDLE get_handle (void) const
 Get the I/O handle. More...
virtual void set_handle (ACE_HANDLE)
 Set the I/O handle. More...
virtual int priority (void) const
virtual void priority (int priority)
 Set the priority of the Event_Handler. More...
virtual int handle_input (ACE_HANDLE fd=ACE_INVALID_HANDLE)
 Called when input events occur (e.g., connection or data). More...
virtual int handle_output (ACE_HANDLE fd=ACE_INVALID_HANDLE)
virtual int handle_exception (ACE_HANDLE fd=ACE_INVALID_HANDLE)
 Called when an exceptional events occur (e.g., SIGURG). More...
virtual int handle_timeout (const ACE_Time_Value &current_time, const void *act=0)
virtual int handle_exit (ACE_Process *)
 Called when a process exits. More...
virtual int handle_close (ACE_HANDLE handle, ACE_Reactor_Mask close_mask)
virtual int handle_signal (int signum, siginfo_t *=0, ucontext_t *=0)
virtual int resume_handler (void)
virtual int handle_qos (ACE_HANDLE=ACE_INVALID_HANDLE)
virtual int handle_group_qos (ACE_HANDLE=ACE_INVALID_HANDLE)
virtual void reactor (ACE_Reactor *reactor)
 Set the event demultiplexors. More...
virtual ACE_Reactorreactor (void) const
 Get the event demultiplexors. More...
virtual ACE_Reactor_Timer_Interfacereactor_timer_interface (void) const
 Get only the reactor's timer related interface. More...
virtual Reference_Count add_reference (void)
 Increment reference count on the handler. More...
virtual Reference_Count remove_reference (void)
 Decrement reference count on the handler. More...
Reference_Counting_Policyreference_counting_policy (void)
 Current Reference_Counting_Policy. More...
- Public Member Functions inherited from ACE_Shared_Object
 ACE_Shared_Object (void)
 Constructor. More...
virtual ~ACE_Shared_Object (void)
 Destructor. More...
virtual int init (int argc, ACE_TCHAR *argv[])
 Initializes object when dynamic linking occurs. More...
virtual int fini (void)
 Terminates object when dynamic unlinking occurs. More...
virtual int info (ACE_TCHAR **info_string, size_t length=0) const
 Returns information on a service object. More...

Additional Inherited Members

- Public Types inherited from ACE_Event_Handler
enum  {
  LO_PRIORITY = 0, HI_PRIORITY = 10, NULL_MASK = 0, READ_MASK = (1 << 0),
  WRITE_MASK = (1 << 1), EXCEPT_MASK = (1 << 2), ACCEPT_MASK = (1 << 3), CONNECT_MASK = (1 << 4),
  TIMER_MASK = (1 << 5), QOS_MASK = (1 << 6), GROUP_QOS_MASK = (1 << 7), SIGNAL_MASK = (1 << 8),
typedef long Reference_Count
 Reference count type. More...
- Static Public Member Functions inherited from ACE_Event_Handler
static ACE_THR_FUNC_RETURN read_adapter (void *event_handler)
static int register_stdin_handler (ACE_Event_Handler *eh, ACE_Reactor *reactor, ACE_Thread_Manager *thr_mgr, int flags=THR_DETACHED)
static int remove_stdin_handler (ACE_Reactor *reactor, ACE_Thread_Manager *thr_mgr)
 Performs the inverse of the register_stdin_handler() method. More...
- Protected Types inherited from ACE_Event_Handler
typedef ACE_Atomic_Op< ACE_SYNCH_MUTEX, Reference_CountAtomic_Reference_Count
 Typedef for implementation of reference counting. More...
- Protected Member Functions inherited from ACE_Event_Handler
 ACE_Event_Handler (ACE_Reactor *=0, int priority=ACE_Event_Handler::LO_PRIORITY)
 Force ACE_Event_Handler to be an abstract base class. More...
- Protected Attributes inherited from ACE_Event_Handler
Atomic_Reference_Count reference_count_
 Reference count. More...

Detailed Description

Provide the abstract base class common to all service implementations.

Classes that inherit from ACE_Service_Objects are capable of being registered with the ACE_Reactor (due to the ACE_Event_Handler, as well as being dynamically linked by the ACE_Service_Config (due to the ACE_Shared_Object).

Constructor & Destructor Documentation

ACE_Service_Object::ACE_Service_Object ( ACE_Reactor r = 0)


ACE_Service_Object::~ACE_Service_Object ( void  )


Member Function Documentation

int ACE_Service_Object::resume ( void  )
int ACE_Service_Object::suspend ( void  )

The documentation for this class was generated from the following files:
