#include <ETCL_FilterFactory.h>

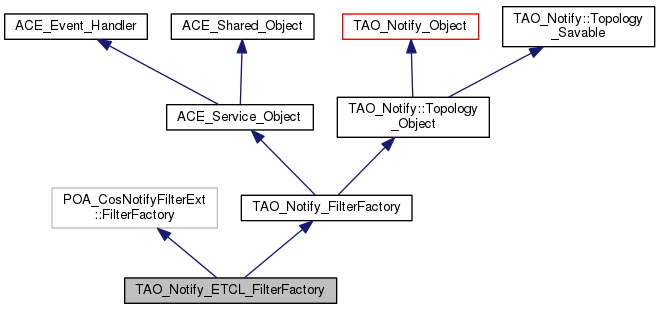

Inheritance diagram for TAO_Notify_ETCL_FilterFactory:

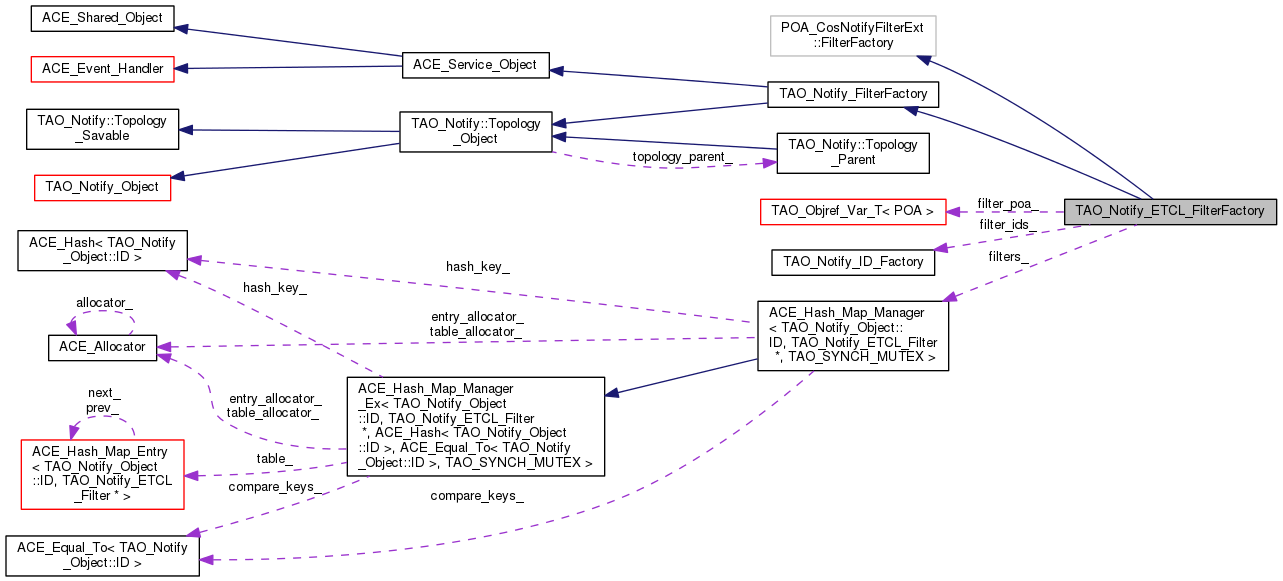

Collaboration diagram for TAO_Notify_ETCL_FilterFactory:

Public Member Functions
	TAO_Notify_ETCL_FilterFactory (void)
	Constructor. More...

virtual	~TAO_Notify_ETCL_FilterFactory ()
	Destructor. More...

virtual CosNotifyFilter::FilterFactory_ptr	create (PortableServer::POA_ptr filter_poa)
	= TAO_Notify_FilterFactory methods. More...

virtual void	destroy (void)

virtual CosNotifyFilter::Filter_ptr	create_filter (const char *constraint_grammar)
	= CosNotifyFilter::FilterFactory methods More...

virtual CosNotifyFilter::MappingFilter_ptr	create_mapping_filter (const char *constraint_grammar, const CORBA::Any &default_value)

virtual void	remove_filter (CosNotifyFilter::Filter_ptr filter)

virtual void	save_persistent (TAO_Notify::Topology_Saver &saver)

virtual TAO_Notify::Topology_Object *	load_child (const ACE_CString &type, CORBA::Long id, const TAO_Notify::NVPList &attrs)
	Create a child of the appropriate type and return it. More...

virtual TAO_Notify_Object::ID	get_filter_id (CosNotifyFilter::Filter_ptr filter)

virtual CosNotifyFilter::Filter_ptr	get_filter (const TAO_Notify_Object::ID &id)

virtual CosNotifyFilter::FilterID	get_filterid (CosNotifyFilter::Filter_ptr filter)

virtual CosNotifyFilter::Filter_ptr	get_filter (CosNotifyFilter::FilterID id)

Public Member Functions inherited from TAO_Notify::Topology_Object
	Topology_Object ()
	The constructor. More...

virtual	~Topology_Object ()
	The destructor. More...

virtual void	initialize (Topology_Parent *topology_parent)
	Init this object with data from <rhs>. More...

virtual TAO_Notify_Object::ID	get_id (void) const
	Find the id associated with topology object. More...

void	get_id_path (IdVec &id_path) const
	Get the path of id's from the root to this object. More...

bool	is_changed (void) const
	Is there an unsaved change for this object or its children? More...

Public Member Functions inherited from TAO_Notify_Object
virtual	~TAO_Notify_Object (void)
	Destructor. More...

ID	id (void) const
	This Object's ID. More...

virtual CORBA::Object_ptr	activate (PortableServer::Servant servant)
	Activate. More...

virtual CORBA::Object_ptr	activate (PortableServer::Servant servant, CORBA::Long id)
	Activate with existing id. More...

void	deactivate (void)
	Deactivate. More...

bool	has_shutdown (void)
	Have we been shutdown. returns true if shutdown. More...

void	execute_task (TAO_Notify_Method_Request &method_request)

CORBA::Object_ptr	ref (void)
	Get CORBA Ref. More...

virtual void	set_qos (const CosNotification::QoSProperties &qos)
	Set the QoS Properties. More...

CosNotification::QoSProperties *	get_qos (void)
	Get the QoS Properties. More...

bool	find_qos_property_value (const char *name, CosNotification::PropertyValue &value) const

virtual TAO_Notify_Timer *	timer (void)
	Obtain the Timer manager associated with this object. More...

TAO_Notify_Event_Manager &	event_manager (void)
	Accessor for the Event Manager. More...

virtual int	shutdown (void)
	Shutdown. Returns 1 if the shutdown was already run once before. More...

virtual void	load_attrs (const TAO_Notify::NVPList &attrs)

TAO_Notify_Worker_Task *	get_worker_task (void)
	Allow access to the underlying worker task. More...

Public Member Functions inherited from TAO_Notify_Refcountable
	TAO_Notify_Refcountable (void)
	Constructor. More...

virtual	~TAO_Notify_Refcountable ()

CORBA::ULong	_incr_refcnt (void)

CORBA::ULong	_decr_refcnt (void)

Public Member Functions inherited from TAO_Notify::Topology_Savable
virtual	~Topology_Savable (void)
	Destructor. More...

virtual void	reconnect (void)

Protected Types
typedef ACE_Hash_Map_Manager < TAO_Notify_Object::ID, TAO_Notify_ETCL_Filter *, TAO_SYNCH_MUTEX >	FILTERMAP

Protected Member Functions
CosNotifyFilter::Filter_ptr	create_filter (const char constraint_grammar, const TAO_Notify_Object::ID &id, TAO_Notify_ETCL_Filter &filter)

TAO_Notify_Object::ID	find_filter_id (CosNotifyFilter::Filter_ptr filter)

CosNotifyFilter::Filter_ptr	find_filter (const TAO_Notify_Object::ID &id)

virtual void	release (void)
	Release this object. More...

Protected Member Functions inherited from TAO_Notify::Topology_Object
virtual bool	is_persistent (void) const
	Should this object be saved? More...

bool	self_change (void)
	Method to report change in this object. More...

Topology_Parent *	topology_parent () const
	pointer to our topological parent More...

bool	send_change (void)
	Handle details of propagating change. More...

bool	send_deletion_change ()
	Handle details of propagating change for a deleted object. More...

Protected Member Functions inherited from TAO_Notify_Object
	TAO_Notify_Object (void)
	Constructor. More...

void	initialize (TAO_Notify_Object *parent)
	Init this object with data from <rhs>. More...

void	inherit_poas (TAO_Notify_Object &parent)
	Uses the poas from the supplied object. More...

void	adopt_poa (TAO_Notify_POA_Helper *single)
	Adopts the supplied poa as all are poas. More...

void	set_primary_as_proxy_poa ()
	Changes the primary poa to the current proxy poa. More...

TAO_Notify_POA_Helper *	proxy_poa (void)
	Accessor for the proxy_poa_. More...

TAO_Notify_POA_Helper *	object_poa (void)
	Accessor for the object_poa_. More...

TAO_Notify_POA_Helper *	poa (void)
	Get the POA assigned to us. More...

void	set_event_manager (TAO_Notify_Event_Manager *event_manager)

void	set_admin_properties (TAO_Notify_AdminProperties *admin_properties)

TAO_Notify_AdminProperties &	admin_properties (void)
	Accessor for the Admin Properties. More...

virtual void	qos_changed (const TAO_Notify_QoSProperties &qos_properties)

virtual void	save_attrs (TAO_Notify::NVPList &attrs)

Protected Attributes
PortableServer::POA_var	filter_poa_
	The POA in which to activate the Filters. More...

TAO_Notify_ID_Factory	filter_ids_
	Id generator for proxy suppliers. More...

FILTERMAP	filters_

TAO_SYNCH_MUTEX	mtx_

Protected Attributes inherited from TAO_Notify::Topology_Object
bool	self_changed_
	true if this object changed since last save_persistent More...

bool	children_changed_
	true of any of this object's children changed since last save_persistent More...

Topology_Parent *	topology_parent_
	A safely-typed copy of parent_;. More...

Protected Attributes inherited from TAO_Notify_Object
TAO_Notify_QoSProperties	qos_properties_
	= Protected data members. More...

TAO_SYNCH_MUTEX	lock_
	The mutex to serialize access to state variables. More...

Additional Inherited Members
Public Types inherited from TAO_Notify_Object
typedef CORBA::Long	ID
	Id for Objects. More...

Public Types inherited from TAO_Notify_Refcountable
typedef TAO_Notify_Refcountable_Guard_T < TAO_Notify_Refcountable >	Ptr

Member Typedef Documentation

typedef ACE_Hash_Map_Manager<TAO_Notify_Object::ID, TAO_Notify_ETCL_Filter*, TAO_SYNCH_MUTEX> TAO_Notify_ETCL_FilterFactory::FILTERMAP

protected

Constructor & Destructor Documentation

TAO_Notify_ETCL_FilterFactory::TAO_Notify_ETCL_FilterFactory ( void )

Constructor.

TAO_Notify_ETCL_FilterFactory::~TAO_Notify_ETCL_FilterFactory ( )

virtual

Destructor.

Member Function Documentation

CosNotifyFilter::FilterFactory_ptr TAO_Notify_ETCL_FilterFactory::create ( PortableServer::POA_ptr filter_poa )

virtual

= TAO_Notify_FilterFactory methods.

Implements TAO_Notify_FilterFactory.

CosNotifyFilter::Filter_ptr TAO_Notify_ETCL_FilterFactory::create_filter ( const char * constraint_grammar )

virtual

= CosNotifyFilter::FilterFactory methods

CosNotifyFilter::Filter_ptr TAO_Notify_ETCL_FilterFactory::create_filter	(	const char *	constraint_grammar,
		const TAO_Notify_Object::ID &	id,
		TAO_Notify_ETCL_Filter *&	filter
	)

protected

CosNotifyFilter::MappingFilter_ptr TAO_Notify_ETCL_FilterFactory::create_mapping_filter	(	const char *	constraint_grammar,
		const CORBA::Any &	default_value
	)

virtual

void TAO_Notify_ETCL_FilterFactory::destroy ( void )

virtual

Implements TAO_Notify_FilterFactory.

CosNotifyFilter::Filter_ptr TAO_Notify_ETCL_FilterFactory::find_filter ( const TAO_Notify_Object::ID & id )

protected

TAO_Notify_Object::ID TAO_Notify_ETCL_FilterFactory::find_filter_id ( CosNotifyFilter::Filter_ptr filter )

protected

CosNotifyFilter::Filter_ptr TAO_Notify_ETCL_FilterFactory::get_filter ( const TAO_Notify_Object::ID & id )

virtual

Implements TAO_Notify_FilterFactory.

CosNotifyFilter::Filter_ptr TAO_Notify_ETCL_FilterFactory::get_filter ( CosNotifyFilter::FilterID id )

virtual

TAO_Notify_Object::ID TAO_Notify_ETCL_FilterFactory::get_filter_id ( CosNotifyFilter::Filter_ptr filter )

virtual

Implements TAO_Notify_FilterFactory.

CosNotifyFilter::FilterID TAO_Notify_ETCL_FilterFactory::get_filterid ( CosNotifyFilter::Filter_ptr filter )

virtual

TAO_Notify::Topology_Object * TAO_Notify_ETCL_FilterFactory::load_child	(	const ACE_CString &	type,
		CORBA::Long	id,
		const TAO_Notify::NVPList &	attrs
	)

virtual

Create a child of the appropriate type and return it.

Use "type" as passed in to determine what kind of child (supporting the Topology_Object interface) to create and return. Inform it of its new ID.

Reimplemented from TAO_Notify::Topology_Object.

void TAO_Notify_ETCL_FilterFactory::release ( void )

protectedvirtual

Release this object.

Implements TAO_Notify_Refcountable.

void TAO_Notify_ETCL_FilterFactory::remove_filter ( CosNotifyFilter::Filter_ptr filter )

virtual

void TAO_Notify_ETCL_FilterFactory::save_persistent ( TAO_Notify::Topology_Saver & saver )

virtual

Save our state to a Topology_Saver.

Use the methods of a Topology_Saver to store all information we want persisted. This function is called by our parent, which gives us a saver to use. In turn, we must call this function on all of our children. The implementation should look like: bool change = this->self_changed_; this->self_changed_ = false; this->children_changed_ = false; if (is_persistent ()) { bool want_all_children = saver.begin_object( this->id(), type, attrs, change); for all children { if (want_all_children || child.is_changed()) { child.save_persistent(saver); } } for all deleted children { saver.delete_child(child_type, child_id); } saver.end_object(this->id(), type); )

Implements TAO_Notify::Topology_Savable.

Member Data Documentation

TAO_Notify_ID_Factory TAO_Notify_ETCL_FilterFactory::filter_ids_

protected

Id generator for proxy suppliers.

PortableServer::POA_var TAO_Notify_ETCL_FilterFactory::filter_poa_

protected

The POA in which to activate the Filters.

FILTERMAP TAO_Notify_ETCL_FilterFactory::filters_

protected

TAO_SYNCH_MUTEX TAO_Notify_ETCL_FilterFactory::mtx_

protected

The documentation for this class was generated from the following files:
