TAO_Notify_Constraint_Expr Class Reference

#include <ETCL_Filter.h>

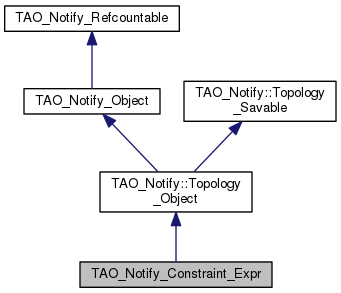

Inheritance diagram for TAO_Notify_Constraint_Expr:
Inheritance graph
[legend]

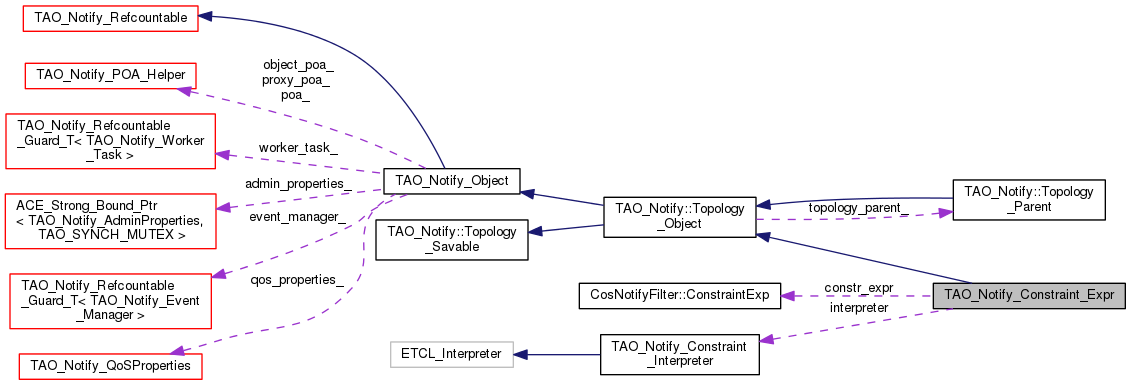

Collaboration diagram for TAO_Notify_Constraint_Expr:
Collaboration graph
[legend]

Public Member Functions

 TAO_Notify_Constraint_Expr (void)

virtual ~TAO_Notify_Constraint_Expr ()

void save_persistent (TAO_Notify::Topology_Saver &saver)

void load_attrs (const TAO_Notify::NVPList &attrs)

TAO_Notify::Topology_Objectload_child (const ACE_CString &type, CORBA::Long id, const TAO_Notify::NVPList &attrs)
 Create a child of the appropriate type and return it. More...

- Public Member Functions inherited from TAO_Notify::Topology_Object
 Topology_Object ()
 The constructor. More...

virtual ~Topology_Object ()
 The destructor. More...

virtual void initialize (Topology_Parent *topology_parent)
 Init this object with data from <rhs>. More...

virtual TAO_Notify_Object::ID get_id (void) const
 Find the id associated with topology object. More...

void get_id_path (IdVec &id_path) const
 Get the path of id's from the root to this object. More...

bool is_changed (void) const
 Is there an unsaved change for this object or its children? More...

- Public Member Functions inherited from TAO_Notify_Object
virtual ~TAO_Notify_Object (void)
 Destructor. More...

ID id (void) const
 This Object's ID. More...

virtual CORBA::Object_ptr activate (PortableServer::Servant servant)
 Activate. More...

virtual CORBA::Object_ptr activate (PortableServer::Servant servant, CORBA::Long id)
 Activate with existing id. More...

void deactivate (void)
 Deactivate. More...

bool has_shutdown (void)
 Have we been shutdown. returns true if shutdown. More...

void execute_task (TAO_Notify_Method_Request &method_request)

CORBA::Object_ptr ref (void)
 Get CORBA Ref. More...

virtual void set_qos (const CosNotification::QoSProperties &qos)
 Set the QoS Properties. More...

CosNotification::QoSPropertiesget_qos (void)
 Get the QoS Properties. More...

bool find_qos_property_value (const char *name, CosNotification::PropertyValue &value) const

virtual TAO_Notify_Timertimer (void)
 Obtain the Timer manager associated with this object. More...

TAO_Notify_Event_Managerevent_manager (void)
 Accessor for the Event Manager. More...

virtual int shutdown (void)
 Shutdown. Returns 1 if the shutdown was already run once before. More...

TAO_Notify_Worker_Taskget_worker_task (void)
 Allow access to the underlying worker task. More...

- Public Member Functions inherited from TAO_Notify_Refcountable
 TAO_Notify_Refcountable (void)
 Constructor. More...

virtual ~TAO_Notify_Refcountable ()

CORBA::ULong _incr_refcnt (void)

CORBA::ULong _decr_refcnt (void)

- Public Member Functions inherited from TAO_Notify::Topology_Savable
virtual ~Topology_Savable (void)
 Destructor. More...

virtual void reconnect (void)


Private Member Functions

virtual void release (void)
 Release this object. More...


Private Attributes

CosNotifyFilter::ConstraintExp constr_expr

TAO_Notify_Constraint_Interpreter interpreter


Friends

class TAO_Notify_ETCL_Filter


Additional Inherited Members

- Public Types inherited from TAO_Notify_Object
typedef CORBA::Long ID
 Id for Objects. More...

- Public Types inherited from TAO_Notify_Refcountable
typedef
TAO_Notify_Refcountable_Guard_T
< TAO_Notify_Refcountable
Ptr

- Protected Member Functions inherited from TAO_Notify::Topology_Object
virtual bool is_persistent (void) const
 Should this object be saved? More...

bool self_change (void)
 Method to report change in this object. More...

Topology_Parenttopology_parent () const
 pointer to our topological parent More...

bool send_change (void)
 Handle details of propagating change. More...

bool send_deletion_change ()
 Handle details of propagating change for a deleted object. More...

- Protected Member Functions inherited from TAO_Notify_Object
 TAO_Notify_Object (void)
 Constructor. More...

void initialize (TAO_Notify_Object *parent)
 Init this object with data from <rhs>. More...

void inherit_poas (TAO_Notify_Object &parent)
 Uses the poas from the supplied object. More...

void adopt_poa (TAO_Notify_POA_Helper *single)
 Adopts the supplied poa as all are poas. More...

void set_primary_as_proxy_poa ()
 Changes the primary poa to the current proxy poa. More...

TAO_Notify_POA_Helperproxy_poa (void)
 Accessor for the proxy_poa_. More...

TAO_Notify_POA_Helperobject_poa (void)
 Accessor for the object_poa_. More...

TAO_Notify_POA_Helperpoa (void)
 Get the POA assigned to us. More...

void set_event_manager (TAO_Notify_Event_Manager *event_manager)

void set_admin_properties (TAO_Notify_AdminProperties *admin_properties)

TAO_Notify_AdminPropertiesadmin_properties (void)
 Accessor for the Admin Properties. More...

virtual void qos_changed (const TAO_Notify_QoSProperties &qos_properties)

virtual void save_attrs (TAO_Notify::NVPList &attrs)

- Protected Attributes inherited from TAO_Notify::Topology_Object
bool self_changed_
 true if this object changed since last save_persistent More...

bool children_changed_
 true of any of this object's children changed since last save_persistent More...

Topology_Parenttopology_parent_
 A safely-typed copy of parent_;. More...

- Protected Attributes inherited from TAO_Notify_Object
TAO_Notify_QoSProperties qos_properties_
 = Protected data members. More...

TAO_SYNCH_MUTEX lock_
 The mutex to serialize access to state variables. More...


Constructor & Destructor Documentation

TAO_Notify_Constraint_Expr::TAO_Notify_Constraint_Expr ( void  )
TAO_Notify_Constraint_Expr::~TAO_Notify_Constraint_Expr ( )
virtual

Member Function Documentation

void TAO_Notify_Constraint_Expr::load_attrs ( const TAO_Notify::NVPList attrs)
virtual

Load our attributes. Each derived type should call the superclass load first before loading its own attributes.

Reimplemented from TAO_Notify_Object.

TAO_Notify::Topology_Object * TAO_Notify_Constraint_Expr::load_child ( const ACE_CString type,
CORBA::Long  id,
const TAO_Notify::NVPList attrs
)
virtual

Create a child of the appropriate type and return it.

Use "type" as passed in to determine what kind of child (supporting the Topology_Object interface) to create and return. Inform it of its new ID.

Reimplemented from TAO_Notify::Topology_Object.

void TAO_Notify_Constraint_Expr::release ( void  )
privatevirtual

Release this object.

Implements TAO_Notify_Refcountable.

void TAO_Notify_Constraint_Expr::save_persistent ( TAO_Notify::Topology_Saver saver)
virtual

Save our state to a Topology_Saver.

Use the methods of a Topology_Saver to store all information we want persisted. This function is called by our parent, which gives us a saver to use. In turn, we must call this function on all of our children. The implementation should look like: bool change = this->self_changed_; this->self_changed_ = false; this->children_changed_ = false; if (is_persistent ()) { bool want_all_children = saver.begin_object( this->id(), type, attrs, change); for all children { if (want_all_children || child.is_changed()) { child.save_persistent(saver); } } for all deleted children { saver.delete_child(child_type, child_id); } saver.end_object(this->id(), type); )

Implements TAO_Notify::Topology_Savable.

Friends And Related Function Documentation

friend class TAO_Notify_ETCL_Filter
friend

Member Data Documentation

CosNotifyFilter::ConstraintExp TAO_Notify_Constraint_Expr::constr_expr
private
TAO_Notify_Constraint_Interpreter TAO_Notify_Constraint_Expr::interpreter
private

The documentation for this class was generated from the following files:
