ACE_Proactor Class Reference

A manager for asynchronous event demultiplexing. More...

#include <Proactor.h>

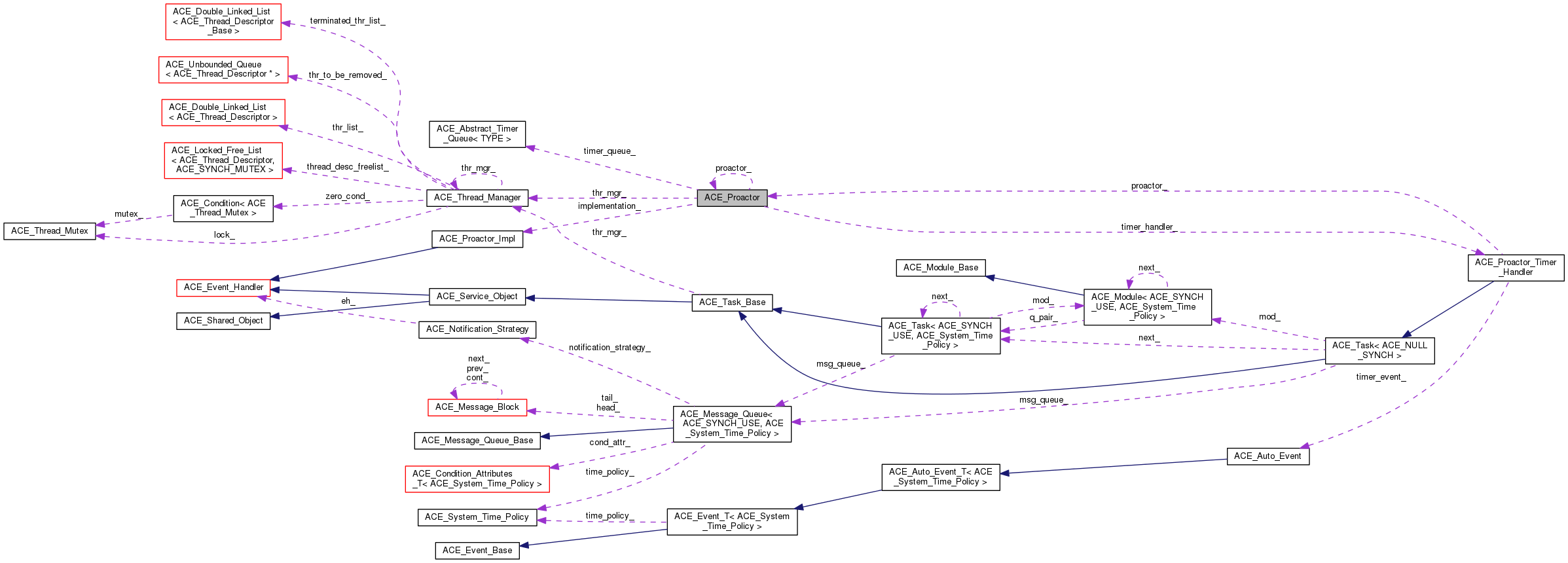

Collaboration diagram for ACE_Proactor:
Collaboration graph
[legend]

Public Types

typedef int(* PROACTOR_EVENT_HOOK )(ACE_Proactor *)


Public Member Functions

 ACE_Proactor (ACE_Proactor_Impl *implementation=0, bool delete_implementation=false, ACE_Proactor_Timer_Queue *tq=0)

 ~ACE_Proactor (void)
 Destruction. More...

int close (void)
 Close the associated ACE_Proactor_Impl implementation object. More...

int proactor_run_event_loop (PROACTOR_EVENT_HOOK=0)

int proactor_run_event_loop (ACE_Time_Value &tv, PROACTOR_EVENT_HOOK=0)

int proactor_end_event_loop (void)

int proactor_event_loop_done (void)
 Report if the ACE_Proactor event loop is finished. More...

int proactor_reset_event_loop (void)

int register_handle (ACE_HANDLE handle, const void *completion_key)

long schedule_timer (ACE_Handler &handler, const void *act, const ACE_Time_Value &time)

long schedule_repeating_timer (ACE_Handler &handler, const void *act, const ACE_Time_Value &interval)

long schedule_timer (ACE_Handler &handler, const void *act, const ACE_Time_Value &time, const ACE_Time_Value &interval)

int cancel_timer (ACE_Handler &handler, int dont_call_handle_close=1)

int cancel_timer (long timer_id, const void **act=0, int dont_call_handle_close=1)

int handle_events (ACE_Time_Value &wait_time)

int handle_events (void)

int wake_up_dispatch_threads (void)
 Add wakeup dispatch threads (reinit). More...

int close_dispatch_threads (int wait)
 Close all dispatch threads. More...

size_t number_of_threads (void) const
 Get number of thread used as a parameter to CreatIoCompletionPort. More...

void number_of_threads (size_t threads)
 Set number of thread used as a parameter to CreatIoCompletionPort. More...

ACE_Proactor_Timer_Queuetimer_queue (void) const
 Get timer queue. More...

void timer_queue (ACE_Proactor_Timer_Queue *timer_queue)
 Set timer queue. More...

ACE_HANDLE get_handle (void) const

ACE_Proactor_Implimplementation (void) const
 Get the implementation class. More...

ACE_Asynch_Read_Stream_Implcreate_asynch_read_stream (void)

ACE_Asynch_Write_Stream_Implcreate_asynch_write_stream (void)

ACE_Asynch_Read_File_Implcreate_asynch_read_file (void)

ACE_Asynch_Write_File_Implcreate_asynch_write_file (void)

ACE_Asynch_Accept_Implcreate_asynch_accept (void)
 Create the correct implementation class for doing Asynch_Accept. More...

ACE_Asynch_Connect_Implcreate_asynch_connect (void)
 Create the correct implementation class for doing Asynch_Connect. More...

ACE_Asynch_Transmit_File_Implcreate_asynch_transmit_file (void)

ACE_Asynch_Read_Dgram_Implcreate_asynch_read_dgram (void)

ACE_Asynch_Write_Dgram_Implcreate_asynch_write_dgram (void)

ACE_Asynch_Read_Stream_Result_Implcreate_asynch_read_stream_result (ACE_Handler::Proxy_Ptr &handler_proxy, ACE_HANDLE handle, ACE_Message_Block &message_block, u_long bytes_to_read, const void *act, ACE_HANDLE event=ACE_INVALID_HANDLE, int priority=0, int signal_number=ACE_SIGRTMIN)

ACE_Asynch_Write_Stream_Result_Implcreate_asynch_write_stream_result (ACE_Handler::Proxy_Ptr &handler_proxy, ACE_HANDLE handle, ACE_Message_Block &message_block, u_long bytes_to_write, const void *act, ACE_HANDLE event=ACE_INVALID_HANDLE, int priority=0, int signal_number=ACE_SIGRTMIN)

ACE_Asynch_Read_File_Result_Implcreate_asynch_read_file_result (ACE_Handler::Proxy_Ptr &handler_proxy, ACE_HANDLE handle, ACE_Message_Block &message_block, u_long bytes_to_read, const void *act, u_long offset, u_long offset_high, ACE_HANDLE event=ACE_INVALID_HANDLE, int priority=0, int signal_number=ACE_SIGRTMIN)

ACE_Asynch_Write_File_Result_Implcreate_asynch_write_file_result (ACE_Handler::Proxy_Ptr &handler_proxy, ACE_HANDLE handle, ACE_Message_Block &message_block, u_long bytes_to_write, const void *act, u_long offset, u_long offset_high, ACE_HANDLE event=ACE_INVALID_HANDLE, int priority=0, int signal_number=ACE_SIGRTMIN)

ACE_Asynch_Read_Dgram_Result_Implcreate_asynch_read_dgram_result (ACE_Handler::Proxy_Ptr &handler_proxy, ACE_HANDLE handle, ACE_Message_Block *message_block, size_t bytes_to_read, int flags, int protocol_family, const void *act, ACE_HANDLE event=ACE_INVALID_HANDLE, int priority=0, int signal_number=ACE_SIGRTMIN)

ACE_Asynch_Write_Dgram_Result_Implcreate_asynch_write_dgram_result (ACE_Handler::Proxy_Ptr &handler_proxy, ACE_HANDLE handle, ACE_Message_Block *message_block, size_t bytes_to_write, int flags, const void *act, ACE_HANDLE event=ACE_INVALID_HANDLE, int priority=0, int signal_number=ACE_SIGRTMIN)

ACE_Asynch_Accept_Result_Implcreate_asynch_accept_result (ACE_Handler::Proxy_Ptr &handler_proxy, ACE_HANDLE listen_handle, ACE_HANDLE accept_handle, ACE_Message_Block &message_block, u_long bytes_to_read, const void *act, ACE_HANDLE event=ACE_INVALID_HANDLE, int priority=0, int signal_number=ACE_SIGRTMIN)
 Create the correct implementation class for ACE_Asynch_Accept::Result. More...

ACE_Asynch_Connect_Result_Implcreate_asynch_connect_result (ACE_Handler::Proxy_Ptr &handler_proxy, ACE_HANDLE connect_handle, const void *act, ACE_HANDLE event=ACE_INVALID_HANDLE, int priority=0, int signal_number=ACE_SIGRTMIN)
 Create the correct implementation class for ACE_Asynch_Connect::Result. More...

ACE_Asynch_Transmit_File_Result_Implcreate_asynch_transmit_file_result (ACE_Handler::Proxy_Ptr &handler_proxy, ACE_HANDLE socket, ACE_HANDLE file, ACE_Asynch_Transmit_File::Header_And_Trailer *header_and_trailer, u_long bytes_to_write, u_long offset, u_long offset_high, u_long bytes_per_send, u_long flags, const void *act, ACE_HANDLE event=ACE_INVALID_HANDLE, int priority=0, int signal_number=ACE_SIGRTMIN)

ACE_Asynch_Result_Implcreate_asynch_timer (ACE_Handler::Proxy_Ptr &handler_proxy, const void *act, const ACE_Time_Value &tv, ACE_HANDLE event=ACE_INVALID_HANDLE, int priority=0, int signal_number=ACE_SIGRTMIN)


Static Public Member Functions

static ACE_Proactorinstance (size_t threads=0)

static ACE_Proactorinstance (ACE_Proactor *proactor, bool delete_proactor=false)

static void close_singleton (void)
 Delete the dynamically allocated Singleton. More...

static void cleanup (void *instance, void *arg)

static const ACE_TCHARdll_name (void)
 Name of dll in which the singleton instance lives. More...

static const ACE_TCHARname (void)
 Name of component–ACE_Proactor in this case. More...

static int run_event_loop (void)

static int run_event_loop (ACE_Time_Value &tv)

static int end_event_loop (void)

static int reset_event_loop (void)

static int check_reconfiguration (ACE_Proactor *)

static int event_loop_done (void)
 Report if the <ACE_Proactor::instance> event loop is finished. More...


Protected Member Functions

int proactor_post_wakeup_completions (int how_many)

void implementation (ACE_Proactor_Impl *implementation)
 Set the implementation class. More...


Static Protected Member Functions

static int post_wakeup_completions (int how_many)


Protected Attributes

ACE_Proactor_Implimplementation_

bool delete_implementation_

ACE_Proactor_Timer_Handlertimer_handler_
 Handles timeout events. More...

ACE_Thread_Manager thr_mgr_
 This will manage the thread in the Timer_Handler. More...

ACE_Proactor_Timer_Queuetimer_queue_
 Timer Queue. More...

int delete_timer_queue_
 Flag on whether to delete the timer queue. More...

sig_atomic_t end_event_loop_
 Terminate the proactor event loop. More...

sig_atomic_t event_loop_thread_count_
 Number of threads in the event loop. More...

ACE_SYNCH_MUTEX mutex_
 Mutex to protect work with lists. More...


Static Protected Attributes

static ACE_Proactorproactor_ = 0
 Pointer to a process-wide ACE_Proactor. More...

static bool delete_proactor_ = false
 Must delete the <proactor_> if true. More...


Private Types

typedef
ACE_Timer_Queue_Iterator_T
< ACE_Handler * >
TIMER_QUEUE_ITERATOR

typedef ACE_Timer_List_T
< ACE_Handler
*, ACE_Proactor_Handle_Timeout_Upcall,
ACE_SYNCH_RECURSIVE_MUTEX
TIMER_LIST

typedef
ACE_Timer_List_Iterator_T
< ACE_Handler
*, ACE_Proactor_Handle_Timeout_Upcall,
ACE_SYNCH_RECURSIVE_MUTEX
TIMER_LIST_ITERATOR

typedef ACE_Timer_Heap_T
< ACE_Handler
*, ACE_Proactor_Handle_Timeout_Upcall,
ACE_SYNCH_RECURSIVE_MUTEX
TIMER_HEAP

typedef
ACE_Timer_Heap_Iterator_T
< ACE_Handler
*, ACE_Proactor_Handle_Timeout_Upcall,
ACE_SYNCH_RECURSIVE_MUTEX
TIMER_HEAP_ITERATOR

typedef ACE_Timer_Wheel_T
< ACE_Handler
*, ACE_Proactor_Handle_Timeout_Upcall,
ACE_SYNCH_RECURSIVE_MUTEX
TIMER_WHEEL

typedef
ACE_Timer_Wheel_Iterator_T
< ACE_Handler
*, ACE_Proactor_Handle_Timeout_Upcall,
ACE_SYNCH_RECURSIVE_MUTEX
TIMER_WHEEL_ITERATOR


Private Member Functions

 ACE_Proactor (const ACE_Proactor &)
 Deny access since member-wise won't work... More...

ACE_Proactoroperator= (const ACE_Proactor &)


Friends

class ACE_Proactor_Timer_Handler


Detailed Description

A manager for asynchronous event demultiplexing.

See the Proactor pattern description at http://www.cs.wustl.edu/~schmidt/proactor.ps.gz for more details.

Member Typedef Documentation

typedef int(* ACE_Proactor::PROACTOR_EVENT_HOOK)(ACE_Proactor *)

You can add a hook to various run_event methods and the hook will be called after handling every proactor event. If this function returns 0, proactor_run_event_loop will check for the return value of handle_events. If it is -1, the the proactor_run_event_loop will return (pre-maturely.)

Constructor & Destructor Documentation

ACE_Proactor::ACE_Proactor ( ACE_Proactor_Impl implementation = 0,
bool  delete_implementation = false,
ACE_Proactor_Timer_Queue tq = 0
)

Constructor. If implementation is 0, the correct implementation object will be created. delete_implementation flag determines whether the implementation object should be deleted by the Proactor or not. If tq is 0, a new TIMER_QUEUE is created.

ACE_Proactor::~ACE_Proactor ( void  )

Destruction.

ACE_Proactor::ACE_Proactor ( const ACE_Proactor )
private

Deny access since member-wise won't work...

Member Function Documentation

int ACE_Proactor::cancel_timer ( ACE_Handler handler,
int  dont_call_handle_close = 1
)

Cancel all timers associated with this handler. Returns number of timers cancelled.

int ACE_Proactor::cancel_timer ( long  timer_id,
const void **  act = 0,
int  dont_call_handle_close = 1
)

Cancel the single <ACE_Handler> that matches the timer_id value (which was returned from the <schedule> method). If act is non-NULL then it will be set to point to the ``magic cookie'' argument passed in when the <Handler> was registered. This makes it possible to free up the memory and avoid memory leaks. Returns 1 if cancellation succeeded and 0 if the timer_id wasn't found.

int ACE_Proactor::check_reconfiguration ( ACE_Proactor )
static

The singleton proactor is used by the ACE_Service_Config. Therefore, we must check for the reconfiguration request and handle it after handling an event.

static void ACE_Proactor::cleanup ( void *  instance,
void *  arg
)
static

Cleanup method, used by the ACE_Object_Manager to destroy the singleton.

int ACE_Proactor::close ( void  )

Close the associated ACE_Proactor_Impl implementation object.

If

  • delete_implementation was specified to the open() method, the implementation object is also deleted.
int ACE_Proactor::close_dispatch_threads ( int  wait)

Close all dispatch threads.

void ACE_Proactor::close_singleton ( void  )
static

Delete the dynamically allocated Singleton.

ACE_Asynch_Accept_Impl * ACE_Proactor::create_asynch_accept ( void  )

Create the correct implementation class for doing Asynch_Accept.

ACE_Asynch_Accept_Result_Impl * ACE_Proactor::create_asynch_accept_result ( ACE_Handler::Proxy_Ptr handler_proxy,
ACE_HANDLE  listen_handle,
ACE_HANDLE  accept_handle,
ACE_Message_Block message_block,
u_long  bytes_to_read,
const void *  act,
ACE_HANDLE  event = ACE_INVALID_HANDLE,
int  priority = 0,
int  signal_number = ACE_SIGRTMIN
)

Create the correct implementation class for ACE_Asynch_Accept::Result.

ACE_Asynch_Connect_Impl * ACE_Proactor::create_asynch_connect ( void  )

Create the correct implementation class for doing Asynch_Connect.

ACE_Asynch_Connect_Result_Impl * ACE_Proactor::create_asynch_connect_result ( ACE_Handler::Proxy_Ptr handler_proxy,
ACE_HANDLE  connect_handle,
const void *  act,
ACE_HANDLE  event = ACE_INVALID_HANDLE,
int  priority = 0,
int  signal_number = ACE_SIGRTMIN
)

Create the correct implementation class for ACE_Asynch_Connect::Result.

ACE_Asynch_Read_Dgram_Impl * ACE_Proactor::create_asynch_read_dgram ( void  )

Create the correct implementation class for doing Asynch_Read_Dgram.

ACE_Asynch_Read_Dgram_Result_Impl * ACE_Proactor::create_asynch_read_dgram_result ( ACE_Handler::Proxy_Ptr handler_proxy,
ACE_HANDLE  handle,
ACE_Message_Block message_block,
size_t  bytes_to_read,
int  flags,
int  protocol_family,
const void *  act,
ACE_HANDLE  event = ACE_INVALID_HANDLE,
int  priority = 0,
int  signal_number = ACE_SIGRTMIN
)

Create the correct implementation class for ACE_Asynch_Read_Dgram::Result.

ACE_Asynch_Read_File_Impl * ACE_Proactor::create_asynch_read_file ( void  )

Create the correct implementation class for doing Asynch_Read_File.

ACE_Asynch_Read_File_Result_Impl * ACE_Proactor::create_asynch_read_file_result ( ACE_Handler::Proxy_Ptr handler_proxy,
ACE_HANDLE  handle,
ACE_Message_Block message_block,
u_long  bytes_to_read,
const void *  act,
u_long  offset,
u_long  offset_high,
ACE_HANDLE  event = ACE_INVALID_HANDLE,
int  priority = 0,
int  signal_number = ACE_SIGRTMIN
)

Create the correct implementation class for ACE_Asynch_Read_File::Result.

ACE_Asynch_Read_Stream_Impl * ACE_Proactor::create_asynch_read_stream ( void  )

Create the correct implementation class for doing Asynch_Read_Stream.

ACE_Asynch_Read_Stream_Result_Impl * ACE_Proactor::create_asynch_read_stream_result ( ACE_Handler::Proxy_Ptr handler_proxy,
ACE_HANDLE  handle,
ACE_Message_Block message_block,
u_long  bytes_to_read,
const void *  act,
ACE_HANDLE  event = ACE_INVALID_HANDLE,
int  priority = 0,
int  signal_number = ACE_SIGRTMIN
)

Create the correct implementation class for ACE_Asynch_Read_Stream::Result class.

ACE_Asynch_Result_Impl * ACE_Proactor::create_asynch_timer ( ACE_Handler::Proxy_Ptr handler_proxy,
const void *  act,
const ACE_Time_Value tv,
ACE_HANDLE  event = ACE_INVALID_HANDLE,
int  priority = 0,
int  signal_number = ACE_SIGRTMIN
)

Create a timer result object which can be used with the Timer mechanism of the Proactor. If signal_number is -1, <POSIX_SIG_Proactor> will create a Timer object with a meaningful signal number, choosing the largest signal number from the signal mask of the Proactor.

ACE_Asynch_Transmit_File_Impl * ACE_Proactor::create_asynch_transmit_file ( void  )

Create the correct implementation class for doing Asynch_Transmit_File.

ACE_Asynch_Transmit_File_Result_Impl * ACE_Proactor::create_asynch_transmit_file_result ( ACE_Handler::Proxy_Ptr handler_proxy,
ACE_HANDLE  socket,
ACE_HANDLE  file,
ACE_Asynch_Transmit_File::Header_And_Trailer header_and_trailer,
u_long  bytes_to_write,
u_long  offset,
u_long  offset_high,
u_long  bytes_per_send,
u_long  flags,
const void *  act,
ACE_HANDLE  event = ACE_INVALID_HANDLE,
int  priority = 0,
int  signal_number = ACE_SIGRTMIN
)

Create the correct implementation class for ACE_Asynch_Transmit_File::Result.

ACE_Asynch_Write_Dgram_Impl * ACE_Proactor::create_asynch_write_dgram ( void  )

Create the correct implementation class for doing Asynch_Write_Dgram.

ACE_Asynch_Write_Dgram_Result_Impl * ACE_Proactor::create_asynch_write_dgram_result ( ACE_Handler::Proxy_Ptr handler_proxy,
ACE_HANDLE  handle,
ACE_Message_Block message_block,
size_t  bytes_to_write,
int  flags,
const void *  act,
ACE_HANDLE  event = ACE_INVALID_HANDLE,
int  priority = 0,
int  signal_number = ACE_SIGRTMIN
)

Create the correct implementation class for ACE_Asynch_Write_Dgram::Result.

ACE_Asynch_Write_File_Impl * ACE_Proactor::create_asynch_write_file ( void  )

Create the correct implementation class for doing Asynch_Write_File.

ACE_Asynch_Write_File_Result_Impl * ACE_Proactor::create_asynch_write_file_result ( ACE_Handler::Proxy_Ptr handler_proxy,
ACE_HANDLE  handle,
ACE_Message_Block message_block,
u_long  bytes_to_write,
const void *  act,
u_long  offset,
u_long  offset_high,
ACE_HANDLE  event = ACE_INVALID_HANDLE,
int  priority = 0,
int  signal_number = ACE_SIGRTMIN
)

Create the correct implementation class for ACE_Asynch_Write_File::Result.

ACE_Asynch_Write_Stream_Impl * ACE_Proactor::create_asynch_write_stream ( void  )

Create the correct implementation class for doing Asynch_Write_Stream.

ACE_Asynch_Write_Stream_Result_Impl * ACE_Proactor::create_asynch_write_stream_result ( ACE_Handler::Proxy_Ptr handler_proxy,
ACE_HANDLE  handle,
ACE_Message_Block message_block,
u_long  bytes_to_write,
const void *  act,
ACE_HANDLE  event = ACE_INVALID_HANDLE,
int  priority = 0,
int  signal_number = ACE_SIGRTMIN
)

Create the correct implementation class for ACE_Asynch_Write_Stream::Result.

const ACE_TCHAR * ACE_Proactor::dll_name ( void  )
static

Name of dll in which the singleton instance lives.

int ACE_Proactor::end_event_loop ( void  )
inlinestatic

Instruct the <ACE_Proactor::instance> to terminate its event loop. This method wakes up all the threads blocked on waiting for completions and end the event loop.

int ACE_Proactor::event_loop_done ( void  )
inlinestatic

Report if the <ACE_Proactor::instance> event loop is finished.

ACE_HANDLE ACE_Proactor::get_handle ( void  ) const

Get the event handle. It is a no-op in POSIX platforms and it returns ACE_INVALID_HANDLE.

int ACE_Proactor::handle_events ( ACE_Time_Value wait_time)

Dispatch a single set of events, waiting up to a specified time limit if necessary.

Parameters
wait_timethe time to wait for an event to occur. This is a relative time. On successful return, the time is updated to reflect the amount of time spent waiting for event(s) to occur.
Returns
Returns 0 if no events occur before the wait_time expires. Returns 1 when a completion is dispatched. On error, returns -1 and sets errno accordingly.
int ACE_Proactor::handle_events ( void  )

Block indefinitely until at least one event is dispatched.

Returns
Returns 1 when a completion is dispatched. On error, returns -1 and sets errno accordingly.
ACE_Proactor_Impl * ACE_Proactor::implementation ( void  ) const

Get the implementation class.

void ACE_Proactor::implementation ( ACE_Proactor_Impl implementation)
protected

Set the implementation class.

ACE_Proactor * ACE_Proactor::instance ( size_t  threads = 0)
static

Get pointer to a process-wide ACE_Proactor. threads should be part of another method.

ACE_Proactor * ACE_Proactor::instance ( ACE_Proactor proactor,
bool  delete_proactor = false
)
static

Set pointer to a process-wide ACE_Proactor and return existing pointer.

const ACE_TCHAR * ACE_Proactor::name ( void  )
static

Name of component–ACE_Proactor in this case.

size_t ACE_Proactor::number_of_threads ( void  ) const

Get number of thread used as a parameter to CreatIoCompletionPort.

void ACE_Proactor::number_of_threads ( size_t  threads)

Set number of thread used as a parameter to CreatIoCompletionPort.

ACE_Proactor& ACE_Proactor::operator= ( const ACE_Proactor )
private
int ACE_Proactor::post_wakeup_completions ( int  how_many)
inlinestaticprotected

Post <how_many> completions to the completion port so that all threads can wake up. This is used in conjunction with the <run_event_loop>.

int ACE_Proactor::proactor_end_event_loop ( void  )

Instruct the ACE_Proactor to terminate its event loop and notifies the ACE_Proactor so that it can wake up and close down gracefully.

int ACE_Proactor::proactor_event_loop_done ( void  )

Report if the ACE_Proactor event loop is finished.

int ACE_Proactor::proactor_post_wakeup_completions ( int  how_many)
protected

Post <how_many> completions to the completion port so that all threads can wake up. This is used in conjunction with the <proactor_run_event_loop>.

int ACE_Proactor::proactor_reset_event_loop ( void  )

Resets the <ACE_Proactor::end_event_loop_> static so that the <run_event_loop> method can be restarted.

int ACE_Proactor::proactor_run_event_loop ( PROACTOR_EVENT_HOOK  eh = 0)

Run the event loop until the <ACE_Proactor::handle_events> method returns -1 or the <end_proactor_event_loop> method is invoked.

int ACE_Proactor::proactor_run_event_loop ( ACE_Time_Value tv,
PROACTOR_EVENT_HOOK  eh = 0
)

Run the event loop until the <ACE_Proactor::handle_events> method returns -1, the <end_proactor_event_loop> method is invoked, or the ACE_Time_Value expires, in which case a 0 is returned.

int ACE_Proactor::register_handle ( ACE_HANDLE  handle,
const void *  completion_key
)

This method adds the handle to the I/O completion port. This function is a no-op function for Unix systems and returns 0;

int ACE_Proactor::reset_event_loop ( void  )
inlinestatic

Resets the <ACE_Proactor::end_event_loop_> static so that the <run_event_loop> method can be restarted.

int ACE_Proactor::run_event_loop ( void  )
inlinestatic

Run the event loop until the <ACE_Proactor::handle_events> method returns -1 or the <end_event_loop> method is invoked.

int ACE_Proactor::run_event_loop ( ACE_Time_Value tv)
inlinestatic

Run the event loop until the <ACE_Proactor::handle_events> method returns -1, the <end_event_loop> method is invoked, or the ACE_Time_Value expires, in which case 0 is returned.

long ACE_Proactor::schedule_repeating_timer ( ACE_Handler handler,
const void *  act,
const ACE_Time_Value interval
)
long ACE_Proactor::schedule_timer ( ACE_Handler handler,
const void *  act,
const ACE_Time_Value time
)

Schedule a handler that will expire after <time>. If it expires then act is passed in as the value to the handler's <handle_timeout> callback method. This method returns a <timer_id>. This <timer_id> can be used to cancel a timer before it expires. The cancellation ensures that <timer_ids> are unique up to values of greater than 2 billion timers. As long as timers don't stay around longer than this there should be no problems with accidentally deleting the wrong timer. Returns -1 on failure (which is guaranteed never to be a valid <timer_id>).

long ACE_Proactor::schedule_timer ( ACE_Handler handler,
const void *  act,
const ACE_Time_Value time,
const ACE_Time_Value interval
)

Same as above except interval it is used to reschedule the handler automatically. This combines the above two methods into one. Mostly for backward compatibility.

ACE_Proactor_Timer_Queue * ACE_Proactor::timer_queue ( void  ) const

Get timer queue.

void ACE_Proactor::timer_queue ( ACE_Proactor_Timer_Queue timer_queue)

Set timer queue.

int ACE_Proactor::wake_up_dispatch_threads ( void  )

Add wakeup dispatch threads (reinit).

Friends And Related Function Documentation

friend class ACE_Proactor_Timer_Handler
friend

Timer handler runs a thread and manages the timers, on behalf of the Proactor.

Member Data Documentation

bool ACE_Proactor::delete_implementation_
protected

Flag used to indicate whether we are responsible for cleaning up the implementation instance.

bool ACE_Proactor::delete_proactor_ = false
staticprotected

Must delete the <proactor_> if true.

Controls whether the Proactor is deleted when we shut down (we can only delete it safely if we created it!)

int ACE_Proactor::delete_timer_queue_
protected

Flag on whether to delete the timer queue.

sig_atomic_t ACE_Proactor::end_event_loop_
protected

Terminate the proactor event loop.

sig_atomic_t ACE_Proactor::event_loop_thread_count_
protected

Number of threads in the event loop.

ACE_Proactor_Impl* ACE_Proactor::implementation_
protected

Delegation/implementation class that all methods will be forwarded to.

ACE_SYNCH_MUTEX ACE_Proactor::mutex_
protected

Mutex to protect work with lists.

ACE_Proactor * ACE_Proactor::proactor_ = 0
staticprotected

Pointer to a process-wide ACE_Proactor.

Process-wide ACE_Proactor.

ACE_Thread_Manager ACE_Proactor::thr_mgr_
protected

This will manage the thread in the Timer_Handler.

ACE_Proactor_Timer_Handler* ACE_Proactor::timer_handler_
protected

Handles timeout events.

ACE_Proactor_Timer_Queue* ACE_Proactor::timer_queue_
protected

Timer Queue.


The documentation for this class was generated from the following files:
