ACE_Log_Record Class Reference

Defines the structure of an ACE logging record. More...

#include <Log_Record.h>

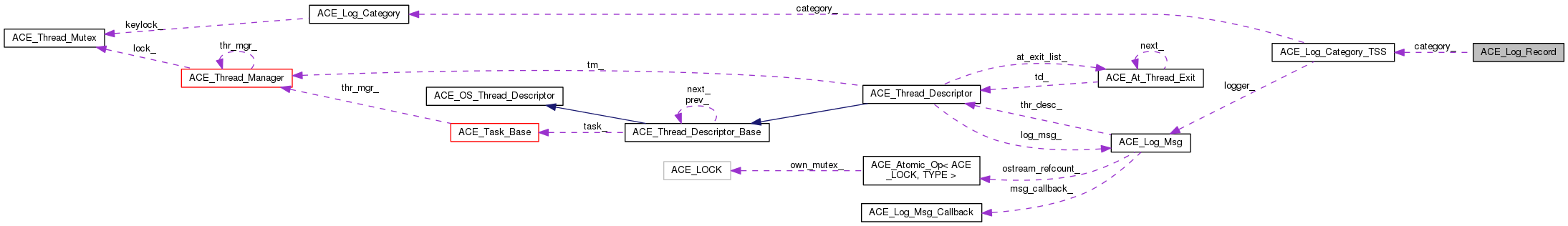

Collaboration diagram for ACE_Log_Record:
Collaboration graph
[legend]

Public Types

enum  { MAXLOGMSGLEN = ACE_MAXLOGMSGLEN+1, ALIGN_WORDB = 8, VERBOSE_LEN = 128, MAXVERBOSELOGMSGLEN = VERBOSE_LEN + MAXLOGMSGLEN }


Public Member Functions

 ACE_Log_Record (void)

 ACE_Log_Record (ACE_Log_Priority lp, time_t time_stamp, long pid)

 ACE_Log_Record (ACE_Log_Priority lp, const ACE_Time_Value &time_stamp, long pid)

 ~ACE_Log_Record (void)
 Default dtor. More...

int print (const ACE_TCHAR host_name[], u_long verbose_flag, FILE *fp=stderr)

int print (const ACE_TCHAR host_name[], u_long verbose_flag, ACE_OSTREAM_TYPE &stream)

int format_msg (const ACE_TCHAR host_name[], u_long verbose_flag, ACE_TCHAR *verbose_msg)

ACE_UINT32 type (void) const
 Get the type of the Log_Record. More...

void type (ACE_UINT32)
 Set the type of the Log_Record. More...

ACE_Log_Category_TSScategory (void) const
 Get the category of the Log_Record. More...

void category (ACE_Log_Category_TSS *)
 Set the category of the Log_Record. More...

u_long priority (void) const

void priority (u_long num)

long length (void) const

void length (long)

ACE_Time_Value time_stamp (void) const
 Get the time stamp of the Log_Record. More...

void time_stamp (const ACE_Time_Value &ts)
 Set the time stamp of the Log_Record. More...

long pid (void) const
 Get the process id of the Log_Record. More...

void pid (long)
 Set the process id of the Log_Record. More...

const ACE_TCHARmsg_data (void) const
 Get the message data of the Log_Record. More...

int msg_data (const ACE_TCHAR *data)

size_t msg_data_len (void) const

void dump (void) const
 Dump the state of an object. More...


Static Public Member Functions

static const ACE_TCHARpriority_name (ACE_Log_Priority p)

static void priority_name (ACE_Log_Priority p, const ACE_TCHAR *name)
 IMPORTANT: name must be a statically allocated const ACE_TCHAR*. More...


Public Attributes

 ACE_ALLOC_HOOK_DECLARE
 Declare the dynamic allocation hooks. More...


Private Member Functions

void round_up (void)
 Round up to the alignment restrictions. More...

 ACE_Log_Record (const ACE_Log_Record &rhs)
 disallow copying... More...

ACE_Log_Recordoperator= (const ACE_Log_Record &rhs)


Private Attributes

ACE_INT32 length_

ACE_UINT32 type_
 Type of logging record. More...

time_t secs_
 Time that the logging record was generated. More...

ACE_UINT32 usecs_

ACE_UINT32 pid_
 Id of process that generated the logging record. More...

ACE_TCHARmsg_data_
 Logging record data. More...

size_t msg_data_size_
 Allocated size of msg_data_ in ACE_TCHARs. More...

ACE_Log_Category_TSScategory_


Detailed Description

Defines the structure of an ACE logging record.

Member Enumeration Documentation

anonymous enum
Enumerator
MAXLOGMSGLEN

Maximum size of a logging message.

ALIGN_WORDB

Most restrictive alignment.

VERBOSE_LEN

Size used by verbose mode. 20 (date) + 15 (host_name) + 10 (pid) + 10 (type)

  • 4 (@) ... + ? (progname)
MAXVERBOSELOGMSGLEN

Maximum size of a logging message with the verbose headers.

Constructor & Destructor Documentation

ACE_Log_Record::ACE_Log_Record ( void  )

Create a Log_Record and set its priority, time stamp, and process id.

ACE_Log_Record::ACE_Log_Record ( ACE_Log_Priority  lp,
time_t  time_stamp,
long  pid
)
ACE_Log_Record::ACE_Log_Record ( ACE_Log_Priority  lp,
const ACE_Time_Value time_stamp,
long  pid
)
ACE_Log_Record::~ACE_Log_Record ( void  )
inline

Default dtor.

ACE_Log_Record::ACE_Log_Record ( const ACE_Log_Record rhs)
private

disallow copying...

Member Function Documentation

ACE_Log_Category_TSS * ACE_Log_Record::category ( void  ) const
inline

Get the category of the Log_Record.

void ACE_Log_Record::category ( ACE_Log_Category_TSS t)
inline

Set the category of the Log_Record.

void ACE_Log_Record::dump ( void  ) const

Dump the state of an object.

int ACE_Log_Record::format_msg ( const ACE_TCHAR  host_name[],
u_long  verbose_flag,
ACE_TCHAR verbose_msg
)
long ACE_Log_Record::length ( void  ) const
inline

Get the total length of the Log_Record, which includes the size of the various data member fields.

void ACE_Log_Record::length ( long  l)
inline

Set the total length of the Log_Record, which needs to account for the size of the various data member fields.

const ACE_TCHAR * ACE_Log_Record::msg_data ( void  ) const
inline

Get the message data of the Log_Record.

int ACE_Log_Record::msg_data ( const ACE_TCHAR data)

Set the message data of the record. If data is longer than the current msg_data_ buffer, a new msg_data_ buffer is allocated to fit. If such a reallocation faisl, this method returns -1, else 0.

size_t ACE_Log_Record::msg_data_len ( void  ) const
inline

Get the size of the message data of the Log_Record, including a byte for the NUL.

ACE_Log_Record& ACE_Log_Record::operator= ( const ACE_Log_Record rhs)
private
long ACE_Log_Record::pid ( void  ) const
inline

Get the process id of the Log_Record.

void ACE_Log_Record::pid ( long  p)
inline

Set the process id of the Log_Record.

int ACE_Log_Record::print ( const ACE_TCHAR  host_name[],
u_long  verbose_flag,
FILE *  fp = stderr
)

Write the contents of the logging record to the appropriate FILE if the corresponding type is enabled.

int ACE_Log_Record::print ( const ACE_TCHAR  host_name[],
u_long  verbose_flag,
ACE_OSTREAM_TYPE &  stream
)

Write the contents of the logging record to the appropriate stream if the corresponding type is enabled.

u_long ACE_Log_Record::priority ( void  ) const

Get the priority of the Log_Record <type_>. This is computed as the base 2 logarithm of <type_> (which must be a power of 2, as defined by the enums in ACE_Log_Priority).

void ACE_Log_Record::priority ( u_long  num)

Set the priority of the Log_Record <type_> (which must be a power of 2, as defined by the enums in ACE_Log_Priority).

const ACE_TCHAR * ACE_Log_Record::priority_name ( ACE_Log_Priority  p)
static

Returns a character array with the string form of the ACE_Log_Priority parameter. This is used for the verbose printing format.

void ACE_Log_Record::priority_name ( ACE_Log_Priority  p,
const ACE_TCHAR name
)
static

IMPORTANT: name must be a statically allocated const ACE_TCHAR*.

void ACE_Log_Record::round_up ( void  )
private

Round up to the alignment restrictions.

ACE_Time_Value ACE_Log_Record::time_stamp ( void  ) const
inline

Get the time stamp of the Log_Record.

void ACE_Log_Record::time_stamp ( const ACE_Time_Value ts)
inline

Set the time stamp of the Log_Record.

ACE_UINT32 ACE_Log_Record::type ( void  ) const
inline

Get the type of the Log_Record.

void ACE_Log_Record::type ( ACE_UINT32  t)
inline

Set the type of the Log_Record.

Member Data Documentation

ACE_Log_Record::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

ACE_Log_Category_TSS* ACE_Log_Record::category_
private
ACE_INT32 ACE_Log_Record::length_
private

Total length of the logging record in bytes. This field must come first in order for various IPC framing mechanisms to work correctly. In addition, the field must be an ACE_INT32 in order to be passed portably across platforms.

ACE_TCHAR* ACE_Log_Record::msg_data_
private

Logging record data.

size_t ACE_Log_Record::msg_data_size_
private

Allocated size of msg_data_ in ACE_TCHARs.

ACE_UINT32 ACE_Log_Record::pid_
private

Id of process that generated the logging record.

time_t ACE_Log_Record::secs_
private

Time that the logging record was generated.

ACE_UINT32 ACE_Log_Record::type_
private

Type of logging record.

ACE_UINT32 ACE_Log_Record::usecs_
private

The documentation for this class was generated from the following files:
