TAO_ESF_Peer_Admin< EVENT_CHANNEL, PROXY, INTERFACE, PEER > Class Template Reference

Extend the Proxy_Admin interface to provide methods for filtering. More...

#include <ESF_Peer_Admin.h>

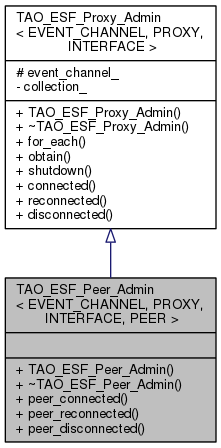

Inheritance diagram for TAO_ESF_Peer_Admin< EVENT_CHANNEL, PROXY, INTERFACE, PEER >:

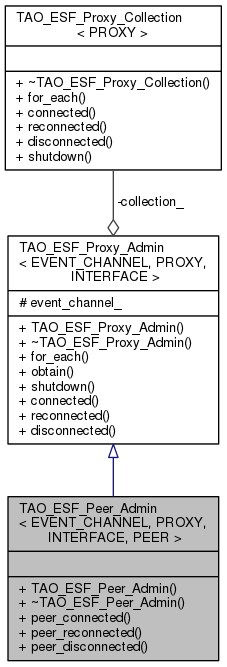

Collaboration diagram for TAO_ESF_Peer_Admin< EVENT_CHANNEL, PROXY, INTERFACE, PEER >:

Public Member Functions
	TAO_ESF_Peer_Admin (EVENT_CHANNEL *ec)
	Constructor. More...
virtual	~TAO_ESF_Peer_Admin (void)
	destructor More...
virtual void	peer_connected (PEER *peer)
virtual void	peer_reconnected (PEER *peer)
virtual void	peer_disconnected (PEER *peer)
Public Member Functions inherited from TAO_ESF_Proxy_Admin< EVENT_CHANNEL, PROXY, INTERFACE >
	TAO_ESF_Proxy_Admin (EVENT_CHANNEL *ec)
	Constructor, allocate the internal collection. More...
virtual	~TAO_ESF_Proxy_Admin (void)
	Cleanup internal resources, destroy the internal collection. More...
void	for_each (TAO_ESF_Worker< PROXY > *worker)
	Iterate over its internal collection. More...
virtual INTERFACE *	obtain (void)
	Create a new PROXY and activate it. More...
virtual void	shutdown (void)
virtual void	connected (PROXY *proxy)
virtual void	reconnected (PROXY *proxy)
virtual void	disconnected (PROXY *proxy)

Additional Inherited Members
Protected Attributes inherited from TAO_ESF_Proxy_Admin< EVENT_CHANNEL, PROXY, INTERFACE >
EVENT_CHANNEL *	event_channel_
	The Event Channel we belong to. More...

Detailed Description

template<class EVENT_CHANNEL, class PROXY, class INTERFACE, class PEER>
class TAO_ESF_Peer_Admin< EVENT_CHANNEL, PROXY, INTERFACE, PEER >

Extend the Proxy_Admin interface to provide methods for filtering.

Some Event Services that perform filtering have to propagate the consumer connect/disconnect activities to the suppliers, and vice-versa. In that scenario the ESF_Proxy_Admin<> interface is augmented with connected()/reconnected()/disconnected() operations for the proxy peers (i.e. the ProxySuppliers for the ProxyConsumers and vice-versa).

Requirements

In addition to the requirements imposed by ESF_Proxy_Admin<> the PROXY interface must implement:

* void connected (PEER *peer) throw ();
* void reconnected (PEER *peer) throw ();
* void disconnected (PEER *peer) throw ();
*

Similarly, the PEER interface must implement:

* void connected (PROXY *proxy) throw ();
* void reconnected (PROXY *proxy) throw ();
* void disconnected (PROXY *proxy) throw ();
*

Constructor & Destructor Documentation

template<class EVENT_CHANNEL , class PROXY , class INTERFACE , class PEER >

TAO_ESF_Peer_Admin< EVENT_CHANNEL, PROXY, INTERFACE, PEER >::TAO_ESF_Peer_Admin

(

EVENT_CHANNEL *

ec

)

Constructor.

template<class EVENT_CHANNEL , class PROXY , class INTERFACE , class PEER >

TAO_ESF_Peer_Admin< EVENT_CHANNEL, PROXY, INTERFACE, PEER >::~TAO_ESF_Peer_Admin ( void  )

virtual

destructor

Member Function Documentation

template<class EVENT_CHANNEL , class PROXY , class INTERFACE , class PEER >

void TAO_ESF_Peer_Admin< EVENT_CHANNEL, PROXY, INTERFACE, PEER >::peer_connected ( PEER *  peer )

virtual

A <peer> has connected, this is invoked when the peer's client has invoked the connect_xxx_yyy() method. The default implementation is a no-op.

template<class EVENT_CHANNEL , class PROXY , class INTERFACE , class PEER >

void TAO_ESF_Peer_Admin< EVENT_CHANNEL, PROXY, INTERFACE, PEER >::peer_disconnected ( PEER *  peer )

virtual

A <peer> has been disconnected. The default implementation removes the object from the collection and deactivates the proxy.

template<class EVENT_CHANNEL , class PROXY , class INTERFACE , class PEER >

void TAO_ESF_Peer_Admin< EVENT_CHANNEL, PROXY, INTERFACE, PEER >::peer_reconnected ( PEER *  peer )

virtual

A <peer> has reconnected, i.e. its client has invoked the connect_xxx_yyy() method, but the peer was connected already. The default implementation delegates on the collection <reconnected> method

---

The documentation for this class was generated from the following files:

• ESF_Peer_Admin.h
• ESF_Peer_Admin.cpp
