Manage interaction between Routing_Slip and persistent storage. More...

#include <Routing_Slip_Persistence_Manager.h>

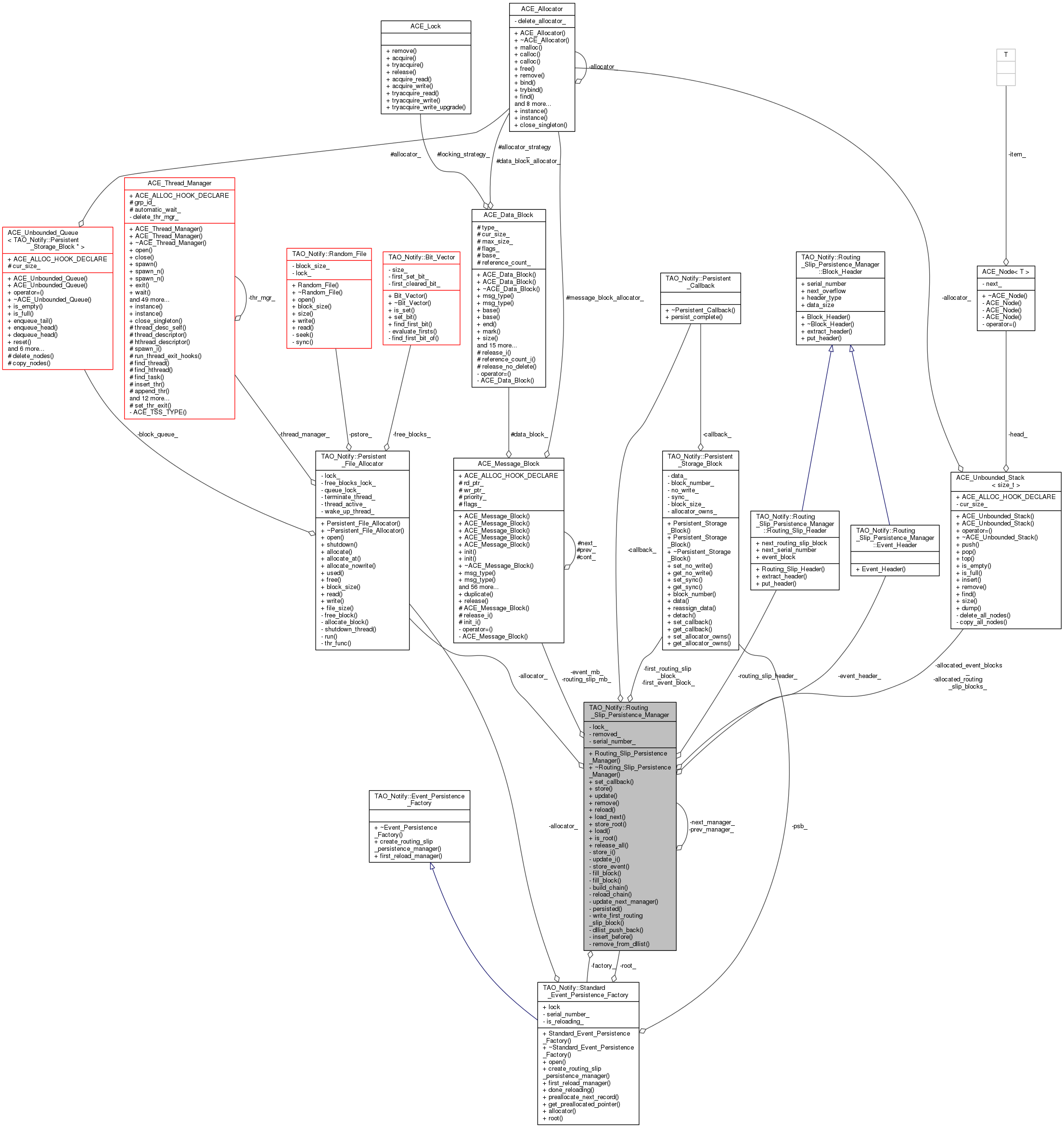

Collaboration diagram for TAO_Notify::Routing_Slip_Persistence_Manager:

Classes
class	Block_Header
	private: Storage for header information of all persistent block. More...

class	Event_Header
	An Event block header. More...

class	Overflow_Header
	An overflow block header. More...

class	Routing_Slip_Header
	private: Storage for header information for Routing_Slip blocks. More...

Public Types
typedef ACE_UINT64	Block_Serial_Number
	A unique identifier for logical blocks in persistent storage. More...

typedef ACE_UINT32	Block_Number
	The physical address of a block in persistent storage. More...

typedef ACE_UINT16	Block_Size
	The size of a block in persistent storage. More...

typedef ACE_UINT16	Block_Type
	A code to indicate the type of block in persistent storage. More...

Public Member Functions
	Routing_Slip_Persistence_Manager (Standard_Event_Persistence_Factory *factory)
	The constructor. More...

	~Routing_Slip_Persistence_Manager ()
	The destructor. More...

void	set_callback (Persistent_Callback *callback)
	Set up callbacks. More...

bool	store (const ACE_Message_Block &event, const ACE_Message_Block &routing_slip)
	Store an event + routing slip. More...

bool	update (const ACE_Message_Block &routing_slip)
	Update the routing slip. More...

bool	remove ()
	Remove our associated event and routing slip from the Persistent_File_Allocator. More...

bool	reload (ACE_Message_Block &event, ACE_Message_Block &routing_slip)
	Call this method to recover data during event reload. More...

Routing_Slip_Persistence_Manager *	load_next ()
	Get next RSPM during reload. More...

bool	store_root ()
	Commit root data to disk, which should only be done for a root node. More...

bool	load (Block_Number block_number, Block_Serial_Number expected_serial_number)
	Reload data into this RSPM from the given block/serial#. More...

bool	is_root () const
	Is this RSPM attached to the root block? More...

void	release_all ()
	During cleanup for shut down, release all chained RSPMs. More...

Private Member Functions
bool	store_i (const ACE_Message_Block &event, const ACE_Message_Block &routing_slip)

bool	update_i (const ACE_Message_Block &routing_slip)

bool	store_event (const ACE_Message_Block &event)

size_t	fill_block (Persistent_Storage_Block &psb, size_t offset_into_block, const ACE_Message_Block *data, size_t offset_into_msg)

size_t	fill_block (Persistent_Storage_Block &psb, size_t offset_into_block, unsigned char *data, size_t data_size)

bool	build_chain (Persistent_Storage_Block *first_block, Block_Header &first_header, ACE_Unbounded_Stack< size_t > &allocated_blocks, const ACE_Message_Block &data)
	Build a chain of Persistent_Storage_Blocks. More...

bool	reload_chain (Persistent_Storage_Block first_block, Block_Header &first_header, ACE_Unbounded_Stack< size_t > &allocated_blocks, ACE_Message_Block amb, ACE_UINT64 expected_serial_number)
	Reload a chain from persistent store. More...

bool	update_next_manager (Routing_Slip_Persistence_Manager *next)
	Locked method to do the work of setting the next_manager_. More...

bool	persisted ()
	Have we been persisted yet? More...

size_t	write_first_routing_slip_block (bool prepare_only=false)
	Write out our first event block. More...

void	dllist_push_back ()
	Insert ourselves into a linked list of Routing_Slip_Persistnce_Managers. More...

void	insert_before (Routing_Slip_Persistence_Manager *node)

void	remove_from_dllist ()
	Remove ourselves from a linked list of Routing_Slip_Persistence_Managers. More...

Private Attributes
TAO_SYNCH_MUTEX	lock_

bool	removed_

ACE_UINT64	serial_number_

Persistent_File_Allocator *	allocator_

Standard_Event_Persistence_Factory *	factory_

Event_Header	event_header_

Routing_Slip_Header	routing_slip_header_

Persistent_Storage_Block *	first_event_block_

Persistent_Storage_Block *	first_routing_slip_block_

Routing_Slip_Persistence_Manager *	prev_manager_
	We are part of a doubly-linked list. More...

Routing_Slip_Persistence_Manager *	next_manager_

ACE_Unbounded_Stack< size_t >	allocated_event_blocks_

ACE_Unbounded_Stack< size_t >	allocated_routing_slip_blocks_

Persistent_Callback *	callback_

ACE_Message_Block *	event_mb_
	If these are non-zero we own 'em. More...

ACE_Message_Block *	routing_slip_mb_

Detailed Description

Manage interaction between Routing_Slip and persistent storage.

todo: to complete the strategization of event persistent storage this should become an interface that is implemented differently by different strategies. For now it interacts with Standard_Event_Persistence.

Member Typedef Documentation

typedef ACE_UINT32 TAO_Notify::Routing_Slip_Persistence_Manager::Block_Number

The physical address of a block in persistent storage.

typedef ACE_UINT64 TAO_Notify::Routing_Slip_Persistence_Manager::Block_Serial_Number

A unique identifier for logical blocks in persistent storage.

typedef ACE_UINT16 TAO_Notify::Routing_Slip_Persistence_Manager::Block_Size

The size of a block in persistent storage.

typedef ACE_UINT16 TAO_Notify::Routing_Slip_Persistence_Manager::Block_Type

A code to indicate the type of block in persistent storage.

Constructor & Destructor Documentation

TAO_Notify::Routing_Slip_Persistence_Manager::Routing_Slip_Persistence_Manager ( Standard_Event_Persistence_Factory * factory )

The constructor.

TAO_Notify::Routing_Slip_Persistence_Manager::~Routing_Slip_Persistence_Manager ( )

The destructor.

Member Function Documentation

bool TAO_Notify::Routing_Slip_Persistence_Manager::build_chain	(	Persistent_Storage_Block *	first_block,
		Block_Header &	first_header,
		ACE_Unbounded_Stack< size_t > &	allocated_blocks,
		const ACE_Message_Block &	data
	)

private

Build a chain of Persistent_Storage_Blocks.

void TAO_Notify::Routing_Slip_Persistence_Manager::dllist_push_back ( )

private

Insert ourselves into a linked list of Routing_Slip_Persistnce_Managers.

size_t TAO_Notify::Routing_Slip_Persistence_Manager::fill_block	(	Persistent_Storage_Block &	psb,
		size_t	offset_into_block,
		const ACE_Message_Block *	data,
		size_t	offset_into_msg
	)

private

Fill in a block with data, and return the number of bytes of data remaining to be written.

size_t TAO_Notify::Routing_Slip_Persistence_Manager::fill_block	(	Persistent_Storage_Block &	psb,
		size_t	offset_into_block,
		unsigned char *	data,
		size_t	data_size
	)

private

void TAO_Notify::Routing_Slip_Persistence_Manager::insert_before ( Routing_Slip_Persistence_Manager * node )

private

bool TAO_Notify::Routing_Slip_Persistence_Manager::is_root ( ) const

Is this RSPM attached to the root block?

bool TAO_Notify::Routing_Slip_Persistence_Manager::load	(	Block_Number	block_number,
		Block_Serial_Number	expected_serial_number
	)

Reload data into this RSPM from the given block/serial#.

Returns: false if the reload is not successful.

NOTE: There is no need to worry about guarding anything. We assume that there will be one and only one thread doing the entire reload process.

Routing_Slip_Persistence_Manager * TAO_Notify::Routing_Slip_Persistence_Manager::load_next ( )

Get next RSPM during reload.

After using the data from the reload method, call this method to get the next RSPM. It returns a null pointer when all persistent events have been reloaded.

bool TAO_Notify::Routing_Slip_Persistence_Manager::persisted ( )

private

Have we been persisted yet?

void TAO_Notify::Routing_Slip_Persistence_Manager::release_all ( )

During cleanup for shut down, release all chained RSPMs.

bool TAO_Notify::Routing_Slip_Persistence_Manager::reload	(	ACE_Message_Block *&	event,
		ACE_Message_Block *&	routing_slip
	)

Call this method to recover data during event reload.

It should not fail under normal circumstances. Caller owns the resulting message blocks and is responsible for deleting them. Reload the event and routing_slip from the Persistent_File_Allocator.

bool TAO_Notify::Routing_Slip_Persistence_Manager::reload_chain	(	Persistent_Storage_Block *	first_block,
		Block_Header &	first_header,
		ACE_Unbounded_Stack< size_t > &	allocated_blocks,
		ACE_Message_Block *	amb,
		ACE_UINT64	expected_serial_number
	)

private

Reload a chain from persistent store.

bool TAO_Notify::Routing_Slip_Persistence_Manager::remove ( )

Remove our associated event and routing slip from the Persistent_File_Allocator.

void TAO_Notify::Routing_Slip_Persistence_Manager::remove_from_dllist ( )

private

Remove ourselves from a linked list of Routing_Slip_Persistence_Managers.

void TAO_Notify::Routing_Slip_Persistence_Manager::set_callback ( Persistent_Callback * callback )

Set up callbacks.

bool TAO_Notify::Routing_Slip_Persistence_Manager::store	(	const ACE_Message_Block &	event,
		const ACE_Message_Block &	routing_slip
	)

Store an event + routing slip.

bool TAO_Notify::Routing_Slip_Persistence_Manager::store_event ( const ACE_Message_Block & event )

private

bool TAO_Notify::Routing_Slip_Persistence_Manager::store_i	(	const ACE_Message_Block &	event,
		const ACE_Message_Block &	routing_slip
	)

private

bool TAO_Notify::Routing_Slip_Persistence_Manager::store_root ( )

Commit root data to disk, which should only be done for a root node.

bool TAO_Notify::Routing_Slip_Persistence_Manager::update ( const ACE_Message_Block & routing_slip )

Update the routing slip.

We must always overwrite the first block last, and it may not chance. Other blocks should be freed and reallocated.

bool TAO_Notify::Routing_Slip_Persistence_Manager::update_i ( const ACE_Message_Block & routing_slip )

private

bool TAO_Notify::Routing_Slip_Persistence_Manager::update_next_manager ( Routing_Slip_Persistence_Manager * next )

private

Locked method to do the work of setting the next_manager_.

size_t TAO_Notify::Routing_Slip_Persistence_Manager::write_first_routing_slip_block ( bool prepare_only = false )

private

Write out our first event block.

Member Data Documentation

ACE_Unbounded_Stack<size_t> TAO_Notify::Routing_Slip_Persistence_Manager::allocated_event_blocks_

private

ACE_Unbounded_Stack<size_t> TAO_Notify::Routing_Slip_Persistence_Manager::allocated_routing_slip_blocks_

private

Persistent_File_Allocator* TAO_Notify::Routing_Slip_Persistence_Manager::allocator_

private

Persistent_Callback* TAO_Notify::Routing_Slip_Persistence_Manager::callback_

private

Event_Header TAO_Notify::Routing_Slip_Persistence_Manager::event_header_

private

ACE_Message_Block* TAO_Notify::Routing_Slip_Persistence_Manager::event_mb_

private

If these are non-zero we own 'em.

Standard_Event_Persistence_Factory* TAO_Notify::Routing_Slip_Persistence_Manager::factory_

private

Persistent_Storage_Block* TAO_Notify::Routing_Slip_Persistence_Manager::first_event_block_

private

Persistent_Storage_Block* TAO_Notify::Routing_Slip_Persistence_Manager::first_routing_slip_block_

private

TAO_SYNCH_MUTEX TAO_Notify::Routing_Slip_Persistence_Manager::lock_

private

Routing_Slip_Persistence_Manager* TAO_Notify::Routing_Slip_Persistence_Manager::next_manager_

private

Routing_Slip_Persistence_Manager* TAO_Notify::Routing_Slip_Persistence_Manager::prev_manager_

private

We are part of a doubly-linked list.

bool TAO_Notify::Routing_Slip_Persistence_Manager::removed_

private

Routing_Slip_Header TAO_Notify::Routing_Slip_Persistence_Manager::routing_slip_header_

private

ACE_Message_Block* TAO_Notify::Routing_Slip_Persistence_Manager::routing_slip_mb_

private

ACE_UINT64 TAO_Notify::Routing_Slip_Persistence_Manager::serial_number_

private

The documentation for this class was generated from the following files:
