TAO_Protocol_Factory Class Reference

#include <Protocol_Factory.h>

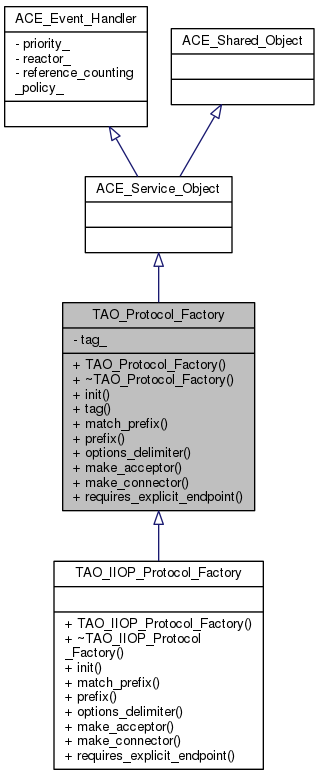

Inheritance diagram for TAO_Protocol_Factory:

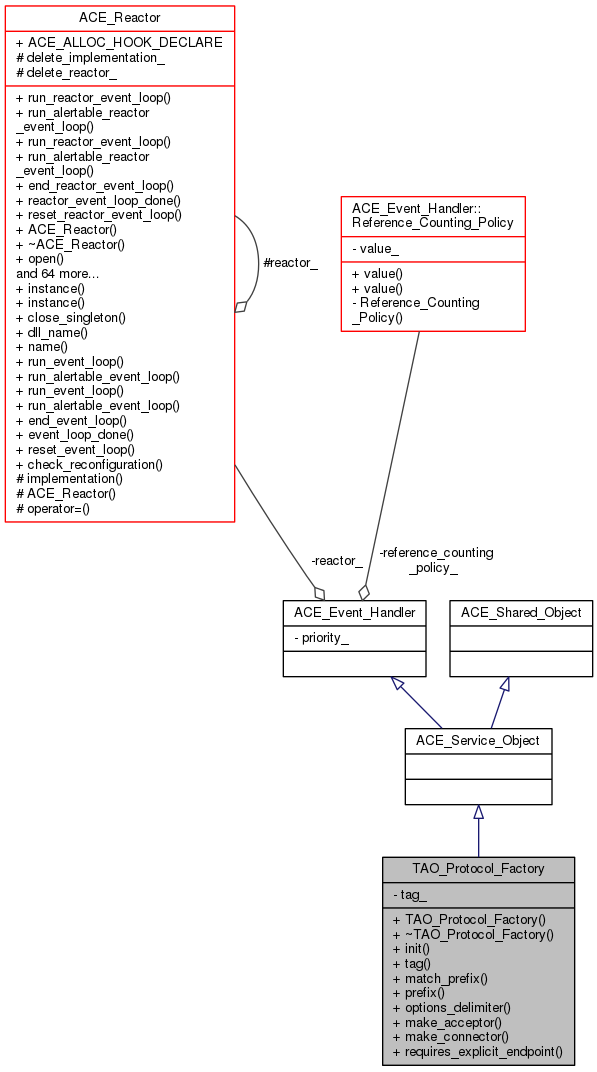

Collaboration diagram for TAO_Protocol_Factory:

Public Member Functions
	TAO_Protocol_Factory (CORBA::ULong tag)
virtual	~TAO_Protocol_Factory (void)
virtual int	init (int argc, ACE_TCHAR *argv[])=0
	Initialization hook. More...
CORBA::ULong	tag (void) const
virtual int	match_prefix (const ACE_CString &prefix)=0
	Verify prefix is a match. More...
virtual const char *	prefix (void) const =0
	Returns the prefix used by the protocol. More...
virtual char	options_delimiter (void) const =0
virtual TAO_Acceptor *	make_acceptor (void)=0
	Create an acceptor. More...
virtual TAO_Connector *	make_connector (void)=0
	Create a connector. More...
virtual int	requires_explicit_endpoint (void) const =0

Private Attributes
CORBA::ULong const	tag_
	IOP protocol tag. More...

Constructor & Destructor Documentation

TAO_Protocol_Factory::TAO_Protocol_Factory

(

CORBA::ULong

tag

)

TAO_Protocol_Factory::~TAO_Protocol_Factory ( void  )

virtual

Member Function Documentation

virtual int TAO_Protocol_Factory::init ( int  argc, ACE_TCHAR *  argv[]  )

pure virtual

Initialization hook.

Implemented in TAO_IIOP_Protocol_Factory.

virtual TAO_Acceptor* TAO_Protocol_Factory::make_acceptor ( void  )

pure virtual

Create an acceptor.

Implemented in TAO_IIOP_Protocol_Factory.

virtual TAO_Connector* TAO_Protocol_Factory::make_connector ( void  )

pure virtual

Create a connector.

Implemented in TAO_IIOP_Protocol_Factory.

virtual int TAO_Protocol_Factory::match_prefix ( const ACE_CString &  prefix )

pure virtual

Verify prefix is a match.

Implemented in TAO_IIOP_Protocol_Factory.

virtual char TAO_Protocol_Factory::options_delimiter ( void  ) const

pure virtual

Return the character used to mark where an endpoint ends and where its options begin.

Implemented in TAO_IIOP_Protocol_Factory.

virtual const char* TAO_Protocol_Factory::prefix ( void  ) const

pure virtual

Returns the prefix used by the protocol.

Implemented in TAO_IIOP_Protocol_Factory.

virtual int TAO_Protocol_Factory::requires_explicit_endpoint ( void  ) const

pure virtual

Some protocols should not create a default endpoint unless the user specifies a -ORBEndpoint option. For example, local IPC (aka UNIX domain sockets) is unable to remove the rendezvous point if the server crashes. For those protocols it is better to create the endpoint only if the user requests one.

Implemented in TAO_IIOP_Protocol_Factory.

CORBA::ULong TAO_Protocol_Factory::tag

(

void

)

const

The protocol tag, each concrete class will have a specific tag value.

Member Data Documentation

CORBA::ULong const TAO_Protocol_Factory::tag_

private

IOP protocol tag.

---

The documentation for this class was generated from the following files:

• Protocol_Factory.h
• Protocol_Factory.cpp
