TAO_LF_CH_Event Class Reference

Use the Leader/Follower loop to wait for one specific event in the invocation path. More...

#include <LF_CH_Event.h>

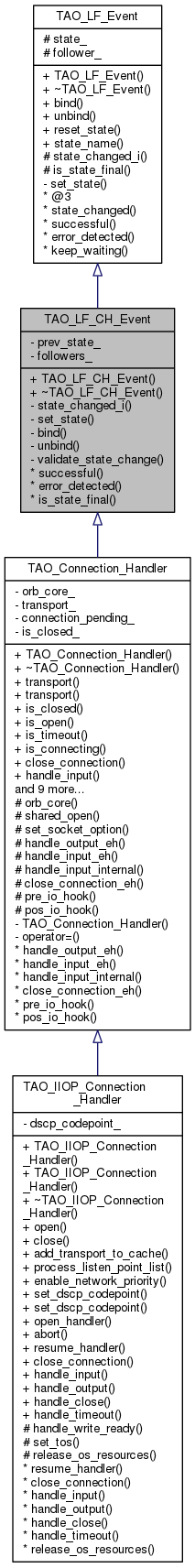

Inheritance diagram for TAO_LF_CH_Event:

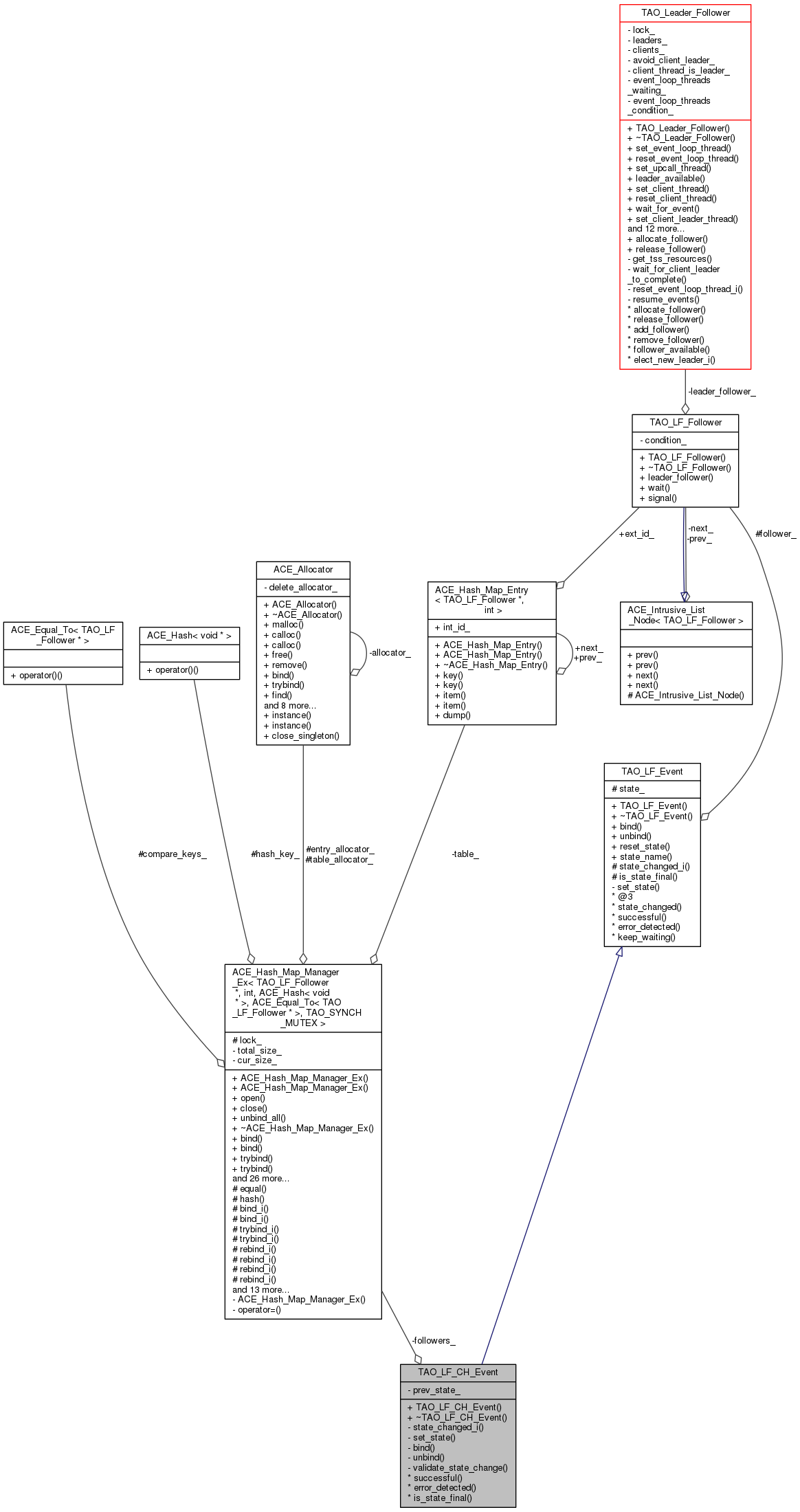

Collaboration diagram for TAO_LF_CH_Event:

Public Member Functions
	TAO_LF_CH_Event (void)
	Constructor. More...
virtual	~TAO_LF_CH_Event (void)
	Destructor. More...
Public Member Functions inherited from TAO_LF_Event
	TAO_LF_Event (void)
	Constructor. More...
virtual	~TAO_LF_Event (void)
	Destructor. More...
void	reset_state (int new_state)
	Reset the state, irrespective of the previous states. More...
void	state_changed (int new_state, TAO_Leader_Follower &lf)
int	keep_waiting (void)
	Check if we should keep waiting. More...

Private Types
typedef ACE_Hash_Map_Manager_Ex < TAO_LF_Follower *, int, ACE_Hash< void * > , ACE_Equal_To < TAO_LF_Follower * > , TAO_SYNCH_MUTEX >	HASH_MAP

Private Member Functions
virtual void	state_changed_i (int new_state)
	Validate and change the state. More...
virtual void	set_state (int new_state)
	Set the state irrespective of anything. More...
virtual int	bind (TAO_LF_Follower *follower)
	Bind a follower. More...
virtual int	unbind (TAO_LF_Follower *follower)
	Unbind the follower. More...
void	validate_state_change (int new_state)

Private Attributes
int	prev_state_
	The previous state that the LF_CH_Event was in. More...
HASH_MAP	followers_

Friends
class	TAO_LF_Multi_Event
int	successful (void) const
int	error_detected (void) const
virtual int	is_state_final (void)
	Check whether we have reached the final state.. More...

Additional Inherited Members
Public Types inherited from TAO_LF_Event
enum	{   LFS_IDLE = 0, LFS_ACTIVE, LFS_CONNECTION_WAIT, LFS_SUCCESS,   LFS_FAILURE, LFS_TIMEOUT, LFS_CONNECTION_CLOSED }
Static Public Member Functions inherited from TAO_LF_Event
static const char *	state_name (int st)
Protected Attributes inherited from TAO_LF_Event
int	state_
	The current state. More...
TAO_LF_Follower *	follower_
	The bounded follower. More...

Detailed Description

Use the Leader/Follower loop to wait for one specific event in the invocation path.

Concrete event types and manipulation class which is used for connection handling purposes.

Member Typedef Documentation

typedef ACE_Hash_Map_Manager_Ex<TAO_LF_Follower *, int, ACE_Hash<void *>, ACE_Equal_To<TAO_LF_Follower *>, TAO_SYNCH_MUTEX> TAO_LF_CH_Event::HASH_MAP

private

Constructor & Destructor Documentation

TAO_LF_CH_Event::TAO_LF_CH_Event

(

void

)

Constructor.

TAO_LF_CH_Event::~TAO_LF_CH_Event ( void  )

virtual

Destructor.

Member Function Documentation

int TAO_LF_CH_Event::bind ( TAO_LF_Follower *  follower )

privatevirtual

Bind a follower.

An event can be waited on by at most one follower thread, this method is used to bind the waiting thread to the event, in order to let the event signal any important state changes.

This is virtual to allow the LF_Multi_Event derived type share the follower with all the subordinate LF_CH_Events.

Returns

-1 if the LF_Event is already bound, 0 otherwise

Reimplemented from TAO_LF_Event.

int TAO_LF_CH_Event::error_detected ( void  ) const

virtual

Return 1 if an error was detected while waiting for the event

Implements TAO_LF_Event.

int TAO_LF_CH_Event::is_state_final ( void  )

protectedvirtual

Check whether we have reached the final state..

Implements TAO_LF_Event.

void TAO_LF_CH_Event::set_state ( int  new_state )

privatevirtual

Set the state irrespective of anything.

Reimplemented from TAO_LF_Event.

void TAO_LF_CH_Event::state_changed_i ( int  new_state )

privatevirtual

Validate and change the state.

Implements TAO_LF_Event.

int TAO_LF_CH_Event::successful ( void  ) const

virtual

Return 1 if the condition was satisfied successfully, 0 if it has not

Implements TAO_LF_Event.

int TAO_LF_CH_Event::unbind ( TAO_LF_Follower *  follower )

privatevirtual

Unbind the follower.

Reimplemented from TAO_LF_Event.

void TAO_LF_CH_Event::validate_state_change ( int  new_state )

private

Friends And Related Function Documentation

friend class TAO_LF_Multi_Event

friend

The TAO_LF_Multi_Event class is another specialization of TAO_LF_Event, used for aggregating many connection handlers into a single event object. It requires friendship so that it can check the is_state_final() flag on each of its contained connection handlers.

Member Data Documentation

HASH_MAP TAO_LF_CH_Event::followers_

private

int TAO_LF_CH_Event::prev_state_

private

The previous state that the LF_CH_Event was in.

---

The documentation for this class was generated from the following files:

• LF_CH_Event.h
• LF_CH_Event.cpp
