Specialize TAO_Queued_Message for asynch requests, i.e. oneways sent with SYNC_NONE policy. More...

#include <Asynch_Queued_Message.h>

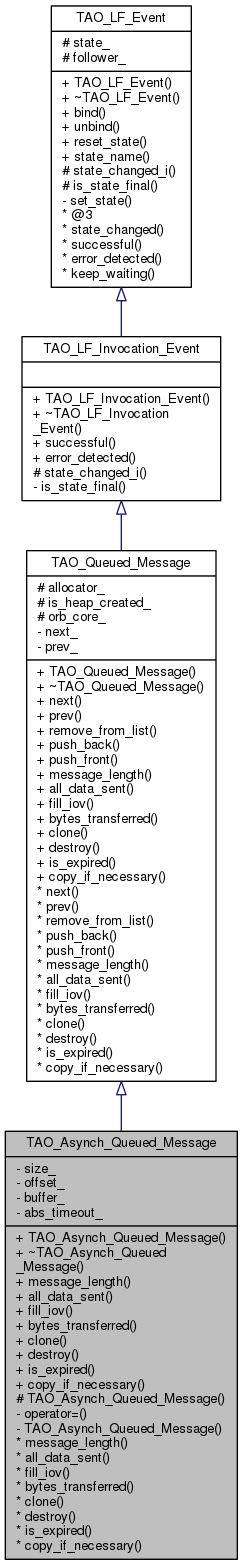

Inheritance diagram for TAO_Asynch_Queued_Message:

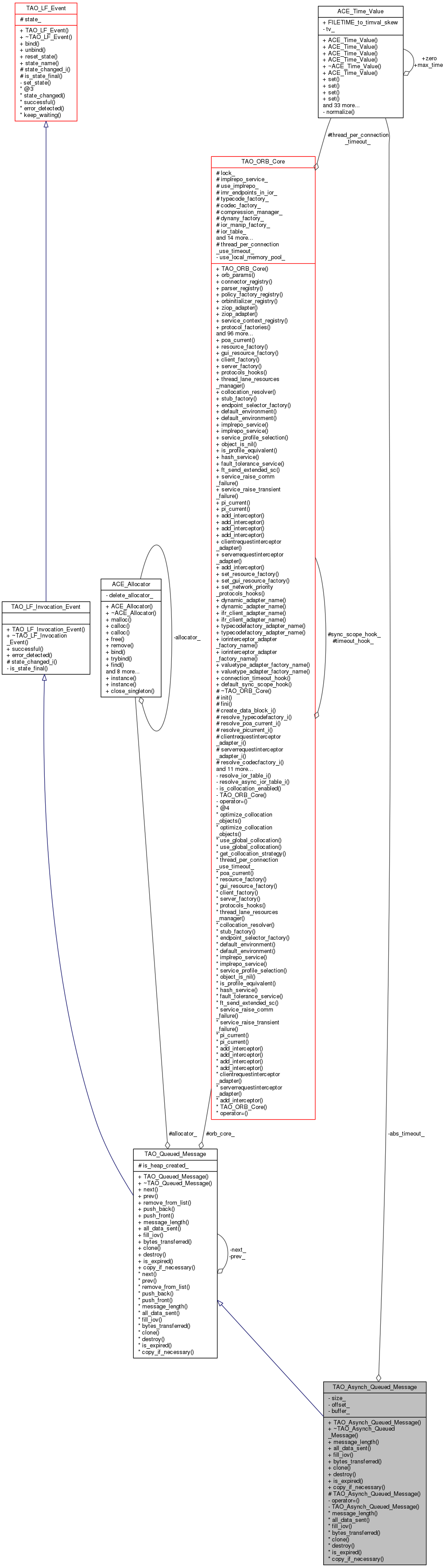

Collaboration diagram for TAO_Asynch_Queued_Message:

Public Member Functions
	TAO_Asynch_Queued_Message (const ACE_Message_Block contents, TAO_ORB_Core oc, ACE_Time_Value timeout, ACE_Allocator alloc, bool is_heap_allocated)
	Constructor. More...

virtual	~TAO_Asynch_Queued_Message (void)
	Destructor. More...

Implement the Template Methods from TAO_Queued_Message
virtual size_t	message_length (void) const

virtual int	all_data_sent (void) const

virtual void	fill_iov (int iovcnt_max, int &iovcnt, iovec iov[]) const

virtual void	bytes_transferred (size_t &byte_count)

virtual TAO_Queued_Message *	clone (ACE_Allocator *alloc)

virtual void	destroy (void)

virtual bool	is_expired (const ACE_Time_Value &now) const

virtual void	copy_if_necessary (const ACE_Message_Block *chain)

Public Member Functions inherited from TAO_Queued_Message
	TAO_Queued_Message (TAO_ORB_Core oc, ACE_Allocator alloc=0, bool is_heap_allocated=false)
	Constructor. More...

virtual	~TAO_Queued_Message (void)
	Destructor. More...

TAO_Queued_Message *	next (void) const
	Set/get the next element in the list. More...

TAO_Queued_Message *	prev (void) const
	Set/get the previous element in the list. More...

void	remove_from_list (TAO_Queued_Message &head, TAO_Queued_Message &tail)
	Remove this element from the list. More...

void	push_back (TAO_Queued_Message &head, TAO_Queued_Message &tail)
	Insert the current element at the tail of the queue. More...

void	push_front (TAO_Queued_Message &head, TAO_Queued_Message &tail)
	Insert the current element at the head of the queue. More...

Public Member Functions inherited from TAO_LF_Invocation_Event
	TAO_LF_Invocation_Event (void)
	Constructor. More...

virtual	~TAO_LF_Invocation_Event (void)
	Destructor. More...

int	successful (void) const

int	error_detected (void) const

Public Member Functions inherited from TAO_LF_Event
	TAO_LF_Event (void)
	Constructor. More...

virtual	~TAO_LF_Event (void)
	Destructor. More...

virtual int	bind (TAO_LF_Follower *follower)
	Bind a follower. More...

virtual int	unbind (TAO_LF_Follower *follower)
	Unbind the follower. More...

void	reset_state (int new_state)
	Reset the state, irrespective of the previous states. More...

void	state_changed (int new_state, TAO_Leader_Follower &lf)

int	keep_waiting (void)
	Check if we should keep waiting. More...

Protected Member Functions
	TAO_Asynch_Queued_Message (char buf, TAO_ORB_Core oc, size_t size, const ACE_Time_Value &abs_timeout, ACE_Allocator *alloc, bool is_heap_allocated)
	Constructor. More...

Protected Member Functions inherited from TAO_LF_Invocation_Event
virtual void	state_changed_i (int new_state)
	Validate and perform the state change. More...

Private Member Functions
void	operator= (const TAO_Asynch_Queued_Message &)

	TAO_Asynch_Queued_Message (const TAO_Asynch_Queued_Message &)

Private Attributes
size_t const	size_
	The number of bytes in the buffer. More...

size_t	offset_
	The offset in the buffer. More...

char *	buffer_
	The buffer containing the complete message. More...

ACE_Time_Value	abs_timeout_

Additional Inherited Members
Public Types inherited from TAO_LF_Event
enum	{ LFS_IDLE = 0, LFS_ACTIVE, LFS_CONNECTION_WAIT, LFS_SUCCESS, LFS_FAILURE, LFS_TIMEOUT, LFS_CONNECTION_CLOSED }

Static Public Member Functions inherited from TAO_LF_Event
static const char *	state_name (int st)

Protected Attributes inherited from TAO_Queued_Message
ACE_Allocator *	allocator_

bool const	is_heap_created_

TAO_ORB_Core *	orb_core_
	Cached copy of ORB_Core pointer. More...

Protected Attributes inherited from TAO_LF_Event
int	state_
	The current state. More...

TAO_LF_Follower *	follower_
	The bounded follower. More...

Detailed Description

Specialize TAO_Queued_Message for asynch requests, i.e. oneways sent with SYNC_NONE policy.

Constructor & Destructor Documentation

TAO_Asynch_Queued_Message::TAO_Asynch_Queued_Message	(	const ACE_Message_Block *	contents,
		TAO_ORB_Core *	oc,
		ACE_Time_Value *	timeout,
		ACE_Allocator *	alloc,
		bool	is_heap_allocated
	)

Constructor.

Parameters

contents	The message block chain that must be sent.
alloc	Allocator used for creating `this` object.
timeout	The relative timeout after which this message should be expired.

Todo:: I'm almost sure this class will require a callback interface for AMIs sent with SYNC_NONE policy. Those guys need to hear when the connection timeouts or closes, but cannot block waiting for the message to be delivered.

TAO_Asynch_Queued_Message::~TAO_Asynch_Queued_Message ( void )

virtual

Destructor.

TAO_Asynch_Queued_Message::TAO_Asynch_Queued_Message	(	char *	buf,
		TAO_ORB_Core *	oc,
		size_t	size,
		const ACE_Time_Value &	abs_timeout,
		ACE_Allocator *	alloc,
		bool	is_heap_allocated
	)

protected

Constructor.

Parameters

buf	The buffer that needs to be sent on the wire. The buffer will be owned by this class. The buffer will be deleted when the destructor is called and hence the buffer should always come off the heap!
oc	The ORB Core
size	The size of the buffer <buf> that is being handed over.
abs_timeout	The time after which this message should be expired.
alloc	Allocator used for creating <this> object.

TAO_Asynch_Queued_Message::TAO_Asynch_Queued_Message ( const TAO_Asynch_Queued_Message & )

private

Member Function Documentation

int TAO_Asynch_Queued_Message::all_data_sent ( void ) const

virtual

Note: No reason to believe why this would be called. But have it here for the sake of uniformity.

Implements TAO_Queued_Message.

void TAO_Asynch_Queued_Message::bytes_transferred ( size_t & byte_count )

virtual

Note: No reason to believe why this would be called. But have it here for the sake of uniformity.

Implements TAO_Queued_Message.

TAO_Queued_Message * TAO_Asynch_Queued_Message::clone ( ACE_Allocator * alloc )

virtual

Note: No reason to believe why this would be called. But have it here for the sake of uniformity.

Implements TAO_Queued_Message.

void TAO_Asynch_Queued_Message::copy_if_necessary ( const ACE_Message_Block * chain )

virtual

Note: No reason to believe why this would be called. But have it here for the sake of uniformity.

Implements TAO_Queued_Message.

void TAO_Asynch_Queued_Message::destroy ( void )

virtual

Note: No reason to believe why this would be called. But have it here for the sake of uniformity.

Implements TAO_Queued_Message.

void TAO_Asynch_Queued_Message::fill_iov	(	int	iovcnt_max,
		int &	iovcnt,
		iovec	iov[]
	)		const

virtual

Note: No reason to believe why this would be called. But have it here for the sake of uniformity.

Implements TAO_Queued_Message.

bool TAO_Asynch_Queued_Message::is_expired ( const ACE_Time_Value & now ) const

virtual

Note: No reason to believe why this would be called. But have it here for the sake of uniformity.

Reimplemented from TAO_Queued_Message.

size_t TAO_Asynch_Queued_Message::message_length ( void ) const

virtual

Note: No reason to believe why this would be called. But have it here for the sake of uniformity.

Implements TAO_Queued_Message.

void TAO_Asynch_Queued_Message::operator= ( const TAO_Asynch_Queued_Message & )

private

Member Data Documentation

ACE_Time_Value TAO_Asynch_Queued_Message::abs_timeout_

private

char* TAO_Asynch_Queued_Message::buffer_

private

The buffer containing the complete message.

size_t TAO_Asynch_Queued_Message::offset_

private

The offset in the buffer.

Data up to offset has been sent already, only the [offset_,size_) range remains to be sent.

size_t const TAO_Asynch_Queued_Message::size_

private

The number of bytes in the buffer.
