An abstract class that forms the basis for more specific classes, such as ACE_SOCK_Acceptor and ACE_SOCK_Stream. Do not instantiate this class. More...

#include <SOCK.h>

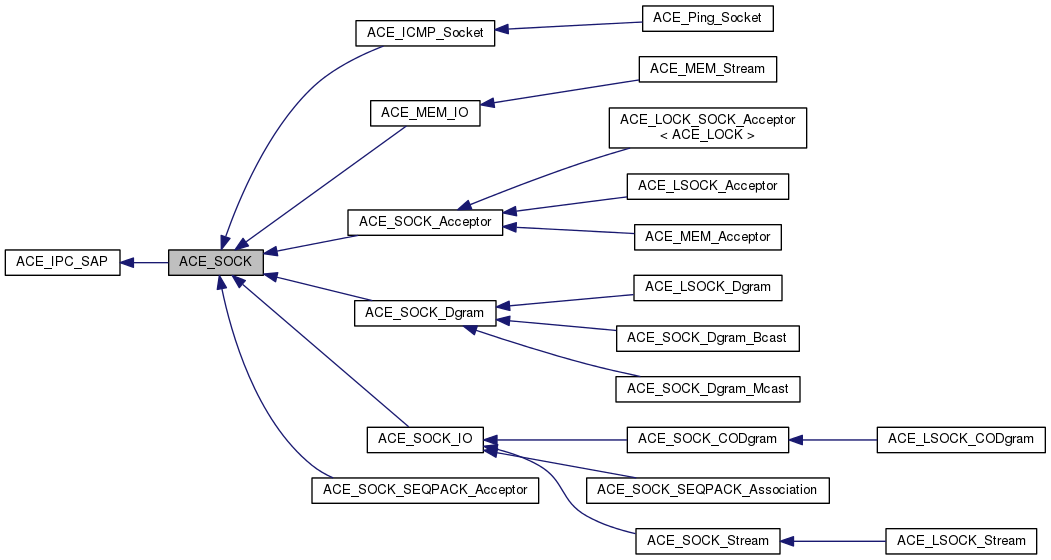

Inheritance diagram for ACE_SOCK:

[legend]

Collaboration diagram for ACE_SOCK:

[legend]

Public Member Functions
int	set_option (int level, int option, void *optval, int optlen) const
	Wrapper around the `setsockopt` system call. More...

int	get_option (int level, int option, void optval, int optlen) const
	Wrapper around the `getsockopt` system call. More...

int	close (void)

int	get_local_addr (ACE_Addr &) const

int	get_remote_addr (ACE_Addr &) const

void	dump (void) const
	Dump the state of an object. More...

int	open (int type, int protocol_family, int protocol, int reuse_addr)
	Wrapper around the BSD-style `socket` system call (no QoS). More...

int	open (int type, int protocol_family, int protocol, ACE_Protocol_Info *protocolinfo, ACE_SOCK_GROUP g, u_long flags, int reuse_addr)
	Wrapper around the QoS-enabled `WSASocket` function. More...

Public Member Functions inherited from ACE_IPC_SAP
int	control (int cmd, void *) const
	Interface for <ioctl>. More...

int	enable (int value) const

int	disable (int value) const

ACE_HANDLE	get_handle (void) const
	Get the underlying handle. More...

void	set_handle (ACE_HANDLE handle)
	Set the underlying handle. More...

void	dump (void) const
	Dump the state of an object. More...

Public Attributes
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks. More...

Public Attributes inherited from ACE_IPC_SAP
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks. More...

Protected Member Functions
	ACE_SOCK (int type, int protocol_family, int protocol=0, int reuse_addr=0)

	ACE_SOCK (int type, int protocol_family, int protocol, ACE_Protocol_Info *protocolinfo, ACE_SOCK_GROUP g, u_long flags, int reuse_addr)

	ACE_SOCK (void)

	~ACE_SOCK (void)
	Protected destructor. More...

Protected Member Functions inherited from ACE_IPC_SAP
	ACE_IPC_SAP (void)
	Default constructor. More...

	~ACE_IPC_SAP (void)
	Protected destructor. More...

Detailed Description

An abstract class that forms the basis for more specific classes, such as ACE_SOCK_Acceptor and ACE_SOCK_Stream. Do not instantiate this class.

This class provides functions that are common to all of the <ACE_SOCK_*> classes. ACE_SOCK provides the ability to get and set socket options, get the local and remote addresses, and open and close a socket handle.

Constructor & Destructor Documentation

ACE_SOCK::ACE_SOCK	(	int	type,
		int	protocol_family,
		int	protocol = `0`,
		int	reuse_addr = `0`
	)

protected

Constructor with arguments to call the BSD-style socket system call (no QoS).

ACE_SOCK::ACE_SOCK	(	int	type,
		int	protocol_family,
		int	protocol,
		ACE_Protocol_Info *	protocolinfo,
		ACE_SOCK_GROUP	g,
		u_long	flags,
		int	reuse_addr
	)

protected

Constructor with arguments to call the QoS-enabled WSASocket function.

ACE_SOCK::ACE_SOCK ( void )

protected

Default constructor is protected to prevent instances of this class from being defined.

ACE_SOCK::~ACE_SOCK ( void )

inlineprotected

Protected destructor.

Not a virtual destructor. Protected destructor to prevent operator delete() from being called through a base class ACE_SOCK pointer/reference.

Member Function Documentation

int ACE_SOCK::close ( void )

Close the socket. This method also sets the object's handle value to ACE_INVALID_HANDLE.

Returns: The result of closing the socket; 0 if the handle value was already ACE_INVALID_HANDLE.

void ACE_SOCK::dump ( void ) const

Dump the state of an object.

int ACE_SOCK::get_local_addr ( ACE_Addr & sa ) const

Return the local endpoint address in the referenced ACE_Addr. Returns 0 if successful, else -1.

int ACE_SOCK::get_option	(	int	level,
		int	option,
		void *	optval,
		int *	optlen
	)		const

inline

Wrapper around the getsockopt system call.

int ACE_SOCK::get_remote_addr ( ACE_Addr & sa ) const

Return the address of the remotely connected peer (if there is one), in the referenced ACE_Addr. Returns 0 if successful, else -1.

int ACE_SOCK::open	(	int	type,
		int	protocol_family,
		int	protocol,
		int	reuse_addr
	)

Wrapper around the BSD-style socket system call (no QoS).

int ACE_SOCK::open	(	int	type,
		int	protocol_family,
		int	protocol,
		ACE_Protocol_Info *	protocolinfo,
		ACE_SOCK_GROUP	g,
		u_long	flags,
		int	reuse_addr
	)

Wrapper around the QoS-enabled WSASocket function.

int ACE_SOCK::set_option	(	int	level,
		int	option,
		void *	optval,
		int	optlen
	)		const

inline

Wrapper around the setsockopt system call.

Member Data Documentation

ACE_SOCK::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

The documentation for this class was generated from the following files:
