ACE_POSIX_Asynch_Write_Dgram_Result Class Reference

#include <POSIX_Asynch_IO.h>

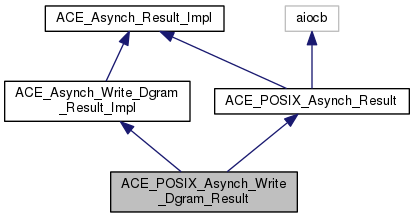

Inheritance diagram for ACE_POSIX_Asynch_Write_Dgram_Result:
Inheritance graph
[legend]

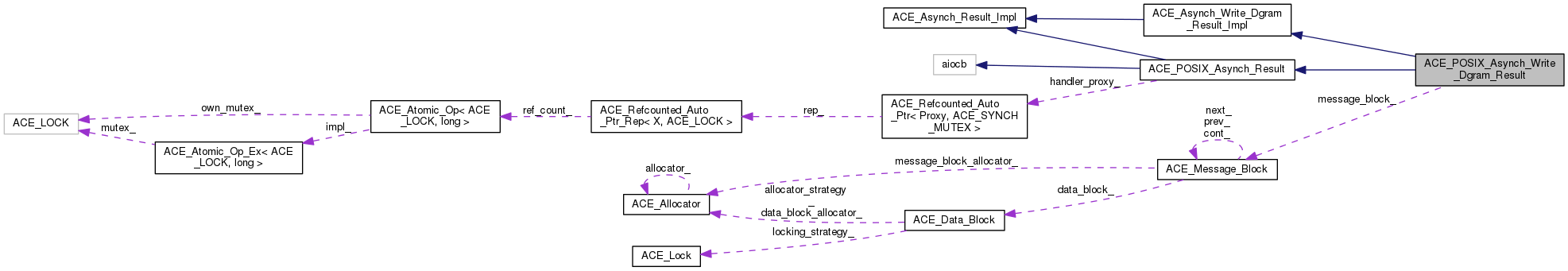

Collaboration diagram for ACE_POSIX_Asynch_Write_Dgram_Result:
Collaboration graph
[legend]

Public Member Functions

size_t bytes_to_write (void) const

ACE_Message_Blockmessage_block (void) const
 Message block which contains the sent data. More...

int flags (void) const
 The flags using in the write. More...

ACE_HANDLE handle (void) const
 I/O handle used for writing. More...

- Public Member Functions inherited from ACE_Asynch_Write_Dgram_Result_Impl
virtual ~ACE_Asynch_Write_Dgram_Result_Impl (void)

- Public Member Functions inherited from ACE_Asynch_Result_Impl
virtual ~ACE_Asynch_Result_Impl (void)

- Public Member Functions inherited from ACE_POSIX_Asynch_Result
size_t bytes_transferred (void) const
 Number of bytes transferred by the operation. More...

const void * act (void) const
 ACT associated with the operation. More...

int success (void) const
 Did the operation succeed? More...

const void * completion_key (void) const

u_long error (void) const
 Error value if the operation fails. More...

ACE_HANDLE event (void) const
 This returns ACE_INVALID_HANDLE on POSIX4 platforms. More...

u_long offset (void) const

u_long offset_high (void) const

int priority (void) const
 Priority of the operation. More...

int signal_number (void) const

int post_completion (ACE_Proactor_Impl *proactor)
 Post this to the Proactor. More...

virtual ~ACE_POSIX_Asynch_Result (void)
 Destructor. More...

void set_error (u_long errcode)
 Simulate error value to use in the post_completion () More...

void set_bytes_transferred (size_t nbytes)
 Simulate value to use in the post_completion () More...


Protected Member Functions

 ACE_POSIX_Asynch_Write_Dgram_Result (const ACE_Handler::Proxy_Ptr &handler_proxy, ACE_HANDLE handle, ACE_Message_Block *message_block, size_t bytes_to_write, int flags, const void *act, ACE_HANDLE event, int priority, int signal_number)

virtual void complete (size_t bytes_transferred, int success, const void *completion_key, u_long error)
 ACE_Proactor will call this method when the write completes. More...

virtual ~ACE_POSIX_Asynch_Write_Dgram_Result (void)
 Destructor. More...

- Protected Member Functions inherited from ACE_Asynch_Write_Dgram_Result_Impl
 ACE_Asynch_Write_Dgram_Result_Impl (void)
 Do-nothing constructor. More...

- Protected Member Functions inherited from ACE_Asynch_Result_Impl
 ACE_Asynch_Result_Impl (void)
 Do-nothing constructor. More...

- Protected Member Functions inherited from ACE_POSIX_Asynch_Result
 ACE_POSIX_Asynch_Result (const ACE_Handler::Proxy_Ptr &handler_proxy, const void *act, ACE_HANDLE event, u_long offset, u_long offset_high, int priority, int signal_number)
 Constructor. <Event> is not used on POSIX. More...


Protected Attributes

size_t bytes_to_write_

ACE_Message_Blockmessage_block_
 Message block used for the send. More...

int flags_
 The flags using in the write. More...

ACE_HANDLE handle_
 I/O handle used for writing. More...

- Protected Attributes inherited from ACE_POSIX_Asynch_Result
ACE_Handler::Proxy_Ptr handler_proxy_
 Handler that will be called back. More...

const void * act_

size_t bytes_transferred_
 Bytes transferred by this operation. More...

int success_
 Success indicator. More...

const void * completion_key_
 ACT associated with handle. More...

u_long error_
 Error if operation failed. More...


Friends

class ACE_POSIX_Asynch_Write_Dgram
 Factory classes will have special permissions. More...

class ACE_POSIX_Proactor
 Proactor class has special permission. More...


Constructor & Destructor Documentation

ACE_POSIX_Asynch_Write_Dgram_Result::ACE_POSIX_Asynch_Write_Dgram_Result ( const ACE_Handler::Proxy_Ptr handler_proxy,
ACE_HANDLE  handle,
ACE_Message_Block message_block,
size_t  bytes_to_write,
int  flags,
const void *  act,
ACE_HANDLE  event,
int  priority,
int  signal_number
)
protected

Constructor is protected since creation is limited to ACE_Asynch_Write_Stream factory.

ACE_POSIX_Asynch_Write_Dgram_Result::~ACE_POSIX_Asynch_Write_Dgram_Result ( void  )
protectedvirtual

Destructor.

Member Function Documentation

size_t ACE_POSIX_Asynch_Write_Dgram_Result::bytes_to_write ( void  ) const
virtual

The number of bytes which were requested at the start of the asynchronous write.

Implements ACE_Asynch_Write_Dgram_Result_Impl.

void ACE_POSIX_Asynch_Write_Dgram_Result::complete ( size_t  bytes_transferred,
int  success,
const void *  completion_key,
u_long  error
)
protectedvirtual

ACE_Proactor will call this method when the write completes.

Implements ACE_Asynch_Result_Impl.

int ACE_POSIX_Asynch_Write_Dgram_Result::flags ( void  ) const
virtual

The flags using in the write.

Implements ACE_Asynch_Write_Dgram_Result_Impl.

ACE_HANDLE ACE_POSIX_Asynch_Write_Dgram_Result::handle ( void  ) const
virtual

I/O handle used for writing.

Implements ACE_Asynch_Write_Dgram_Result_Impl.

ACE_Message_Block * ACE_POSIX_Asynch_Write_Dgram_Result::message_block ( void  ) const
virtual

Message block which contains the sent data.

Implements ACE_Asynch_Write_Dgram_Result_Impl.

Friends And Related Function Documentation

friend class ACE_POSIX_Asynch_Write_Dgram
friend

Factory classes will have special permissions.

friend class ACE_POSIX_Proactor
friend

Proactor class has special permission.

Member Data Documentation

size_t ACE_POSIX_Asynch_Write_Dgram_Result::bytes_to_write_
protected

The number of bytes which were requested at the start of the asynchronous write.

int ACE_POSIX_Asynch_Write_Dgram_Result::flags_
protected

The flags using in the write.

ACE_HANDLE ACE_POSIX_Asynch_Write_Dgram_Result::handle_
protected

I/O handle used for writing.

ACE_Message_Block* ACE_POSIX_Asynch_Write_Dgram_Result::message_block_
protected

Message block used for the send.


The documentation for this class was generated from the following files:
