Defines the format and interface for connecting to a peer on a ACE_MEM_Stream object. More...

#include <MEM_Connector.h>

Inheritance diagram for ACE_MEM_Connector:

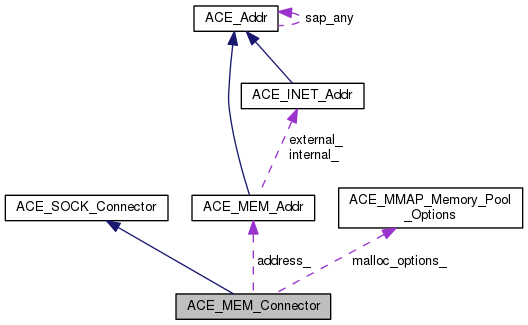

Collaboration diagram for ACE_MEM_Connector:

Public Types
typedef ACE_INET_Addr	PEER_ADDR

typedef ACE_MEM_Stream	PEER_STREAM

Public Types inherited from ACE_SOCK_Connector
typedef ACE_INET_Addr	PEER_ADDR

typedef ACE_SOCK_Stream	PEER_STREAM

Public Member Functions
	ACE_MEM_Connector (void)
	Default constructor. More...

	ACE_MEM_Connector (ACE_MEM_Stream &new_stream, const ACE_INET_Addr &remote_sap, ACE_Time_Value *timeout=0, const ACE_Addr &local_sap=ACE_Addr::sap_any, int reuse_addr=0, int flags=0, int perms=0)

int	connect (ACE_MEM_Stream &new_stream, const ACE_INET_Addr &remote_sap, ACE_Time_Value *timeout=0, const ACE_Addr &local_sap=ACE_Addr::sap_any, int reuse_addr=0, int flags=0, int perms=0)

ACE_MEM_IO::Signal_Strategy	preferred_strategy (void) const
	Get the preferred signaling strategy. More...

void	preferred_strategy (ACE_MEM_IO::Signal_Strategy strategy)
	Set the preferred signaling strategy. More...

void	dump (void) const
	Dump the state of an object. More...

Public Member Functions inherited from ACE_SOCK_Connector
	ACE_SOCK_Connector (void)
	Default constructor. More...

	ACE_SOCK_Connector (ACE_SOCK_Stream &new_stream, const ACE_Addr &remote_sap, const ACE_Time_Value *timeout=0, const ACE_Addr &local_sap=ACE_Addr::sap_any, int reuse_addr=0, int flags=0, int perms=0, int protocol=0)

	ACE_SOCK_Connector (ACE_SOCK_Stream &new_stream, const ACE_Addr &remote_sap, ACE_QoS_Params qos_params, const ACE_Time_Value timeout=0, const ACE_Addr &local_sap=ACE_Addr::sap_any, ACE_Protocol_Info protocolinfo=0, ACE_SOCK_GROUP g=0, u_long flags=0, int reuse_addr=0, int perms=0)

int	connect (ACE_SOCK_Stream &new_stream, const ACE_Addr &remote_sap, const ACE_Time_Value *timeout=0, const ACE_Addr &local_sap=ACE_Addr::sap_any, int reuse_addr=0, int flags=0, int perms=0, int protocol=0)

int	connect (ACE_SOCK_Stream &new_stream, const ACE_Addr &remote_sap, ACE_QoS_Params qos_params, const ACE_Time_Value timeout=0, const ACE_Addr &local_sap=ACE_Addr::sap_any, ACE_Protocol_Info protocolinfo=0, ACE_SOCK_GROUP g=0, u_long flags=0, int reuse_addr=0, int perms=0)

	~ACE_SOCK_Connector (void)
	Default destructor. More...

int	complete (ACE_SOCK_Stream &new_stream, ACE_Addr remote_sap=0, const ACE_Time_Value timeout=0)

bool	reset_new_handle (ACE_HANDLE handle)
	Resets any event associations on this handle. More...

void	dump (void) const
	Dump the state of an object. More...

Public Attributes
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks. More...

Public Attributes inherited from ACE_SOCK_Connector
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks. More...

Private Attributes
ACE_MEM_Addr	address_
	The acceptor address this connector is connecting to. More...

ACE_MEM_SAP::MALLOC_OPTIONS	malloc_options_

ACE_MEM_IO::Signal_Strategy	preferred_strategy_
	Preferred signaling strategy. More...

Additional Inherited Members
Protected Member Functions inherited from ACE_SOCK_Connector
int	shared_open (ACE_SOCK_Stream &new_stream, int protocol_family, int protocol, int reuse_addr)

int	shared_open (ACE_SOCK_Stream &new_stream, int protocol_family, int protocol, ACE_Protocol_Info *protocolinfo, ACE_SOCK_GROUP g, u_long flags, int reuse_addr)

int	shared_connect_start (ACE_SOCK_Stream &new_stream, const ACE_Time_Value *timeout, const ACE_Addr &local_sap)
	Perform operations that must be called before <ACE_OS::connect>. More...

int	shared_connect_finish (ACE_SOCK_Stream &new_stream, const ACE_Time_Value *timeout, int result)
	Perform operations that must be called after <ACE_OS::connect>. More...

Detailed Description

Defines the format and interface for connecting to a peer on a ACE_MEM_Stream object.

Member Typedef Documentation

typedef ACE_INET_Addr ACE_MEM_Connector::PEER_ADDR

typedef ACE_MEM_Stream ACE_MEM_Connector::PEER_STREAM

Constructor & Destructor Documentation

ACE_MEM_Connector::ACE_MEM_Connector ( void )

Default constructor.

ACE_MEM_Connector::ACE_MEM_Connector	(	ACE_MEM_Stream &	new_stream,
		const ACE_INET_Addr &	remote_sap,
		ACE_Time_Value *	timeout = `0`,
		const ACE_Addr &	local_sap = `ACE_Addr::sap_any`,
		int	reuse_addr = `0`,
		int	flags = `0`,
		int	perms = `0`
	)

Actively connect to a peer, producing a connected ACE_MEM_Stream object if the connection succeeds.

Parameters

new_stream	The `ACE_MEM_Stream` object that will be connected to the peer.
remote_sap	The address that we are trying to connect to. The protocol family of `remote_sap` is used for the connected socket. That is, if `remote_sap` contains an IPv6 address, a socket with family PF_INET6 will be used, else it will be PF_INET.

Note: remote_sap must be an address on the local host.

Parameters

timeout	Pointer to an `ACE_Time_Value` object with amount of time to wait to connect. If the pointer is 0 then the call blocks until the connection attempt is complete, whether it succeeds or fails. If timeout == {0, 0} then the connection is done using nonblocking mode. In this case, if the connection can't be made immediately, this method returns -1 and errno == EWOULDBLOCK. If timeout > {0, 0} then this is the maximum amount of time to wait before timing out; if the specified amount of time passes before the connection is made, this method returns -1 and errno == ETIME. Note the difference between this case and when a blocking connect is attempted that TCP times out - in the latter case, errno will be ETIMEDOUT.
local_sap	(optional) The local address to bind to. If it's the default value of `ACE_Addr::sap_any` then the OS will choose an unused port.
reuse_addr	(optional) If the value is 1, the local address (`local_sap`) is reused, even if it hasn't been cleaned up yet.
flags	Ignored.
perms	Ignored.

Member Function Documentation

int ACE_MEM_Connector::connect	(	ACE_MEM_Stream &	new_stream,
		const ACE_INET_Addr &	remote_sap,
		ACE_Time_Value *	timeout = `0`,
		const ACE_Addr &	local_sap = `ACE_Addr::sap_any`,
		int	reuse_addr = `0`,
		int	flags = `0`,
		int	perms = `0`
	)

Actively connect to a peer, producing a connected ACE_MEM_Stream object if the connection succeeds.

Parameters

new_stream	The `ACE_MEM_Stream` object that will be connected to the peer.
remote_sap	The address that we are trying to connect to. The protocol family of `remote_sap` is used for the connected socket. That is, if `remote_sap` contains an IPv6 address, a socket with family PF_INET6 will be used, else it will be PF_INET.

Note: remote_sap must be an address on the local host.

Parameters

timeout	Pointer to an `ACE_Time_Value` object with amount of time to wait to connect. If the pointer is 0 then the call blocks until the connection attempt is complete, whether it succeeds or fails. If timeout == {0, 0} then the connection is done using nonblocking mode. In this case, if the connection can't be made immediately, this method returns -1 and errno == EWOULDBLOCK. If timeout > {0, 0} then this is the maximum amount of time to wait before timing out; if the specified amount of time passes before the connection is made, this method returns -1 and errno == ETIME. Note the difference between this case and when a blocking connect is attempted that TCP times out - in the latter case, errno will be ETIMEDOUT.
local_sap	(optional) The local address to bind to. If it's the default value of `ACE_Addr::sap_any` then the OS will choose an unused port.
reuse_addr	(optional) If the value is 1, the local address (`local_sap`) is reused, even if it hasn't been cleaned up yet.
flags	Ignored.
perms	Ignored.

Returns: Returns 0 if the connection succeeds. If it fails, -1 is returned and errno contains a specific error code.

void ACE_MEM_Connector::dump ( void ) const

Dump the state of an object.

ACE_MEM_IO::Signal_Strategy ACE_MEM_Connector::preferred_strategy ( void ) const

inline

Get the preferred signaling strategy.

void ACE_MEM_Connector::preferred_strategy ( ACE_MEM_IO::Signal_Strategy strategy )

inline

Set the preferred signaling strategy.

Member Data Documentation

ACE_MEM_Connector::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

ACE_MEM_Addr ACE_MEM_Connector::address_

private

The acceptor address this connector is connecting to.

ACE_MEM_SAP::MALLOC_OPTIONS ACE_MEM_Connector::malloc_options_

private

A cached MALLOC_OPTIONS that the MEM_Connector used to initialize the shared memory malloc update connection establishment.

ACE_MEM_IO::Signal_Strategy ACE_MEM_Connector::preferred_strategy_

private

Preferred signaling strategy.

The documentation for this class was generated from the following files:
