ACE_AIOCB_Notify_Pipe_Manager Class Reference

This class manages the notify pipe of the AIOCB Proactor. More...

Inheritance diagram for ACE_AIOCB_Notify_Pipe_Manager:

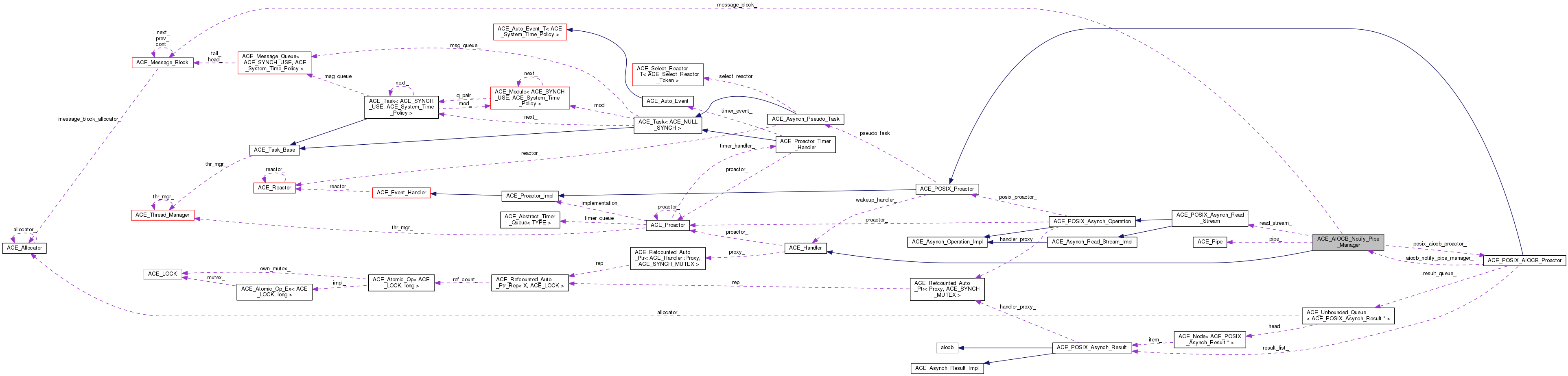

Collaboration diagram for ACE_AIOCB_Notify_Pipe_Manager:

Public Member Functions
	ACE_AIOCB_Notify_Pipe_Manager (ACE_POSIX_AIOCB_Proactor *posix_aiocb_proactor)
virtual	~ACE_AIOCB_Notify_Pipe_Manager (void)
	Destructor. More...
int	notify ()
	Send the result pointer through the notification pipe. More...
virtual void	handle_read_stream (const ACE_Asynch_Read_Stream::Result &result)
Public Member Functions inherited from ACE_Handler
	ACE_Handler (void)
	A do nothing constructor. More...
	ACE_Handler (ACE_Proactor *p)
	A do nothing constructor which allows proactor to be set to <p>. More...
virtual	~ACE_Handler (void)
	Virtual destruction. More...
virtual void	handle_write_dgram (const ACE_Asynch_Write_Dgram::Result &result)
virtual void	handle_read_dgram (const ACE_Asynch_Read_Dgram::Result &result)
virtual void	handle_write_stream (const ACE_Asynch_Write_Stream::Result &result)
virtual void	handle_read_file (const ACE_Asynch_Read_File::Result &result)
virtual void	handle_write_file (const ACE_Asynch_Write_File::Result &result)
virtual void	handle_accept (const ACE_Asynch_Accept::Result &result)
	This method will be called when an asynchronous accept completes. More...
virtual void	handle_connect (const ACE_Asynch_Connect::Result &result)
	This method will be called when an asynchronous connect completes. More...
virtual void	handle_transmit_file (const ACE_Asynch_Transmit_File::Result &result)
virtual void	handle_time_out (const ACE_Time_Value &tv, const void *act=0)
virtual void	handle_wakeup (void)
ACE_Proactor *	proactor (void)
	Get the proactor associated with this handler. More...
void	proactor (ACE_Proactor *p)
	Set the proactor. More...
virtual ACE_HANDLE	handle (void) const
virtual void	handle (ACE_HANDLE)
	Set the ACE_HANDLE value for this Handler. More...
Proxy_Ptr &	proxy (void)

Private Member Functions
	ACE_AIOCB_Notify_Pipe_Manager (void)
	Default constructor. Shouldnt be called. More...

Private Attributes
ACE_POSIX_AIOCB_Proactor *	posix_aiocb_proactor_
	The implementation proactor class. More...
ACE_Message_Block	message_block_
	Message block to get ACE_POSIX_Asynch_Result pointer from the pipe. More...
ACE_Pipe	pipe_
ACE_POSIX_Asynch_Read_Stream	read_stream_
	To do asynch_read on the pipe. More...

Additional Inherited Members
Public Types inherited from ACE_Handler
typedef ACE_Refcounted_Auto_Ptr< Proxy, ACE_SYNCH_MUTEX >	Proxy_Ptr
Protected Attributes inherited from ACE_Handler
ACE_Proactor *	proactor_
	The proactor associated with this handler. More...
ACE_HANDLE	handle_
	The ACE_HANDLE in use with this handler. More...
ACE_Refcounted_Auto_Ptr< Proxy, ACE_SYNCH_MUTEX >	proxy_
	Refers to proxy for this handler. More...

Detailed Description

This class manages the notify pipe of the AIOCB Proactor.

This class acts as the Handler for the <Asynch_Read> operations issued on the notify pipe. This class is very useful in implementing <Asynch_Accept> operation class for the <AIOCB_Proactor>. This is also useful for implementing <post_completion> for <AIOCB_Proactor>.

<AIOCB_Proactor> class issues a <Asynch_Read> on the pipe, using this class as the Handler. <POSIX_Asynch_Result *>'s are sent through the notify pipe. When <POSIX_Asynch_Result *>'s show up on the notify pipe, the <POSIX_AIOCB_Proactor> dispatches the completion of the <Asynch_Read_Stream> and calls the <handle_read_stream> of this class. This class calls <complete> on the <POSIX_Asynch_Result *> and thus calls the application handler. Handling the MessageBlock: We give this message block to read the result pointer through the notify pipe. We expect that to read 4 bytes from the notify pipe, for each <accept> call. Before giving this message block to another <accept>, we update <wr_ptr> and put it in its initial position.

Constructor & Destructor Documentation

ACE_AIOCB_Notify_Pipe_Manager::ACE_AIOCB_Notify_Pipe_Manager

(

ACE_POSIX_AIOCB_Proactor *

posix_aiocb_proactor

)

Constructor. You need the posix proactor because you need to call <application_specific_code>

ACE_AIOCB_Notify_Pipe_Manager::~ACE_AIOCB_Notify_Pipe_Manager ( void  )

virtual

Destructor.

ACE_AIOCB_Notify_Pipe_Manager::ACE_AIOCB_Notify_Pipe_Manager ( void  )

private

Default constructor. Shouldnt be called.

Member Function Documentation

void ACE_AIOCB_Notify_Pipe_Manager::handle_read_stream ( const ACE_Asynch_Read_Stream::Result &  result )

virtual

This is the call back method when <Asynch_Read> from the pipe is complete.

Reimplemented from ACE_Handler.

int ACE_AIOCB_Notify_Pipe_Manager::notify

(

)

Send the result pointer through the notification pipe.

Member Data Documentation

ACE_Message_Block ACE_AIOCB_Notify_Pipe_Manager::message_block_

private

Message block to get ACE_POSIX_Asynch_Result pointer from the pipe.

ACE_Pipe ACE_AIOCB_Notify_Pipe_Manager::pipe_

private

Pipe for the communication between Proactor and the Asynch_Accept/Asynch_Connect and other post_completions

ACE_POSIX_AIOCB_Proactor* ACE_AIOCB_Notify_Pipe_Manager::posix_aiocb_proactor_

private

The implementation proactor class.

ACE_POSIX_Asynch_Read_Stream ACE_AIOCB_Notify_Pipe_Manager::read_stream_

private

To do asynch_read on the pipe.

---

The documentation for this class was generated from the following file:

• POSIX_Proactor.cpp
