TAO_ECG_UDP_EH Class Reference

Event Handler for UDP messages. More...

#include <ECG_UDP_EH.h>

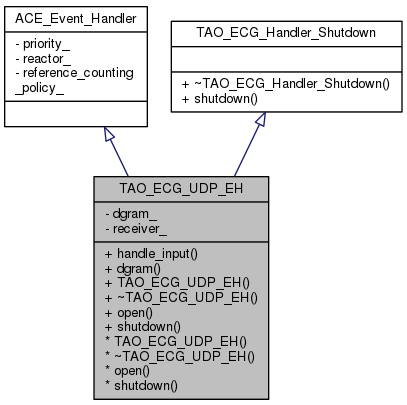

Inheritance diagram for TAO_ECG_UDP_EH:

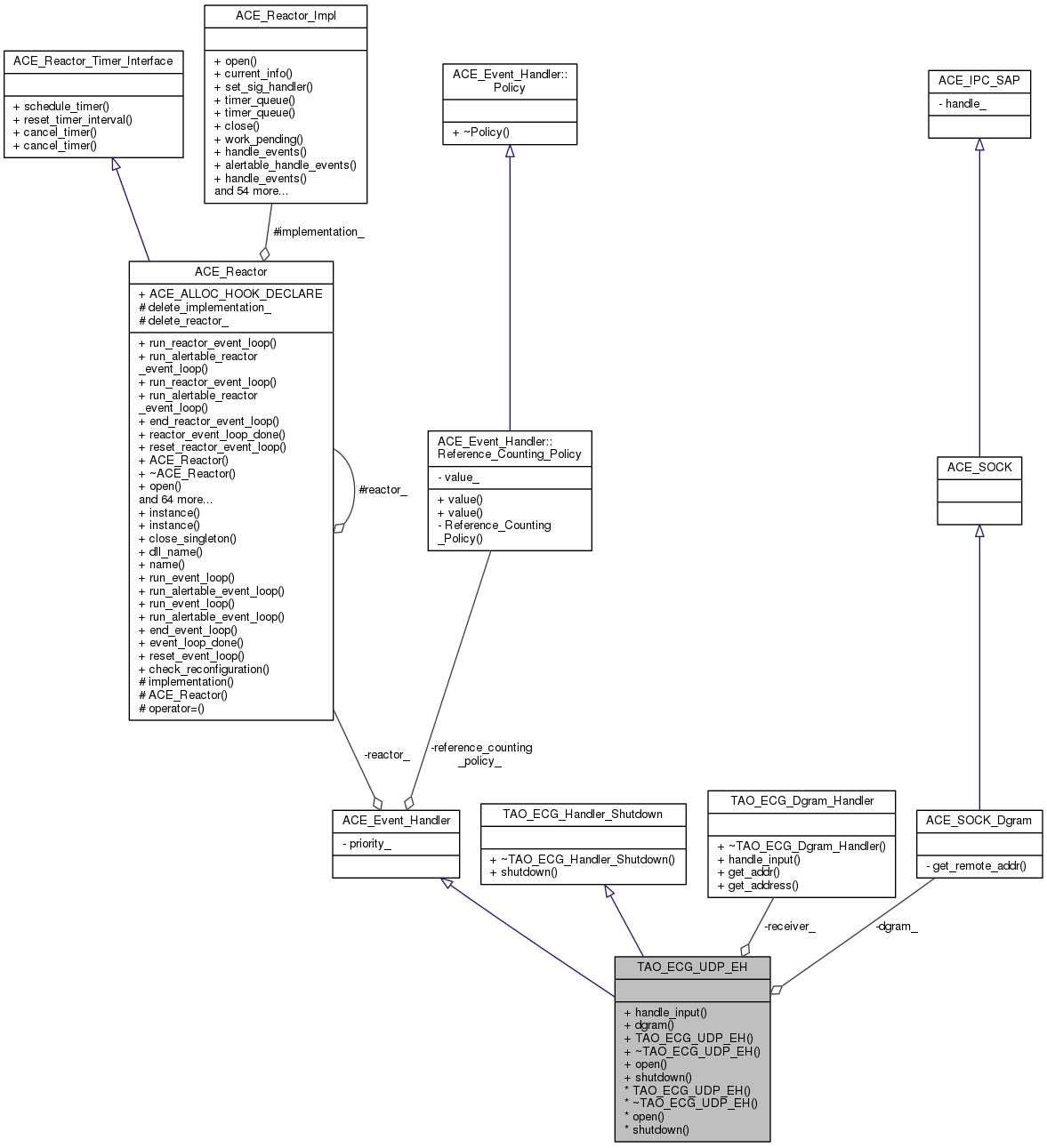

Collaboration diagram for TAO_ECG_UDP_EH:

Public Member Functions
virtual int	handle_input (ACE_HANDLE fd)
ACE_SOCK_Dgram &	dgram (void)
	TAO_ECG_UDP_EH (TAO_ECG_Dgram_Handler *recv)
	Initialization and termination methods. More...
virtual	~TAO_ECG_UDP_EH (void)
	Destructor. More...
int	open (const ACE_INET_Addr &ipaddr, int reuse_addr=0)
virtual int	shutdown (void)
Public Member Functions inherited from TAO_ECG_Handler_Shutdown
virtual	~TAO_ECG_Handler_Shutdown (void)

Private Attributes
ACE_SOCK_Dgram	dgram_
	The datagram used to receive the data. More...
TAO_ECG_Dgram_Handler *	receiver_
	We callback to this object when a message arrives. More...

Detailed Description

Event Handler for UDP messages.

Listens for messages on a UDP socket. When there is a message, calls handle_input () on a specified TAO_ECG_Dgram_Handler to inform it about message arrival.

NOT THREAD-SAFE.

Constructor & Destructor Documentation

TAO_ECG_UDP_EH::TAO_ECG_UDP_EH

(

TAO_ECG_Dgram_Handler *

recv

)

Initialization and termination methods.

Constructor. Messages received by this EH will be forwarded to the <recv>.

TAO_ECG_UDP_EH::~TAO_ECG_UDP_EH ( void  )

virtual

Destructor.

Member Function Documentation

ACE_SOCK_Dgram& TAO_ECG_UDP_EH::dgram

(

void

)

Obtain the dgram, this is one of those "controlled violations of type safety", allowing the user to setup options and gain access to low-level features.

int TAO_ECG_UDP_EH::handle_input ( ACE_HANDLE  fd )

virtual

Main method - reactor callback. Notify <receiver_> that <dgram_> is ready for reading.

int TAO_ECG_UDP_EH::open	(	const ACE_INET_Addr &	ipaddr,
		int	reuse_addr = 0
	)

Open the datagram and register itself with this->reactor(). To insure proper resource clean up, if open () is successful, the user MUST call shutdown () when handler is no longer needed (and its reactor still exists).

int TAO_ECG_UDP_EH::shutdown ( void  )

virtual

TAO_ECG_Handler_Shutdown method. Unsubscribe from the reactor and close the datagram.

Implements TAO_ECG_Handler_Shutdown.

Member Data Documentation

ACE_SOCK_Dgram TAO_ECG_UDP_EH::dgram_

private

The datagram used to receive the data.

TAO_ECG_Dgram_Handler* TAO_ECG_UDP_EH::receiver_

private

We callback to this object when a message arrives.

---

The documentation for this class was generated from the following files:

• ECG_UDP_EH.h
• ECG_UDP_EH.cpp
