TAO_EC_Gateway_Sched Class Reference

Extend the EC_Gateway_IIOP interface to support scheduling. More...

#include <EC_Gateway_Sched.h>

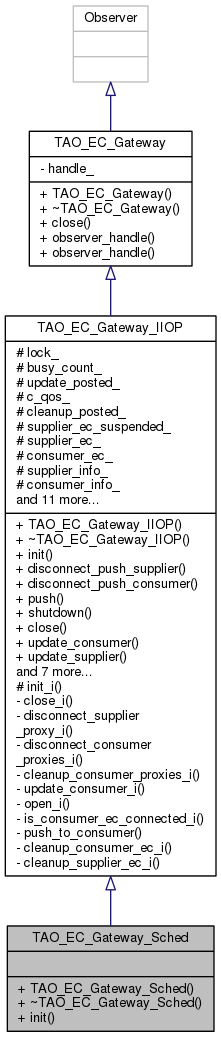

Inheritance diagram for TAO_EC_Gateway_Sched:
Inheritance graph

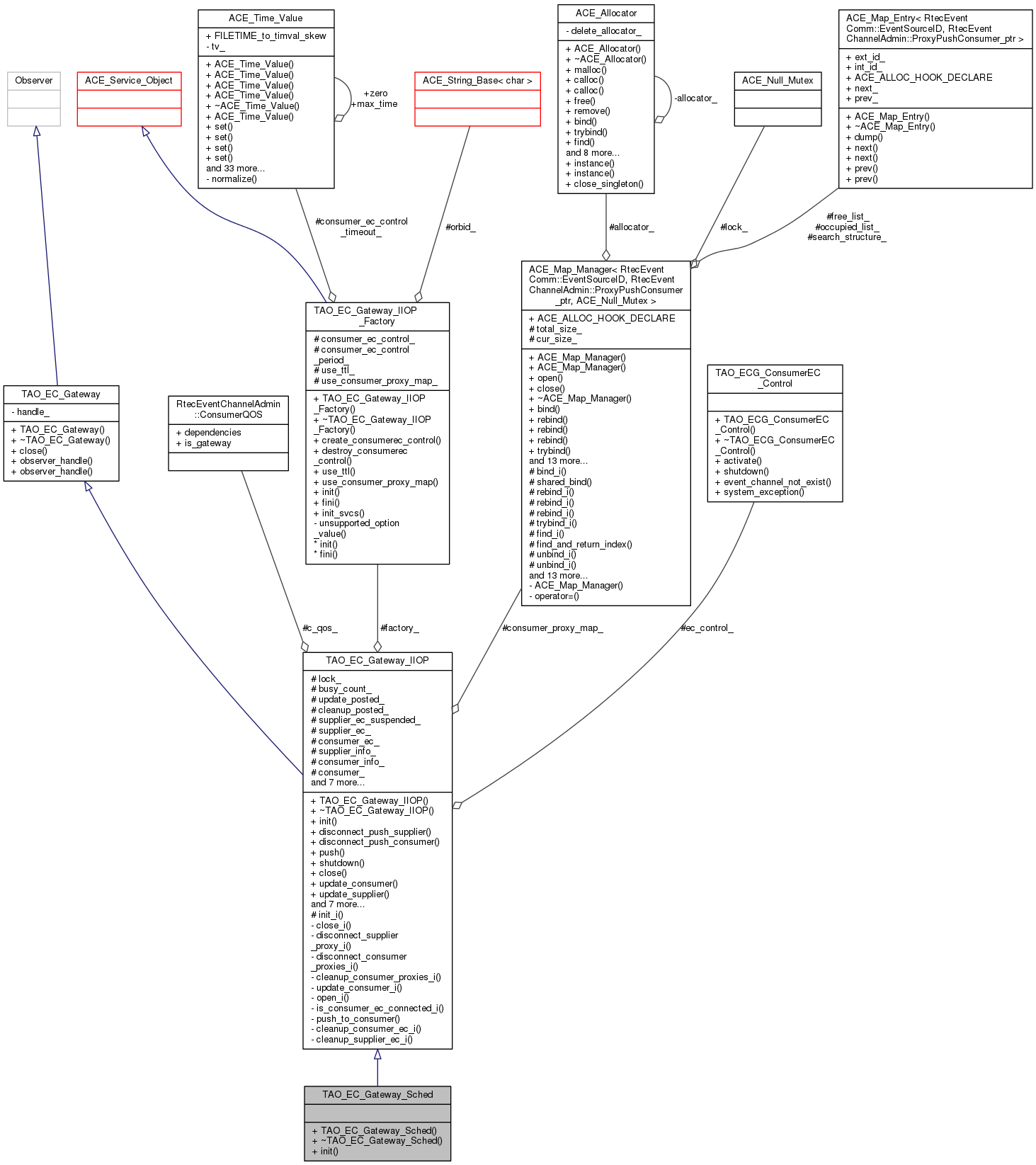

Collaboration diagram for TAO_EC_Gateway_Sched:
Collaboration graph

Public Member Functions

 TAO_EC_Gateway_Sched (void)

 ~TAO_EC_Gateway_Sched (void)

void init (RtecEventChannelAdmin::EventChannel_ptr supplier_ec, RtecEventChannelAdmin::EventChannel_ptr consumer_ec, RtecScheduler::Scheduler_ptr supplier_sched, RtecScheduler::Scheduler_ptr consumer_sched, const char *consumer_name, const char *supplier_name)

- Public Member Functions inherited from TAO_EC_Gateway_IIOP
 TAO_EC_Gateway_IIOP (void)

virtual ~TAO_EC_Gateway_IIOP (void)

int init (RtecEventChannelAdmin::EventChannel_ptr supplier_ec, RtecEventChannelAdmin::EventChannel_ptr consumer_ec)

void disconnect_push_supplier (void)
 The channel is disconnecting. More...

void disconnect_push_consumer (void)
 The channel is disconnecting. More...

void push (const RtecEventComm::EventSet &events)

int shutdown (void)
 Disconnect and shutdown the gateway. More...

virtual void close (void)

virtual void update_consumer (const RtecEventChannelAdmin::ConsumerQOS &sub)

virtual void update_supplier (const RtecEventChannelAdmin::SupplierQOS &pub)

void reconnect_consumer_ec (void)

CORBA::Boolean consumer_ec_non_existent (CORBA::Boolean_out disconnected)
 Check whether the consumer event channel is non existent or not. More...

void cleanup_consumer_proxies (void)

int cleanup_consumer_ec (void)

int cleanup_supplier_ec (void)

void suspend_supplier_ec (void)
 Suspend the connection to the supplier ec. More...

void resume_supplier_ec (void)
 Resume the connection to the supplier ec. More...

- Public Member Functions inherited from TAO_EC_Gateway
 TAO_EC_Gateway (void)
 Default constructor. More...

virtual ~TAO_EC_Gateway (void)
 Destructor. More...

void observer_handle (RtecEventChannelAdmin::Observer_Handle h)
 Obtain and modify the observer handle. More...

RtecEventChannelAdmin::Observer_Handle observer_handle (void) const


Additional Inherited Members

- Protected Types inherited from TAO_EC_Gateway_IIOP
typedef ACE_Map_Manager
< RtecEventComm::EventSourceID,
RtecEventChannelAdmin::ProxyPushConsumer_ptr,
ACE_Null_Mutex
Consumer_Map

typedef ACE_Map_Iterator
< RtecEventComm::EventSourceID,
RtecEventChannelAdmin::ProxyPushConsumer_ptr,
ACE_Null_Mutex
Consumer_Map_Iterator

- Protected Member Functions inherited from TAO_EC_Gateway_IIOP
int init_i (RtecEventChannelAdmin::EventChannel_ptr supplier_ec, RtecEventChannelAdmin::EventChannel_ptr consumer_ec)
 Do the real work in init() More...

- Protected Attributes inherited from TAO_EC_Gateway_IIOP
TAO_SYNCH_MUTEX lock_
 Lock to synchronize internal changes. More...

CORBA::ULong busy_count_

int update_posted_

RtecEventChannelAdmin::ConsumerQOS c_qos_

int cleanup_posted_

int supplier_ec_suspended_

RtecEventChannelAdmin::EventChannel_var supplier_ec_

RtecEventChannelAdmin::EventChannel_var consumer_ec_
 The event channel acting as consumer of this gateway. More...

RtecBase::handle_t supplier_info_
 Our RT_Infos for the event channel that is the supplier. More...

RtecBase::handle_t consumer_info_
 Our RT_Infos for the event channel that is the consumer. More...

ACE_PushConsumer_Adapter
< TAO_EC_Gateway_IIOP
consumer_
 Our consumer personality.... More...

bool consumer_is_active_
 If it is true then we must deactivate the consumer. More...

ACE_PushSupplier_Adapter
< TAO_EC_Gateway_IIOP
supplier_
 Our supplier personality.... More...

bool supplier_is_active_
 If it is true then we must deactivate the supplier. More...

Consumer_Map consumer_proxy_map_

RtecEventChannelAdmin::ProxyPushConsumer_var default_consumer_proxy_

RtecEventChannelAdmin::ProxyPushSupplier_var supplier_proxy_

TAO_ECG_ConsumerEC_Controlec_control_

TAO_EC_Gateway_IIOP_Factoryfactory_
 The Gateway IIOP Factory for all the settings. More...

int use_ttl_
 If 1, we use the TTL flags, if 0, we just ignore TTL. More...

int use_consumer_proxy_map_


Detailed Description

Extend the EC_Gateway_IIOP interface to support scheduling.

Constructor & Destructor Documentation

TAO_EC_Gateway_Sched::TAO_EC_Gateway_Sched ( void  )
TAO_EC_Gateway_Sched::~TAO_EC_Gateway_Sched ( void  )

Member Function Documentation

void TAO_EC_Gateway_Sched::init ( RtecEventChannelAdmin::EventChannel_ptr  supplier_ec,
RtecEventChannelAdmin::EventChannel_ptr  consumer_ec,
RtecScheduler::Scheduler_ptr  supplier_sched,
RtecScheduler::Scheduler_ptr  consumer_sched,
const char *  consumer_name,
const char *  supplier_name
)

To do its job this class requires to know the local and remote ECs it will connect to; furthermore it also requires to build RT_Infos for the local and remote schedulers.

Todo:
part of the RT_Info is hardcoded, we need to make it parametric.

The documentation for this class was generated from the following files:
