Public Member Functions | List of all members
TAO_ESF_Peer_Admin< EVENT_CHANNEL, PROXY, INTERFACE, PEER > Class Template Reference

Extend the Proxy_Admin interface to provide methods for filtering. More...

#include <ESF_Peer_Admin.h>

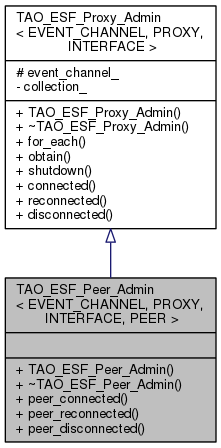

Inheritance diagram for TAO_ESF_Peer_Admin< EVENT_CHANNEL, PROXY, INTERFACE, PEER >:
Inheritance graph

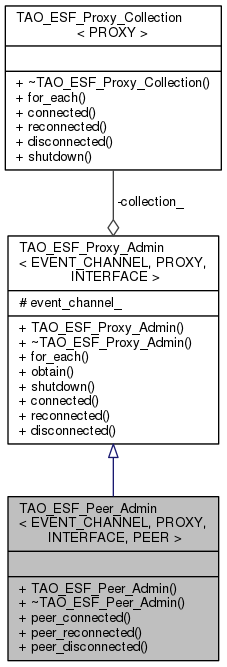

Collaboration diagram for TAO_ESF_Peer_Admin< EVENT_CHANNEL, PROXY, INTERFACE, PEER >:
Collaboration graph

Public Member Functions

 TAO_ESF_Peer_Admin (EVENT_CHANNEL *ec)
 Constructor. More...

virtual ~TAO_ESF_Peer_Admin (void)
 destructor More...

virtual void peer_connected (PEER *peer)

virtual void peer_reconnected (PEER *peer)

virtual void peer_disconnected (PEER *peer)

- Public Member Functions inherited from TAO_ESF_Proxy_Admin< EVENT_CHANNEL, PROXY, INTERFACE >
 TAO_ESF_Proxy_Admin (EVENT_CHANNEL *ec)
 Constructor, allocate the internal collection. More...

virtual ~TAO_ESF_Proxy_Admin (void)
 Cleanup internal resources, destroy the internal collection. More...

void for_each (TAO_ESF_Worker< PROXY > *worker)
 Iterate over its internal collection. More...

virtual INTERFACE * obtain (void)
 Create a new PROXY and activate it. More...

virtual void shutdown (void)

virtual void connected (PROXY *proxy)

virtual void reconnected (PROXY *proxy)

virtual void disconnected (PROXY *proxy)


Additional Inherited Members

- Protected Attributes inherited from TAO_ESF_Proxy_Admin< EVENT_CHANNEL, PROXY, INTERFACE >
EVENT_CHANNEL * event_channel_
 The Event Channel we belong to. More...


Detailed Description

template<class EVENT_CHANNEL, class PROXY, class INTERFACE, class PEER>
class TAO_ESF_Peer_Admin< EVENT_CHANNEL, PROXY, INTERFACE, PEER >

Extend the Proxy_Admin interface to provide methods for filtering.

Some Event Services that perform filtering have to propagate the consumer connect/disconnect activities to the suppliers, and vice-versa. In that scenario the ESF_Proxy_Admin<> interface is augmented with connected()/reconnected()/disconnected() operations for the proxy peers (i.e. the ProxySuppliers for the ProxyConsumers and vice-versa).

Requirements

In addition to the requirements imposed by ESF_Proxy_Admin<> the PROXY interface must implement:

* void connected (PEER *peer) throw ();
* void reconnected (PEER *peer) throw ();
* void disconnected (PEER *peer) throw ();
*

Similarly, the PEER interface must implement:

* void connected (PROXY *proxy) throw ();
* void reconnected (PROXY *proxy) throw ();
* void disconnected (PROXY *proxy) throw ();
*

Constructor & Destructor Documentation

template<class EVENT_CHANNEL , class PROXY , class INTERFACE , class PEER >
TAO_ESF_Peer_Admin< EVENT_CHANNEL, PROXY, INTERFACE, PEER >::TAO_ESF_Peer_Admin ( EVENT_CHANNEL *  ec)

Constructor.

template<class EVENT_CHANNEL , class PROXY , class INTERFACE , class PEER >
TAO_ESF_Peer_Admin< EVENT_CHANNEL, PROXY, INTERFACE, PEER >::~TAO_ESF_Peer_Admin ( void  )
virtual

destructor

Member Function Documentation

template<class EVENT_CHANNEL , class PROXY , class INTERFACE , class PEER >
void TAO_ESF_Peer_Admin< EVENT_CHANNEL, PROXY, INTERFACE, PEER >::peer_connected ( PEER *  peer)
virtual

A <peer> has connected, this is invoked when the peer's client has invoked the connect_xxx_yyy() method. The default implementation is a no-op.

template<class EVENT_CHANNEL , class PROXY , class INTERFACE , class PEER >
void TAO_ESF_Peer_Admin< EVENT_CHANNEL, PROXY, INTERFACE, PEER >::peer_disconnected ( PEER *  peer)
virtual

A <peer> has been disconnected. The default implementation removes the object from the collection and deactivates the proxy.

template<class EVENT_CHANNEL , class PROXY , class INTERFACE , class PEER >
void TAO_ESF_Peer_Admin< EVENT_CHANNEL, PROXY, INTERFACE, PEER >::peer_reconnected ( PEER *  peer)
virtual

A <peer> has reconnected, i.e. its client has invoked the connect_xxx_yyy() method, but the peer was connected already. The default implementation delegates on the collection <reconnected> method


The documentation for this class was generated from the following files:
