ACE_Token_Request Class Reference

Message format for delivering requests to the ACE_Token Server. More...

#include <Token_Request_Reply.h>

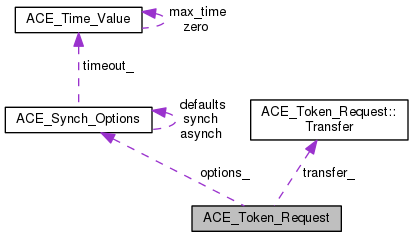

Collaboration diagram for ACE_Token_Request:
Collaboration graph
[legend]

Classes

struct  Transfer


Public Types

enum  OPERATION {
  ACQUIRE, RELEASE, RENEW, REMOVE,
  TRY_ACQUIRE
}
 Operation types. More...


Public Member Functions

 ACE_Token_Request (void)
 Default constructor. More...

 ACE_Token_Request (int token_type, int proxy_type, ACE_UINT32 operation, const ACE_TCHAR token_name[], const ACE_TCHAR client_id[], const ACE_Synch_Options &options)

ACE_UINT32 length (void) const
 Get the length of the encoded/decoded message. More...

void length (ACE_UINT32)
 Set the length of the encoded/decoded message. More...

int proxy_type (void) const
 Get the type of proxy. More...

void proxy_type (int proxy_type)
 Set the type of proxy. More...

int token_type (void) const
 Get the type of token. More...

void token_type (int token_type)
 Set the type of token. More...

ACE_UINT32 operation_type (void) const
 Get the type of the operation. More...

void operation_type (ACE_UINT32)
 Set the type of the operation. More...

ACE_UINT32 requeue_position (void) const

void requeue_position (ACE_UINT32)

ACE_UINT32 notify (void) const
 Get notify. These should be used when acquire is the operation type. More...

void notify (ACE_UINT32)
 Set notify. These should be used when acquire is the operation type. More...

ACE_Synch_Optionsoptions (void) const
 Get the timeout. More...

void options (const ACE_Synch_Options &options)
 Set the timeout. More...

ACE_TCHARtoken_name (void) const

ACE_TCHARclient_id (void) const

void token_name (const ACE_TCHAR *token_name, const ACE_TCHAR *client_id)

int encode (void *&)
 Encode the message before transmission. More...

int decode (void)

void dump (void) const
 Print out the values of the message for debugging purposes. More...


Private Attributes

struct ACE_Token_Request::Transfer transfer_

ACE_TCHARtoken_name_
 Pointer to the beginning of the token name in this->data_. More...

ACE_TCHARclient_id_
 Pointer to the beginning of the client id in this->data_;. More...

ACE_Synch_Options options_
 Holds arg, sec, usec, etc. More...


Detailed Description

Message format for delivering requests to the ACE_Token Server.

This class is implemented to minimize data copying. In particular, all marshaling is done in situ...

Member Enumeration Documentation

Operation types.

Enumerator
ACQUIRE

Acquire the token.

RELEASE

Release the token.

RENEW

Renew the token.

REMOVE

Remove the token.

TRY_ACQUIRE

Constructor & Destructor Documentation

ACE_Token_Request::ACE_Token_Request ( void  )

Default constructor.

ACE_Token_Request::ACE_Token_Request ( int  token_type,
int  proxy_type,
ACE_UINT32  operation,
const ACE_TCHAR  token_name[],
const ACE_TCHAR  client_id[],
const ACE_Synch_Options options
)
Parameters
token_typeMUTEX, RWLOCK
proxy_typeMUTEX, RLOCK, WLOCK (acquires mean different things)
operationmethod
token_name
client_id
optionsWe check USE_TIMEOUT and use the arg.

Member Function Documentation

ACE_TCHAR * ACE_Token_Request::client_id ( void  ) const
inline
int ACE_Token_Request::decode ( void  )

Decode message after reception. This must be called to set the internal options.

void ACE_Token_Request::dump ( void  ) const

Print out the values of the message for debugging purposes.

int ACE_Token_Request::encode ( void *&  buf)

Encode the message before transmission.

ACE_UINT32 ACE_Token_Request::length ( void  ) const
inline

Get the length of the encoded/decoded message.

void ACE_Token_Request::length ( ACE_UINT32  l)
inline

Set the length of the encoded/decoded message.

ACE_UINT32 ACE_Token_Request::notify ( void  ) const
inline

Get notify. These should be used when acquire is the operation type.

void ACE_Token_Request::notify ( ACE_UINT32  rq)
inline

Set notify. These should be used when acquire is the operation type.

ACE_UINT32 ACE_Token_Request::operation_type ( void  ) const
inline

Get the type of the operation.

void ACE_Token_Request::operation_type ( ACE_UINT32  t)
inline

Set the type of the operation.

ACE_Synch_Options & ACE_Token_Request::options ( void  ) const
inline

Get the timeout.

void ACE_Token_Request::options ( const ACE_Synch_Options options)
inline

Set the timeout.

int ACE_Token_Request::proxy_type ( void  ) const
inline

Get the type of proxy.

void ACE_Token_Request::proxy_type ( int  proxy_type)
inline

Set the type of proxy.

ACE_UINT32 ACE_Token_Request::requeue_position ( void  ) const
inline

Get the requeue position. These should be used when renew is the operation type.

void ACE_Token_Request::requeue_position ( ACE_UINT32  rq)
inline

Set the requeue position. These should be used when renew is the operation type.

ACE_TCHAR * ACE_Token_Request::token_name ( void  ) const
inline
void ACE_Token_Request::token_name ( const ACE_TCHAR token_name,
const ACE_TCHAR client_id
)
inline
int ACE_Token_Request::token_type ( void  ) const
inline

Get the type of token.

void ACE_Token_Request::token_type ( int  token_type)
inline

Set the type of token.

Member Data Documentation

ACE_TCHAR* ACE_Token_Request::client_id_
private

Pointer to the beginning of the client id in this->data_;.

ACE_Synch_Options ACE_Token_Request::options_
private

Holds arg, sec, usec, etc.

ACE_TCHAR* ACE_Token_Request::token_name_
private

Pointer to the beginning of the token name in this->data_.

struct ACE_Token_Request::Transfer ACE_Token_Request::transfer_
private

The documentation for this class was generated from the following files:
