ACE_Service_Manager Class Reference

Provide a standard ACE service for managing all the services configured in an ACE_Service_Repository. More...

#include <Service_Manager.h>

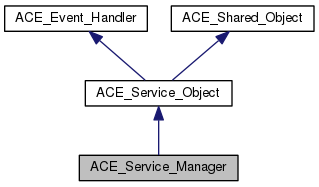

Inheritance diagram for ACE_Service_Manager:
Inheritance graph
[legend]

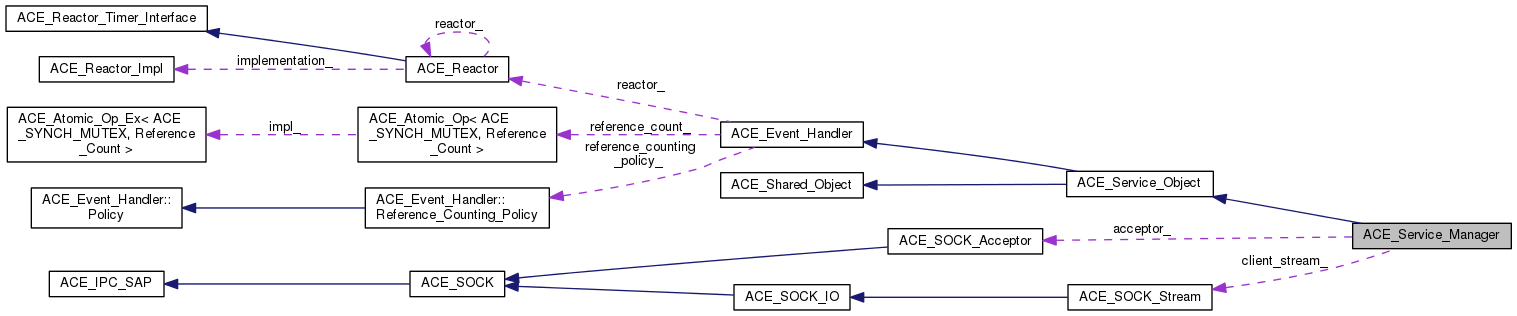

Collaboration diagram for ACE_Service_Manager:
Collaboration graph
[legend]

Public Member Functions

 ACE_Service_Manager (void)
 Constructor. More...

virtual ~ACE_Service_Manager (void)
 Destructor. More...

- Public Member Functions inherited from ACE_Service_Object
 ACE_Service_Object (ACE_Reactor *=0)
 Constructor. More...

virtual ~ACE_Service_Object (void)
 Destructor. More...

- Public Member Functions inherited from ACE_Event_Handler
virtual ~ACE_Event_Handler (void)
 Destructor is virtual to enable proper cleanup. More...

virtual void set_handle (ACE_HANDLE)
 Set the I/O handle. More...

virtual int priority (void) const

virtual void priority (int priority)
 Set the priority of the Event_Handler. More...

virtual int handle_output (ACE_HANDLE fd=ACE_INVALID_HANDLE)

virtual int handle_exception (ACE_HANDLE fd=ACE_INVALID_HANDLE)
 Called when an exceptional events occur (e.g., SIGURG). More...

virtual int handle_timeout (const ACE_Time_Value &current_time, const void *act=0)

virtual int handle_exit (ACE_Process *)
 Called when a process exits. More...

virtual int resume_handler (void)

virtual int handle_qos (ACE_HANDLE=ACE_INVALID_HANDLE)

virtual int handle_group_qos (ACE_HANDLE=ACE_INVALID_HANDLE)

virtual void reactor (ACE_Reactor *reactor)
 Set the event demultiplexors. More...

virtual ACE_Reactorreactor (void) const
 Get the event demultiplexors. More...

virtual
ACE_Reactor_Timer_Interface
reactor_timer_interface (void) const
 Get only the reactor's timer related interface. More...

virtual Reference_Count add_reference (void)
 Increment reference count on the handler. More...

virtual Reference_Count remove_reference (void)
 Decrement reference count on the handler. More...

Reference_Counting_Policyreference_counting_policy (void)
 Current Reference_Counting_Policy. More...

- Public Member Functions inherited from ACE_Shared_Object
 ACE_Shared_Object (void)
 Constructor. More...

virtual ~ACE_Shared_Object (void)
 Destructor. More...


Protected Member Functions

virtual int reconfigure_services (void)

virtual int list_services (void)

virtual int init (int argc, ACE_TCHAR *argv[])
 Initializes object when dynamic linking occurs. More...

virtual int info (ACE_TCHAR **info_string, size_t length) const
 Returns information on a service object. More...

virtual int fini (void)
 Terminates object when dynamic unlinking occurs. More...

virtual int suspend (void)
 Temporarily disable a service without removing it completely. More...

virtual int resume (void)
 Re-enable a previously suspended service. More...

void dump (void) const
 Dump the state of an object. More...

int open (const ACE_INET_Addr &sia)

virtual ACE_HANDLE get_handle (void) const
 Get the I/O handle. More...

virtual int handle_input (ACE_HANDLE fd)
 Called when input events occur (e.g., connection or data). More...

virtual int handle_close (ACE_HANDLE fd, ACE_Reactor_Mask)

virtual int handle_signal (int signum, siginfo_t *, ucontext_t *)

virtual void process_request (ACE_TCHAR *request)
 Handle one request. More...

- Protected Member Functions inherited from ACE_Event_Handler
 ACE_Event_Handler (ACE_Reactor *=0, int priority=ACE_Event_Handler::LO_PRIORITY)
 Force ACE_Event_Handler to be an abstract base class. More...


Protected Attributes

 ACE_ALLOC_HOOK_DECLARE
 Declare the dynamic allocation hooks. More...

ACE_SOCK_Stream client_stream_

ACE_SOCK_Acceptor acceptor_
 Acceptor instance. More...

bool debug_
 Keep track whether we debug or not. More...

int signum_
 The signal used to trigger reconfiguration. More...

- Protected Attributes inherited from ACE_Event_Handler
Atomic_Reference_Count reference_count_
 Reference count. More...


Static Protected Attributes

static u_short DEFAULT_PORT_ = 10000
 Default port for the Acceptor to listen on. More...


Additional Inherited Members

- Public Types inherited from ACE_Event_Handler
enum  {
  LO_PRIORITY = 0, HI_PRIORITY = 10, NULL_MASK = 0, READ_MASK = (1 << 0),
  WRITE_MASK = (1 << 1), EXCEPT_MASK = (1 << 2), ACCEPT_MASK = (1 << 3), CONNECT_MASK = (1 << 4),
  TIMER_MASK = (1 << 5), QOS_MASK = (1 << 6), GROUP_QOS_MASK = (1 << 7), SIGNAL_MASK = (1 << 8),
  ALL_EVENTS_MASK, RWE_MASK, DONT_CALL = (1 << 9)
}

enum  { ACE_EVENT_HANDLER_NOT_RESUMED = -1, ACE_REACTOR_RESUMES_HANDLER = 0, ACE_APPLICATION_RESUMES_HANDLER }

typedef long Reference_Count
 Reference count type. More...

- Static Public Member Functions inherited from ACE_Event_Handler
static ACE_THR_FUNC_RETURN read_adapter (void *event_handler)

static int register_stdin_handler (ACE_Event_Handler *eh, ACE_Reactor *reactor, ACE_Thread_Manager *thr_mgr, int flags=THR_DETACHED)

static int remove_stdin_handler (ACE_Reactor *reactor, ACE_Thread_Manager *thr_mgr)
 Performs the inverse of the register_stdin_handler() method. More...

- Protected Types inherited from ACE_Event_Handler
typedef ACE_Atomic_Op
< ACE_SYNCH_MUTEX,
Reference_Count
Atomic_Reference_Count
 Typedef for implementation of reference counting. More...


Detailed Description

Provide a standard ACE service for managing all the services configured in an ACE_Service_Repository.

This implementation is simple and just handles each client request one at a time. There are currently 3 types of requests:

Each request is associated with a new connection, which is closed when the request is processed. In addition, you must be using the singleton <ACE_Reactor::instance> in order to trigger reconfigurations.

Constructor & Destructor Documentation

ACE_Service_Manager::ACE_Service_Manager ( void  )

Constructor.

ACE_Service_Manager::~ACE_Service_Manager ( void  )
virtual

Destructor.

Member Function Documentation

void ACE_Service_Manager::dump ( void  ) const
protected

Dump the state of an object.

int ACE_Service_Manager::fini ( void  )
protectedvirtual

Terminates object when dynamic unlinking occurs.

Reimplemented from ACE_Shared_Object.

ACE_HANDLE ACE_Service_Manager::get_handle ( void  ) const
protectedvirtual

Get the I/O handle.

Reimplemented from ACE_Event_Handler.

int ACE_Service_Manager::handle_close ( ACE_HANDLE  handle,
ACE_Reactor_Mask  close_mask
)
protectedvirtual

Called when a handle_*() method returns -1 or when the remove_handler() method is called on an ACE_Reactor. The close_mask indicates which event has triggered the handle_close() method callback on a particular handle.

Reimplemented from ACE_Event_Handler.

int ACE_Service_Manager::handle_input ( ACE_HANDLE  fd)
protectedvirtual

Called when input events occur (e.g., connection or data).

Reimplemented from ACE_Event_Handler.

int ACE_Service_Manager::handle_signal ( int  signum,
siginfo_t ,
ucontext_t
)
protectedvirtual

Called when object is signaled by OS (either via UNIX signals or when a Win32 object becomes signaled).

Reimplemented from ACE_Event_Handler.

int ACE_Service_Manager::info ( ACE_TCHAR **  info_string,
size_t  length
) const
protectedvirtual

Returns information on a service object.

Reimplemented from ACE_Shared_Object.

int ACE_Service_Manager::init ( int  argc,
ACE_TCHAR argv[]
)
protectedvirtual

Initializes object when dynamic linking occurs.

Reimplemented from ACE_Shared_Object.

int ACE_Service_Manager::list_services ( void  )
protectedvirtual

Determine all the services offered by this daemon and return the information back to the client.

int ACE_Service_Manager::open ( const ACE_INET_Addr sia)
protected
void ACE_Service_Manager::process_request ( ACE_TCHAR request)
protectedvirtual

Handle one request.

int ACE_Service_Manager::reconfigure_services ( void  )
protectedvirtual

Trigger a reconfiguration of the Service Configurator by re-reading its local <svc.conf> file.

int ACE_Service_Manager::resume ( void  )
protectedvirtual

Re-enable a previously suspended service.

Reimplemented from ACE_Service_Object.

int ACE_Service_Manager::suspend ( void  )
protectedvirtual

Temporarily disable a service without removing it completely.

Reimplemented from ACE_Service_Object.

Member Data Documentation

ACE_SOCK_Acceptor ACE_Service_Manager::acceptor_
protected

Acceptor instance.

ACE_Service_Manager::ACE_ALLOC_HOOK_DECLARE
protected

Declare the dynamic allocation hooks.

ACE_SOCK_Stream ACE_Service_Manager::client_stream_
protected

Connection to the client (we only support one client connection at a time).

bool ACE_Service_Manager::debug_
protected

Keep track whether we debug or not.

u_short ACE_Service_Manager::DEFAULT_PORT_ = 10000
staticprotected

Default port for the Acceptor to listen on.

int ACE_Service_Manager::signum_
protected

The signal used to trigger reconfiguration.


The documentation for this class was generated from the following files:
