ACE_Module< ACE_SYNCH_DECL, TIME_POLICY > Class Template Reference

An abstraction for managing a bi-directional flow of messages. More...

#include <Module.h>

Inheritance diagram for ACE_Module< ACE_SYNCH_DECL, TIME_POLICY >:
Inheritance graph
[legend]

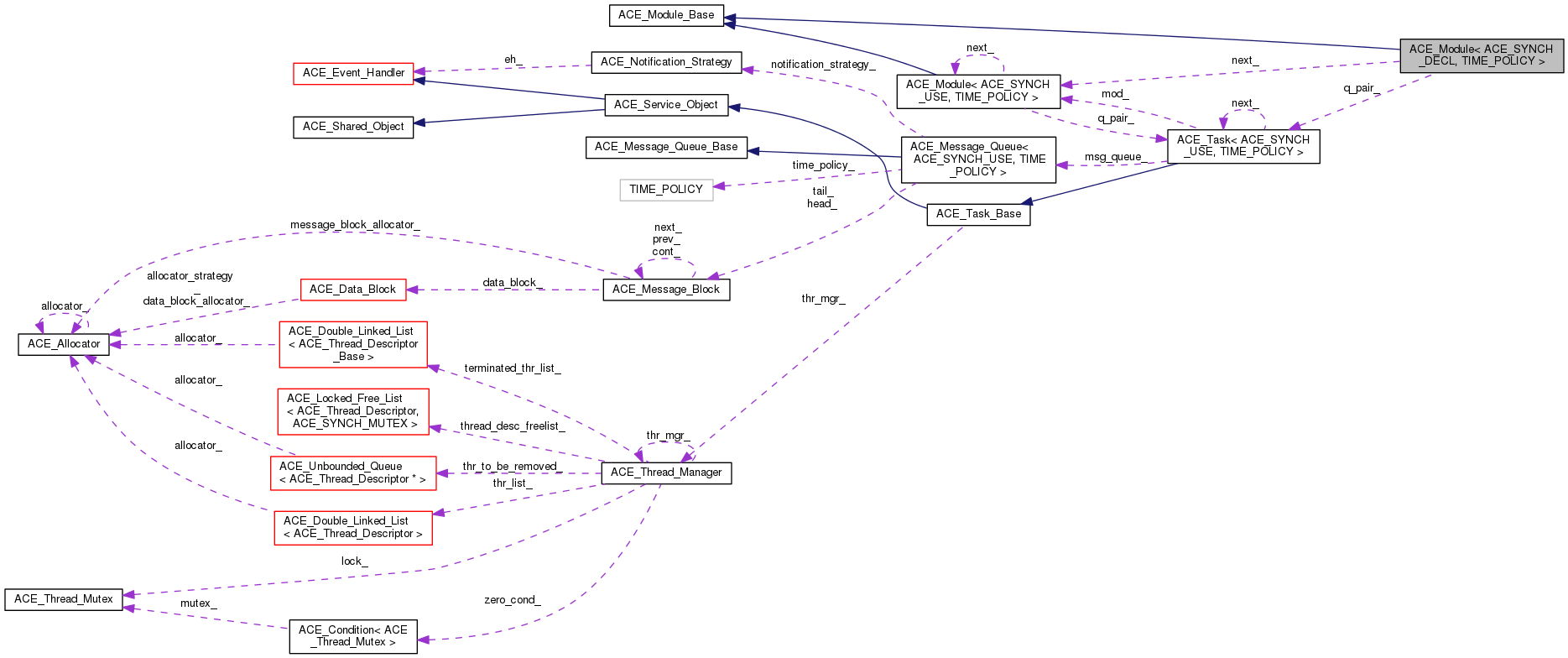

Collaboration diagram for ACE_Module< ACE_SYNCH_DECL, TIME_POLICY >:
Collaboration graph
[legend]

Public Member Functions

 ACE_Module (void)
 Create an empty Module. More...

virtual ~ACE_Module (void)
 Shutdown the Module. More...

 ACE_Module (const ACE_TCHAR *module_name, ACE_Task< ACE_SYNCH_USE, TIME_POLICY > *writer=0, ACE_Task< ACE_SYNCH_USE, TIME_POLICY > *reader=0, void *args=0, int flags=M_DELETE)

int open (const ACE_TCHAR *module_name, ACE_Task< ACE_SYNCH_USE, TIME_POLICY > *writer=0, ACE_Task< ACE_SYNCH_USE, TIME_POLICY > *reader=0, void *a=0, int flags=M_DELETE)

int close (int flags=M_DELETE_NONE)

ACE_Task< ACE_SYNCH_USE,
TIME_POLICY > *
writer (void)
 Get the writer task. More...

void writer (ACE_Task< ACE_SYNCH_USE, TIME_POLICY > *q, int flags=M_DELETE_WRITER)

ACE_Task< ACE_SYNCH_USE,
TIME_POLICY > *
reader (void)
 Get the reader task. More...

void reader (ACE_Task< ACE_SYNCH_USE, TIME_POLICY > *q, int flags=M_DELETE_READER)

ACE_Task< ACE_SYNCH_USE,
TIME_POLICY > *
sibling (ACE_Task< ACE_SYNCH_USE, TIME_POLICY > *orig)
 Set and get pointer to sibling ACE_Task in an ACE_Module. More...

const ACE_TCHARname (void) const
 Get the module name. More...

void name (const ACE_TCHAR *)
 Set the module name. More...

void * arg (void) const
 Get the argument passed to the tasks. More...

void arg (void *)
 Set the argument passed to the tasks. More...

void link (ACE_Module< ACE_SYNCH_USE, TIME_POLICY > *m)
 Link to other modules in the ustream stack. More...

ACE_Module< ACE_SYNCH_USE,
TIME_POLICY > *
next (void)
 Get the next pointer to the module above in the stream. More...

void next (ACE_Module< ACE_SYNCH_USE, TIME_POLICY > *m)
 Set the next pointer to the module above in the stream. More...

void dump (void) const
 Dump the state of an object. More...


Public Attributes

 ACE_ALLOC_HOOK_DECLARE
 Declare the dynamic allocation hooks. More...


Private Member Functions

int close_i (int which, int flags)


Private Attributes

ACE_Task< ACE_SYNCH_USE,
TIME_POLICY > *
q_pair_ [2]

ACE_TCHAR name_ [MAXPATHLEN+1]
 Name of the ACE_Module. More...

ACE_Module< ACE_SYNCH_USE,
TIME_POLICY > *
next_
 Next ACE_Module in the stack. More...

void * arg_

int flags_


Additional Inherited Members

- Public Types inherited from ACE_Module_Base
enum  {
  M_FLAGS_NOT_SET = 0, M_DELETE_READER = 1, M_DELETE_WRITER = 2, M_DELETE = 3,
  M_DELETE_NONE = 4
}


Detailed Description

template<ACE_SYNCH_DECL, class TIME_POLICY = ACE_System_Time_Policy>
class ACE_Module< ACE_SYNCH_DECL, TIME_POLICY >

An abstraction for managing a bi-directional flow of messages.

This is based on the Module concept in System V Streams, which contains a pair of Tasks, one for handling upstream processing, one for handling downstream processing. In general, you shouldn't subclass from this class, but instead subclass from the ACE_Task.

Constructor & Destructor Documentation

template<ACE_SYNCH_DECL , class TIME_POLICY = ACE_System_Time_Policy>
ACE_Module< ACE_SYNCH_DECL, TIME_POLICY >::ACE_Module ( void  )

Create an empty Module.

template<ACE_SYNCH_DECL , class TIME_POLICY = ACE_System_Time_Policy>
virtual ACE_Module< ACE_SYNCH_DECL, TIME_POLICY >::~ACE_Module ( void  )
virtual

Shutdown the Module.

template<ACE_SYNCH_DECL , class TIME_POLICY = ACE_System_Time_Policy>
ACE_Module< ACE_SYNCH_DECL, TIME_POLICY >::ACE_Module ( const ACE_TCHAR module_name,
ACE_Task< ACE_SYNCH_USE, TIME_POLICY > *  writer = 0,
ACE_Task< ACE_SYNCH_USE, TIME_POLICY > *  reader = 0,
void *  args = 0,
int  flags = M_DELETE
)

Create an initialized module with module_name as its identity and reader and writer as its tasks.

Member Function Documentation

template<ACE_SYNCH_DECL , class TIME_POLICY = ACE_System_Time_Policy>
void* ACE_Module< ACE_SYNCH_DECL, TIME_POLICY >::arg ( void  ) const

Get the argument passed to the tasks.

template<ACE_SYNCH_DECL , class TIME_POLICY = ACE_System_Time_Policy>
void ACE_Module< ACE_SYNCH_DECL, TIME_POLICY >::arg ( void *  )

Set the argument passed to the tasks.

template<ACE_SYNCH_DECL , class TIME_POLICY = ACE_System_Time_Policy>
int ACE_Module< ACE_SYNCH_DECL, TIME_POLICY >::close ( int  flags = M_DELETE_NONE)

Close down the module and its tasks. The flags argument can be used to override the default behaviour, which depends on previous flags values in calls to c'tor, <open>, <reader>, and <writer>. A previous value M_DELETE[_XXX] can not be overridden. Should not be called from within <ACE_Task::module_closed>.

template<ACE_SYNCH_DECL , class TIME_POLICY = ACE_System_Time_Policy>
int ACE_Module< ACE_SYNCH_DECL, TIME_POLICY >::close_i ( int  which,
int  flags
)
private

Implements the close operation for either the reader or the writer task (depending on which).

template<ACE_SYNCH_DECL , class TIME_POLICY = ACE_System_Time_Policy>
void ACE_Module< ACE_SYNCH_DECL, TIME_POLICY >::dump ( void  ) const

Dump the state of an object.

template<ACE_SYNCH_DECL , class TIME_POLICY = ACE_System_Time_Policy>
void ACE_Module< ACE_SYNCH_DECL, TIME_POLICY >::link ( ACE_Module< ACE_SYNCH_USE, TIME_POLICY > *  m)

Link to other modules in the ustream stack.

template<ACE_SYNCH_DECL , class TIME_POLICY = ACE_System_Time_Policy>
const ACE_TCHAR* ACE_Module< ACE_SYNCH_DECL, TIME_POLICY >::name ( void  ) const

Get the module name.

template<ACE_SYNCH_DECL , class TIME_POLICY = ACE_System_Time_Policy>
void ACE_Module< ACE_SYNCH_DECL, TIME_POLICY >::name ( const ACE_TCHAR )

Set the module name.

template<ACE_SYNCH_DECL , class TIME_POLICY = ACE_System_Time_Policy>
ACE_Module<ACE_SYNCH_USE, TIME_POLICY>* ACE_Module< ACE_SYNCH_DECL, TIME_POLICY >::next ( void  )

Get the next pointer to the module above in the stream.

template<ACE_SYNCH_DECL , class TIME_POLICY = ACE_System_Time_Policy>
void ACE_Module< ACE_SYNCH_DECL, TIME_POLICY >::next ( ACE_Module< ACE_SYNCH_USE, TIME_POLICY > *  m)

Set the next pointer to the module above in the stream.

template<ACE_SYNCH_DECL , class TIME_POLICY = ACE_System_Time_Policy>
int ACE_Module< ACE_SYNCH_DECL, TIME_POLICY >::open ( const ACE_TCHAR module_name,
ACE_Task< ACE_SYNCH_USE, TIME_POLICY > *  writer = 0,
ACE_Task< ACE_SYNCH_USE, TIME_POLICY > *  reader = 0,
void *  a = 0,
int  flags = M_DELETE
)

Initialize the module with module_name as its identity and reader> and writer as its tasks. Previously register reader or writers or closed down and deleted according to the value of flags_. Should not be called from within <ACE_Task::module_closed>.

template<ACE_SYNCH_DECL , class TIME_POLICY = ACE_System_Time_Policy>
ACE_Task<ACE_SYNCH_USE, TIME_POLICY>* ACE_Module< ACE_SYNCH_DECL, TIME_POLICY >::reader ( void  )

Get the reader task.

template<ACE_SYNCH_DECL , class TIME_POLICY = ACE_System_Time_Policy>
void ACE_Module< ACE_SYNCH_DECL, TIME_POLICY >::reader ( ACE_Task< ACE_SYNCH_USE, TIME_POLICY > *  q,
int  flags = M_DELETE_READER
)

Set the reader task. flags can be used to indicate that the module should delete the reader during a call to close or to the destructor. If a previous reader exists, it is closed. It may also be deleted, depending on the old flags_ value. Should not be called from within <ACE_Task::module_closed>.

template<ACE_SYNCH_DECL , class TIME_POLICY = ACE_System_Time_Policy>
ACE_Task<ACE_SYNCH_USE, TIME_POLICY>* ACE_Module< ACE_SYNCH_DECL, TIME_POLICY >::sibling ( ACE_Task< ACE_SYNCH_USE, TIME_POLICY > *  orig)

Set and get pointer to sibling ACE_Task in an ACE_Module.

template<ACE_SYNCH_DECL , class TIME_POLICY = ACE_System_Time_Policy>
ACE_Task<ACE_SYNCH_USE, TIME_POLICY>* ACE_Module< ACE_SYNCH_DECL, TIME_POLICY >::writer ( void  )

Get the writer task.

template<ACE_SYNCH_DECL , class TIME_POLICY = ACE_System_Time_Policy>
void ACE_Module< ACE_SYNCH_DECL, TIME_POLICY >::writer ( ACE_Task< ACE_SYNCH_USE, TIME_POLICY > *  q,
int  flags = M_DELETE_WRITER
)

Set the writer task. flags can be used to indicate that the module should delete the writer during a call to close or to the destructor. If a previous writer exists, it is closed. It may also be deleted, depending on the old flags_ value. Should not be called from within <ACE_Task::module_closed>.

Member Data Documentation

template<ACE_SYNCH_DECL , class TIME_POLICY = ACE_System_Time_Policy>
ACE_Module< ACE_SYNCH_DECL, TIME_POLICY >::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

template<ACE_SYNCH_DECL , class TIME_POLICY = ACE_System_Time_Policy>
void* ACE_Module< ACE_SYNCH_DECL, TIME_POLICY >::arg_
private

Argument passed through to the reader and writer task when they are opened.

template<ACE_SYNCH_DECL , class TIME_POLICY = ACE_System_Time_Policy>
int ACE_Module< ACE_SYNCH_DECL, TIME_POLICY >::flags_
private

Holds flags which are used to determine if the reader and writer task have to be deleted on exit

template<ACE_SYNCH_DECL , class TIME_POLICY = ACE_System_Time_Policy>
ACE_TCHAR ACE_Module< ACE_SYNCH_DECL, TIME_POLICY >::name_[MAXPATHLEN+1]
private

Name of the ACE_Module.

template<ACE_SYNCH_DECL , class TIME_POLICY = ACE_System_Time_Policy>
ACE_Module<ACE_SYNCH_USE, TIME_POLICY>* ACE_Module< ACE_SYNCH_DECL, TIME_POLICY >::next_
private

Next ACE_Module in the stack.

template<ACE_SYNCH_DECL , class TIME_POLICY = ACE_System_Time_Policy>
ACE_Task<ACE_SYNCH_USE, TIME_POLICY>* ACE_Module< ACE_SYNCH_DECL, TIME_POLICY >::q_pair_[2]
private

Pair of Tasks that form the "read-side" and "write-side" of the ACE_Module partitioning.


The documentation for this class was generated from the following file:
