ACE_Event_T< TIME_POLICY > Class Template Reference

A wrapper around the Win32 event locking mechanism. More...

#include <Event.h>

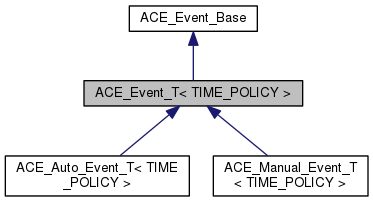

Inheritance diagram for ACE_Event_T< TIME_POLICY >:
Inheritance graph
[legend]
Collaboration diagram for ACE_Event_T< TIME_POLICY >:
Collaboration graph
[legend]

Public Member Functions

 ACE_Event_T (int manual_reset=0, int initial_state=0, int type=USYNC_THREAD, const ACE_TCHAR *name=0, void *arg=0, LPSECURITY_ATTRIBUTES sa=0)
 Constructor that creates event. More...

virtual ~ACE_Event_T (void)
 Implicitly destroy the event variable. More...

ACE_Time_Value_T< TIME_POLICY > gettimeofday (void) const

void set_time_policy (TIME_POLICY const &time_policy)

- Public Member Functions inherited from ACE_Event_Base
virtual ~ACE_Event_Base (void)
 Implicitly destroy the event variable. More...

int remove (void)

ACE_event_t handle (void) const
 Underlying handle to event. More...

void handle (ACE_event_t new_handle)

int wait (void)

int wait (const ACE_Time_Value *abstime, int use_absolute_time=1)

int signal (void)

int pulse (void)

int reset (void)
 Set to nonsignaled state. More...

void dump (void) const
 Dump the state of an object. More...


Public Attributes

 ACE_ALLOC_HOOK_DECLARE
 Declare the dynamic allocation hooks. More...

- Public Attributes inherited from ACE_Event_Base
 ACE_ALLOC_HOOK_DECLARE
 Declare the dynamic allocation hooks. More...


Protected Attributes

TIME_POLICY time_policy_
 The policy to return the current time of day. More...

- Protected Attributes inherited from ACE_Event_Base
ACE_event_t handle_
 The underlying handle. More...

bool removed_


Private Member Functions

 ACE_Event_T (const ACE_Event_T< TIME_POLICY > &event)

const ACE_Event_Toperator= (const ACE_Event_T< TIME_POLICY > &rhs)


Additional Inherited Members

- Protected Member Functions inherited from ACE_Event_Base
 ACE_Event_Base ()
 Only derived classes allowed to construct event. More...


Detailed Description

template<class TIME_POLICY = ACE_System_Time_Policy>
class ACE_Event_T< TIME_POLICY >

A wrapper around the Win32 event locking mechanism.

Portable implementation of an Event mechanism, which is native to Win32, but must be emulated on UNIX. All platforms support process-scope locking support. However, only Win32 platforms support global naming and system-scope locking support.

Constructor & Destructor Documentation

template<class TIME_POLICY >
ACE_Event_T< TIME_POLICY >::ACE_Event_T ( int  manual_reset = 0,
int  initial_state = 0,
int  type = USYNC_THREAD,
const ACE_TCHAR name = 0,
void *  arg = 0,
LPSECURITY_ATTRIBUTES  sa = 0
)

Constructor that creates event.

template<class TIME_POLICY >
ACE_Event_T< TIME_POLICY >::~ACE_Event_T ( void  )
virtual

Implicitly destroy the event variable.

template<class TIME_POLICY = ACE_System_Time_Policy>
ACE_Event_T< TIME_POLICY >::ACE_Event_T ( const ACE_Event_T< TIME_POLICY > &  event)
private

Member Function Documentation

template<class TIME_POLICY >
ACE_Time_Value_T< TIME_POLICY > ACE_Event_T< TIME_POLICY >::gettimeofday ( void  ) const

Get the current time of day according to the queue's TIME_POLICY. Allows users to initialize timeout values using correct time policy.

template<class TIME_POLICY = ACE_System_Time_Policy>
const ACE_Event_T& ACE_Event_T< TIME_POLICY >::operator= ( const ACE_Event_T< TIME_POLICY > &  rhs)
private
template<class TIME_POLICY>
void ACE_Event_T< TIME_POLICY >::set_time_policy ( TIME_POLICY const &  time_policy)

Allows applications to control how the event gets the time of day.

Member Data Documentation

template<class TIME_POLICY = ACE_System_Time_Policy>
ACE_Event_T< TIME_POLICY >::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

template<class TIME_POLICY = ACE_System_Time_Policy>
TIME_POLICY ACE_Event_T< TIME_POLICY >::time_policy_
protected

The policy to return the current time of day.


The documentation for this class was generated from the following files:
