Specialization of the base TAO_Transport class to handle the client side MIOP protocol. More...

#include <UIPMC_Transport.h>

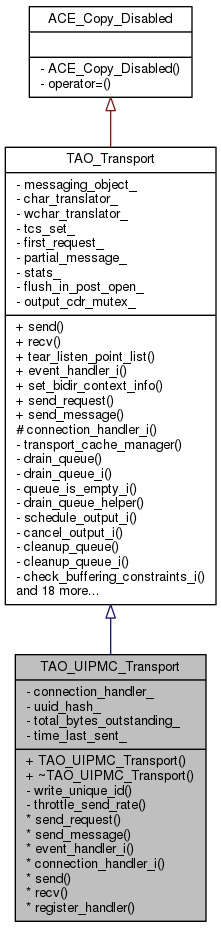

Inheritance diagram for TAO_UIPMC_Transport:

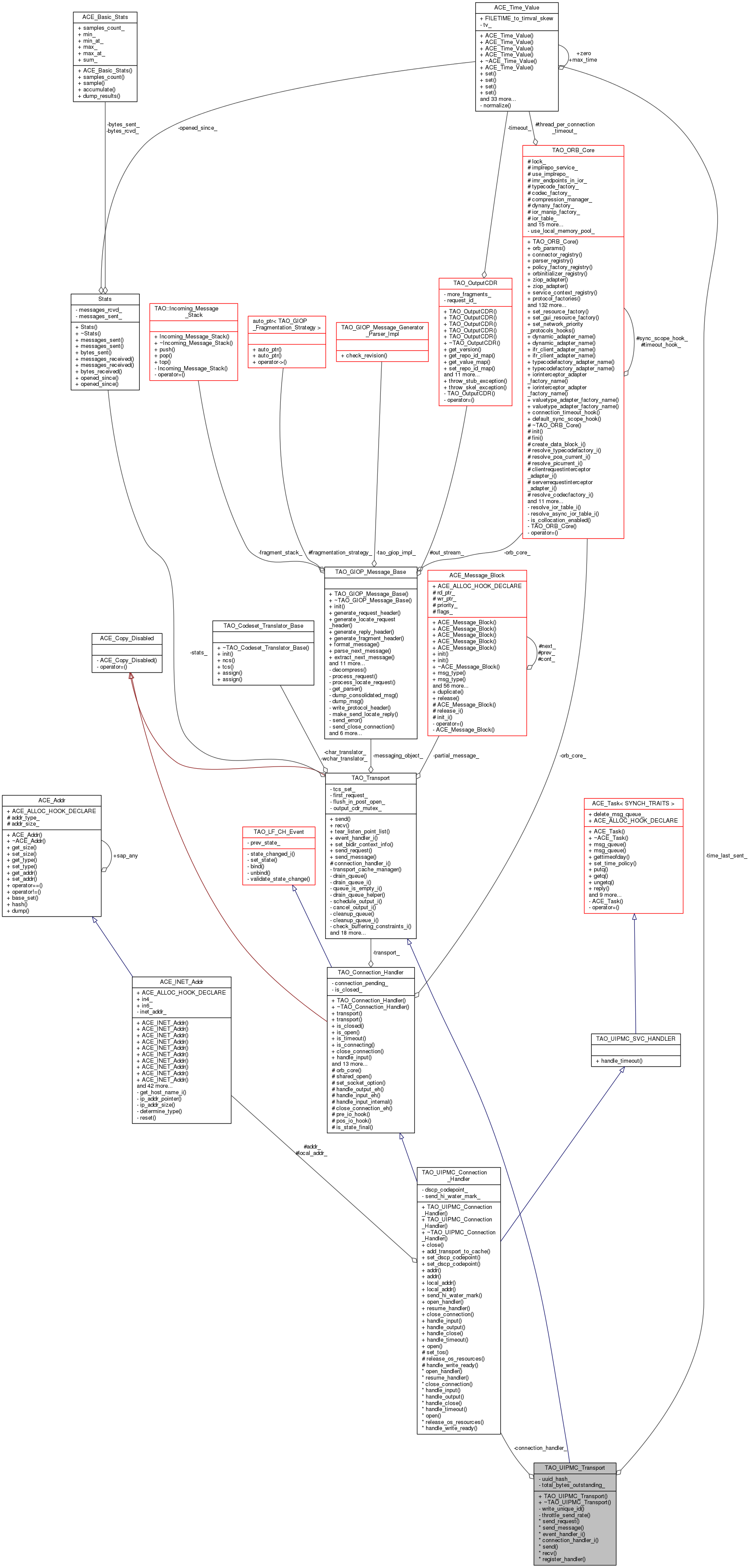

Collaboration diagram for TAO_UIPMC_Transport:

Public Member Functions
	TAO_UIPMC_Transport (TAO_UIPMC_Connection_Handler handler, TAO_ORB_Core orb_core)
	Constructor. More...

	~TAO_UIPMC_Transport (void)
	Default destructor. More...

Public Member Functions inherited from TAO_Transport
virtual int	tear_listen_point_list (TAO_InputCDR &cdr)

virtual void	set_bidir_context_info (TAO_Operation_Details &opdetails)

Private Member Functions
bool	write_unique_id (TAO_OutputCDR &miop_hdr) const
	Construct and write a unique ID to the MIOP header. More...

void	throttle_send_rate (ACE_UINT64 max_fragment_rate, u_long max_fragment_size, u_long this_send_size)

Private Attributes
TAO_UIPMC_Connection_Handler *	connection_handler_

u_long	uuid_hash_
	This UUID used by client for making unique MIOP IDs. More...

u_long	total_bytes_outstanding_

ACE_Time_Value	time_last_sent_

Overridden Template Methods
These are implementations of template methods declared by TAO_Transport.
virtual int	send_request (TAO_Stub stub, TAO_ORB_Core orb_core, TAO_OutputCDR &stream, TAO_Message_Semantics message_semantics, ACE_Time_Value *max_wait_time)

virtual int	send_message (TAO_OutputCDR &stream, TAO_Stub stub=0, TAO_ServerRequest request=0, TAO_Message_Semantics message_semantics=TAO_Message_Semantics(), ACE_Time_Value *max_time_wait=0)

virtual ACE_Event_Handler *	event_handler_i (void)

virtual TAO_Connection_Handler *	connection_handler_i (void)

virtual ssize_t	send (iovec iov, int iovcnt, size_t &bytes_transferred, const ACE_Time_Value max_wait_time)
	Write the complete Message_Block chain to the connection. More...

virtual ssize_t	recv (char buf, size_t len, ACE_Time_Value const s=0)
	Shouldn't ever be called on the client side (read len bytes into buf). More...

virtual int	register_handler (void)

Additional Inherited Members

Detailed Description

Specialization of the base TAO_Transport class to handle the client side MIOP protocol.

Constructor & Destructor Documentation

TAO_UIPMC_Transport::TAO_UIPMC_Transport	(	TAO_UIPMC_Connection_Handler *	handler,
		TAO_ORB_Core *	orb_core
	)

Constructor.

TAO_UIPMC_Transport::~TAO_UIPMC_Transport ( void )

Default destructor.

Member Function Documentation

TAO_Connection_Handler * TAO_UIPMC_Transport::connection_handler_i ( void )

protectedvirtual

@TODO: These methods IMHO should have more meaningful names. The names seem to indicate nothing.

Implements TAO_Transport.

ACE_Event_Handler * TAO_UIPMC_Transport::event_handler_i ( void )

protectedvirtual

@TODO: These methods IMHO should have more meaningful names. The names seem to indicate nothing.

Implements TAO_Transport.

ssize_t TAO_UIPMC_Transport::recv	(	char *	buf,
		size_t	len,
		ACE_Time_Value const *	s = `0`
	)

protectedvirtual

Shouldn't ever be called on the client side (read len bytes into buf).

Implements TAO_Transport.

int TAO_UIPMC_Transport::register_handler ( void )

protectedvirtual

@TODO: These methods IMHO should have more meaningful names. The names seem to indicate nothing.

ssize_t TAO_UIPMC_Transport::send	(	iovec *	iov,
		int	iovcnt,
		size_t &	bytes_transferred,
		const ACE_Time_Value *	max_wait_time
	)

protectedvirtual

Write the complete Message_Block chain to the connection.

Implements TAO_Transport.

int TAO_UIPMC_Transport::send_message	(	TAO_OutputCDR &	stream,
		TAO_Stub *	stub = `0`,
		TAO_ServerRequest *	request = `0`,
		TAO_Message_Semantics	message_semantics = `TAO_Message_Semantics ()`,
		ACE_Time_Value *	max_time_wait = `0`
	)

virtual

@TODO: These methods IMHO should have more meaningful names. The names seem to indicate nothing.

Implements TAO_Transport.

int TAO_UIPMC_Transport::send_request	(	TAO_Stub *	stub,
		TAO_ORB_Core *	orb_core,
		TAO_OutputCDR &	stream,
		TAO_Message_Semantics	message_semantics,
		ACE_Time_Value *	max_wait_time
	)

virtual

@TODO: These methods IMHO should have more meaningful names. The names seem to indicate nothing.

Implements TAO_Transport.

void TAO_UIPMC_Transport::throttle_send_rate	(	ACE_UINT64	max_fragment_rate,
		u_long	max_fragment_size,
		u_long	this_send_size
	)

private

Throttle back clients send rate so as to not exceed client/server buffers and servant message processing time.

bool TAO_UIPMC_Transport::write_unique_id ( TAO_OutputCDR & miop_hdr ) const

private

Construct and write a unique ID to the MIOP header.

Member Data Documentation

TAO_UIPMC_Connection_Handler* TAO_UIPMC_Transport::connection_handler_

private

The connection service handler used for accessing lower layer communication protocols.

ACE_Time_Value TAO_UIPMC_Transport::time_last_sent_

private

u_long TAO_UIPMC_Transport::total_bytes_outstanding_

private

On the client side the total amount of outstanding data being transmitted and the time when this was last updated.

u_long TAO_UIPMC_Transport::uuid_hash_

private

This UUID used by client for making unique MIOP IDs.

The documentation for this class was generated from the following files:
