TAO_Offer_Filter Class Reference

The purpose of this class is to ensure that offers that shouldn't be considered by the TAO_Constraint_Interpreter aren't. More...

#include <Trader_Utils.h>

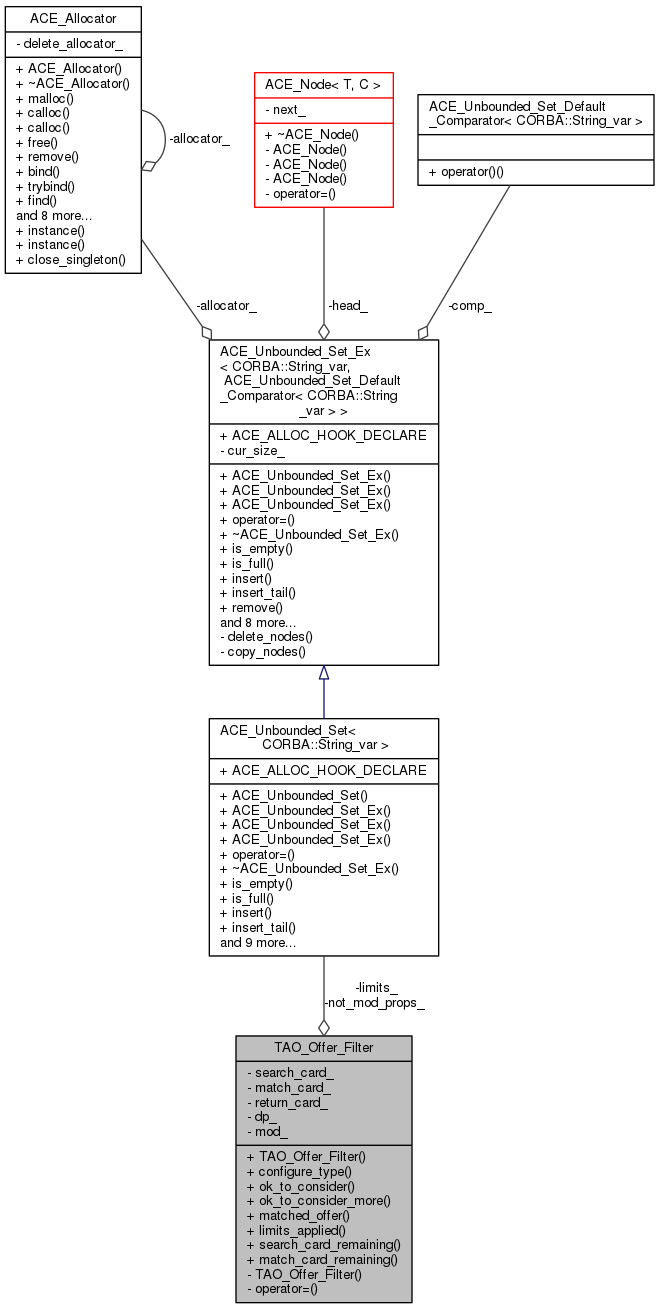

Collaboration diagram for TAO_Offer_Filter:

Public Member Functions
	TAO_Offer_Filter (TAO_Policies &policies)
void	configure_type (CosTradingRepos::ServiceTypeRepository::TypeStruct *type_struct)
CORBA::Boolean	ok_to_consider (CosTrading::Offer *offer)
CORBA::Boolean	ok_to_consider_more (void)
void	matched_offer (void)
CosTrading::PolicyNameSeq *	limits_applied (void)
CORBA::ULong	search_card_remaining (void) const
	Accessors to retrieve the adjusted cardinalities. More...
CORBA::ULong	match_card_remaining (void) const

Private Member Functions
	TAO_Offer_Filter (const TAO_Offer_Filter &)
TAO_Offer_Filter &	operator= (const TAO_Offer_Filter &)

Private Attributes
TAO_String_Set	not_mod_props_
	The set of the name of modifiable properties. More...
TAO_String_Set	limits_
	Cardinality and property limitations applied. More...
CORBA::ULong	search_card_
	Keep track of the cardinalities. More...
CORBA::ULong	match_card_
CORBA::ULong	return_card_
CORBA::Boolean	dp_
CORBA::Boolean	mod_

Detailed Description

The purpose of this class is to ensure that offers that shouldn't be considered by the TAO_Constraint_Interpreter aren't.

There two classes of reasons why an offer for a correct type shouldn't be considered: 1) The default parameters of the Trader or policies passed to the Lookup::query method deem it inappropriate to consider offers with modifiable (i.e., not readonly) or dynamic properties. 2) We've exceeded the default or provided cardinality constraints. TAO_Offer_Filter ensures that violation of policies doesn't occur. It's the enforcer.

Constructor & Destructor Documentation

TAO_Offer_Filter::TAO_Offer_Filter

(

TAO_Policies &

policies

)

Glean from the TypeStruct and Policy setting the appropriate way to screen unsuitable offers from consideration.

TAO_Offer_Filter::TAO_Offer_Filter ( const TAO_Offer_Filter &  )

private

Member Function Documentation

void TAO_Offer_Filter::configure_type

(

CosTradingRepos::ServiceTypeRepository::TypeStruct *

type_struct

)

Set the offer filter to screen for offers containing properties that aren't marked as readonly in this TypeStruct.

CosTrading::PolicyNameSeq * TAO_Offer_Filter::limits_applied

(

void

)

BEGIN SPEC If any cardinality or other limits were applied by one or more traders in responding to a particular query, then the "limits_applied" parameter will contain the names of the policies which limited the query. The sequence of names returned in "limits_applied" from any federated or proxy queries must be concatenated onto the names of limits applied locally and returned. END SPEC

CORBA::ULong TAO_Offer_Filter::match_card_remaining

(

void

)

const

void TAO_Offer_Filter::matched_offer

(

void

)

Signal that the Lookup method has matched an offer; decrement the match_card.

CORBA::Boolean TAO_Offer_Filter::ok_to_consider

(

CosTrading::Offer *

offer

)

Determine whether the poicies contained in the given policy object allow the Lookup interface to consider the offer. That is, if use_modifiable_properties is false, and the offer contains modifiable properties as designated in the type struct, return false. If use_dynamic_properties is false, and the offer contains dynamic properties, then return false. If the lookup interface is safe in considering this offer, return true and subtract from the search card value. When the search card value falls to zero, ok_to_consider always returns false.

CORBA::Boolean TAO_Offer_Filter::ok_to_consider_more

(

void

)

It's ok to consider more offers when lookup hasn't exceeded the cardinality values for searching and matching offers.

TAO_Offer_Filter& TAO_Offer_Filter::operator= ( const TAO_Offer_Filter &  )

private

CORBA::ULong TAO_Offer_Filter::search_card_remaining

(

void

)

const

Accessors to retrieve the adjusted cardinalities.

Member Data Documentation

CORBA::Boolean TAO_Offer_Filter::dp_

private

Keep track of property limitations: modifiable or dynamic ones may be bad.

TAO_String_Set TAO_Offer_Filter::limits_

private

Cardinality and property limitations applied.

CORBA::ULong TAO_Offer_Filter::match_card_

private

CORBA::Boolean TAO_Offer_Filter::mod_

private

TAO_String_Set TAO_Offer_Filter::not_mod_props_

private

The set of the name of modifiable properties.

CORBA::ULong TAO_Offer_Filter::return_card_

private

CORBA::ULong TAO_Offer_Filter::search_card_

private

Keep track of the cardinalities.

---

The documentation for this class was generated from the following files:

• Trader_Utils.h
• Trader_Utils.cpp
