Public Member Functions | List of all members
TAO::Transport_Queueing_Strategy Class Referenceabstract

Define the interface for the Queueing Strategy. More...

#include <Transport_Queueing_Strategies.h>

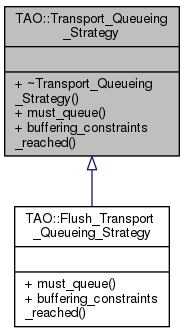

Inheritance diagram for TAO::Transport_Queueing_Strategy:
Inheritance graph
Collaboration diagram for TAO::Transport_Queueing_Strategy:
Collaboration graph

Public Member Functions

virtual ~Transport_Queueing_Strategy (void)
 Destructor. More...

virtual bool must_queue (bool queue_empty) const =0
 Return true if a message must be queued. More...

virtual bool buffering_constraints_reached (TAO_Stub *stub, size_t msg_count, size_t total_bytes, bool &must_flush, const ACE_Time_Value &current_deadline, bool &set_timer, ACE_Time_Value &interval) const =0
 Return true if it is time to start. More...


Detailed Description

Define the interface for the Queueing Strategy.

The low-level I/O components in the ORB use this strategy to determine when messages must be queued, immediately sent or flushed.

The strategy isolates this low-level components from the higher level strategies used by the application developer.

Constructor & Destructor Documentation

TAO::Transport_Queueing_Strategy::~Transport_Queueing_Strategy ( void  )
virtual

Destructor.

Member Function Documentation

virtual bool TAO::Transport_Queueing_Strategy::buffering_constraints_reached ( TAO_Stub stub,
size_t  msg_count,
size_t  total_bytes,
bool &  must_flush,
const ACE_Time_Value current_deadline,
bool &  set_timer,
ACE_Time_Value interval
) const
pure virtual

Return true if it is time to start.

Parameters
stubThe object used to make the request, this is used to obtain the policies currently in effect for the request
msg_countThe number of messages currently queued
total_bytesNumber of bytes currently queued
set_timerReturns true if a timer should be set to drain the queue
intervalIf set_timer returns 1, this parameter contains the timer interval
must_flushIs set to true if things must be flushed at this moment

Implemented in TAO::Flush_Transport_Queueing_Strategy.

virtual bool TAO::Transport_Queueing_Strategy::must_queue ( bool  queue_empty) const
pure virtual

Return true if a message must be queued.

Implemented in TAO::Flush_Transport_Queueing_Strategy.


The documentation for this class was generated from the following files:
