TAO_IIOP_Profile Class Reference

This class defines the protocol specific attributes required for locating ORBs over a TCP/IP network. More...

#include <IIOP_Profile.h>

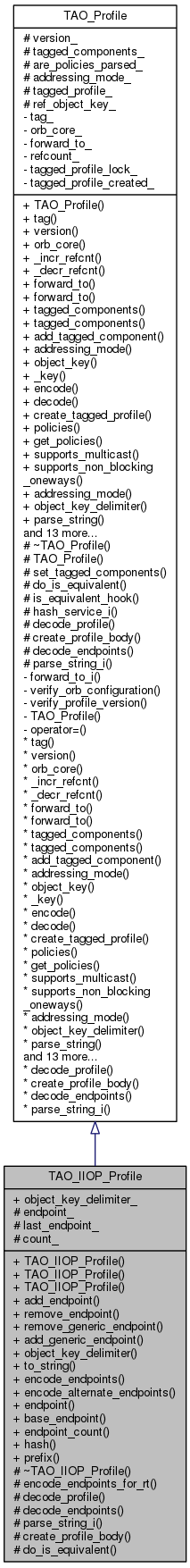

Inheritance diagram for TAO_IIOP_Profile:
Inheritance graph

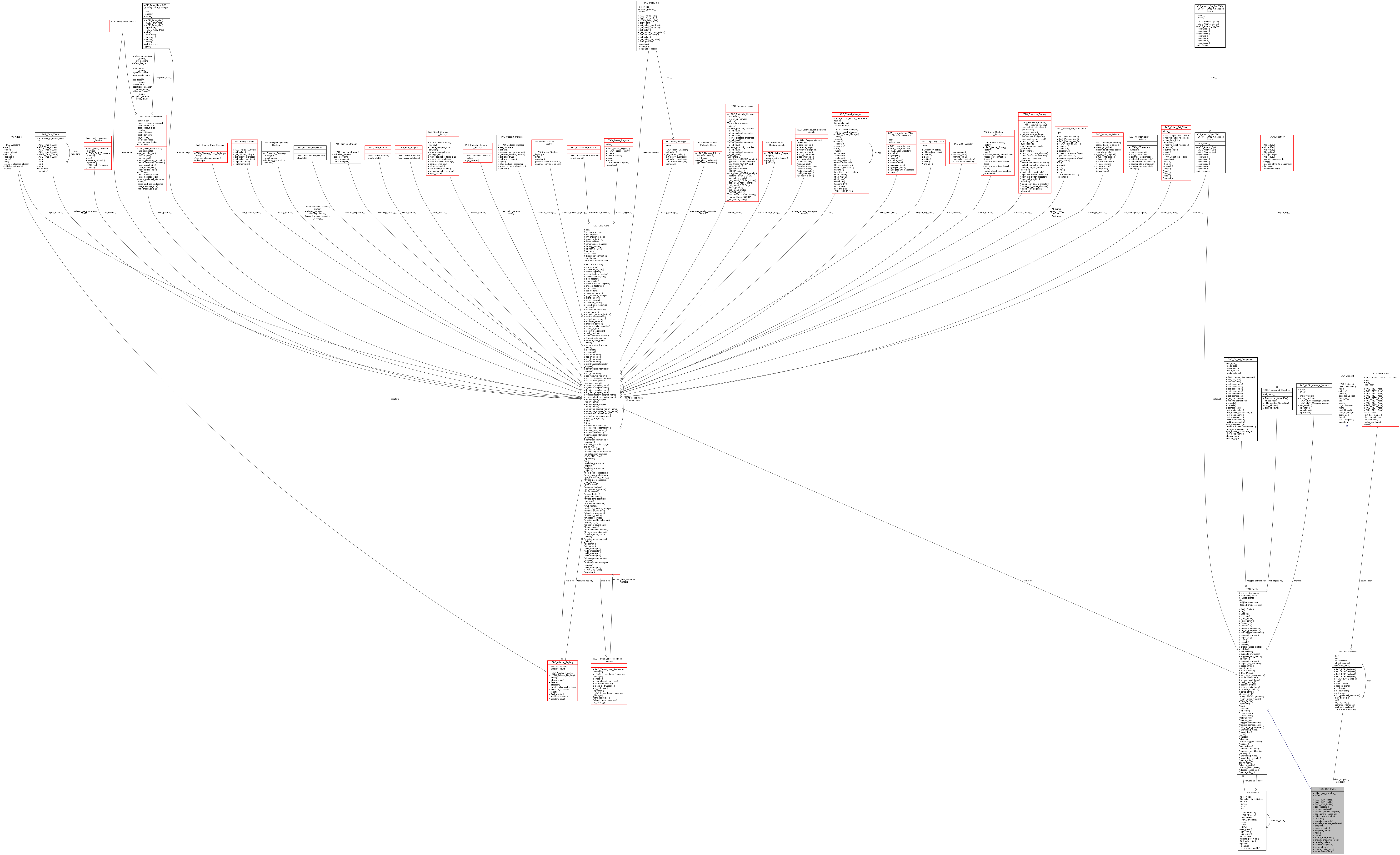

Collaboration diagram for TAO_IIOP_Profile:
Collaboration graph

Public Member Functions

 TAO_IIOP_Profile (const ACE_INET_Addr &addr, const TAO::ObjectKey &object_key, const TAO_GIOP_Message_Version &version, TAO_ORB_Core *orb_core)

 TAO_IIOP_Profile (const char *host, CORBA::UShort port, const TAO::ObjectKey &object_key, const ACE_INET_Addr &addr, const TAO_GIOP_Message_Version &version, TAO_ORB_Core *orb_core)

 TAO_IIOP_Profile (TAO_ORB_Core *orb_core)
 Profile constructor, default. More...

void add_endpoint (TAO_IIOP_Endpoint *endp)

void remove_endpoint (TAO_IIOP_Endpoint *endp)

virtual void remove_generic_endpoint (TAO_Endpoint *ep)

virtual void add_generic_endpoint (TAO_Endpoint *ep)
 Add an endpoint when the specific endpoint type is unknown. More...

virtual char object_key_delimiter (void) const
 The object key delimiter that IIOP uses or expects. More...

virtual char * to_string (void) const
 Template methods. Please see Profile.h for documentation. More...

virtual int encode_endpoints (void)

virtual int encode_alternate_endpoints (void)

virtual TAO_Endpointendpoint (void)

virtual TAO_Endpointbase_endpoint (void)

virtual CORBA::ULong endpoint_count (void) const
 Return how many endpoints this profile contains. More...

virtual CORBA::ULong hash (CORBA::ULong max)
 Return a hash value for this object. More...

- Public Member Functions inherited from TAO_Profile
 TAO_Profile (CORBA::ULong tag, TAO_ORB_Core *orb_core, const TAO_GIOP_Message_Version &version)
 Constructor. More...

CORBA::ULong tag (void) const
 The tag, each concrete class will have a specific tag value. More...

const TAO_GIOP_Message_Versionversion (void) const

TAO_ORB_Coreorb_core (void) const
 Get a pointer to the TAO_ORB_Core. More...

unsigned long _incr_refcnt (void)
 Increase the reference count by one on this object. More...

unsigned long _decr_refcnt (void)

void forward_to (TAO_MProfile *mprofiles)
 Keep a pointer to the forwarded profile. More...

TAO_MProfileforward_to (void)
 MProfile accessor. More...

const TAO_Tagged_Componentstagged_components (void) const

TAO_Tagged_Componentstagged_components (void)
 The tag, each concrete class will have a specific tag value. More...

void add_tagged_component (const IOP::TaggedComponent &component)
 Add the given tagged component to the profile. More...

CORBA::Short addressing_mode (void) const

const TAO::ObjectKeyobject_key (void) const

TAO::ObjectKey_key (void) const

virtual int encode (TAO_OutputCDR &stream) const
 Encode this profile in a stream, i.e. marshal it. More...

virtual int decode (TAO_InputCDR &cdr)
 Initialize this object using the given CDR octet string. More...

IOP::TaggedProfile * create_tagged_profile (void)

virtual void policies (CORBA::PolicyList *policy_list)

virtual void get_policies (CORBA::PolicyList &policy_list)
 Accessor for the client exposed policies of this profile. More...

virtual int supports_multicast (void) const
 Returns true if this profile can specify multicast endpoints. More...

virtual bool supports_non_blocking_oneways (void) const
 Returns true if this profile supports non blocking oneways. More...

virtual void addressing_mode (CORBA::Short addr_mode)

virtual void parse_string (const char *string)

TAO_Endpointfirst_filtered_endpoint (void)

TAO_Endpointnext_filtered_endpoint (TAO_Endpoint *source)

CORBA::Boolean is_equivalent (const TAO_Profile *other_profile)
 Verify profile equivalance. More...

CORBA::Boolean compare_key (const TAO_Profile *other) const


Static Public Member Functions

static const char * prefix (void)
 Return the char string prefix. More...


Static Public Attributes

static const char object_key_delimiter_ = '/'


Protected Member Functions

 ~TAO_IIOP_Profile (void)
 Destructor is to be called only through <_decr_refcnt>. More...

int encode_endpoints_for_rt (void)

virtual int decode_profile (TAO_InputCDR &cdr)
 Template methods. Please see Profile.h for the documentation. More...

virtual int decode_endpoints (void)

virtual void parse_string_i (const char *string)
 Protocol specific implementation of parse_string () More...

virtual void create_profile_body (TAO_OutputCDR &cdr) const
 Creates an encapsulation of the ProfileBody struct in the cdr. More...

virtual CORBA::Boolean do_is_equivalent (const TAO_Profile *other_profile)
 Profile equivalence template method invoked on subclasses. More...

- Protected Member Functions inherited from TAO_Profile
virtual ~TAO_Profile (void)
 If you have a virtual method you need a virtual dtor. More...

 TAO_Profile (CORBA::ULong tag, TAO_ORB_Core *orb_core, const TAO::ObjectKey &key, const TAO_GIOP_Message_Version &version)
 To be used by inherited classes. More...

void set_tagged_components (TAO_OutputCDR &cdr)

virtual
TAO_Service_Callbacks::Profile_Equivalence
is_equivalent_hook (const TAO_Profile *other)
 Allow services to apply their own definition of "equivalence.". More...

CORBA::ULong hash_service_i (CORBA::ULong m)


Protected Attributes

TAO_IIOP_Endpoint endpoint_

TAO_IIOP_Endpointlast_endpoint_
 For efficient insertion at the end of the list. More...

CORBA::ULong count_
 Number of endpoints in the list headed by <endpoint_>. More...

- Protected Attributes inherited from TAO_Profile
TAO_GIOP_Message_Version version_
 IIOP version number. More...

TAO_Tagged_Components tagged_components_
 The tagged components. More...

CORBA::Boolean are_policies_parsed_

CORBA::Short addressing_mode_

IOP::TaggedProfile * tagged_profile_
 Our tagged profile. More...

TAO::Refcounted_ObjectKeyref_object_key_
 Object_key associated with this profile. More...


Detailed Description

This class defines the protocol specific attributes required for locating ORBs over a TCP/IP network.

This class defines the IIOP profile as specified in the CORBA specification.

Constructor & Destructor Documentation

TAO_IIOP_Profile::TAO_IIOP_Profile ( const ACE_INET_Addr addr,
const TAO::ObjectKey object_key,
const TAO_GIOP_Message_Version version,
TAO_ORB_Core orb_core
)

Profile constructor, same as above except the object_key has already been marshaled.

TAO_IIOP_Profile::TAO_IIOP_Profile ( const char *  host,
CORBA::UShort  port,
const TAO::ObjectKey object_key,
const ACE_INET_Addr addr,
const TAO_GIOP_Message_Version version,
TAO_ORB_Core orb_core
)

Profile constructor, this is the most efficient since it doesn't require any address resolution processing.

TAO_IIOP_Profile::TAO_IIOP_Profile ( TAO_ORB_Core orb_core)

Profile constructor, default.

TAO_IIOP_Profile::~TAO_IIOP_Profile ( void  )
protected

Destructor is to be called only through <_decr_refcnt>.

Member Function Documentation

void TAO_IIOP_Profile::add_endpoint ( TAO_IIOP_Endpoint endp)

Add endp to this profile's list of endpoints (it is inserted at the end of the list). This profiles takes ownership of endp.

void TAO_IIOP_Profile::add_generic_endpoint ( TAO_Endpoint ep)
virtual

Add an endpoint when the specific endpoint type is unknown.

Reimplemented from TAO_Profile.

TAO_Endpoint * TAO_IIOP_Profile::base_endpoint ( void  )
virtual

Since SSLIOP_Profile derives from IIOP_Profile, but SSLIOP_Endpoint does not derive from IIOP_Endpoint, it is necessary to have a way of always getting the IIOP_Endpoint using a generic interface regardless of the final type of the profile.

Reimplemented from TAO_Profile.

void TAO_IIOP_Profile::create_profile_body ( TAO_OutputCDR cdr) const
protectedvirtual

Creates an encapsulation of the ProfileBody struct in the cdr.

Implements TAO_Profile.

int TAO_IIOP_Profile::decode_endpoints ( void  )
protectedvirtual

Helper for decode(). Decodes endpoints from a tagged component. Decode only if RTCORBA is enabled. Furthermore, we may not find TAO_TAG_ENDPOINTS component, e.g., if we are talking to nonRT version of TAO or some other ORB. This is not an error, and we must proceed. Return 0 on success and -1 on failure.

Implements TAO_Profile.

int TAO_IIOP_Profile::decode_profile ( TAO_InputCDR cdr)
protectedvirtual

Template methods. Please see Profile.h for the documentation.

Implements TAO_Profile.

CORBA::Boolean TAO_IIOP_Profile::do_is_equivalent ( const TAO_Profile other)
protectedvirtual

Profile equivalence template method invoked on subclasses.

TAO_Profile subclasses must implement this template method so that they can apply their own definition of profile equivalence.

Implements TAO_Profile.

int TAO_IIOP_Profile::encode_alternate_endpoints ( void  )
virtual

Encode alternate endpoints for non-RT profiles, using multiple TAG_ALTERNATE_IIOP_ADDRESS components, one endpoint per component

Reimplemented from TAO_Profile.

int TAO_IIOP_Profile::encode_endpoints ( void  )
virtual

Encode endpoints for RT profiles, using a single TAO_TAG_ENDPOINT component.

Implements TAO_Profile.

int TAO_IIOP_Profile::encode_endpoints_for_rt ( void  )
protected

Helper method for encode_endpoints to deal with RT requests.

Encodes this profile's endpoints into a tagged component. This is done only if RTCORBA is enabled, since currently this is the only case when we have more than one endpoint per profile. Returns 0 on success and -1 on failure.

Endpoints are transmitted using TAO-proprietory tagged component. Component tag is TAO_TAG_ENDPOINTS and component data is an encapsulation of a sequence of structs, each representing a single endpoint. Data format is specified in iiop_endpoins.pidl.

TAO_Endpoint * TAO_IIOP_Profile::endpoint ( void  )
virtual

Return a pointer to this profile's endpoint. If the profile contains more than one endpoint, i.e., a list, the method returns the head of the list.

Implements TAO_Profile.

CORBA::ULong TAO_IIOP_Profile::endpoint_count ( void  ) const
virtual

Return how many endpoints this profile contains.

Implements TAO_Profile.

CORBA::ULong TAO_IIOP_Profile::hash ( CORBA::ULong  max)
virtual

Return a hash value for this object.

Implements TAO_Profile.

char TAO_IIOP_Profile::object_key_delimiter ( void  ) const
virtual

The object key delimiter that IIOP uses or expects.

Implements TAO_Profile.

void TAO_IIOP_Profile::parse_string_i ( const char *  string)
protectedvirtual

Protocol specific implementation of parse_string ()

Implements TAO_Profile.

const char * TAO_IIOP_Profile::prefix ( void  )
static

Return the char string prefix.

void TAO_IIOP_Profile::remove_endpoint ( TAO_IIOP_Endpoint endp)

Remove endp from this profile's list of endpoints and free the endp memory. This method assumes endp is in this profile's endpoint list.

void TAO_IIOP_Profile::remove_generic_endpoint ( TAO_Endpoint ep)
virtual

Remove the provided endpoint from the profile. Some subclasses of TAO_Profile already have a protocol-specific version of remove_endpoint, but this generic interface is required. The default implementation is a no-op. Protocol maintainers wishing to add support for the EndpointPolicy must implement remove_generic_endpoint to call their protocol-specific version of remove_endpoint

Reimplemented from TAO_Profile.

char * TAO_IIOP_Profile::to_string ( void  ) const
virtual

Template methods. Please see Profile.h for documentation.

Implements TAO_Profile.

Member Data Documentation

CORBA::ULong TAO_IIOP_Profile::count_
protected

Number of endpoints in the list headed by <endpoint_>.

TAO_IIOP_Endpoint TAO_IIOP_Profile::endpoint_
protected

Head of this profile's list of endpoints. This endpoint is not dynamically allocated because a profile always contains at least one endpoint.

Currently, a profile contains more than one endpoint, i.e., list contains more than just the head, only for two cases (1) when RTCORBA is enabled and (2) the ORB is initialized with -ORBPreferredInterfaces option. However, in the near future, this will be used in for mode as well, e.g., to support TAG_ALTERNATE_IIOP_ADDRESS feature.

This is probably as good a place to discuss how the list of endpoints is used for #2. If the ORB is configured to use preferred interfaces for invocation, TAO creates an endpoint per preferred interface. To be clear, every tuple <destination:target> will have an endpoint. What TAO essentially does is that creates it multiple endpoints so that the invocation code path can use existing iterating techniques to try one preferred interface after another (if the first did not work). If the ORB is configured with -ORBEnforcePreferredInterface set to false in addition to the ORBPreferredInterfaces option , TAO creates another endpoint with the preferred bit set to null, so that the invocation code can fall back to a TCP stack returned local address. Addressing info of the default endpoint, i.e., head of the list, is transmitted using standard IIOP ProfileBody components. See <encode_endpoints> method documentation above for how the rest of the endpoint list is transmitted.

TAO_IIOP_Endpoint* TAO_IIOP_Profile::last_endpoint_
protected

For efficient insertion at the end of the list.

const char TAO_IIOP_Profile::object_key_delimiter_ = '/'
static

The documentation for this class was generated from the following files:
