ACE::Monitor_Control::Monitor_Point_Auto_Updater Class Reference

Automates periodic updating of monitor point classes. More...

#include <Monitor_Admin.h>

Inheritance diagram for ACE::Monitor_Control::Monitor_Point_Auto_Updater:
Inheritance graph

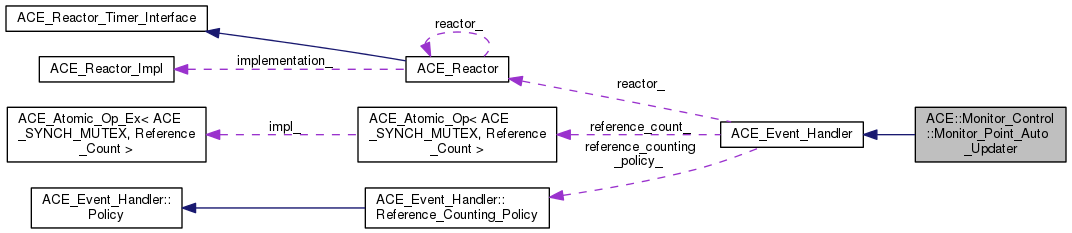

Collaboration diagram for ACE::Monitor_Control::Monitor_Point_Auto_Updater:
Collaboration graph

Public Member Functions

virtual int handle_timeout (const ACE_Time_Value &interval, const void *monitor_point)
 Override of ACE base class method. More...
- Public Member Functions inherited from ACE_Event_Handler
virtual ~ACE_Event_Handler (void)
 Destructor is virtual to enable proper cleanup. More...
virtual ACE_HANDLE get_handle (void) const
 Get the I/O handle. More...
virtual void set_handle (ACE_HANDLE)
 Set the I/O handle. More...
virtual int priority (void) const
virtual void priority (int priority)
 Set the priority of the Event_Handler. More...
virtual int handle_input (ACE_HANDLE fd=ACE_INVALID_HANDLE)
 Called when input events occur (e.g., connection or data). More...
virtual int handle_output (ACE_HANDLE fd=ACE_INVALID_HANDLE)
virtual int handle_exception (ACE_HANDLE fd=ACE_INVALID_HANDLE)
 Called when an exceptional events occur (e.g., SIGURG). More...
virtual int handle_exit (ACE_Process *)
 Called when a process exits. More...
virtual int handle_close (ACE_HANDLE handle, ACE_Reactor_Mask close_mask)
virtual int handle_signal (int signum, siginfo_t *=0, ucontext_t *=0)
virtual int resume_handler (void)
virtual int handle_qos (ACE_HANDLE=ACE_INVALID_HANDLE)
virtual int handle_group_qos (ACE_HANDLE=ACE_INVALID_HANDLE)
virtual void reactor (ACE_Reactor *reactor)
 Set the event demultiplexors. More...
virtual ACE_Reactorreactor (void) const
 Get the event demultiplexors. More...
reactor_timer_interface (void) const
 Get only the reactor's timer related interface. More...
virtual Reference_Count add_reference (void)
 Increment reference count on the handler. More...
virtual Reference_Count remove_reference (void)
 Decrement reference count on the handler. More...
Reference_Counting_Policyreference_counting_policy (void)
 Current Reference_Counting_Policy. More...

Additional Inherited Members

- Public Types inherited from ACE_Event_Handler
enum  {
  LO_PRIORITY = 0, HI_PRIORITY = 10, NULL_MASK = 0, READ_MASK = (1 << 0),
  WRITE_MASK = (1 << 1), EXCEPT_MASK = (1 << 2), ACCEPT_MASK = (1 << 3), CONNECT_MASK = (1 << 4),
  TIMER_MASK = (1 << 5), QOS_MASK = (1 << 6), GROUP_QOS_MASK = (1 << 7), SIGNAL_MASK = (1 << 8),
typedef long Reference_Count
 Reference count type. More...
- Static Public Member Functions inherited from ACE_Event_Handler
static ACE_THR_FUNC_RETURN read_adapter (void *event_handler)
static int register_stdin_handler (ACE_Event_Handler *eh, ACE_Reactor *reactor, ACE_Thread_Manager *thr_mgr, int flags=THR_DETACHED)
static int remove_stdin_handler (ACE_Reactor *reactor, ACE_Thread_Manager *thr_mgr)
 Performs the inverse of the register_stdin_handler() method. More...
- Protected Types inherited from ACE_Event_Handler
typedef ACE_Atomic_Op
 Typedef for implementation of reference counting. More...
- Protected Member Functions inherited from ACE_Event_Handler
 ACE_Event_Handler (ACE_Reactor *=0, int priority=ACE_Event_Handler::LO_PRIORITY)
 Force ACE_Event_Handler to be an abstract base class. More...
- Protected Attributes inherited from ACE_Event_Handler
Atomic_Reference_Count reference_count_
 Reference count. More...

Detailed Description

Automates periodic updating of monitor point classes.

A single instance of this class is held by the Admin class below. For a monitor point that must periodically check what they are monitoring, the admin class registers the monitor point with the ACE reactor. Each time the interval times out, the reactor will call the handle_timeout() method below, and pass in the appropriate monitor point. The handle_timeout() method will in turn call the appropriate method on the monitor point to get it to update its data.

Member Function Documentation

int ACE::Monitor_Control::Monitor_Point_Auto_Updater::handle_timeout ( const ACE_Time_Value interval,
const void *  monitor_point

Override of ACE base class method.

Reimplemented from ACE_Event_Handler.

The documentation for this class was generated from the following files:
