ACE_SPIPE_Stream Class Reference

Defines the methods in the ACE_SPIPE_Stream abstraction. More...

#include <SPIPE_Stream.h>

Inheritance diagram for ACE_SPIPE_Stream:
Inheritance graph
[legend]

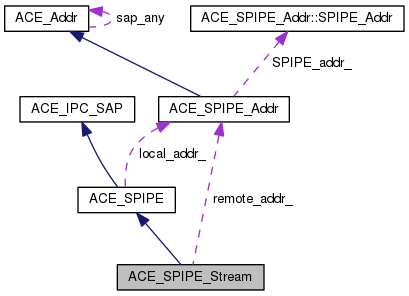

Collaboration diagram for ACE_SPIPE_Stream:
Collaboration graph
[legend]

Public Types

typedef ACE_SPIPE_Addr PEER_ADDR


Public Member Functions

 ACE_SPIPE_Stream (void)
 Default constructor. More...

int get_remote_addr (ACE_SPIPE_Addr &remote_sap) const
 Obtain the address of whom we are connected with. More...

int send_handle (ACE_HANDLE handle) const
 Send an open FD to another process. More...

int recv_handle (ACE_HANDLE &handle) const
 Recv an open FD from another process. More...

int recv_handle (strrecvfd &recvfd) const
 Recv an open FD from another process. More...

ssize_t send_n (const void *buf, size_t len) const
 Send len bytes, keep trying until len are sent. More...

ssize_t recv_n (void *buf, size_t len) const
 Recv len bytes, keep trying until len are received. More...

ssize_t send (const void *buf, size_t len) const
 Send bytes via STREAM pipes using "band" mode. More...

ssize_t recv (void *buf, size_t len) const
 Recv bytes via STREAM pipes using "band" mode. More...

ssize_t send (const ACE_Str_Buf *cntl, const ACE_Str_Buf *data, int flags=0) const
 Send cntl and data via STREAM pipes. More...

ssize_t recv (ACE_Str_Buf *cntl, ACE_Str_Buf *data, int *flags) const
 Recv cntl and data via STREAM pipes. More...

ssize_t send (const ACE_Str_Buf *cntl, const ACE_Str_Buf *data, int band, int flags) const
 Send bytes via STREAM pipes using "band" mode. More...

ssize_t recv (ACE_Str_Buf *cntl, ACE_Str_Buf *data, int *band, int *flags) const
 Recv bytes via STREAM pipes using "band" mode. More...

ssize_t send (const iovec iov[], int len) const
 Send iovecs via the OS "gather-write" operation. More...

ssize_t recv (iovec iov[], int len) const
 Recv iovecs via the OS "scatter-read" operation. More...

ssize_t send (size_t len,...) const

ssize_t recv (size_t len,...) const

ssize_t send (const void *buf, size_t len, ACE_OVERLAPPED *overlapped) const
 Send len bytes via Win32 <WriteFile> using overlapped I/O. More...

ssize_t recv (void *buf, size_t len, ACE_OVERLAPPED *overlapped) const
 Recv len bytes via Win32 <ReadFile> using overlapped I/O. More...

ssize_t sendv (const iovec iov[], int len) const
 Send an <iovec> of size len to the stream. More...

ssize_t sendv_n (const iovec iov[], int len) const

ssize_t recvv_n (iovec iov[], int len) const
 Receive an <iovec> of size len from the stream. More...

void dump (void) const
 Dump the state of an object. More...

- Public Member Functions inherited from ACE_SPIPE
int close (void)
 Close down the SPIPE without removing the rendezvous point. More...

int remove (void)

int get_local_addr (ACE_SPIPE_Addr &) const
 Return the local address of this endpoint. More...

int disable (int signum) const

void dump (void) const
 Dump the state of an object. More...

- Public Member Functions inherited from ACE_IPC_SAP
int control (int cmd, void *) const
 Interface for <ioctl>. More...

int enable (int value) const

int disable (int value) const

ACE_HANDLE get_handle (void) const
 Get the underlying handle. More...

void set_handle (ACE_HANDLE handle)
 Set the underlying handle. More...

void dump (void) const
 Dump the state of an object. More...


Public Attributes

 ACE_ALLOC_HOOK_DECLARE
 Declare the dynamic allocation hooks. More...

- Public Attributes inherited from ACE_SPIPE
 ACE_ALLOC_HOOK_DECLARE
 Declare the dynamic allocation hooks. More...

- Public Attributes inherited from ACE_IPC_SAP
 ACE_ALLOC_HOOK_DECLARE
 Declare the dynamic allocation hooks. More...


Private Attributes

ACE_SPIPE_Addr remote_addr_


Friends

class ACE_SPIPE_Acceptor

class ACE_SPIPE_Connector


Additional Inherited Members

- Protected Member Functions inherited from ACE_SPIPE
 ACE_SPIPE (void)
 Ensure that this class is an abstract base class. More...

- Protected Member Functions inherited from ACE_IPC_SAP
 ACE_IPC_SAP (void)
 Default constructor. More...

 ~ACE_IPC_SAP (void)
 Protected destructor. More...

- Protected Attributes inherited from ACE_SPIPE
ACE_SPIPE_Addr local_addr_
 Our local address. More...


Detailed Description

Defines the methods in the ACE_SPIPE_Stream abstraction.

buf is the buffer to write from or receive into. len is the number of bytes to transfer.

The "_n()" I/O methods keep looping until all the data has been transferred. These methods also work for sockets in non-blocking mode i.e., they keep looping on EWOULDBLOCK.

The return values for the "*_n()" methods match the return values from the non "_n()" methods and are specified as follows:

Methods with <iovec> parameter are I/O vector variants of the I/O operations.

The <send> and <revc> operations use "message" semantics rather than "bytestream" semantics.

Member Typedef Documentation

Constructor & Destructor Documentation

ACE_SPIPE_Stream::ACE_SPIPE_Stream ( void  )

Default constructor.

Member Function Documentation

void ACE_SPIPE_Stream::dump ( void  ) const

Dump the state of an object.

int ACE_SPIPE_Stream::get_remote_addr ( ACE_SPIPE_Addr remote_sap) const
inline

Obtain the address of whom we are connected with.

ssize_t ACE_SPIPE_Stream::recv ( void *  buf,
size_t  len
) const
inline

Recv bytes via STREAM pipes using "band" mode.

ssize_t ACE_SPIPE_Stream::recv ( ACE_Str_Buf cntl,
ACE_Str_Buf data,
int *  flags
) const
inline

Recv cntl and data via STREAM pipes.

ssize_t ACE_SPIPE_Stream::recv ( ACE_Str_Buf cntl,
ACE_Str_Buf data,
int *  band,
int *  flags
) const
inline

Recv bytes via STREAM pipes using "band" mode.

ssize_t ACE_SPIPE_Stream::recv ( iovec  iov[],
int  len
) const
inline

Recv iovecs via the OS "scatter-read" operation.

ssize_t ACE_SPIPE_Stream::recv ( size_t  len,
  ...
) const

This is an interface to ::readv, that doesn't use the struct iovec explicitly. The ... can be passed as an arbitrary number of (char ptr, int len) tuples. However, the count N is the *total number of trailing arguments, not a couple of the number of tuple pairs!

ssize_t ACE_SPIPE_Stream::recv ( void *  buf,
size_t  len,
ACE_OVERLAPPED overlapped
) const
inline

Recv len bytes via Win32 <ReadFile> using overlapped I/O.

int ACE_SPIPE_Stream::recv_handle ( ACE_HANDLE &  handle) const
inline

Recv an open FD from another process.

int ACE_SPIPE_Stream::recv_handle ( strrecvfd &  recvfd) const
inline

Recv an open FD from another process.

ssize_t ACE_SPIPE_Stream::recv_n ( void *  buf,
size_t  len
) const
inline

Recv len bytes, keep trying until len are received.

ssize_t ACE_SPIPE_Stream::recvv_n ( iovec  iov[],
int  len
) const
inline

Receive an <iovec> of size len from the stream.

ssize_t ACE_SPIPE_Stream::send ( const void *  buf,
size_t  len
) const
inline

Send bytes via STREAM pipes using "band" mode.

ssize_t ACE_SPIPE_Stream::send ( const ACE_Str_Buf cntl,
const ACE_Str_Buf data,
int  flags = 0
) const
inline

Send cntl and data via STREAM pipes.

ssize_t ACE_SPIPE_Stream::send ( const ACE_Str_Buf cntl,
const ACE_Str_Buf data,
int  band,
int  flags
) const
inline

Send bytes via STREAM pipes using "band" mode.

ssize_t ACE_SPIPE_Stream::send ( const iovec  iov[],
int  len
) const
inline

Send iovecs via the OS "gather-write" operation.

ssize_t ACE_SPIPE_Stream::send ( size_t  len,
  ...
) const

Send N char ptrs and int lengths. Note that the char *'s precede the ints (basically, an varargs version of writev). The count N is the *total number of trailing arguments, not a couple of the number of tuple pairs!

ssize_t ACE_SPIPE_Stream::send ( const void *  buf,
size_t  len,
ACE_OVERLAPPED overlapped
) const
inline

Send len bytes via Win32 <WriteFile> using overlapped I/O.

int ACE_SPIPE_Stream::send_handle ( ACE_HANDLE  handle) const
inline

Send an open FD to another process.

ssize_t ACE_SPIPE_Stream::send_n ( const void *  buf,
size_t  len
) const
inline

Send len bytes, keep trying until len are sent.

ssize_t ACE_SPIPE_Stream::sendv ( const iovec  iov[],
int  len
) const
inline

Send an <iovec> of size len to the stream.

ssize_t ACE_SPIPE_Stream::sendv_n ( const iovec  iov[],
int  len
) const
inline

Send an <iovec> of size len to the stream. Will block until all bytes are sent or an error occurs.

Friends And Related Function Documentation

friend class ACE_SPIPE_Acceptor
friend
friend class ACE_SPIPE_Connector
friend

Member Data Documentation

ACE_SPIPE_Stream::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

ACE_SPIPE_Addr ACE_SPIPE_Stream::remote_addr_
private

The documentation for this class was generated from the following files:
