ACE_Service_Config Class Reference

Supplies common server operations for dynamic and static configuration of service. More...

#include <Service_Config.h>

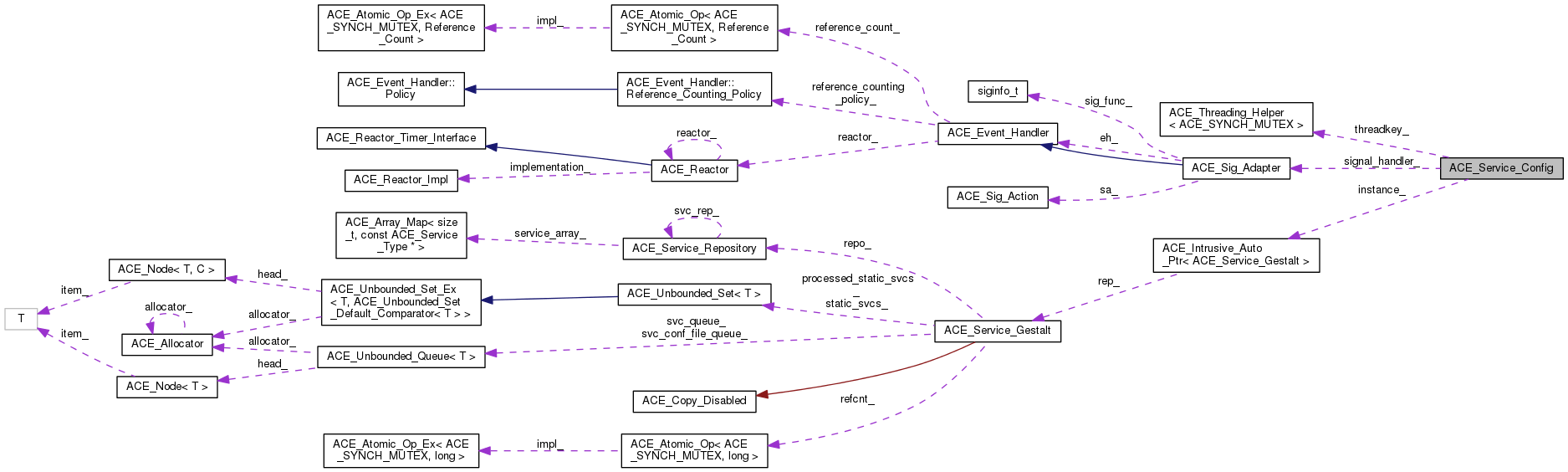

Collaboration diagram for ACE_Service_Config:
Collaboration graph
[legend]

Public Member Functions

 ACE_Service_Config (bool ignore_static_svcs=true, size_t size=ACE_DEFAULT_SERVICE_REPOSITORY_SIZE, int signum=SIGHUP)

 ACE_Service_Config (const ACE_TCHAR program_name[], const ACE_TCHAR *logger_key=ACE_DEFAULT_LOGGER_KEY)

virtual ~ACE_Service_Config (void)
 Perform user-specified close activities and remove dynamic memory. More...

void dump (void) const
 Dump the state of an object. More...


Static Public Member Functions

static ACE_Service_Configsingleton (void)
 = Static interfaces More...

static void current (ACE_Service_Gestalt *)
 A mutator to set the "current" (TSS) gestalt instance. More...

static ACE_Service_Gestaltcurrent (void)

static ACE_Service_Gestaltinstance (void)

static ACE_Service_Gestaltglobal (void)

static int open (const ACE_TCHAR program_name[], const ACE_TCHAR *logger_key=ACE_DEFAULT_LOGGER_KEY, bool ignore_static_svcs=true, bool ignore_default_svc_conf_file=false, bool ignore_debug_flag=false)

static int open (int argc, ACE_TCHAR *argv[], const ACE_TCHAR *logger_key=ACE_DEFAULT_LOGGER_KEY, bool ignore_static_svcs=true, bool ignore_default_svc_conf_file=false, bool ignore_debug_flag=false)

static int close (void)

static int fini_svcs (void)

static int reconfig_occurred (void)
 True if reconfiguration occurred. More...

static void reconfig_occurred (int)
 Indicate that reconfiguration occurred. More...

static void reconfigure (void)
 Perform the reconfiguration process. More...

static ACE_Service_Gestaltstatic_svcs (void)

static int insert (ACE_Static_Svc_Descriptor *svc)

static int initialize (const ACE_Service_Type *, const ACE_TCHAR *parameters)

static int initialize (const ACE_TCHAR *svc_name, const ACE_TCHAR *parameters)
 Initialize and activate a statically svc_name service. More...

static int resume (const ACE_TCHAR svc_name[])

static int suspend (const ACE_TCHAR svc_name[])

static int remove (const ACE_TCHAR svc_name[])

static void signal_handler (ACE_Sig_Adapter *)
 Set the signal_handler;for internal use by ACE_Object_Manager only. More...

static int process_file (const ACE_TCHAR file[])

static int process_directive (const ACE_TCHAR directive[])

static int process_directive (const ACE_Static_Svc_Descriptor &ssd, bool force_replace=false)

static int process_directives (void)

static void handle_signal (int sig, siginfo_t *, ucontext_t *)
 Handles signals to trigger reconfigurations. More...

static int parse_args (int, ACE_TCHAR *argv[])

static ACE_Service_Typecreate_service_type (const ACE_TCHAR *n, ACE_Service_Type_Impl *o, ACE_DLL &dll, int active)

static ACE_Service_Type_Implcreate_service_type_impl (const ACE_TCHAR *name, int type, void *symbol, u_int flags, ACE_Service_Object_Exterminator gobbler)

static int process_commandline_directives (void)

static int start_daemon (void)
 Become a daemon. More...

static int load_static_svcs (void)


Public Attributes

 ACE_ALLOC_HOOK_DECLARE
 Declare the dynamic allocation hooks. More...


Private Member Functions

virtual int open_i (const ACE_TCHAR program_name[], const ACE_TCHAR *logger_key, bool ignore_static_svcs, bool ignore_default_svc_conf_file, bool ignore_debug_flag)

virtual int parse_args_i (int argc, ACE_TCHAR *argv[])


Private Attributes

ACE_Intrusive_Auto_Ptr
< ACE_Service_Gestalt
instance_

ACE_Threading_Helper
< ACE_SYNCH_MUTEX
threadkey_

bool is_opened_
 Have we called ACE_Service_Config::open() yet? More...


Static Private Attributes

static sig_atomic_t reconfig_occurred_ = 0
 True if reconfiguration occurred. More...

static bool be_a_daemon_ = false
 Shall we become a daemon process? More...

static ACE_TCHARpid_file_name_ = 0
 Pathname of file to write process id. More...

static int signum_ = SIGHUP
 Number of the signal used to trigger reconfiguration. More...

static ACE_Sig_Adaptersignal_handler_ = 0
 Handles the reconfiguration signals. More...


Friends

class ACE_Service_Config_Guard

class ACE_Threading_Helper< ACE_Thread_Mutex >
 The helper needs intimate access (when building with no threads) More...

class ACE_Threading_Helper< ACE_Null_Mutex >


Detailed Description

Supplies common server operations for dynamic and static configuration of service.

The ACE_Service_Config uses the Monostate pattern. Therefore, you can only have one of these instantiated per-process. It represents the process-wide collection of services, which is typicaly shared among all other configurable entities. The only ACE_Service_Config instance is registered with and owned by the ACE_Object_Manager.

By contrast, the ACE_Service_Gestalt represents the collection of services, pertaining to a configurable entity. Typicaly, a "configurable entity" is an instance, which owns an instance of ACE_Service_Gestalt in order to ensure full controll over the services it needs.

Another facet of ACE_Service_Config is that for a given thread, it provides access to its current, process-global ACE_Service_Gestalt instance through its curent() method.

Note
The signal_handler_ static member is allocated by the ACE_Object_Manager. The ACE_Service_Config constructor uses signal_handler_. Therefore, if the program has any static ACE_Service_Config objects, there might be initialization order problems. They can be minimized, but not eliminated, by not #defining ACE_HAS_NONSTATIC_OBJECT_MANAGER.

Constructor & Destructor Documentation

ACE_Service_Config::ACE_Service_Config ( bool  ignore_static_svcs = true,
size_t  size = ACE_DEFAULT_SERVICE_REPOSITORY_SIZE,
int  signum = SIGHUP
)

Initialize the Service Repository. Note that initialising signum to a negative number will prevent a signal handler being registered when the repository is opened.

ACE_Service_Config::ACE_Service_Config ( const ACE_TCHAR  program_name[],
const ACE_TCHAR logger_key = ACE_DEFAULT_LOGGER_KEY
)

Performs an open without parsing command-line arguments. The logger_key indicates where to write the logging output, which is typically either a STREAM pipe or a socket address.

ACE_Service_Config::~ACE_Service_Config ( void  )
virtual

Perform user-specified close activities and remove dynamic memory.

Perform user-specified close activities and remove dynamic memory.

Member Function Documentation

int ACE_Service_Config::close ( void  )
static

Tidy up and perform last rites when ACE_Service_Config is shut down. This method calls close_svcs(). Returns 0.

ACE_Service_Type * ACE_Service_Config::create_service_type ( const ACE_TCHAR n,
ACE_Service_Type_Impl o,
ACE_DLL dll,
int  active
)
static
ACE_Service_Type_Impl * ACE_Service_Config::create_service_type_impl ( const ACE_TCHAR name,
int  type,
void *  symbol,
u_int  flags,
ACE_Service_Object_Exterminator  gobbler
)
static
void ACE_Service_Config::current ( ACE_Service_Gestalt newcurrent)
static

A mutator to set the "current" (TSS) gestalt instance.

Mutator for the currently active configuration context instance (gestalt). Intended for use by helper classes like

See Also
ACE_Service_Config_Guard. Stack-based instances can be used to temporarily change which gestalt is seen as global by static initializers (especially those in DLLs loaded at run-time).
ACE_Service_Gestalt * ACE_Service_Config::current ( void  )
static

Accessor for the "current" service gestalt

Return the "global" configuration instance, for the current thread. This may be the same as instance(), but on some occasions, it may be a different one. For example, ACE_Service_Config_Guard provides a way of temporarily replacing the "current" configuration instance in the context of a thread.

void ACE_Service_Config::dump ( void  ) const

Dump the state of an object.

int ACE_Service_Config::fini_svcs ( void  )
static

Perform user-specified close hooks and possibly delete all of the configured services in the <Service_Repository>.

ACE_Service_Gestalt * ACE_Service_Config::global ( void  )
inlinestatic

Returns a process-wide global singleton instance in contrast with current (), which may return a different instance at different times, dependent on the context. Modifying this method's return value is strongly discouraged as it will circumvent the mechanism for dynamically loading services. If you must, use with extreme caution!

Return the global configuration instance. Allways returns the same instance

void ACE_Service_Config::handle_signal ( int  sig,
siginfo_t ,
ucontext_t
)
static

Handles signals to trigger reconfigurations.

int ACE_Service_Config::initialize ( const ACE_Service_Type sr,
const ACE_TCHAR parameters
)
inlinestatic

Dynamically link the shared object file and retrieve a pointer to the designated shared object in this file.

int ACE_Service_Config::initialize ( const ACE_TCHAR svc_name,
const ACE_TCHAR parameters
)
inlinestatic

Initialize and activate a statically svc_name service.

Initialize and activate a statically linked service.

int ACE_Service_Config::insert ( ACE_Static_Svc_Descriptor svc)
static

Insert a static service descriptor for processing on open_i(). The corresponding ACE_STATIC_SVC_* macros were chaged to use this method instead of obtaining a ptr to a container. See the note on static_svcs(). Added to prevent exposing the internal storage representation of the services repository and provide a better way of debugging service loading and registration problems.

ACE_Service_Gestalt * ACE_Service_Config::instance ( void  )
inlinestatic

This is what the static service initializators are hard-wired to use, so in order to avoid interface changes this method merely forwards to ACE_Service_Config::current. This enables us to enforce which Service Gestalt is used for services registering through static initializers. Especially important for DLL-based dynamic services, which can contain their own static services and static initializers.

Deprecated:
Use current() instead.

Return the configuration instance, considered "global" in the current thread. This may be the same as instance(), but on some occasions, it may be a different one. For example, ACE_Service_Config_Guard provides a way of temporarily replacing the "current" configuration instance in the context of a thread.

static int ACE_Service_Config::load_static_svcs ( void  )
static
int ACE_Service_Config::open ( const ACE_TCHAR  program_name[],
const ACE_TCHAR logger_key = ACE_DEFAULT_LOGGER_KEY,
bool  ignore_static_svcs = true,
bool  ignore_default_svc_conf_file = false,
bool  ignore_debug_flag = false
)
inlinestatic

Performs an open without parsing command-line arguments. The logger_key indicates where to write the logging output, which is typically either a STREAM pipe or a socket address. If ignore_static_svcs is true then static services are not loaded, otherwise, they are loaded. If ignore_default_svc_conf_file is non-0 then the <svc.conf> configuration file will be ignored. Returns zero upon success, -1 if the file is not found or cannot be opened (errno is set accordingly), otherwise returns the number of errors encountered loading the services in the specified svc.conf configuration file. If ignore_debug_flag is non-0 then the application is responsible for setting the ACE_Log_Msg::priority_mask appropriately.

int ACE_Service_Config::open ( int  argc,
ACE_TCHAR argv[],
const ACE_TCHAR logger_key = ACE_DEFAULT_LOGGER_KEY,
bool  ignore_static_svcs = true,
bool  ignore_default_svc_conf_file = false,
bool  ignore_debug_flag = false
)
inlinestatic

This is the primary entry point into the ACE_Service_Config (the constructor just handles simple initializations). It parses arguments passed in from argc and argv parameters. The arguments that are valid in a call to this method include:

  • '-b' Option to indicate that we should be a daemon. Note that when this option is used, the process will be daemonized before the service configuration file(s) are read. During daemonization, (on POSIX systems) the current directory will be changed to "/" so the caller should either fully specify the file names, or execute a chroot() to the appropriate directory.
    See Also
    ACE::daemonize().
  • '-d' Turn on debugging mode
  • '-f' Specifies a configuration file name other than the default svc.conf. Can be specified multiple times to use multiple files. If any configuration file is provided with this option then the default svc.conf will be ignored.
  • '-k' Specifies the rendezvous point to use for the ACE distributed logger.
  • '-y' Explicitly enables the use of static services. This flag overrides the ignore_static_svcs parameter value.
  • '-n' Explicitly disables the use of static services. This flag overrides the ignore_static_svcs parameter value.
  • '-p' Specifies a pathname which is used to store the process id.
  • '-s' Specifies a signal number other than SIGHUP to trigger reprocessing of the configuration file(s). Ignored for platforms that do not have POSIX signals, such as Windows.
  • '-S' Specifies a service directive string. Enclose the string in quotes and escape any embedded quotes with a backslash. This option specifies service directives without the need for a configuration file. Can be specified multiple times.

Note: Options '-f' and '-S' complement each other. Directives from files and from '-S' option are processed together in the following order. First, all files are processed in the order they are specified in argv parameter. Second, all directive strings are executed in the order the directives appear in argv parameter.

Parameters
argcThe number of commandline arguments.
argvThe array with commandline arguments
logger_keyIndicates where to write the logging output, which is typically either a STREAM pipe or a socket address.
ignore_static_svcsIf true then static services are not loaded, otherwise, they are loaded.
ignore_default_svc_conf_fileIf non-0 then the svc.conf configuration file will be ignored.
ignore_debug_flagIf true then the application is responsible for setting the ACE_Log_Msg::priority_mask appropriately.
Return values
-1The configuration file is not found or cannot be opened (errno is set accordingly).
0Success.
>0The number of errors encountered while processing the service configuration file(s).
int ACE_Service_Config::open_i ( const ACE_TCHAR  program_name[],
const ACE_TCHAR logger_key,
bool  ignore_static_svcs,
bool  ignore_default_svc_conf_file,
bool  ignore_debug_flag
)
privatevirtual

Performs an open without parsing command-line arguments. Implements whats different in the opening sequence for this class, as opposed to the base class.

The logger_key indicates where to write the logging output, which is typically either a STREAM pipe or a socket address. If ignore_default_svc_conf_file is non-0 then the "svc.conf" file will be ignored. If ignore_debug_flag is non-0 then the application is responsible for setting the ACE_Log_Msg::priority_mask() appropriately. Returns number of errors that occurred on failure and 0 otherwise.

int ACE_Service_Config::parse_args ( int  argc,
ACE_TCHAR argv[]
)
inlinestatic

Handle the command-line options intended for the ACE_Service_Config. Note that argv[0] is assumed to be the program name. The arguments that are valid in a call to this method are

  • '-b' Option to indicate that we should be a daemon
  • '-d' Turn on debugging mode
  • '-f' Option to read in the list of svc.conf file names
  • '-k' Option to read a wide string where in the logger output can be written
  • '-y' Turn on the flag for a repository of statically linked services
  • '-n' Need not have a repository of statically linked services
  • '-S' Option to read in the list of services on the command-line Please observe the difference between options '-f' that looks for a list of files and here a list of services.
int ACE_Service_Config::parse_args_i ( int  argc,
ACE_TCHAR argv[]
)
privatevirtual

Implements whats different in the command line parameter processing for this class, as opposed to the base class.

static int ACE_Service_Config::process_commandline_directives ( void  )
static
Deprecated:
Process service configuration requests that were provided on the command-line. Returns the number of errors that occurred.
int ACE_Service_Config::process_directive ( const ACE_TCHAR  directive[])
inlinestatic

Process one service configuration directive, which is passed as a string. Returns the number of errors that occurred.

int ACE_Service_Config::process_directive ( const ACE_Static_Svc_Descriptor ssd,
bool  force_replace = false
)
inlinestatic

Process one static service definition. Load a new static service into the ACE_Service_Repository.

Parameters
ssdService descriptor, see the document of ACE_Static_Svc_Descriptor for more details.
force_replaceIf set the new service descriptor replaces any previous instance in the ACE_Service_Repository.
Returns
Returns -1 if the service cannot be 'loaded'.
int ACE_Service_Config::process_directives ( void  )
inlinestatic

Process (or re-process) service configuration requests that are provided in the svc.conf file(s). Returns the number of errors that occurred.

Process service configuration requests as indicated in the queue of svc.conf files.

int ACE_Service_Config::process_file ( const ACE_TCHAR  file[])
inlinestatic

Process a file containing a list of service configuration directives.

int ACE_Service_Config::reconfig_occurred ( void  )
static

True if reconfiguration occurred.

void ACE_Service_Config::reconfig_occurred ( int  config_occurred)
static

Indicate that reconfiguration occurred.

void ACE_Service_Config::reconfigure ( void  )
static

Perform the reconfiguration process.

int ACE_Service_Config::remove ( const ACE_TCHAR  svc_name[])
static

Totally remove svc_name from the daemon by removing it from the ACE_Reactor, and unlinking it if necessary.

int ACE_Service_Config::resume ( const ACE_TCHAR  svc_name[])
static

Resume a svc_name that was previously suspended or has not yet been resumed (e.g., a static service).

void ACE_Service_Config::signal_handler ( ACE_Sig_Adapter signal_handler)
inlinestatic

Set the signal_handler;for internal use by ACE_Object_Manager only.

ACE_Service_Config * ACE_Service_Config::singleton ( void  )
static

= Static interfaces

Returns the process-wide global singleton instance. It would have been created and will be managed by the Object Manager.

Return the global configuration instance. Always returns the same instance

static int ACE_Service_Config::start_daemon ( void  )
static

Become a daemon.

ACE_Service_Gestalt * ACE_Service_Config::static_svcs ( void  )
inlinestatic

Returns a pointer to the list of statically linked services.

Deprecated:
  • Same as instance(), but still useful in legacy code, (notably, one that can not be easily modified) which uses the following idiom for registering static services:

ACE_Service_Config::static_svcs ()->insert (...);

int ACE_Service_Config::suspend ( const ACE_TCHAR  svc_name[])
static

Suspend svc_name. Note that this will not unlink the service from the daemon if it was dynamically linked, it will mark it as being suspended in the Service Repository and call the <suspend> member function on the appropriate ACE_Service_Object. A service can be resumed later on by calling the <RESUME> member function...

Friends And Related Function Documentation

friend class ACE_Service_Config_Guard
friend

Pointer to the Singleton (ACE_Cleanup) Gestalt instance. There is thread-specific global instance pointer, which is used to temporarily change which Gestalt instance is used for static service registrations.

A specific use case is a thread, which loads a dynamic service from a DLL. If the said DLL also contains additional static services, those must be registered with the same configuration repository as the dynamic service. Otherwise, the DLL's static services would be registered with the global Gestalt and may outlive the DLL that contains their code and perhaps the memory in which they are in. This is a problem because if the DLL gets unloaded (as it will, if it was loaded in an instance of Gestalt), the DLL's memory will be deallocated, but the global service repository will still "think" it must finalize the (DLL's) static services - with disastrous consequences, occurring in the post-main code (at_exit()). This class needs the intimate access to be able to swap the current TSS pointer for the global Gestalt.

friend class ACE_Threading_Helper< ACE_Null_Mutex >
friend
friend class ACE_Threading_Helper< ACE_Thread_Mutex >
friend

The helper needs intimate access (when building with no threads)

Member Data Documentation

ACE_Service_Config::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

bool ACE_Service_Config::be_a_daemon_ = false
staticprivate

Shall we become a daemon process?

ACE_Intrusive_Auto_Ptr<ACE_Service_Gestalt> ACE_Service_Config::instance_
private

The Instance, or the global (default) configuration context. The monostate would forward the calls to that instance. The TSS will point here

bool ACE_Service_Config::is_opened_
private

Have we called ACE_Service_Config::open() yet?

ACE_TCHAR * ACE_Service_Config::pid_file_name_ = 0
staticprivate

Pathname of file to write process id.

sig_atomic_t ACE_Service_Config::reconfig_occurred_ = 0
staticprivate

True if reconfiguration occurred.

ACE_Sig_Adapter * ACE_Service_Config::signal_handler_ = 0
staticprivate

Handles the reconfiguration signals.

int ACE_Service_Config::signum_ = SIGHUP
staticprivate

Number of the signal used to trigger reconfiguration.

ACE_Threading_Helper<ACE_SYNCH_MUTEX> ACE_Service_Config::threadkey_
private

A helper instance to manage thread-specific key creation. Dependent on the syncronization mutex ACE uses, the corresponding partial template instantiation will perform the right services that have to do with managing thread-specific storage. Note that, for single-threaded builds they would do (next to) nothing.


The documentation for this class was generated from the following files:
