ACE_Select_Reactor_Handler_Repository Class Reference

Used to map ACE_HANDLEs onto the appropriate ACE_Event_Handler *. More...

#include <Select_Reactor_Base.h>

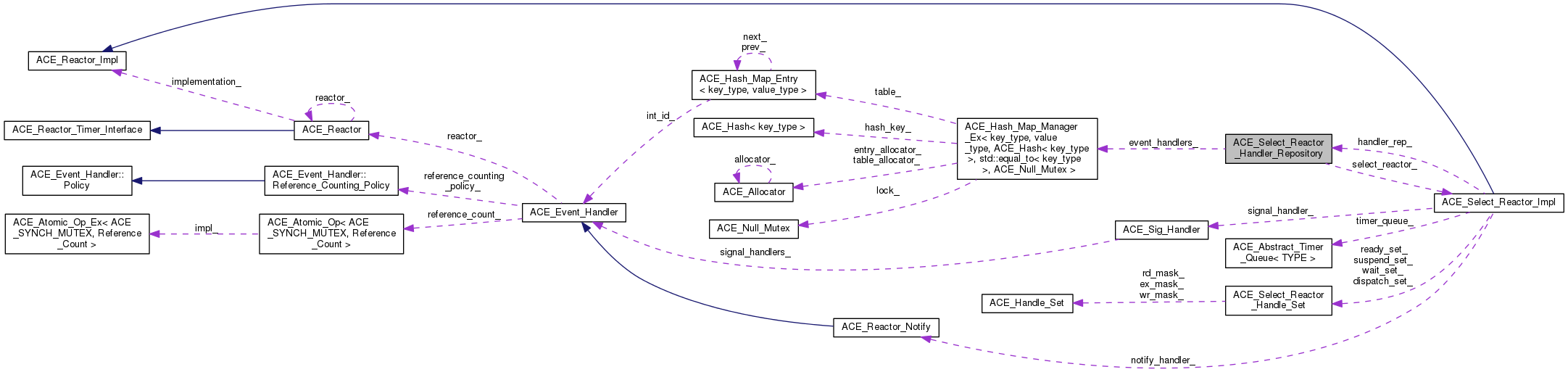

Collaboration diagram for ACE_Select_Reactor_Handler_Repository:
Collaboration graph
[legend]

Public Types

typedef ACE_HANDLE key_type

typedef ACE_Event_Handlervalue_type

typedef
ACE_Hash_Map_Manager_Ex
< key_type, value_type,
ACE_Hash< key_type >
, std::equal_to< key_type >
, ACE_Null_Mutex
map_type

typedef map_type::size_type max_handlep1_type

typedef map_type::size_type size_type


Public Member Functions

 ACE_Select_Reactor_Handler_Repository (ACE_Select_Reactor_Impl &)
 Default "do-nothing" constructor. More...

int open (size_type size)
 Initialize a repository of the appropriate size. More...

int close (void)
 Close down the repository. More...

ACE_Event_Handlerfind (ACE_HANDLE handle)

int bind (ACE_HANDLE, ACE_Event_Handler *, ACE_Reactor_Mask)

int unbind (ACE_HANDLE, ACE_Reactor_Mask mask)
 Remove the binding of ACE_HANDLE in accordance with the mask. More...

int unbind_all (void)
 Remove all the <ACE_HANDLE, ACE_Event_Handler> tuples. More...

bool invalid_handle (ACE_HANDLE handle)

bool handle_in_range (ACE_HANDLE handle)

size_type size (void) const
 Returns the current table size. More...

max_handlep1_type max_handlep1 (void) const
 Maximum ACE_HANDLE value, plus 1. More...

void dump (void) const
 Dump the state of an object. More...


Public Attributes

 ACE_ALLOC_HOOK_DECLARE
 Declare the dynamic allocation hooks. More...


Private Member Functions

int unbind (ACE_HANDLE handle, map_type::iterator pos, ACE_Reactor_Mask mask)

map_type::iterator find_eh (ACE_HANDLE handle)


Private Attributes

ACE_Select_Reactor_Implselect_reactor_
 Reference to our Select_Reactor. More...

map_type event_handlers_
 Underlying table of event handlers. More...


Friends

class ACE_Select_Reactor_Handler_Repository_Iterator


Detailed Description

Used to map ACE_HANDLEs onto the appropriate ACE_Event_Handler *.

This class is necessary to shield differences between UNIX and Win32. In UNIX, ACE_HANDLE is an int, whereas in Win32 it's a void *. This class hides all these details from the bulk of the ACE_Select_Reactor code. All of these methods are called with the main <Select_Reactor> token lock held.

Member Typedef Documentation

The NT version implements this via a hash map ACE_Event_Handler*. Since NT implements ACE_HANDLE as a void * we can't directly index into this array. Therefore, we must explicitly map ACE_HANDLE to ACE_Event_Handler.

Constructor & Destructor Documentation

ACE_Select_Reactor_Handler_Repository::ACE_Select_Reactor_Handler_Repository ( ACE_Select_Reactor_Impl select_reactor)

Default "do-nothing" constructor.

Member Function Documentation

int ACE_Select_Reactor_Handler_Repository::bind ( ACE_HANDLE  handle,
ACE_Event_Handler event_handler,
ACE_Reactor_Mask  mask
)

Bind the ACE_Event_Handler * to the ACE_HANDLE with the appropriate ACE_Reactor_Mask settings.

int ACE_Select_Reactor_Handler_Repository::close ( void  )

Close down the repository.

void ACE_Select_Reactor_Handler_Repository::dump ( void  ) const

Dump the state of an object.

ACE_Event_Handler * ACE_Select_Reactor_Handler_Repository::find ( ACE_HANDLE  handle)
inline

Return the ACE_Event_Handler* associated with ACE_HANDLE.

ACE_Select_Reactor_Handler_Repository::map_type::iterator ACE_Select_Reactor_Handler_Repository::find_eh ( ACE_HANDLE  handle)
private
Returns
iterator corresponding ACE_Event_Handler* associated with ACE_HANDLE.
bool ACE_Select_Reactor_Handler_Repository::handle_in_range ( ACE_HANDLE  handle)
bool ACE_Select_Reactor_Handler_Repository::invalid_handle ( ACE_HANDLE  handle)
ACE_Select_Reactor_Handler_Repository::max_handlep1_type ACE_Select_Reactor_Handler_Repository::max_handlep1 ( void  ) const
inline

Maximum ACE_HANDLE value, plus 1.

int ACE_Select_Reactor_Handler_Repository::open ( size_type  size)

Initialize a repository of the appropriate size.

On Unix platforms, the size parameter should be as large as the maximum number of file descriptors allowed for a given process. This is necessary since a file descriptor is used to directly index the array of event handlers maintained by the Reactor's handler repository. Direct indexing is used for efficiency reasons.

ACE_Select_Reactor_Handler_Repository::size_type ACE_Select_Reactor_Handler_Repository::size ( void  ) const
inline

Returns the current table size.

int ACE_Select_Reactor_Handler_Repository::unbind ( ACE_HANDLE  handle,
ACE_Reactor_Mask  mask
)
inline

Remove the binding of ACE_HANDLE in accordance with the mask.

int ACE_Select_Reactor_Handler_Repository::unbind ( ACE_HANDLE  handle,
map_type::iterator  pos,
ACE_Reactor_Mask  mask
)
private

Remove the binding of handle corresponding to position pos in accordance with the mask.

int ACE_Select_Reactor_Handler_Repository::unbind_all ( void  )

Remove all the <ACE_HANDLE, ACE_Event_Handler> tuples.

Friends And Related Function Documentation

Member Data Documentation

ACE_Select_Reactor_Handler_Repository::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

map_type ACE_Select_Reactor_Handler_Repository::event_handlers_
private

Underlying table of event handlers.

ACE_Select_Reactor_Impl& ACE_Select_Reactor_Handler_Repository::select_reactor_
private

Reference to our Select_Reactor.


The documentation for this class was generated from the following files:
