ACE_Asynch_Write_Dgram Class Reference

This class is a factory for starting off asynchronous writes on a UDP socket. This class forwards all methods to its implementation class. More...

#include <Asynch_IO.h>

Inheritance diagram for ACE_Asynch_Write_Dgram:
Inheritance graph
[legend]

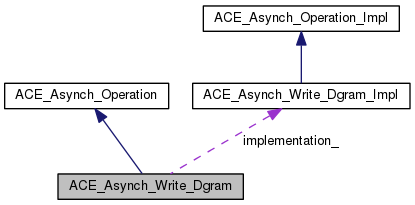

Collaboration diagram for ACE_Asynch_Write_Dgram:
Collaboration graph
[legend]

Classes

class  Result
 This is that class which will be passed back to the {handler} when the asynchronous write completes. This class forwards all the methods to the implementation class. More...


Public Member Functions

 ACE_Asynch_Write_Dgram (void)
 A do nothing constructor. More...

virtual ~ACE_Asynch_Write_Dgram (void)
 Destructor. More...

int open (ACE_Handler &handler, ACE_HANDLE handle=ACE_INVALID_HANDLE, const void *completion_key=0, ACE_Proactor *proactor=0)

ssize_t send (ACE_Message_Block *message_block, size_t &number_of_bytes_sent, int flags, const ACE_Addr &remote_addr, const void *act=0, int priority=0, int signal_number=ACE_SIGRTMIN)

virtual ACE_Asynch_Operation_Implimplementation (void) const
 Return the underlying implementation class. More...

- Public Member Functions inherited from ACE_Asynch_Operation
int open (ACE_Handler &handler, ACE_HANDLE handle, const void *completion_key, ACE_Proactor *proactor)

int cancel (void)

ACE_Proactorproactor (void) const
 Return the underlying proactor. More...

virtual ~ACE_Asynch_Operation (void)
 Destructor. More...


Protected Attributes

ACE_Asynch_Write_Dgram_Implimplementation_
 Implementation class that all methods will be forwarded to. More...


Private Member Functions

void operator= (const ACE_Asynch_Write_Dgram &)

 ACE_Asynch_Write_Dgram (const ACE_Asynch_Write_Dgram &)


Additional Inherited Members

- Protected Member Functions inherited from ACE_Asynch_Operation
 ACE_Asynch_Operation (void)
 Constructor. More...

ACE_Proactorget_proactor (ACE_Proactor *user_proactor, ACE_Handler &handler) const
 Get a proactor for/from the user. More...


Detailed Description

This class is a factory for starting off asynchronous writes on a UDP socket. This class forwards all methods to its implementation class.

Once {open} is called, multiple asynchronous {writes}s can started using this class. An ACE_Asynch_Write_Dgram::Result will be passed back to the {handler} when the asynchronous write completes through the {ACE_Handler::handle_write_dgram} callback.

Constructor & Destructor Documentation

ACE_Asynch_Write_Dgram::ACE_Asynch_Write_Dgram ( void  )

A do nothing constructor.

ACE_Asynch_Write_Dgram::~ACE_Asynch_Write_Dgram ( void  )
virtual

Destructor.

ACE_Asynch_Write_Dgram::ACE_Asynch_Write_Dgram ( const ACE_Asynch_Write_Dgram )
private

Member Function Documentation

ACE_Asynch_Operation_Impl * ACE_Asynch_Write_Dgram::implementation ( void  ) const
virtual

Return the underlying implementation class.

Implements ACE_Asynch_Operation.

int ACE_Asynch_Write_Dgram::open ( ACE_Handler handler,
ACE_HANDLE  handle = ACE_INVALID_HANDLE,
const void *  completion_key = 0,
ACE_Proactor proactor = 0
)

Initializes the factory with information which will be used with each asynchronous call. If ({handle} == ACE_INVALID_HANDLE), {ACE_Handler::handle} will be called on the {handler} to get the correct handle.

void ACE_Asynch_Write_Dgram::operator= ( const ACE_Asynch_Write_Dgram )
private
ssize_t ACE_Asynch_Write_Dgram::send ( ACE_Message_Block message_block,
size_t &  number_of_bytes_sent,
int  flags,
const ACE_Addr remote_addr,
const void *  act = 0,
int  priority = 0,
int  signal_number = ACE_SIGRTMIN
)

This starts off an asynchronous send. Upto {message_block->total_length()} will be sent. {message_block}'s {rd_ptr} will be updated to reflect the sent bytes if the send operation is successfully completed. Return code of 1 means immediate success and {number_of_bytes_sent} is updated to number of bytes sent. The {ACE_Handler::handle_write_dgram} method will still be called. Return code of 0 means the IO will complete proactively. Return code of -1 means there was an error, use errno to get the error code.

Scatter/gather is supported on WIN32 by using the {message_block->cont()} method. Up to ACE_IOV_MAX {message_block}'s are supported. Upto {message_block->length()} bytes will be sent from each {message block} for a total of {message_block->total_length()} bytes. All {message_block}'s {rd_ptr}'s will be updated to reflect the bytes sent from each {message_block}.

Priority of the operation is specified by {priority}. On POSIX4-Unix, this is supported. Works like {nice} in Unix. Negative values are not allowed. 0 means priority of the operation same as the process priority. 1 means priority of the operation is one less than process. And so forth. On Win32, this argument is a no-op. {signal_number} is the POSIX4 real-time signal number to be used for the operation. {signal_number} ranges from ACE_SIGRTMIN to ACE_SIGRTMAX. This argument is a no-op on non-POSIX4 systems.

Member Data Documentation

ACE_Asynch_Write_Dgram_Impl* ACE_Asynch_Write_Dgram::implementation_
protected

Implementation class that all methods will be forwarded to.


The documentation for this class was generated from the following files:
