TAO_EC_ProxyPushSupplier Class Referenceabstract

ProxyPushSupplier. More...

#include <EC_ProxySupplier.h>

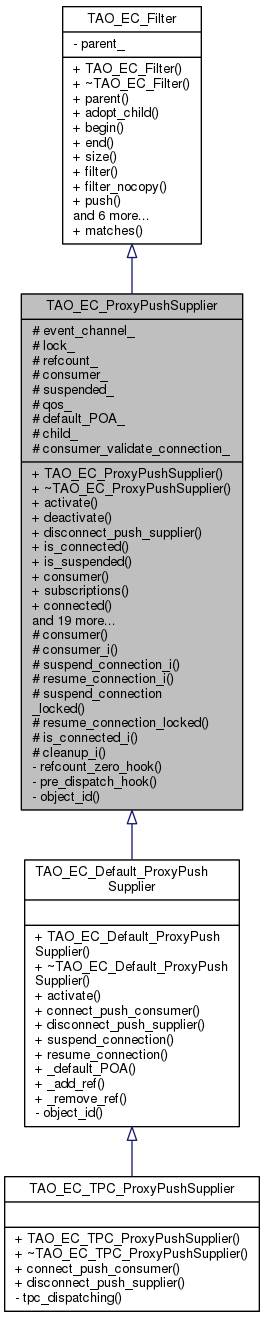

Inheritance diagram for TAO_EC_ProxyPushSupplier:
Inheritance graph

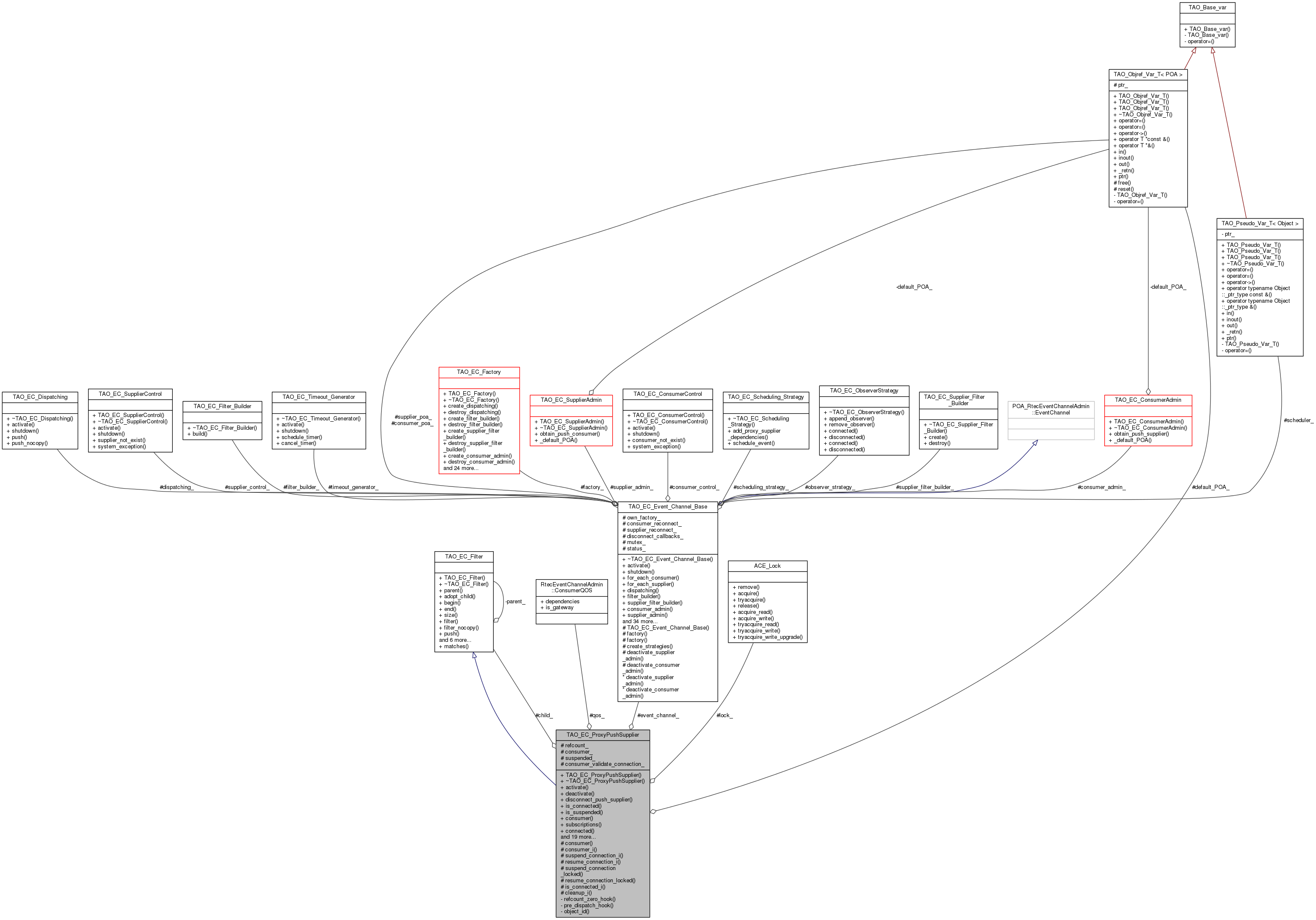

Collaboration diagram for TAO_EC_ProxyPushSupplier:
Collaboration graph

Public Types

typedef
RtecEventChannelAdmin::ProxyPushSupplier
Interface

typedef
RtecEventChannelAdmin::ProxyPushSupplier_var
_var_type

typedef
RtecEventChannelAdmin::ProxyPushSupplier_ptr
_ptr_type

- Public Types inherited from TAO_EC_Filter
typedef TAO_EC_Filtervalue_type

typedef TAO_EC_Filter *const const_value_type

typedef const_value_typeChildrenIterator


Public Member Functions

 TAO_EC_ProxyPushSupplier (TAO_EC_Event_Channel_Base *event_channel, int validate_connection)
 Constructor... More...

virtual ~TAO_EC_ProxyPushSupplier (void)
 Destructor... More...

virtual void activate (RtecEventChannelAdmin::ProxyPushSupplier_ptr &proxy)=0
 Activate in the POA. More...

virtual void deactivate (void) throw ()
 Deactivate from the POA. More...

virtual void disconnect_push_supplier ()=0
 Disconnect this from. More...

CORBA::Boolean is_connected (void) const
 Return false if no consumer is connected... More...

CORBA::Boolean is_suspended (void) const
 Return true if it is suspended. More...

RtecEventComm::PushConsumer_ptr consumer (void) const

const
RtecEventChannelAdmin::ConsumerQOS
subscriptions (void) const
 The QoS (subscription) used to connect to the EC. More...

virtual void connected (TAO_EC_ProxyPushConsumer *consumer)

virtual void reconnected (TAO_EC_ProxyPushConsumer *consumer)

virtual void disconnected (TAO_EC_ProxyPushConsumer *consumer)

virtual void connected (TAO_EC_ProxyPushSupplier *supplier)

virtual void reconnected (TAO_EC_ProxyPushSupplier *supplier)

virtual void disconnected (TAO_EC_ProxyPushSupplier *supplier)

virtual void shutdown (void)
 The event channel is shutting down. More...

void push_to_consumer (RtecEventComm::PushConsumer_ptr consumer, const RtecEventComm::EventSet &event)

void reactive_push_to_consumer (RtecEventComm::PushConsumer_ptr consumer, const RtecEventComm::EventSet &event)

CORBA::Boolean consumer_non_existent (CORBA::Boolean_out disconnected)

CORBA::ULong _incr_refcnt (void)
 Increment and decrement the reference count. More...

CORBA::ULong _decr_refcnt (void)

virtual int filter (const RtecEventComm::EventSet &event, TAO_EC_QOS_Info &qos_info)

virtual int filter_nocopy (RtecEventComm::EventSet &event, TAO_EC_QOS_Info &qos_info)

virtual void push (const RtecEventComm::EventSet &event, TAO_EC_QOS_Info &qos_info)

virtual void push_nocopy (RtecEventComm::EventSet &event, TAO_EC_QOS_Info &qos_info)

virtual void clear (void)

virtual CORBA::ULong max_event_size (void) const
 Returns the maximum size of the events pushed by this filter. More...

virtual int can_match (const RtecEventComm::EventHeader &header) const

virtual int add_dependencies (const RtecEventComm::EventHeader &header, const TAO_EC_QOS_Info &qos_info)

- Public Member Functions inherited from TAO_EC_Filter
 TAO_EC_Filter (void)
 constructor... More...

virtual ~TAO_EC_Filter (void)
 destructor... More...

TAO_EC_Filterparent (void) const
 Obtain the parent of this filter. More...

void adopt_child (TAO_EC_Filter *child)
 Become the parent of child. More...

virtual ChildrenIterator begin (void) const

virtual ChildrenIterator end (void) const

virtual int size (void) const

virtual void get_qos_info (TAO_EC_QOS_Info &qos_info)


Protected Member Functions

void consumer (RtecEventComm::PushConsumer_ptr consumer)

void consumer_i (RtecEventComm::PushConsumer_ptr consumer)

void suspend_connection_i (void)

void resume_connection_i (void)

void suspend_connection_locked (void)

void resume_connection_locked (void)

CORBA::Boolean is_connected_i (void) const
 The private version (without locking) of is_connected(). More...

void cleanup_i (void)
 Release the child and the consumer. More...


Protected Attributes

TAO_EC_Event_Channel_Baseevent_channel_
 The Event Channel that owns this object. More...

ACE_Locklock_
 The locking strategy. More...

CORBA::ULong refcount_
 The reference count. More...

RtecEventComm::PushConsumer_var consumer_
 The consumer.... More...

CORBA::Boolean suspended_
 Is this consumer suspended? More...

RtecEventChannelAdmin::ConsumerQOS qos_
 The subscription and QoS information... More...

PortableServer::POA_var default_POA_
 Store the default POA. More...

TAO_EC_Filterchild_
 The filter object. More...

int consumer_validate_connection_
 Validate the connection to consumer on connect. More...


Private Member Functions

virtual void refcount_zero_hook (void)
 Template method hooks. More...

virtual void pre_dispatch_hook (RtecEventComm::EventSet &)

virtual PortableServer::ObjectId object_id (void)=0


Additional Inherited Members

- Static Public Member Functions inherited from TAO_EC_Filter
static int matches (const RtecEventComm::EventHeader &rhs, const RtecEventComm::EventHeader &lhs)


Detailed Description

ProxyPushSupplier.

Implement the RtecEventChannelAdmin::ProxyPushSupplier interface, remember that this class is used to communicate with a PushConsumer, so, in effect, this is the ambassador for a consumer inside the event channel.

Memory Management

It does not assume ownership of the TAO_EC_Dispatching object. It makes a copy of the ConsumerQOS and the consumer object reference.

Locking

Locking is strategized, the event channel acts as a factory for the locking strategies.

Todo:
We don't need to provide a trivial filter, the object itself could short-circuit the filter() —> push() cycle when the EC is properly configured, we need to explore this...

Member Typedef Documentation

typedef RtecEventChannelAdmin::ProxyPushSupplier_ptr TAO_EC_ProxyPushSupplier::_ptr_type
typedef RtecEventChannelAdmin::ProxyPushSupplier_var TAO_EC_ProxyPushSupplier::_var_type

Constructor & Destructor Documentation

TAO_EC_ProxyPushSupplier::TAO_EC_ProxyPushSupplier ( TAO_EC_Event_Channel_Base event_channel,
int  validate_connection
)

Constructor...

TAO_EC_ProxyPushSupplier::~TAO_EC_ProxyPushSupplier ( void  )
virtual

Destructor...

Member Function Documentation

CORBA::ULong TAO_EC_ProxyPushSupplier::_decr_refcnt ( void  )
CORBA::ULong TAO_EC_ProxyPushSupplier::_incr_refcnt ( void  )

Increment and decrement the reference count.

virtual void TAO_EC_ProxyPushSupplier::activate ( RtecEventChannelAdmin::ProxyPushSupplier_ptr &  proxy)
pure virtual

Activate in the POA.

Implemented in TAO_EC_Default_ProxyPushSupplier.

int TAO_EC_ProxyPushSupplier::add_dependencies ( const RtecEventComm::EventHeader header,
const TAO_EC_QOS_Info qos_info
)
virtual

This is used for computing the scheduling dependencies:

Leaf filters check if the header could be matched, similar to the can_match() method; if it does they return 1, and 0 otherwise. Intermediate nodes always return 0.

This is used to build precise dependencies between the suppliers and the leaf of the filters that accept that event. Notice that only the nodes doing scheduling recurse through the list, so in configurations that do no require scheduling the recursion stops fairly soon.

Implements TAO_EC_Filter.

int TAO_EC_ProxyPushSupplier::can_match ( const RtecEventComm::EventHeader header) const
virtual

Returns 0 if an event with that header could never be accepted. This can used by the suppliers to filter out consumers that couldn't possibly be interested in their events. The rt_info and

Implements TAO_EC_Filter.

void TAO_EC_ProxyPushSupplier::cleanup_i ( void  )
protected

Release the child and the consumer.

void TAO_EC_ProxyPushSupplier::clear ( void  )
virtual

Clear any saved state, must reset and assume no events have been received.

Implements TAO_EC_Filter.

void TAO_EC_ProxyPushSupplier::connected ( TAO_EC_ProxyPushConsumer consumer)
virtual

Concrete implementations can use this methods to keep track of the suppliers that publish its events.

void TAO_EC_ProxyPushSupplier::connected ( TAO_EC_ProxyPushSupplier supplier)
virtual

Usually implemented as no-ops, but some configurations may require this methods.

RtecEventComm::PushConsumer_ptr TAO_EC_ProxyPushSupplier::consumer ( void  ) const

Return the consumer object reference. It returns nil() if it has not connected yet.

void TAO_EC_ProxyPushSupplier::consumer ( RtecEventComm::PushConsumer_ptr  consumer)
protected

Set the consumer, used by some implementations to change the policies used when invoking operations on the consumer.

void TAO_EC_ProxyPushSupplier::consumer_i ( RtecEventComm::PushConsumer_ptr  consumer)
protected
CORBA::Boolean TAO_EC_ProxyPushSupplier::consumer_non_existent ( CORBA::Boolean_out  disconnected)

Invoke the _non_existent() pseudo-operation on the consumer. If it is disconnected then it returns true and sets the <disconnected> flag.

void TAO_EC_ProxyPushSupplier::deactivate ( void  ) throw ()
virtual

Deactivate from the POA.

virtual void TAO_EC_ProxyPushSupplier::disconnect_push_supplier ( )
pure virtual

Disconnect this from.

Implemented in TAO_EC_Default_ProxyPushSupplier, and TAO_EC_TPC_ProxyPushSupplier.

void TAO_EC_ProxyPushSupplier::disconnected ( TAO_EC_ProxyPushConsumer consumer)
virtual
void TAO_EC_ProxyPushSupplier::disconnected ( TAO_EC_ProxyPushSupplier supplier)
virtual
int TAO_EC_ProxyPushSupplier::filter ( const RtecEventComm::EventSet event,
TAO_EC_QOS_Info qos_info
)
virtual

Filter this event, returns 1 if the event is accepted, 0 otherwise. Notice that there are two versions of the method, if the event is not const then filter can take ownership of the event.

Attention
There seems to be a disparity in interfaces: Supplier always push event sets of size 1 to the EC_ProxyPushSupplier, and EC_Filters do not implement handling of sets of more than 1 event. Then, why is this not enforced by the interface by having EC_ProxyPushSupplier take an event rather than a set?

Implements TAO_EC_Filter.

int TAO_EC_ProxyPushSupplier::filter_nocopy ( RtecEventComm::EventSet event,
TAO_EC_QOS_Info qos_info
)
virtual

Implements TAO_EC_Filter.

CORBA::Boolean TAO_EC_ProxyPushSupplier::is_connected ( void  ) const

Return false if no consumer is connected...

CORBA::Boolean TAO_EC_ProxyPushSupplier::is_connected_i ( void  ) const
protected

The private version (without locking) of is_connected().

CORBA::Boolean TAO_EC_ProxyPushSupplier::is_suspended ( void  ) const

Return true if it is suspended.

CORBA::ULong TAO_EC_ProxyPushSupplier::max_event_size ( void  ) const
virtual

Returns the maximum size of the events pushed by this filter.

Implements TAO_EC_Filter.

virtual PortableServer::ObjectId TAO_EC_ProxyPushSupplier::object_id ( void  )
privatepure virtual
void TAO_EC_ProxyPushSupplier::pre_dispatch_hook ( RtecEventComm::EventSet )
privatevirtual
void TAO_EC_ProxyPushSupplier::push ( const RtecEventComm::EventSet event,
TAO_EC_QOS_Info qos_info
)
virtual

This is called by the children when they accept an event and which to pass it up. Notice that there are two versions of the method, if the event is not const then filter can take ownership of the event.

Implements TAO_EC_Filter.

void TAO_EC_ProxyPushSupplier::push_nocopy ( RtecEventComm::EventSet event,
TAO_EC_QOS_Info qos_info
)
virtual

Implements TAO_EC_Filter.

void TAO_EC_ProxyPushSupplier::push_to_consumer ( RtecEventComm::PushConsumer_ptr  consumer,
const RtecEventComm::EventSet event
)

Pushes to the consumer, verifies that it is connected and that it is not suspended. These methods take consumer argument because during the time the filters have been processing the event, this proxy's consumer may have changed.

void TAO_EC_ProxyPushSupplier::reactive_push_to_consumer ( RtecEventComm::PushConsumer_ptr  consumer,
const RtecEventComm::EventSet event
)
void TAO_EC_ProxyPushSupplier::reconnected ( TAO_EC_ProxyPushConsumer consumer)
virtual
void TAO_EC_ProxyPushSupplier::reconnected ( TAO_EC_ProxyPushSupplier supplier)
virtual
void TAO_EC_ProxyPushSupplier::refcount_zero_hook ( void  )
privatevirtual

Template method hooks.

void TAO_EC_ProxyPushSupplier::resume_connection_i ( void  )
protected
void TAO_EC_ProxyPushSupplier::resume_connection_locked ( void  )
protected
void TAO_EC_ProxyPushSupplier::shutdown ( void  )
virtual

The event channel is shutting down.

const RtecEventChannelAdmin::ConsumerQOS & TAO_EC_ProxyPushSupplier::subscriptions ( void  ) const

The QoS (subscription) used to connect to the EC.

void TAO_EC_ProxyPushSupplier::suspend_connection_i ( void  )
protected
void TAO_EC_ProxyPushSupplier::suspend_connection_locked ( void  )
protected

Member Data Documentation

TAO_EC_Filter* TAO_EC_ProxyPushSupplier::child_
protected

The filter object.

RtecEventComm::PushConsumer_var TAO_EC_ProxyPushSupplier::consumer_
protected

The consumer....

int TAO_EC_ProxyPushSupplier::consumer_validate_connection_
protected

Validate the connection to consumer on connect.

PortableServer::POA_var TAO_EC_ProxyPushSupplier::default_POA_
protected

Store the default POA.

TAO_EC_Event_Channel_Base* TAO_EC_ProxyPushSupplier::event_channel_
protected

The Event Channel that owns this object.

ACE_Lock* TAO_EC_ProxyPushSupplier::lock_
protected

The locking strategy.

RtecEventChannelAdmin::ConsumerQOS TAO_EC_ProxyPushSupplier::qos_
protected

The subscription and QoS information...

CORBA::ULong TAO_EC_ProxyPushSupplier::refcount_
protected

The reference count.

CORBA::Boolean TAO_EC_ProxyPushSupplier::suspended_
protected

Is this consumer suspended?


The documentation for this class was generated from the following files:
