TAO_Synch_Reply_Dispatcher Class Reference

Reply dispatcher for Synchronous Method Invocation (SMI)s. More...

#include <Synch_Reply_Dispatcher.h>

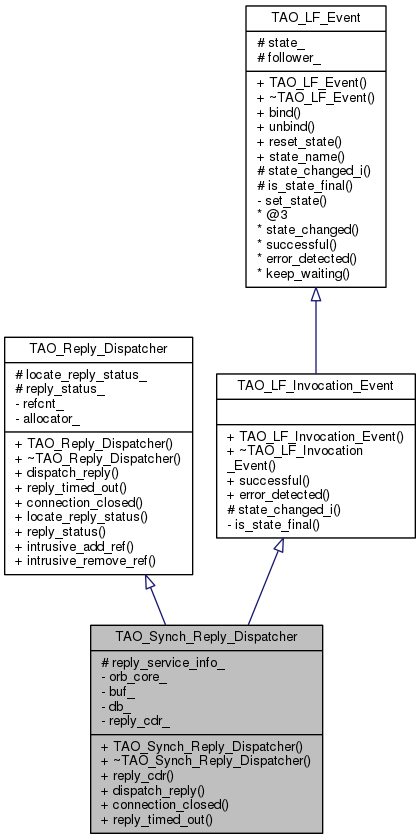

Inheritance diagram for TAO_Synch_Reply_Dispatcher:
Inheritance graph

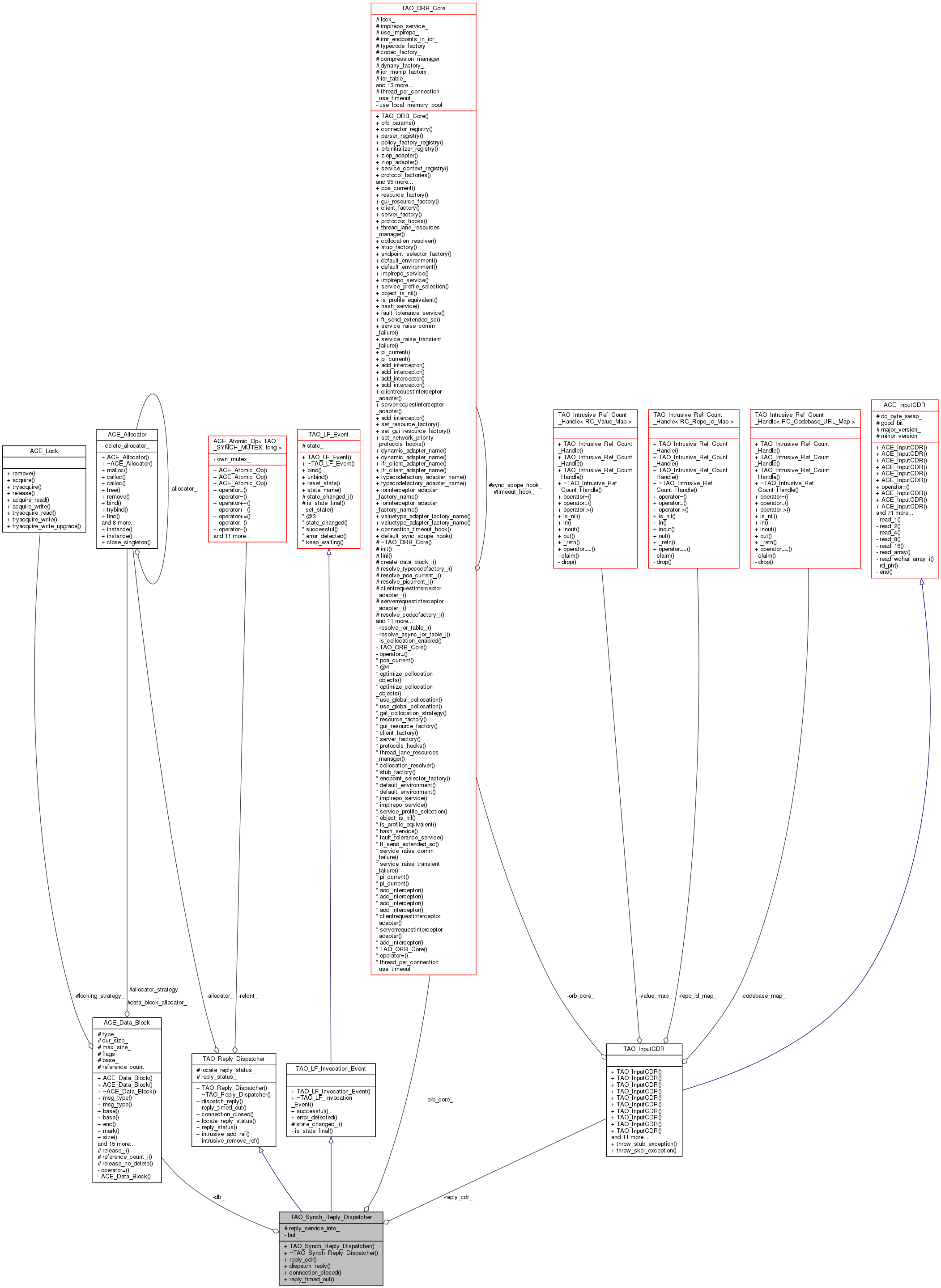

Collaboration diagram for TAO_Synch_Reply_Dispatcher:
Collaboration graph

Public Member Functions

 TAO_Synch_Reply_Dispatcher (TAO_ORB_Core *orb_core, IOP::ServiceContextList &sc)
 Constructor. More...
virtual ~TAO_Synch_Reply_Dispatcher (void)
 Destructor. More...
TAO_InputCDRreply_cdr (void)
 Return the reply CDR. More...
virtual int dispatch_reply (TAO_Pluggable_Reply_Params &params)
virtual void connection_closed (void)
virtual void reply_timed_out (void)
 Inform that the reply timed out. More...
- Public Member Functions inherited from TAO_Reply_Dispatcher
 TAO_Reply_Dispatcher (ACE_Allocator *allocator=0)
 Constructor. More...
virtual ~TAO_Reply_Dispatcher (void)
 Destructor. More...
GIOP::LocateStatusType locate_reply_status (void) const
 Get the locate reply status. More...
GIOP::ReplyStatusType reply_status (void) const
- Public Member Functions inherited from TAO_LF_Invocation_Event
 TAO_LF_Invocation_Event (void)
 Constructor. More...
virtual ~TAO_LF_Invocation_Event (void)
 Destructor. More...
int successful (void) const
int error_detected (void) const
- Public Member Functions inherited from TAO_LF_Event
 TAO_LF_Event (void)
 Constructor. More...
virtual ~TAO_LF_Event (void)
 Destructor. More...
virtual int bind (TAO_LF_Follower *follower)
 Bind a follower. More...
virtual int unbind (TAO_LF_Follower *follower)
 Unbind the follower. More...
void reset_state (int new_state)
 Reset the state, irrespective of the previous states. More...
void state_changed (int new_state, TAO_Leader_Follower &lf)
int keep_waiting (void)
 Check if we should keep waiting. More...

Protected Attributes

 The service context list. More...
- Protected Attributes inherited from TAO_Reply_Dispatcher
GIOP::LocateStatusType locate_reply_status_
 LocateReply status. More...
GIOP::ReplyStatusType reply_status_

Private Attributes

 Cache the ORB Core pointer. More...
 The buffer that is used to initialise the data block. More...
ACE_Data_Block db_
TAO_InputCDR reply_cdr_

Additional Inherited Members

- Public Types inherited from TAO_LF_Event
enum  {
- Static Public Member Functions inherited from TAO_Reply_Dispatcher
static void intrusive_add_ref (TAO_Reply_Dispatcher *)
static void intrusive_remove_ref (TAO_Reply_Dispatcher *)
- Static Public Member Functions inherited from TAO_LF_Event
static const char * state_name (int st)
- Protected Member Functions inherited from TAO_LF_Invocation_Event
virtual void state_changed_i (int new_state)
 Validate and perform the state change. More...

Detailed Description

Reply dispatcher for Synchronous Method Invocation (SMI)s.

Constructor & Destructor Documentation

TAO_Synch_Reply_Dispatcher::TAO_Synch_Reply_Dispatcher ( TAO_ORB_Core orb_core,
IOP::ServiceContextList sc


TAO_Synch_Reply_Dispatcher::~TAO_Synch_Reply_Dispatcher ( void  )


Member Function Documentation

void TAO_Synch_Reply_Dispatcher::connection_closed ( void  )

The used for the pending reply has been closed. No reply is expected.

If the connection was closed due to a CloseConnection message then we could re-issue the request instead of raising the exception, it would a matter of simply adding a boolean argument to this function.

Implements TAO_Reply_Dispatcher.

int TAO_Synch_Reply_Dispatcher::dispatch_reply ( TAO_Pluggable_Reply_Params params)

Dispatch the reply. Return 1 on sucess, -1 on error.

Pluggable Messaging: this method has too many arguments, the "Right Thing"[tm] is for the Transport Object to create a "ClientReply" that encapsulates all we need to process a reply. Naturally it is possible that different messaging protocols implement different variants of such ClientReply class.

Implements TAO_Reply_Dispatcher.

TAO_InputCDR & TAO_Synch_Reply_Dispatcher::reply_cdr ( void  )

Return the reply CDR.

void TAO_Synch_Reply_Dispatcher::reply_timed_out ( void  )

Inform that the reply timed out.

Implements TAO_Reply_Dispatcher.

Member Data Documentation

char TAO_Synch_Reply_Dispatcher::buf_[ACE_CDR::DEFAULT_BUFSIZE]

The buffer that is used to initialise the data block.

ACE_Data_Block TAO_Synch_Reply_Dispatcher::db_

Datablock that is created on the stack to initialise the CDR stream underneath.

TAO_ORB_Core* TAO_Synch_Reply_Dispatcher::orb_core_

Cache the ORB Core pointer.

TAO_InputCDR TAO_Synch_Reply_Dispatcher::reply_cdr_

CDR stream which has the reply information that needs to be demarshalled by the stubs

IOP::ServiceContextList& TAO_Synch_Reply_Dispatcher::reply_service_info_

The service context list.

The documentation for this class was generated from the following files:
