TAO_Asynch_Reply_Dispatcher_Base Class Reference

Base class for TAO_Asynch_Reply_Dispatcher and TAO_DII_Deferred_Reply_Dispatcher. More...

#include <Asynch_Reply_Dispatcher_Base.h>

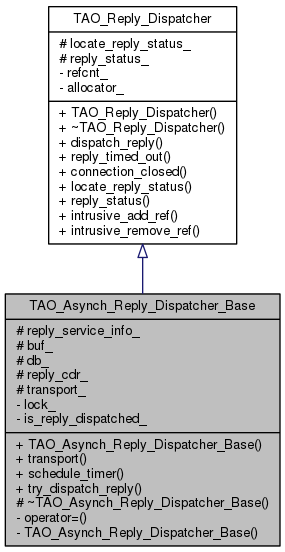

Inheritance diagram for TAO_Asynch_Reply_Dispatcher_Base:

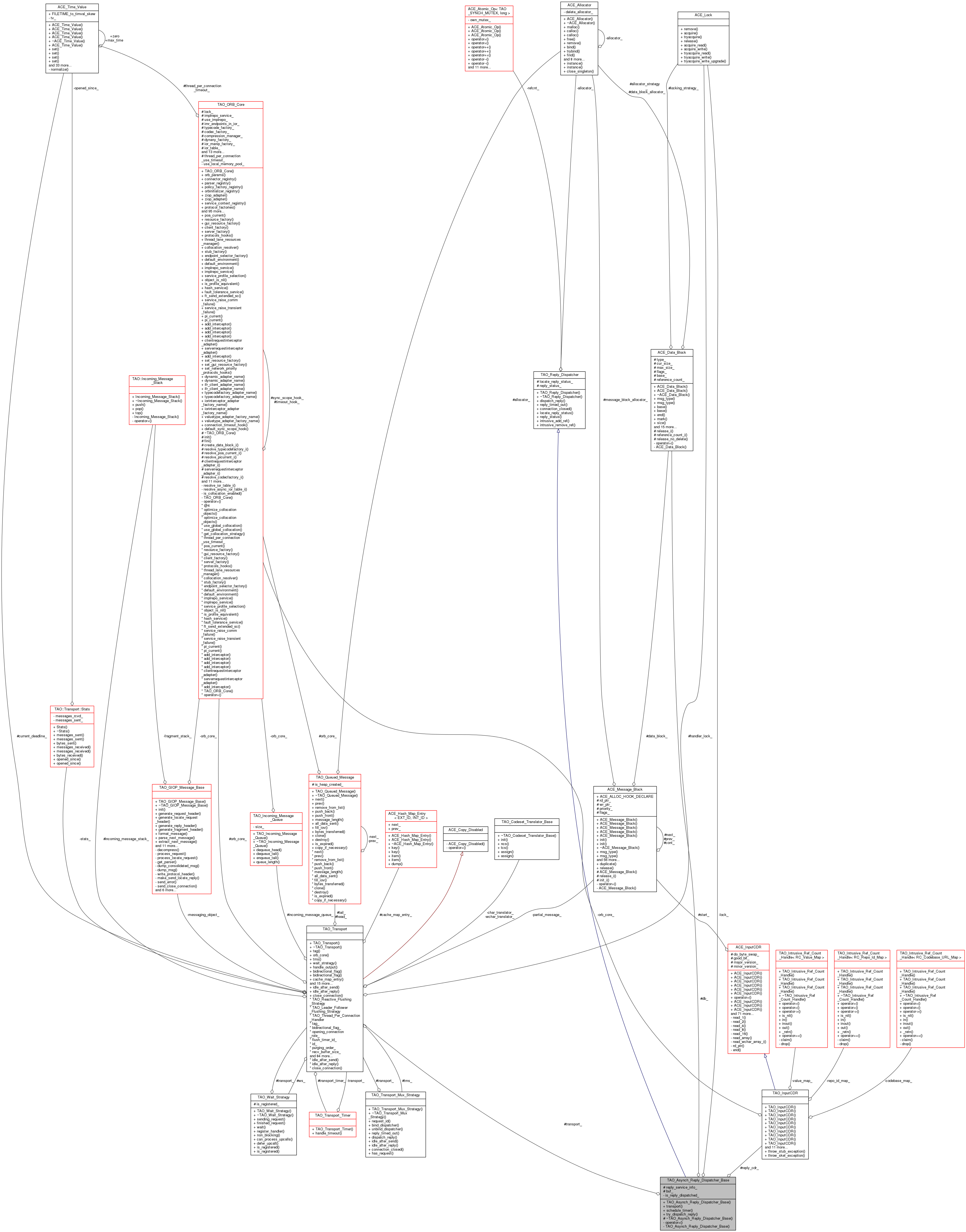

Collaboration diagram for TAO_Asynch_Reply_Dispatcher_Base:

Public Member Functions
	TAO_Asynch_Reply_Dispatcher_Base (TAO_ORB_Core *orb_core, ACE_Allocator *allocator=0)
	Default constructor. More...
void	transport (TAO_Transport *t)
	Sets the transport for this invocation. More...
virtual long	schedule_timer (CORBA::ULong, const ACE_Time_Value &)=0
	Install the timeout handler. More...
bool	try_dispatch_reply (void)
	A helper method that can be used by the subclasses. More...
Public Member Functions inherited from TAO_Reply_Dispatcher
	TAO_Reply_Dispatcher (ACE_Allocator *allocator=0)
	Constructor. More...
virtual	~TAO_Reply_Dispatcher (void)
	Destructor. More...
virtual int	dispatch_reply (TAO_Pluggable_Reply_Params &params)=0
virtual void	reply_timed_out (void)=0
	Inform that the reply timed out. More...
virtual void	connection_closed (void)=0
GIOP::LocateStatusType	locate_reply_status (void) const
	Get the locate reply status. More...
GIOP::ReplyStatusType	reply_status (void) const

Protected Member Functions
virtual	~TAO_Asynch_Reply_Dispatcher_Base (void)
	Destructor. More...

Protected Attributes
IOP::ServiceContextList	reply_service_info_
	The service context list. More...
char	buf_ [ACE_CDR::DEFAULT_BUFSIZE]
	The buffer that is used to initialise the data block. More...
ACE_Data_Block	db_
TAO_InputCDR	reply_cdr_
TAO_Transport *	transport_
	This invocation is using this transport, may change... More...
Protected Attributes inherited from TAO_Reply_Dispatcher
GIOP::LocateStatusType	locate_reply_status_
	LocateReply status. More...
GIOP::ReplyStatusType	reply_status_

Private Member Functions
void	operator= (const TAO_Asynch_Reply_Dispatcher_Base &)
	TAO_Asynch_Reply_Dispatcher_Base (const TAO_Asynch_Reply_Dispatcher_Base &)

Private Attributes
ACE_Lock *	lock_
	Lock to protect is_reply_dispatched_ flag. More...
bool	is_reply_dispatched_
	Has the reply been dispatched? More...

Additional Inherited Members
Static Public Member Functions inherited from TAO_Reply_Dispatcher
static void	intrusive_add_ref (TAO_Reply_Dispatcher *)
static void	intrusive_remove_ref (TAO_Reply_Dispatcher *)

Detailed Description

Base class for TAO_Asynch_Reply_Dispatcher and TAO_DII_Deferred_Reply_Dispatcher.

Constructor & Destructor Documentation

TAO_Asynch_Reply_Dispatcher_Base::TAO_Asynch_Reply_Dispatcher_Base	(	TAO_ORB_Core *	orb_core,
		ACE_Allocator *	allocator = 0
	)

Default constructor.

TAO_Asynch_Reply_Dispatcher_Base::~TAO_Asynch_Reply_Dispatcher_Base ( void  )

protectedvirtual

Destructor.

TAO_Asynch_Reply_Dispatcher_Base::TAO_Asynch_Reply_Dispatcher_Base ( const TAO_Asynch_Reply_Dispatcher_Base &  )

private

Member Function Documentation

void TAO_Asynch_Reply_Dispatcher_Base::operator= ( const TAO_Asynch_Reply_Dispatcher_Base &  )

private

virtual long TAO_Asynch_Reply_Dispatcher_Base::schedule_timer ( CORBA::ULong  , const ACE_Time_Value &    )

pure virtual

Install the timeout handler.

void TAO_Asynch_Reply_Dispatcher_Base::transport

(

TAO_Transport *

t

)

Sets the transport for this invocation.

bool TAO_Asynch_Reply_Dispatcher_Base::try_dispatch_reply

(

void

)

A helper method that can be used by the subclasses.

The semantics of this helper method needs careful attention. A call to this method will do the following

• If the reply has already been dispatched, the return value will be false to signify not to try.

• If the reply has not been dispatched, this method will set the flag to be true and return a true value to signify that the caller thread can go ahead and dispatch reply.

Why are we clumping everything in one method. Answer is we need atomicity?

Member Data Documentation

char TAO_Asynch_Reply_Dispatcher_Base::buf_[ACE_CDR::DEFAULT_BUFSIZE]

protected

The buffer that is used to initialise the data block.

ACE_Data_Block TAO_Asynch_Reply_Dispatcher_Base::db_

protected

Datablock that is created on the stack to initialise the CDR stream underneath.

bool TAO_Asynch_Reply_Dispatcher_Base::is_reply_dispatched_

private

Has the reply been dispatched?

ACE_Lock* TAO_Asynch_Reply_Dispatcher_Base::lock_

private

Lock to protect is_reply_dispatched_ flag.

TAO_InputCDR TAO_Asynch_Reply_Dispatcher_Base::reply_cdr_

protected

CDR stream which has the reply information that needs to be demarshalled by the stubs

IOP::ServiceContextList TAO_Asynch_Reply_Dispatcher_Base::reply_service_info_

protected

The service context list.

Note, that this is not a reference as in the synchronous case. We own the reply_service_info because our TAO_Asynch_Invocation or TAO_DII_Deferred_Invocation will go out of scope before we are done.

TAO_Transport* TAO_Asynch_Reply_Dispatcher_Base::transport_

protected

This invocation is using this transport, may change...

---

The documentation for this class was generated from the following files:

• Asynch_Reply_Dispatcher_Base.h
• Asynch_Reply_Dispatcher_Base.cpp
