#include <SSLIOP_Endpoint.h>

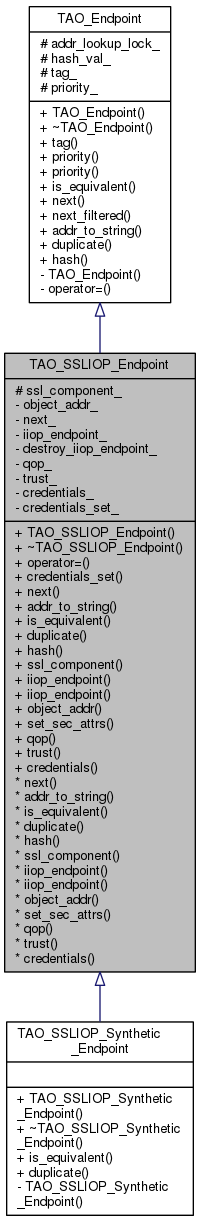

Inheritance diagram for TAO_SSLIOP_Endpoint:

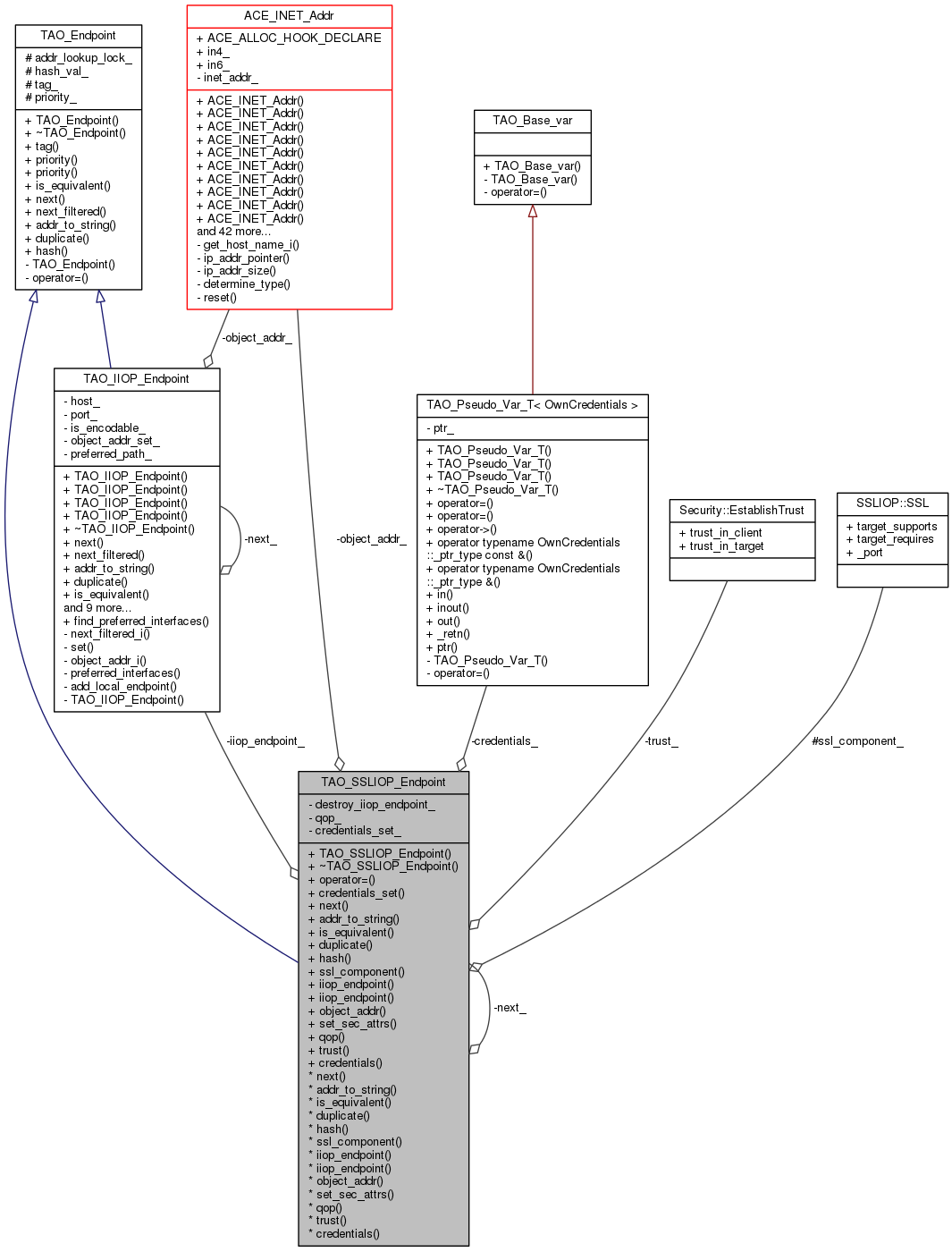

Collaboration diagram for TAO_SSLIOP_Endpoint:

Public Member Functions
	TAO_SSLIOP_Endpoint (const ::SSLIOP::SSL ssl_component, TAO_IIOP_Endpoint iiop_endp)
	Constructor. More...

virtual	~TAO_SSLIOP_Endpoint (void)
	Destructor. More...

TAO_SSLIOP_Endpoint &	operator= (const TAO_SSLIOP_Endpoint &other)

int	credentials_set (void) const

TAO_Endpoint Methods
See Endpoint.h for their documentation.
virtual TAO_Endpoint *	next (void)

virtual int	addr_to_string (char *buffer, size_t length)

CORBA::Boolean	is_equivalent (const TAO_Endpoint *other_endpoint)

virtual TAO_Endpoint *	duplicate (void)

virtual CORBA::ULong	hash (void)

SSLIOP_Endpoint-specific Methods
const ::SSLIOP::SSL &	ssl_component (void) const
	Return SSL component corresponding to this endpoint. More...

TAO_IIOP_Endpoint *	iiop_endpoint (void) const
	Accessor to our IIOP counterpart. More...

void	iiop_endpoint (TAO_IIOP_Endpoint *endpoint, bool destroy)
	Mutator to our IIOP counterpart. More...

const ACE_INET_Addr &	object_addr (void) const
	Return the SSLIOP-specific ACE_INET_Addr. More...

void	set_sec_attrs (::Security::QOP qop, const ::Security::EstablishTrust &trust, const TAO::SSLIOP::OwnCredentials_ptr creds)

::Security::QOP	qop (void) const
	Get the Quality-of-Protection settings for this endpoint. More...

::Security::EstablishTrust	trust (void) const
	Get the establishment of trust settings for this endpoint. More...

TAO::SSLIOP::OwnCredentials *	credentials (void) const
	Get the credentials for this endpoint. More...

Public Member Functions inherited from TAO_Endpoint
	TAO_Endpoint (CORBA::ULong tag, CORBA::Short priority=TAO_INVALID_PRIORITY)

virtual	~TAO_Endpoint (void)

CORBA::ULong	tag (void) const

void	priority (CORBA::Short priority)

CORBA::Short	priority (void) const

virtual TAO_Endpoint *	next_filtered (TAO_ORB_Core , TAO_Endpoint root)

Protected Attributes
::SSLIOP::SSL	ssl_component_

Protected Attributes inherited from TAO_Endpoint
TAO_SYNCH_MUTEX	addr_lookup_lock_

CORBA::ULong	hash_val_

CORBA::ULong const	tag_

CORBA::Short	priority_

Private Attributes
ACE_INET_Addr	object_addr_

TAO_SSLIOP_Endpoint *	next_

TAO_IIOP_Endpoint *	iiop_endpoint_
	IIOP counterpart. More...

bool	destroy_iiop_endpoint_

::Security::QOP	qop_
	Quailty-of-Protection settings for this endpoint object. More...

::Security::EstablishTrust	trust_
	Establishment of trust settings for this endpoint object. More...

TAO::SSLIOP::OwnCredentials_var	credentials_
	SSLIOP-specific credentials for this endpoint object. More...

int	credentials_set_
	A flag indicating that credentials_ was explicitly initialized. More...

Friends
class	TAO_SSLIOP_Profile

Constructor & Destructor Documentation

TAO_SSLIOP_Endpoint::TAO_SSLIOP_Endpoint	(	const ::SSLIOP::SSL *	ssl_component,
		TAO_IIOP_Endpoint *	iiop_endp
	)

Constructor.

TAO_SSLIOP_Endpoint::~TAO_SSLIOP_Endpoint ( void )

virtual

Destructor.

Member Function Documentation

int TAO_SSLIOP_Endpoint::addr_to_string	(	char *	buffer,
		size_t	length
	)

virtual

Return true if this endpoint is equivalent to other_endpoint The relationship is defined as equivalency of their qop, hostname and ssl ports (if non-zero). Two endpoints may be equivalent even if their iiop counterparts are not. In fact, there are cases (as with the LPL processing) when those counterparts are not known at all.

Implements TAO_Endpoint.

TAO::SSLIOP::OwnCredentials * TAO_SSLIOP_Endpoint::credentials ( void ) const

Get the credentials for this endpoint.

Note: This method does not follow C++ mapping memory management rules. Specifically, no duplication or reference counting occurs in this method. This is so that no additional locks occur when checking the transport cache.

int TAO_SSLIOP_Endpoint::credentials_set ( void ) const

Credentials are not supplied by the constructor, and it is valid to have a nil credential, for instance if the SSL_use_certificate() method returns 0. Therefore it is necessary to have a new method to distinguish between a credential that is nil because it has not been set, vs one that was set to nil explicitly.

TAO_Endpoint * TAO_SSLIOP_Endpoint::duplicate ( void )

virtual

Return a copy of the corresponding endpoints by allocating memory.

Implements TAO_Endpoint.

Reimplemented in TAO_SSLIOP_Synthetic_Endpoint.

CORBA::ULong TAO_SSLIOP_Endpoint::hash ( void )

virtual

Return a hash value for this object. Note that only the IP address and port are used to generate the hash value. This may cause a few more hash table collisions in the transport cache, because a synthesized SSLIOP endpoints for an address will have the same hash value as a fully qualified one. The redeeming feature is that it makes / bi-directional SSLIOP work by allowing descendent class (Synthetic_Endpoint) instances to be used as keys in the cache manager and match other fully qualified endpoint. (which were used earlier to cache a particular transport)

Implements TAO_Endpoint.

TAO_IIOP_Endpoint * TAO_SSLIOP_Endpoint::iiop_endpoint ( void ) const

Accessor to our IIOP counterpart.

void TAO_SSLIOP_Endpoint::iiop_endpoint	(	TAO_IIOP_Endpoint *	endpoint,
		bool	destroy
	)

Mutator to our IIOP counterpart.

Parameters

endpoint	The new endpoint
destroy	If set to `true`, the TAO::SSLIOP::Endpoint object retains ownership of the given TAO_IIOP_Endpoint.

CORBA::Boolean TAO_SSLIOP_Endpoint::is_equivalent ( const TAO_Endpoint * other_endpoint )

virtual

Return true if this endpoint is equivalent to other_endpoint The relationship is defined as equivalency of their qop, hostname and ssl ports (if non-zero). Two endpoints may be equivalent even if their iiop counterparts are not. In fact, there are cases (as with the LPL processing) when those counterparts are not known at all.

Implements TAO_Endpoint.

Reimplemented in TAO_SSLIOP_Synthetic_Endpoint.

TAO_Endpoint * TAO_SSLIOP_Endpoint::next ( void )

virtual

Return true if this endpoint is equivalent to other_endpoint The relationship is defined as equivalency of their qop, hostname and ssl ports (if non-zero). Two endpoints may be equivalent even if their iiop counterparts are not. In fact, there are cases (as with the LPL processing) when those counterparts are not known at all.

Implements TAO_Endpoint.

const ACE_INET_Addr & TAO_SSLIOP_Endpoint::object_addr ( void ) const

Return the SSLIOP-specific ACE_INET_Addr.

TAO_SSLIOP_Endpoint & TAO_SSLIOP_Endpoint::operator= ( const TAO_SSLIOP_Endpoint & other )

Need to have an assignment operator since the SSLIOP_Profile class may have to reorder its list of endpoints based on filtering by the EndpointPolicy.

Security::QOP TAO_SSLIOP_Endpoint::qop ( void ) const

Get the Quality-of-Protection settings for this endpoint.

void TAO_SSLIOP_Endpoint::set_sec_attrs	(	::Security::QOP	qop,
		const ::Security::EstablishTrust &	trust,
		const TAO::SSLIOP::OwnCredentials_ptr	creds
	)

Set the Quality-of-Protection, establishment of trust, and credentials for this endpoint. This is all done in one function so that the guard may be used uniformly.

const ::SSLIOP::SSL & TAO_SSLIOP_Endpoint::ssl_component ( void ) const

Return SSL component corresponding to this endpoint.

Security::EstablishTrust TAO_SSLIOP_Endpoint::trust ( void ) const

Get the establishment of trust settings for this endpoint.

Friends And Related Function Documentation

friend class TAO_SSLIOP_Profile

friend

Member Data Documentation

TAO::SSLIOP::OwnCredentials_var TAO_SSLIOP_Endpoint::credentials_

private

SSLIOP-specific credentials for this endpoint object.

int TAO_SSLIOP_Endpoint::credentials_set_

private

A flag indicating that credentials_ was explicitly initialized.

bool TAO_SSLIOP_Endpoint::destroy_iiop_endpoint_

private

Flag that determines whether or not the iiop_endpoint_ member is deallocated with delete().

TAO_IIOP_Endpoint* TAO_SSLIOP_Endpoint::iiop_endpoint_

private

IIOP counterpart.

Since SSLIOP is an 'extension' of IIOP, each SSLIOP_Endpoint contains SSL-specific information plus a pointer to the IIOP_Endpoint containing the IIOP portion of our address.

TAO_SSLIOP_Endpoint* TAO_SSLIOP_Endpoint::next_

private

IIOP Endpoints can be strung into a list. Return the next endpoint in the list, if any.

ACE_INET_Addr TAO_SSLIOP_Endpoint::object_addr_

mutableprivate

Cached instance of ACE_INET_Addr for use in making invocations, etc.

::Security::QOP TAO_SSLIOP_Endpoint::qop_

private

Quailty-of-Protection settings for this endpoint object.

::SSLIOP::SSL TAO_SSLIOP_Endpoint::ssl_component_

protected

Cache the SSL tagged component in a decoded format. Notice that we do not need to marshal this object!

::Security::EstablishTrust TAO_SSLIOP_Endpoint::trust_

private

Establishment of trust settings for this endpoint object.
