TAO_Notify_ProxySupplier Class Reference

Base class for all the ProxySuppliers. More...

#include <ProxySupplier.h>

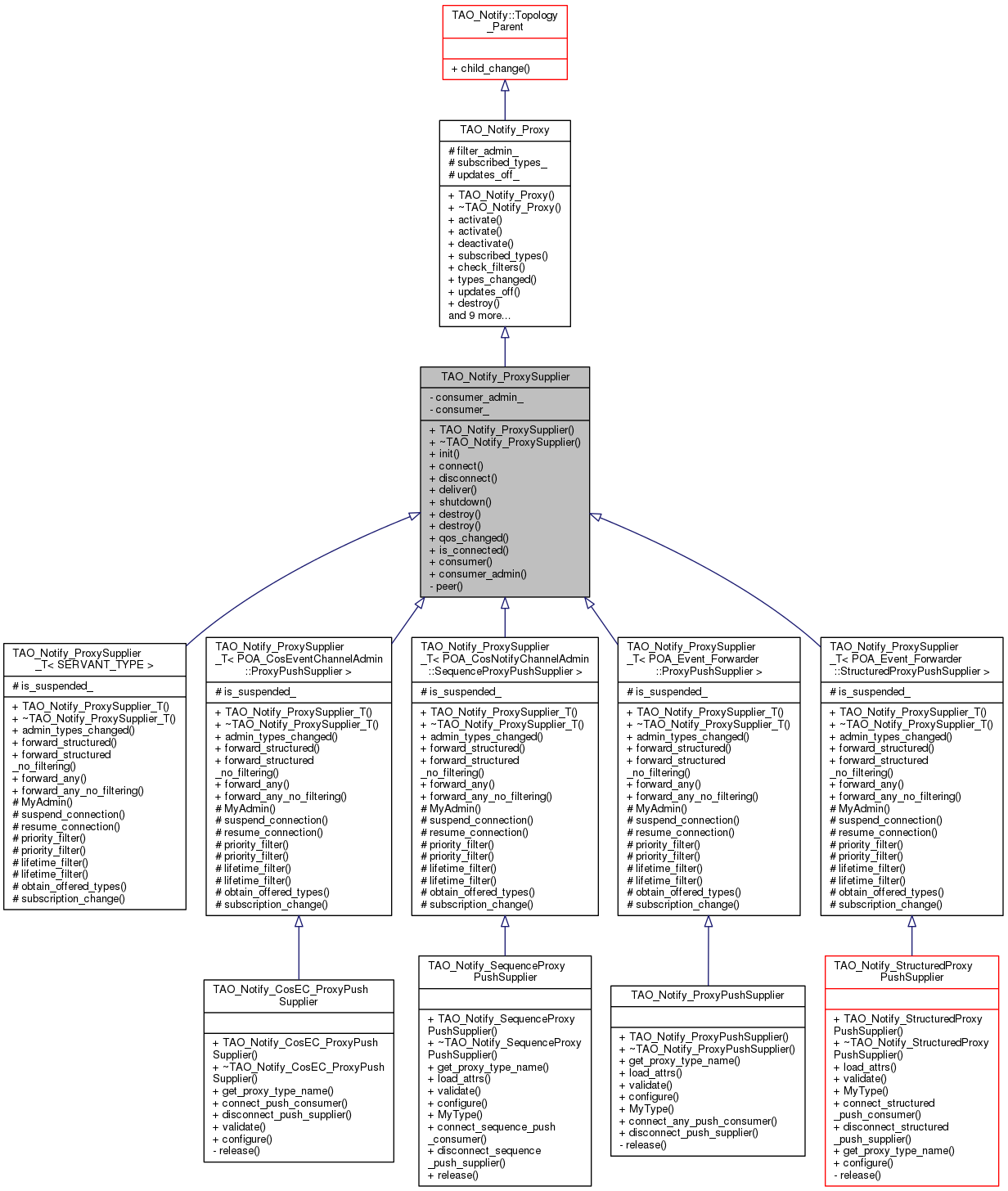

Inheritance diagram for TAO_Notify_ProxySupplier:
Inheritance graph

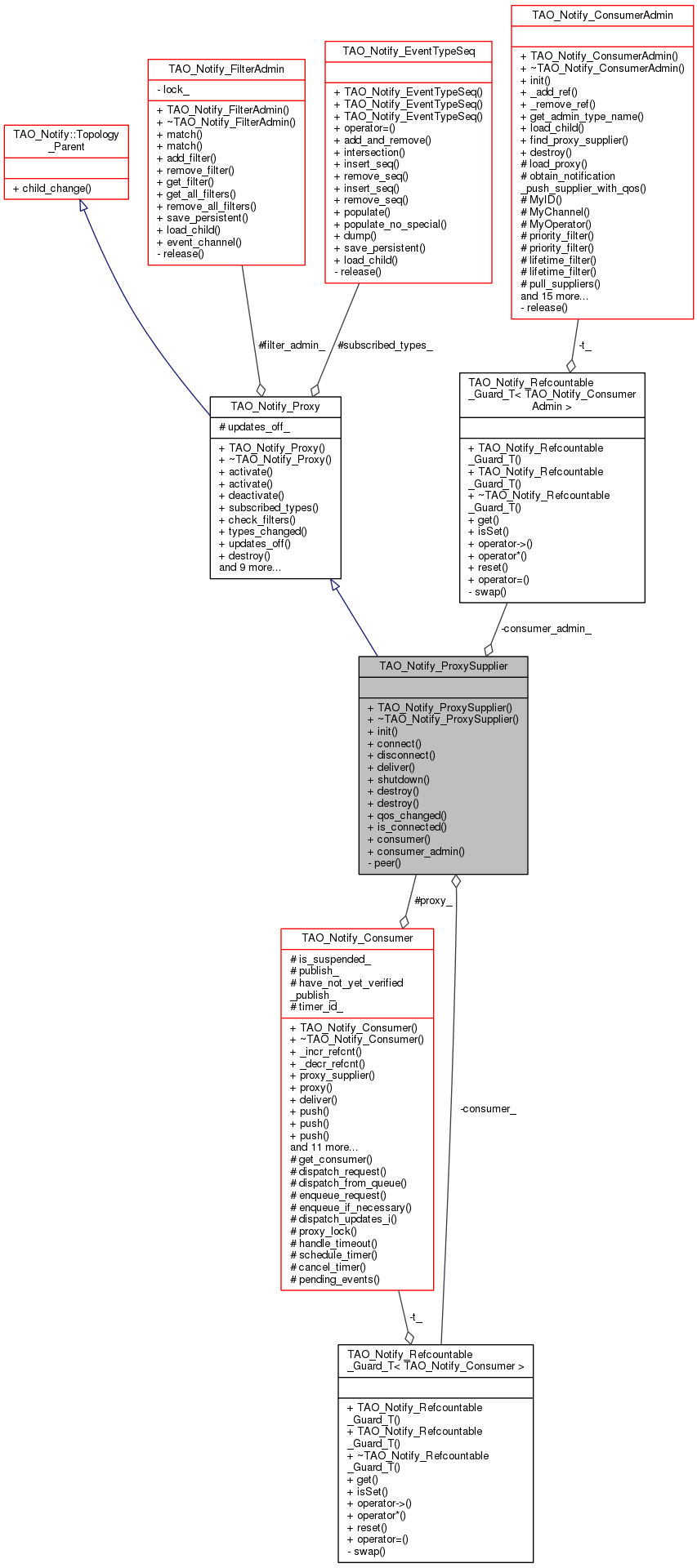

Collaboration diagram for TAO_Notify_ProxySupplier:
Collaboration graph

Public Types

< TAO_Notify_ProxySupplier
- Public Types inherited from TAO_Notify_Proxy
< TAO_Notify_Proxy

Public Member Functions

 TAO_Notify_ProxySupplier (void)
 Constructor. More...
virtual ~TAO_Notify_ProxySupplier ()
 Destructor. More...
virtual void init (TAO_Notify_ConsumerAdmin *consumer_admin)
 Init. More...
void connect (TAO_Notify_Consumer *consumer)
 Connect. More...
void disconnect (void)
 Disconnect. More...
virtual void deliver (TAO_Notify_Method_Request_Dispatch_No_Copy &request)
 Dispatch Event to consumer. More...
virtual int shutdown (void)
 Override TAO_Notify_Container_T::shutdown method. More...
virtual void destroy (void)
 Destroy this object. More...
void destroy (bool from_timeout)
virtual void qos_changed (const TAO_Notify_QoSProperties &qos_properties)
 Override, TAO_Notify_Proxy::qos_changed to apply MaxEventssPerConsumer QoS. More...
bool is_connected (void) const
 Returns true if connected. More...
TAO_Notify_Consumerconsumer (void)
 Access the Consumer. More...
TAO_Notify_ConsumerAdminconsumer_admin (void)
 The CA parent. More...
- Public Member Functions inherited from TAO_Notify_Proxy
 TAO_Notify_Proxy (void)
 Constructor. More...
virtual ~TAO_Notify_Proxy ()
 Destructor. More...
virtual CORBA::Object_ptr activate (PortableServer::Servant servant)
 Activate. More...
virtual CORBA::Object_ptr activate (PortableServer::Servant servant, CORBA::Long id)
 Activate with a given ID. More...
void deactivate (void)
 Deactivate. More...
void subscribed_types (TAO_Notify_EventTypeSeq &subscribed_types)
 Obtain the Proxy's subscribed types. More...
CORBA::Boolean check_filters (const TAO_Notify_Event *event, TAO_Notify_FilterAdmin &parent_filter_admin, CosNotifyChannelAdmin::InterFilterGroupOperator filter_operator)
 Check if this event passes the admin and proxy filters. More...
void types_changed (const TAO_Notify_EventTypeSeq &added, const TAO_Notify_EventTypeSeq &removed)
 Inform this proxy that the following types are being advertised. More...
CORBA::Boolean updates_off (void)
 Have updates been turned off. More...
obtain_types (CosNotifyChannelAdmin::ObtainInfoMode mode, const TAO_Notify_EventTypeSeq &types)
 Implement the Obtain Types. More...
virtual void admin_types_changed (const CosNotification::EventTypeSeq &added, const CosNotification::EventTypeSeq &removed)=0
 Notification of subscriptions/offers set at the admin. More...
virtual void save_persistent (TAO_Notify::Topology_Saver &saver)
virtual void save_attrs (TAO_Notify::NVPList &attrs)
virtual const char * get_proxy_type_name (void) const =0
load_child (const ACE_CString &type, CORBA::Long id, const TAO_Notify::NVPList &attrs)
 Create a child of the appropriate type and return it. More...
virtual void validate ()=0
- Public Member Functions inherited from TAO_Notify::Topology_Parent
bool child_change (void)
- Public Member Functions inherited from TAO_Notify::Topology_Object
 Topology_Object ()
 The constructor. More...
virtual ~Topology_Object ()
 The destructor. More...
virtual void initialize (Topology_Parent *topology_parent)
 Init this object with data from <rhs>. More...
virtual TAO_Notify_Object::ID get_id (void) const
 Find the id associated with topology object. More...
void get_id_path (IdVec &id_path) const
 Get the path of id's from the root to this object. More...
bool is_changed (void) const
 Is there an unsaved change for this object or its children? More...
- Public Member Functions inherited from TAO_Notify_Object
virtual ~TAO_Notify_Object (void)
 Destructor. More...
ID id (void) const
 This Object's ID. More...
void deactivate (void)
 Deactivate. More...
bool has_shutdown (void)
 Have we been shutdown. returns true if shutdown. More...
void execute_task (TAO_Notify_Method_Request &method_request)
CORBA::Object_ptr ref (void)
 Get CORBA Ref. More...
virtual void set_qos (const CosNotification::QoSProperties &qos)
 Set the QoS Properties. More...
CosNotification::QoSPropertiesget_qos (void)
 Get the QoS Properties. More...
bool find_qos_property_value (const char *name, CosNotification::PropertyValue &value) const
virtual TAO_Notify_Timertimer (void)
 Obtain the Timer manager associated with this object. More...
TAO_Notify_Event_Managerevent_manager (void)
 Accessor for the Event Manager. More...
virtual void load_attrs (const TAO_Notify::NVPList &attrs)
TAO_Notify_Worker_Taskget_worker_task (void)
 Allow access to the underlying worker task. More...
- Public Member Functions inherited from TAO_Notify_Refcountable
 TAO_Notify_Refcountable (void)
 Constructor. More...
virtual ~TAO_Notify_Refcountable ()
CORBA::ULong _incr_refcnt (void)
CORBA::ULong _decr_refcnt (void)
- Public Member Functions inherited from TAO_Notify::Topology_Savable
virtual ~Topology_Savable (void)
 Destructor. More...
virtual void reconnect (void)

Private Member Functions

virtual TAO_Notify_Peerpeer (void)
 Access our Peer. More...

Private Attributes

TAO_Notify_ConsumerAdmin::Ptr consumer_admin_
TAO_Notify_Consumer::Ptr consumer_
 The Consumer that we're connect to. More...


class TAO_Notify_Consumer

Additional Inherited Members

- Protected Member Functions inherited from TAO_Notify::Topology_Object
virtual bool is_persistent (void) const
 Should this object be saved? More...
bool self_change (void)
 Method to report change in this object. More...
Topology_Parenttopology_parent () const
 pointer to our topological parent More...
bool send_change (void)
 Handle details of propagating change. More...
bool send_deletion_change ()
 Handle details of propagating change for a deleted object. More...
- Protected Attributes inherited from TAO_Notify_Proxy
TAO_Notify_FilterAdmin filter_admin_
 Filter Administration. More...
TAO_Notify_EventTypeSeq subscribed_types_
 The types that we're subscribed with the event manager. More...
CORBA::Boolean updates_off_
 True if updates have been turned off. More...

Detailed Description

Base class for all the ProxySuppliers.

Member Typedef Documentation

Constructor & Destructor Documentation

TAO_Notify_ProxySupplier::TAO_Notify_ProxySupplier ( void  )


TAO_Notify_ProxySupplier::~TAO_Notify_ProxySupplier ( )


Member Function Documentation

void TAO_Notify_ProxySupplier::connect ( TAO_Notify_Consumer consumer)


TAO_Notify_Consumer * TAO_Notify_ProxySupplier::consumer ( void  )

Access the Consumer.

TAO_Notify_ConsumerAdmin & TAO_Notify_ProxySupplier::consumer_admin ( void  )

The CA parent.

void TAO_Notify_ProxySupplier::deliver ( TAO_Notify_Method_Request_Dispatch_No_Copy request)

Dispatch Event to consumer.

Reimplemented in TAO_Notify_RT_StructuredProxyPushSupplier.

void TAO_Notify_ProxySupplier::destroy ( void  )

Destroy this object.

Implements TAO_Notify_Proxy.

void TAO_Notify_ProxySupplier::destroy ( bool  from_timeout)

Destroy this object, but also indicate if it is due to a timeout or not.

void TAO_Notify_ProxySupplier::disconnect ( void  )


void TAO_Notify_ProxySupplier::init ( TAO_Notify_ConsumerAdmin consumer_admin)


bool TAO_Notify_ProxySupplier::is_connected ( void  ) const

Returns true if connected.

TAO_Notify_Peer * TAO_Notify_ProxySupplier::peer ( void  )

Access our Peer.

Implements TAO_Notify_Proxy.

void TAO_Notify_ProxySupplier::qos_changed ( const TAO_Notify_QoSProperties qos_properties)

Override, TAO_Notify_Proxy::qos_changed to apply MaxEventssPerConsumer QoS.

Reimplemented from TAO_Notify_Proxy.

int TAO_Notify_ProxySupplier::shutdown ( void  )

Override TAO_Notify_Container_T::shutdown method.

Reimplemented from TAO_Notify_Object.

Friends And Related Function Documentation

friend class TAO_Notify_Consumer

Member Data Documentation

TAO_Notify_Consumer::Ptr TAO_Notify_ProxySupplier::consumer_

The Consumer that we're connect to.

TAO_Notify_ConsumerAdmin::Ptr TAO_Notify_ProxySupplier::consumer_admin_

= Data Members. The CA parent.

The documentation for this class was generated from the following files:
