Adapts an ACE timer queue using a separate thread for dispatching. More...

#include <Timer_Queue_Adapters.h>

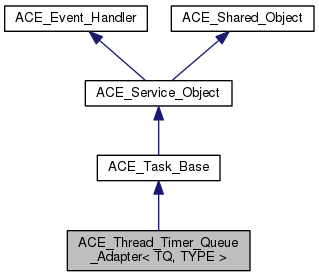

Inheritance diagram for ACE_Thread_Timer_Queue_Adapter< TQ, TYPE >:

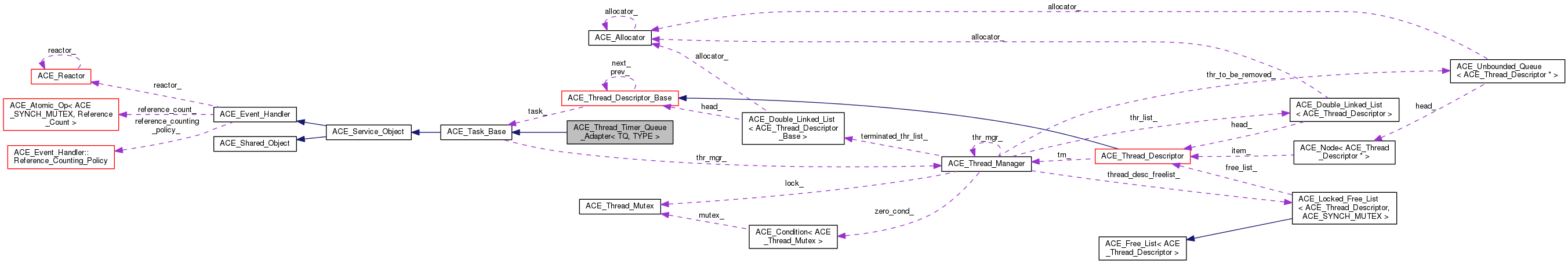

Collaboration diagram for ACE_Thread_Timer_Queue_Adapter< TQ, TYPE >:

Public Types
typedef TQ	TIMER_QUEUE
	Trait for the underlying queue type. More...

Public Member Functions
	ACE_Thread_Timer_Queue_Adapter (ACE_Thread_Manager =ACE_Thread_Manager::instance(), TQ timer_queue=0)

virtual	~ACE_Thread_Timer_Queue_Adapter (void)
	Destructor. More...

long	schedule (TYPE handler, const void *act, const ACE_Time_Value &future_time, const ACE_Time_Value &interval=ACE_Time_Value::zero)

int	cancel (long timer_id, const void **act=0)

virtual int	svc (void)
	Runs the dispatching thread. More...

virtual void	deactivate (void)
	Inform the dispatching thread that it should terminate. More...

ACE_SYNCH_RECURSIVE_MUTEX &	mutex (void)
	Access the locking mechanism, useful for iteration. More...

int	timer_queue (TQ *tq)
	Set a user-specified timer queue. More...

TQ *	timer_queue (void) const
	Return the current <TQ>. More...

ACE_thread_t	thr_id (void) const
	Return the thread id of our active object. More...

virtual int	activate (long flags=THR_NEW_LWP\|THR_JOINABLE, int n_threads=1, int force_active=0, long priority=ACE_DEFAULT_THREAD_PRIORITY, int grp_id=-1, ACE_Task_Base task=0, ACE_hthread_t thread_handles[]=0, void stack[]=0, size_t stack_size[]=0, ACE_thread_t thread_ids[]=0, const char *thr_name[]=0)

Public Member Functions inherited from ACE_Task_Base
	ACE_Task_Base (ACE_Thread_Manager *=0)
	Constructor. More...

virtual	~ACE_Task_Base (void)
	Destructor. More...

virtual int	open (void *args=0)
	Default ACE_Task open routine. More...

virtual int	close (u_long flags=0)
	Default ACE_Task close routine. More...

virtual int	module_closed (void)

virtual int	put (ACE_Message_Block , ACE_Time_Value =0)
	Default ACE_Task put routine. More...

virtual int	wait (void)
	Wait for all threads running in a task to exit. More...

virtual int	suspend (void)
	Suspend a task. More...

virtual int	resume (void)
	Resume a suspended task. More...

int	grp_id (void) const
	Get the current group id. More...

void	grp_id (int)
	Set the current group id. More...

ACE_Thread_Manager *	thr_mgr (void) const
	Get the thread manager associated with this Task. More...

void	thr_mgr (ACE_Thread_Manager *)
	Set the thread manager associated with this Task. More...

int	is_reader (void) const
	True if queue is a reader, else false. More...

int	is_writer (void) const
	True if queue is a writer, else false. More...

size_t	thr_count (void) const

ACE_thread_t	last_thread (void) const

Public Member Functions inherited from ACE_Service_Object
	ACE_Service_Object (ACE_Reactor *=0)
	Constructor. More...

virtual	~ACE_Service_Object (void)
	Destructor. More...

Public Member Functions inherited from ACE_Event_Handler
virtual	~ACE_Event_Handler (void)
	Destructor is virtual to enable proper cleanup. More...

virtual ACE_HANDLE	get_handle (void) const
	Get the I/O handle. More...

virtual void	set_handle (ACE_HANDLE)
	Set the I/O handle. More...

virtual int	priority (void) const

virtual void	priority (int priority)
	Set the priority of the Event_Handler. More...

virtual int	handle_input (ACE_HANDLE fd=ACE_INVALID_HANDLE)
	Called when input events occur (e.g., connection or data). More...

virtual int	handle_output (ACE_HANDLE fd=ACE_INVALID_HANDLE)

virtual int	handle_exception (ACE_HANDLE fd=ACE_INVALID_HANDLE)
	Called when an exceptional events occur (e.g., SIGURG). More...

virtual int	handle_timeout (const ACE_Time_Value &current_time, const void *act=0)

virtual int	handle_exit (ACE_Process *)
	Called when a process exits. More...

virtual int	handle_close (ACE_HANDLE handle, ACE_Reactor_Mask close_mask)

virtual int	handle_signal (int signum, siginfo_t =0, ucontext_t =0)

virtual int	resume_handler (void)

virtual int	handle_qos (ACE_HANDLE=ACE_INVALID_HANDLE)

virtual int	handle_group_qos (ACE_HANDLE=ACE_INVALID_HANDLE)

virtual void	reactor (ACE_Reactor *reactor)
	Set the event demultiplexors. More...

virtual ACE_Reactor *	reactor (void) const
	Get the event demultiplexors. More...

virtual ACE_Reactor_Timer_Interface *	reactor_timer_interface (void) const
	Get only the reactor's timer related interface. More...

virtual Reference_Count	add_reference (void)
	Increment reference count on the handler. More...

virtual Reference_Count	remove_reference (void)
	Decrement reference count on the handler. More...

Reference_Counting_Policy &	reference_counting_policy (void)
	Current Reference_Counting_Policy. More...

Public Member Functions inherited from ACE_Shared_Object
	ACE_Shared_Object (void)
	Constructor. More...

virtual	~ACE_Shared_Object (void)
	Destructor. More...

virtual int	init (int argc, ACE_TCHAR *argv[])
	Initializes object when dynamic linking occurs. More...

virtual int	fini (void)
	Terminates object when dynamic unlinking occurs. More...

virtual int	info (ACE_TCHAR **info_string, size_t length=0) const
	Returns information on a service object. More...

Private Attributes
TQ *	timer_queue_
	The underlying Timer_Queue. More...

bool	delete_timer_queue_

ACE_SYNCH_RECURSIVE_MUTEX	mutex_

ACE_SYNCH_RECURSIVE_CONDITION	condition_

bool	active_

ACE_thread_t	thr_id_
	Thread id of our active object task. More...

Additional Inherited Members
Static Public Member Functions inherited from ACE_Task_Base
static ACE_THR_FUNC_RETURN	svc_run (void *)
	Routine that runs the service routine as a daemon thread. More...

static void	cleanup (void object, void params)

Protected Types inherited from ACE_Event_Handler
typedef ACE_Atomic_Op < ACE_SYNCH_MUTEX, Reference_Count >	Atomic_Reference_Count
	Typedef for implementation of reference counting. More...

Protected Member Functions inherited from ACE_Event_Handler
	ACE_Event_Handler (ACE_Reactor *=0, int priority=ACE_Event_Handler::LO_PRIORITY)
	Force ACE_Event_Handler to be an abstract base class. More...

Protected Attributes inherited from ACE_Task_Base
size_t	thr_count_

ACE_Thread_Manager *	thr_mgr_
	Multi-threading manager. More...

u_long	flags_
	ACE_Task flags. More...

int	grp_id_
	This maintains the group id of the Task. More...

ACE_thread_t	last_thread_id_
	Holds the thread ID of the last thread to exit svc() in this object. More...

Detailed Description

template<class TQ, class TYPE = ACE_Event_Handler*>
class ACE_Thread_Timer_Queue_Adapter< TQ, TYPE >

Adapts an ACE timer queue using a separate thread for dispatching.

This implementation uses a separate thread to dispatch the timers. The base queue need not be thread safe; this class takes all the necessary locks.

Note: This is a case where template parameters will be useful, but (IMHO) the effort and portability problems discourage their use.

Member Typedef Documentation

template<class TQ , class TYPE = ACE_Event_Handler*>

typedef TQ ACE_Thread_Timer_Queue_Adapter< TQ, TYPE >::TIMER_QUEUE

Trait for the underlying queue type.
