ACE_POSIX_Asynch_Operation Class Reference

This class implements ACE_Asynch_Operation for all implementations of Proactor (AIOCB, SIG, SUN) Specific future implementations can derive from this class. More...

#include <POSIX_Asynch_IO.h>

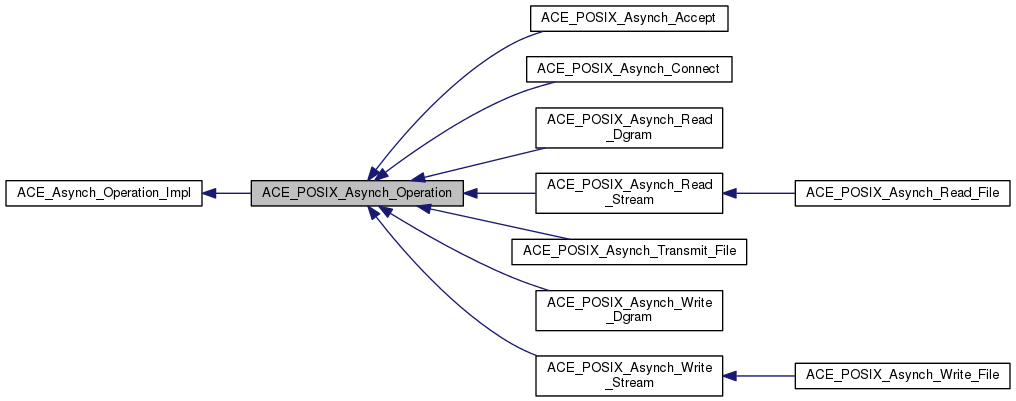

Inheritance diagram for ACE_POSIX_Asynch_Operation:
Inheritance graph
[legend]

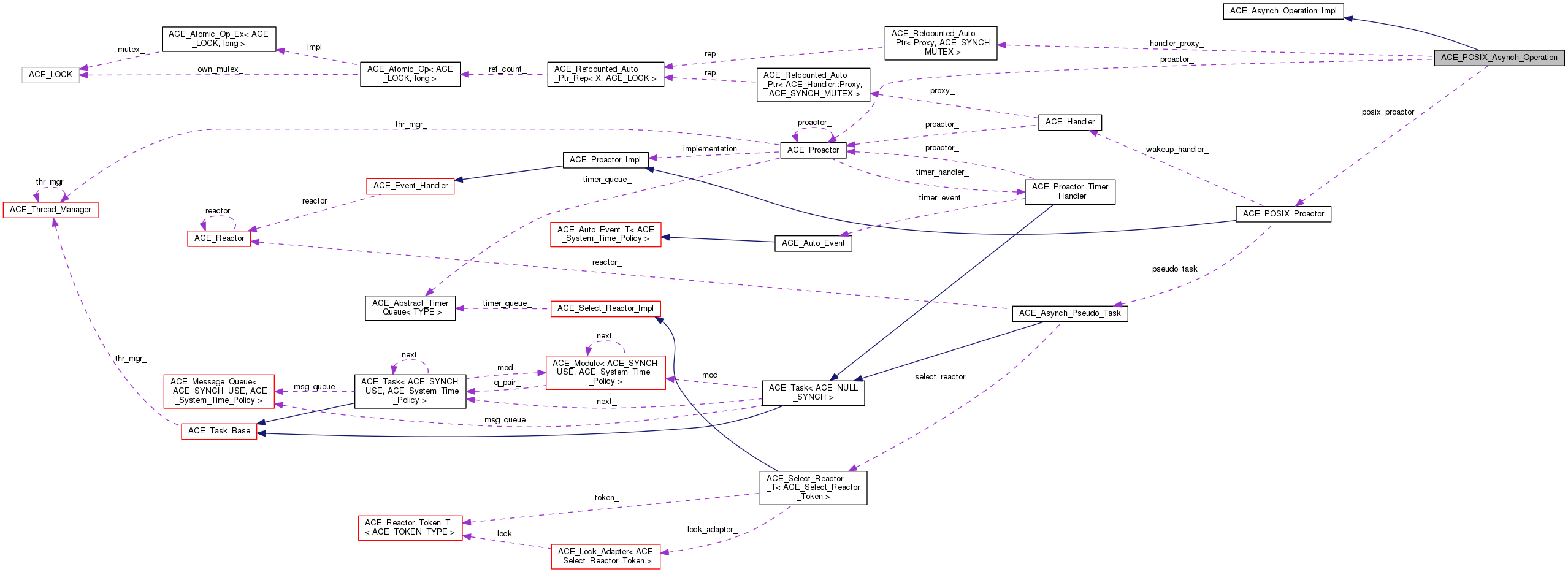

Collaboration diagram for ACE_POSIX_Asynch_Operation:
Collaboration graph
[legend]

Public Member Functions

int open (const ACE_Handler::Proxy_Ptr &handler_proxy, ACE_HANDLE handle, const void *completion_key, ACE_Proactor *proactor=0)

int cancel (void)
 Check the documentation for ACE_Asynch_Operation::cancel. More...

ACE_Proactorproactor (void) const
 Return the underlying proactor. More...

ACE_POSIX_Proactorposix_proactor (void) const
 Return the underlying Proactor implementation. More...

- Public Member Functions inherited from ACE_Asynch_Operation_Impl
virtual ~ACE_Asynch_Operation_Impl (void)


Protected Member Functions

 ACE_POSIX_Asynch_Operation (ACE_POSIX_Proactor *posix_proactor)
 Contructor. More...

virtual ~ACE_POSIX_Asynch_Operation (void)
 Destructor. More...

- Protected Member Functions inherited from ACE_Asynch_Operation_Impl
 ACE_Asynch_Operation_Impl (void)
 Do-nothing constructor. More...


Protected Attributes

ACE_POSIX_Proactorposix_proactor_

ACE_Proactorproactor_
 Proactor that this Asynch IO will be registered with. More...

ACE_Handler::Proxy_Ptr handler_proxy_
 Handler that will receive the callback. More...

ACE_HANDLE handle_
 I/O handle used for reading. More...


Detailed Description

This class implements ACE_Asynch_Operation for all implementations of Proactor (AIOCB, SIG, SUN) Specific future implementations can derive from this class.

Constructor & Destructor Documentation

ACE_POSIX_Asynch_Operation::ACE_POSIX_Asynch_Operation ( ACE_POSIX_Proactor posix_proactor)
protected

Contructor.

ACE_POSIX_Asynch_Operation::~ACE_POSIX_Asynch_Operation ( void  )
protectedvirtual

Destructor.

Member Function Documentation

int ACE_POSIX_Asynch_Operation::cancel ( void  )
virtual

Check the documentation for ACE_Asynch_Operation::cancel.

Implements ACE_Asynch_Operation_Impl.

Reimplemented in ACE_POSIX_Asynch_Connect, and ACE_POSIX_Asynch_Accept.

int ACE_POSIX_Asynch_Operation::open ( const ACE_Handler::Proxy_Ptr handler_proxy,
ACE_HANDLE  handle,
const void *  completion_key,
ACE_Proactor proactor = 0
)
virtual

Initializes the factory with information which will be used with each asynchronous call. If (handle == ACE_INVALID_HANDLE), ACE_Handler::handle will be called on the handler to get the correct handle. No need for the Proactor since the sub classes will know the correct implementation Proactor class, since this Operation class itself was created by the correct implementation Proactor class.

Implements ACE_Asynch_Operation_Impl.

Reimplemented in ACE_POSIX_Asynch_Connect, and ACE_POSIX_Asynch_Accept.

ACE_POSIX_Proactor * ACE_POSIX_Asynch_Operation::posix_proactor ( void  ) const

Return the underlying Proactor implementation.

ACE_Proactor * ACE_POSIX_Asynch_Operation::proactor ( void  ) const
virtual

Return the underlying proactor.

Implements ACE_Asynch_Operation_Impl.

Member Data Documentation

ACE_HANDLE ACE_POSIX_Asynch_Operation::handle_
protected

I/O handle used for reading.

ACE_Handler::Proxy_Ptr ACE_POSIX_Asynch_Operation::handler_proxy_
protected

Handler that will receive the callback.

ACE_POSIX_Proactor* ACE_POSIX_Asynch_Operation::posix_proactor_
protected

It is easy to get this specific implementation proactor here, since it is the one that creates the correct POSIX_Asynch_* objects. We can use this to get to the implementation proactor directly.

ACE_Proactor* ACE_POSIX_Asynch_Operation::proactor_
protected

Proactor that this Asynch IO will be registered with.


The documentation for this class was generated from the following files:
