This class is useful to perform ICMP echo checks (pinging) on the party of your interest. It may be used as well to check LAN-adapters against 3rd parties. More...

#include <Ping_Socket.h>

Inheritance diagram for ACE_Ping_Socket:

[legend]

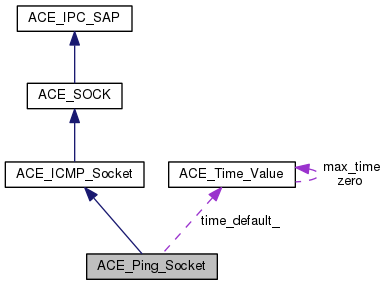

Collaboration diagram for ACE_Ping_Socket:

[legend]

Public Types
enum	{ PING_BUFFER_SIZE = (1024 * 2) }

Public Member Functions
	ACE_Ping_Socket (void)
	Default constructor. More...

	ACE_Ping_Socket (ACE_Addr const &local, int protocol=IPPROTO_ICMP, int reuse_addr=0)

	~ACE_Ping_Socket (void)
	Destructor. More...

int	open (ACE_Addr const &local=ACE_Addr::sap_any, int protocol=IPPROTO_ICMP, int reuse_addr=0)
	Wrapper around the BSD-style `socket` system call (no QoS). More...

int	send_echo_check (ACE_INET_Addr &remote_addr, bool to_connect=false)
	to_connect = true - makes connect to remote address More...

int	process_incoming_dgram (char *ptr, ssize_t len)

int	make_echo_check (ACE_INET_Addr &remote_addr, bool to_connect=false, ACE_Time_Value const *timeout=&time_default_)
	to_connect = true - makes connect to remote address More...

char *	icmp_recv_buff (void)

void	dump (void) const
	Dump the state of an object. More...

Public Member Functions inherited from ACE_ICMP_Socket
int	open (ACE_Addr const &local=ACE_Addr::sap_any, int protocol=IPPROTO_ICMP, int reuse_addr=0)
	Wrapper around the BSD-style `socket` system call (no QoS). More...

void	dump (void) const
	Dump the state of object. More...

ssize_t	send (void const *buf, size_t n, ACE_Addr const &addr, int flags=0) const

ssize_t	recv (void *buf, size_t n, ACE_Addr &addr, int flags=0) const

ssize_t	recv (void buf, size_t n, int flags, ACE_Time_Value const timeout) const
	TODO: comment. More...

Public Member Functions inherited from ACE_SOCK
int	set_option (int level, int option, void *optval, int optlen) const
	Wrapper around the `setsockopt` system call. More...

int	get_option (int level, int option, void optval, int optlen) const
	Wrapper around the `getsockopt` system call. More...

int	close (void)

int	get_local_addr (ACE_Addr &) const

int	get_remote_addr (ACE_Addr &) const

void	dump (void) const
	Dump the state of an object. More...

int	open (int type, int protocol_family, int protocol, int reuse_addr)
	Wrapper around the BSD-style `socket` system call (no QoS). More...

int	open (int type, int protocol_family, int protocol, ACE_Protocol_Info *protocolinfo, ACE_SOCK_GROUP g, u_long flags, int reuse_addr)
	Wrapper around the QoS-enabled `WSASocket` function. More...

Public Member Functions inherited from ACE_IPC_SAP
int	control (int cmd, void *) const
	Interface for <ioctl>. More...

int	enable (int value) const

int	disable (int value) const

ACE_HANDLE	get_handle (void) const
	Get the underlying handle. More...

void	set_handle (ACE_HANDLE handle)
	Set the underlying handle. More...

void	dump (void) const
	Dump the state of an object. More...

Public Attributes
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks. More...

Public Attributes inherited from ACE_ICMP_Socket
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks. More...

Public Attributes inherited from ACE_SOCK
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks. More...

Public Attributes inherited from ACE_IPC_SAP
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks. More...

Static Public Attributes
static ACE_Time_Value const	time_default_

Private Types
typedef ACE_ICMP_Socket	inherited

Private Member Functions
int	receive_echo_reply (ACE_Time_Value const *timeout)

int	get_remote_addr (ACE_INET_Addr &addr) const
	Do not allow this function to percolate up to this interface. More...

Private Attributes
char	icmp_send_buff_ [PING_BUFFER_SIZE]

char	icmp_recv_buff_ [PING_BUFFER_SIZE]

ACE_UINT16	sequence_number_

bool	connected_socket_

Additional Inherited Members
Protected Member Functions inherited from ACE_ICMP_Socket
	ACE_ICMP_Socket (void)
	Default constructor. More...

	ACE_ICMP_Socket (ACE_Addr const &local, int protocol=IPPROTO_ICMP, int reuse_addr=0)
	Constructor that takes a local listening address. More...

int	shared_open (ACE_Addr const &local)
	Wrapper around BSD-style `bind` system call. More...

unsigned short	calculate_checksum (unsigned short *paddress, int len)
	Calculates check-sum. More...

Detailed Description

This class is useful to perform ICMP echo checks (pinging) on the party of your interest. It may be used as well to check LAN-adapters against 3rd parties.

Member Typedef Documentation

typedef ACE_ICMP_Socket ACE_Ping_Socket::inherited

private

Member Enumeration Documentation

anonymous enum

Enumerator
PING_BUFFER_SIZE

Constructor & Destructor Documentation

ACE_Ping_Socket::ACE_Ping_Socket ( void )

Default constructor.

ACE_Ping_Socket::ACE_Ping_Socket	(	ACE_Addr const &	local,
		int	protocol = `IPPROTO_ICMP`,
		int	reuse_addr = `0`
	)

ACE_Ping_Socket::~ACE_Ping_Socket ( void )

Destructor.

Member Function Documentation

void ACE_Ping_Socket::dump ( void ) const

Dump the state of an object.

int ACE_Ping_Socket::get_remote_addr ( ACE_INET_Addr & addr ) const

private

Do not allow this function to percolate up to this interface.

char * ACE_Ping_Socket::icmp_recv_buff ( void )

inline

int ACE_Ping_Socket::make_echo_check	(	ACE_INET_Addr &	remote_addr,
		bool	to_connect = `false`,
		ACE_Time_Value const *	timeout = `&time_default_`
	)

to_connect = true - makes connect to remote address

int ACE_Ping_Socket::open	(	ACE_Addr const &	local = `ACE_Addr::sap_any`,
		int	protocol = `IPPROTO_ICMP`,
		int	reuse_addr = `0`
	)

Wrapper around the BSD-style socket system call (no QoS).

int ACE_Ping_Socket::process_incoming_dgram	(	char *	ptr,
		ssize_t	len
	)

To receive ICMP_ECHOREPLY. To be called after successfully sending ICMP_ECHO.

int ACE_Ping_Socket::receive_echo_reply ( ACE_Time_Value const * timeout )

private

int ACE_Ping_Socket::send_echo_check	(	ACE_INET_Addr &	remote_addr,
		bool	to_connect = `false`
	)

to_connect = true - makes connect to remote address

Member Data Documentation

ACE_Ping_Socket::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

bool ACE_Ping_Socket::connected_socket_

private

char ACE_Ping_Socket::icmp_recv_buff_[PING_BUFFER_SIZE]

private

char ACE_Ping_Socket::icmp_send_buff_[PING_BUFFER_SIZE]

private

ACE_UINT16 ACE_Ping_Socket::sequence_number_

private

ACE_Time_Value const ACE_Ping_Socket::time_default_

static

The documentation for this class was generated from the following files:
