ACE_GQoS_Session Class Reference

A GQoS session object. More...

#include <QoS_Session_Impl.h>

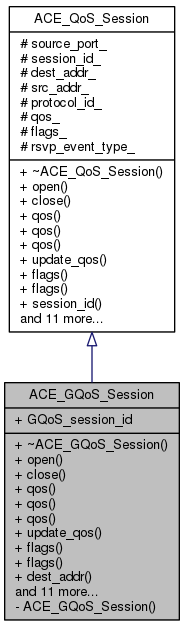

Inheritance diagram for ACE_GQoS_Session:
Inheritance graph
Collaboration diagram for ACE_GQoS_Session:
Collaboration graph

Public Member Functions

 ~ACE_GQoS_Session (void)
 Default destructor. More...

virtual int open (ACE_INET_Addr dest_addr, ACE_Protocol_ID protocol_id)
 Open a GQoS session [dest IP, dest port, Protocol ID]. More...

virtual int close (void)
 Close the GQoS Session. More...

virtual ACE_QoS qos (void) const
 Returns the QoS for this GQoS session. More...

virtual int qos (ACE_SOCK *socket, ACE_QoS_Manager *qos_manager, const ACE_QoS &ace_qos)

virtual void qos (const ACE_QoS &ace_qos)

virtual int update_qos (void)

virtual ACE_End_Point_Type flags (void) const
 Get/Set methods for the flags_. More...

virtual void flags (const ACE_End_Point_Type flags)

virtual ACE_INET_Addr dest_addr (void) const
 Get the destination address for this GQoS session. More...

virtual void dest_addr (const ACE_INET_Addr &dest_addr)
 Set the destination address for this GQoS session. More...

virtual u_short source_port (void) const
 Get the source port for this session. More...

virtual void source_port (const u_short &source_port)
 Set the source port for this session. More...

virtual ACE_INET_Addrsource_addr (void) const

virtual void source_addr (ACE_INET_Addr *source_addr)
 Set the source port for this session. More...

virtual int session_id (void) const
 Get the GQoS session id. More...

virtual void session_id (const int session_id)
 Set the GQoS session id. More...

virtual ACE_HANDLE rsvp_events_handle (void)
 Get the file descriptor of the underlying socket. More...

virtual void rsvp_event_type (RSVP_Event_Type event_type)

virtual RSVP_Event_Type rsvp_event_type (void)
 Set the RAPI event that last occured. More...

virtual int version ()
 Get the RAPI event that last occured. More...

- Public Member Functions inherited from ACE_QoS_Session
virtual ~ACE_QoS_Session (void)
 to shutup g++. More...


Static Public Attributes

static int GQoS_session_id = 0


Private Member Functions

 ACE_GQoS_Session (void)


Friends

class ACE_QoS_Session_Factory


Additional Inherited Members

- Public Types inherited from ACE_QoS_Session
enum  RSVP_Event_Type {
  RSVP_PATH_EVENT, RSVP_RESV_EVENT, RSVP_RESV_CONFIRM, RSVP_RESV_ERROR,
  RSVP_PATH_ERROR
}

enum  ACE_End_Point_Type { ACE_QOS_SENDER, ACE_QOS_RECEIVER, ACE_QOS_BOTH }

- Protected Attributes inherited from ACE_QoS_Session
u_short source_port_
 Source port if this is a Sender session. Used for rapi_sender (). More...

int session_id_
 session id for the session. More...

ACE_INET_Addr dest_addr_
 Destination address for this session. More...

ACE_INET_Addrsrc_addr_
 Source address for this session. More...

ACE_Protocol_ID protocol_id_
 Is this a TCP or a UDP session. More...

ACE_QoS qos_
 QoS for this session. More...

ACE_End_Point_Type flags_
 Specifies if this is a sending/receiving/both session. More...

RSVP_Event_Type rsvp_event_type_


Detailed Description

A GQoS session object.

This class is a GQoS (Generic QoS, an implementation of RSVP on Win2K) implementation of the ACE_QoS_Session interface.

Constructor & Destructor Documentation

ACE_GQoS_Session::~ACE_GQoS_Session ( void  )
inline

Default destructor.

ACE_GQoS_Session::ACE_GQoS_Session ( void  )
private

Default constructor. Constructor is defined private so that only the friend factory can instantiate this class.

Member Function Documentation

int ACE_GQoS_Session::close ( void  )
virtual

Close the GQoS Session.

Implements ACE_QoS_Session.

ACE_INET_Addr ACE_GQoS_Session::dest_addr ( void  ) const
inlinevirtual

Get the destination address for this GQoS session.

Implements ACE_QoS_Session.

void ACE_GQoS_Session::dest_addr ( const ACE_INET_Addr dest_addr)
inlinevirtual

Set the destination address for this GQoS session.

Implements ACE_QoS_Session.

ACE_QoS_Session::ACE_End_Point_Type ACE_GQoS_Session::flags ( void  ) const
inlinevirtual

Get/Set methods for the flags_.

Implements ACE_QoS_Session.

void ACE_GQoS_Session::flags ( const ACE_End_Point_Type  flags)
inlinevirtual

Implements ACE_QoS_Session.

int ACE_GQoS_Session::open ( ACE_INET_Addr  dest_addr,
ACE_Protocol_ID  protocol_id
)
virtual

Open a GQoS session [dest IP, dest port, Protocol ID].

Implements ACE_QoS_Session.

ACE_QoS ACE_GQoS_Session::qos ( void  ) const
inlinevirtual

Returns the QoS for this GQoS session.

Implements ACE_QoS_Session.

int ACE_GQoS_Session::qos ( ACE_SOCK socket,
ACE_QoS_Manager qos_manager,
const ACE_QoS ace_qos
)
virtual

Set QoS for this GQoS session. The socket parameter is used to confirm if this QoS session was subscribed to by the socket.

Implements ACE_QoS_Session.

void ACE_GQoS_Session::qos ( const ACE_QoS ace_qos)
inlinevirtual

Sets the QoS for this session object to ace_qos. Does not interfere with the QoS in the underlying socket. This call is useful to update the QoS object when the underlying socket QoS is being set through a mechanism other than the previous qos () method e.g. inside the dgram_mcast.subscribe () where the QoS for the socket is set through ACE_OS::join_leaf ().

Implements ACE_QoS_Session.

void ACE_GQoS_Session::rsvp_event_type ( ACE_QoS_Session::RSVP_Event_Type  event_type)
virtual

Implements ACE_QoS_Session.

ACE_QoS_Session::RSVP_Event_Type ACE_GQoS_Session::rsvp_event_type ( void  )
virtual

Set the RAPI event that last occured.

Implements ACE_QoS_Session.

ACE_HANDLE ACE_GQoS_Session::rsvp_events_handle ( void  )
inlinevirtual

Get the file descriptor of the underlying socket.

Implements ACE_QoS_Session.

int ACE_GQoS_Session::session_id ( void  ) const
inlinevirtual

Get the GQoS session id.

Implements ACE_QoS_Session.

void ACE_GQoS_Session::session_id ( const int  session_id)
inlinevirtual

Set the GQoS session id.

Implements ACE_QoS_Session.

ACE_INET_Addr * ACE_GQoS_Session::source_addr ( void  ) const
inlinevirtual

Implements ACE_QoS_Session.

void ACE_GQoS_Session::source_addr ( ACE_INET_Addr source_addr)
inlinevirtual

Set the source port for this session.

Implements ACE_QoS_Session.

u_short ACE_GQoS_Session::source_port ( void  ) const
inlinevirtual

Get the source port for this session.

Implements ACE_QoS_Session.

void ACE_GQoS_Session::source_port ( const u_short &  source_port)
inlinevirtual

Set the source port for this session.

Implements ACE_QoS_Session.

int ACE_GQoS_Session::update_qos ( void  )
virtual

Calls the ioctl (ACE_SIO_GET_QOS). It is a mechanism of updating the QoS for this session asynchronously, as RSVP events occur.

Implements ACE_QoS_Session.

int ACE_GQoS_Session::version ( void  )
inlinevirtual

Get the RAPI event that last occured.

GQoS version.

Implements ACE_QoS_Session.

Friends And Related Function Documentation

friend class ACE_QoS_Session_Factory
friend

The factory is a friend so it can create this object through the only private constructor.

Member Data Documentation

int ACE_GQoS_Session::GQoS_session_id = 0
static

This is a session ID generator. It does a lot more than expected from an int!.


The documentation for this class was generated from the following files:
